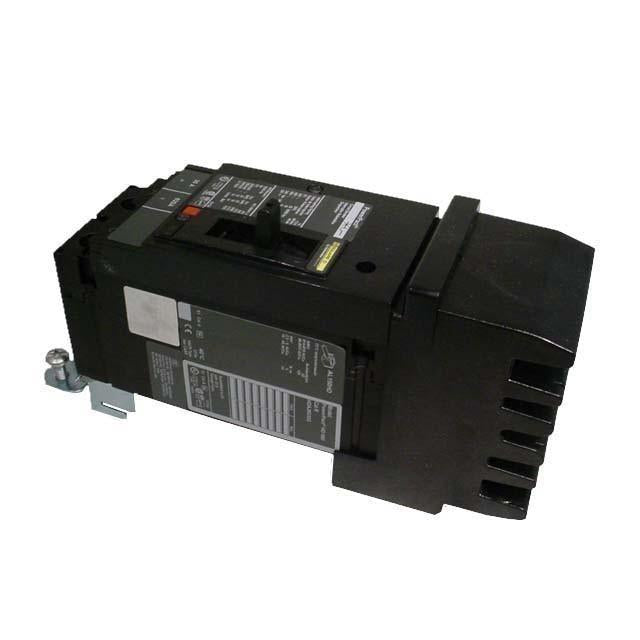

Square D HGA260202 - Molded Case Circuit Breaker 20A 600V 2-Pole
Square D HGA260202 - Molded Case Circuit Breaker 20A 600V 2-Pole

Square D HGA260202 - Molded Case Circuit Breaker 20A 600V 2-Pole

Square D
Price
Save $681.08
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D HGA260202 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 20A current rating and a 600V AC voltage rating, housed within a compact 150A/HG frame measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 4.068 lb. This thermal magnetic breaker is constructed for plug-in connection to I-Line panelboards, offering long-time and instantaneous trip functions with a 35kA interrupting capacity at 480V. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards for safety and performance, and its lug terminals accommodate wire sizes from 14 AWG to 3/0 AWG for copper or aluminum conductors. Typical applications include protecting feeders and branch circuits in panelboards, operating reliably within a temperature range of -25 to 70 °C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Standard
  • Voltage Rating: 600V AC
  • Current Rating: 20A
  • Dimensions: 163 mm x 104 mm x 86 mm (H x W x D)
  • Weight: 4.068 lb
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial and Commercial Panelboard Protection
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25°C to 70°C
  • Phase: 1
  • AIC Rating: 35kA @ 480V
  • Connection: Plug In Panelboard
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous
  • Frame Size: 150A/HG
  • Panel Type: I Line Panelboards
  • Breaker Type: Standard
  • MCM Size: 14 AWG to 3/0 AWG
  • Terminal Connection: Lug
  • Wire Size: 14 AWG to 3/0 AWG (Aluminium/Copper)
  • Certification: UL, CSA, NOM
  • Phase Connection: AC
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901912316
  • GTIN: 00785901912316
