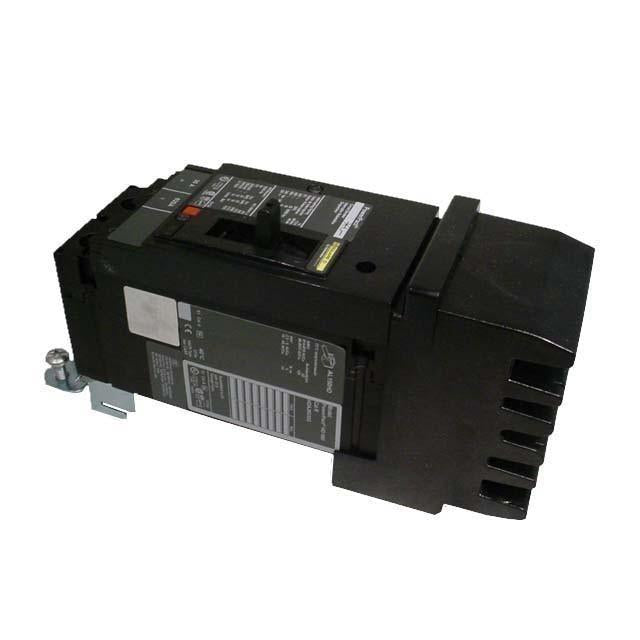

Square D HGA260152 - Molded Case Circuit Breaker 15A 600V 2-Pole
Square D HGA260152 - Molded Case Circuit Breaker 15A 600V 2-Pole

Square D HGA260152 - Molded Case Circuit Breaker 15A 600V 2-Pole

Square D
Price
Save $115.04
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D HGA260152 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 15A current rating and a 600V AC voltage rating, housed within a compact 163 mm x 104 mm x 86 mm (HxWxD) frame with a lug terminal connection. This thermal-magnetic breaker complies with UL, CSA, NEMA, and IEC 60947-2 standards, ensuring safe operation across a temperature range of -25 to 70 °C. It is engineered for plug-in installation in I-Line panelboards, offering a 35kA interrupting capacity at 480V for robust protection in single-phase AC applications.

Key Features & Specifications
  • Type: Standard thermal-magnetic molded case circuit breaker
  • Voltage Rating: 600V AC
  • Current Rating: 15A
  • Dimensions: 163 mm x 104 mm x 86 mm (HxWxD)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial and commercial panelboard protection
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Coil Voltage Maximum: Not Applicable
  • Temp Rating: -25 to 70 °C
  • Shipping Dimensions: Not Specified
  • Phase: 1
  • Voltage: 600V AC
  • Amperage: 15A
  • AIC rating: 35kA @ 480V
  • Connection: Plug In Panelboard
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous
  • Frame Size: 150A/HG
  • Trip Type: Thermal-Magnetic
  • Panel Type: I Line Panelboards
  • Breaker Type: Standard
  • Control Voltage Minimum: Not Applicable
  • Control Voltage Maximum: Not Applicable
  • MCM Size: Min. Wire Size 14 AWG, Max. Wire Size 3 AWG
  • Metal Type: Not Specified
  • Panel Style: Not Specified
  • Bus Type: Not Specified
  • Fuse Class: Not Applicable
  • Insulation Temperature: Not Specified
  • Inductance: Not Specified
  • Impedance: Not Specified
  • Barrels: Not Applicable
  • Class Rating: Not Specified
  • Diameter: Not Applicable
  • Velocity: Not Applicable
  • Clip Center: Not Applicable
  • Class: Not Specified
  • Mounting: Plug-In
  • Hz: 50/60 Hz
  • Coil Material: Not Applicable
  • Horse Power: Not Specified
  • Aux Contacts: None
  • CPT: Not Applicable
  • Full Load Amps: Not Specified
  • Dist Voltage: Not Specified
  • Bucket Size: Not Applicable
  • Bucket Style: Not Applicable
  • Bucket Type: Not Applicable
  • Full Load Amp Maximum: Not Specified
  • Full Load Amp Minimum: Not Specified
  • Enclosure: Molded Case
  • Relay Style: Not Applicable
  • Coil Voltage Minimum: Not Applicable
  • Wire: Copper/Aluminium
  • Amperage Maximum: 15A
  • Amperage Minimum: 15A
  • Nema Rating: Included in Standards
  • Switch Style: Not Specified
  • Wire Size: AWG 14 to AWG 3/0
  • Certification: UL, CSA, NOM
  • Circuit Breaker Mounting Style: Plug-In
  • Terminal Connection: Lug
  • Frequency Rating: 50/60 Hz
  • Phase Connection: AC
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Compatible Frames: 150A/HG
  • Installation Type: Panelboard
  • Item QTY: 1
  • Nema Starter Size: Not Applicable
  • Breaker Frame: 150A/HG
  • Current Rating: 15A
  • Reverse Standoff Voltage: Not Applicable
  • Watts: Not Specified
  • Peak Pulse Current: Not Applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not Applicable
  • Breakdown Voltage (VBR@IT) (V): Not Applicable
  • Polarity: Not Applicable
  • Operating Temperature Maximum Celsius: 70 °C
  • Max Clamp Voltage: Not Applicable
  • On-State Current: Not Applicable


Product Identification
  • UPC: 785901912286
  • GTIN: 00785901912286
