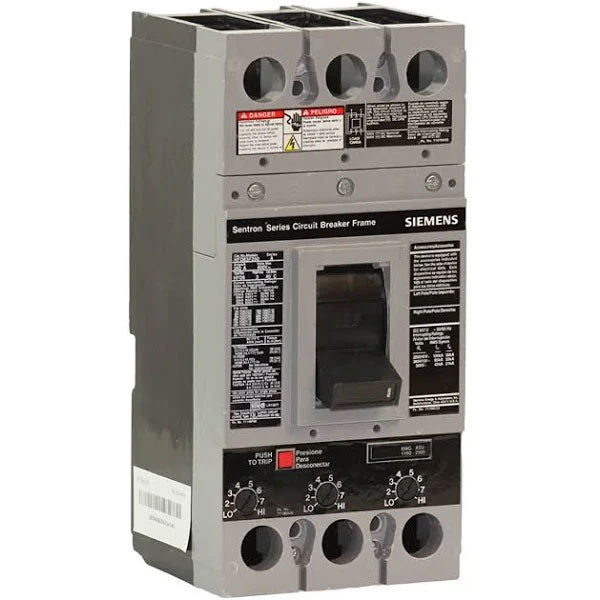

Siemens HFXD63B225 - Molded Case Circuit Breaker 225A 600V 3P
Siemens HFXD63B225 - Molded Case Circuit Breaker 225A 600V 3P

Siemens HFXD63B225 - Molded Case Circuit Breaker 225A 600V 3P

Siemens
Price
Save $15,990.05
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens HFXD63B225 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 225A continuous current rating and a 600V AC voltage rating, housed within a compact FD frame measuring 5.906" W x 9.843" H x 6.693" D and weighing 8.501 lb. The breaker utilizes a thermal-magnetic trip unit for combined long-time and instantaneous protection, is rated for 65kA interrupting capacity at 480V AC, and operates reliably across a temperature range of -25°C to 70°C. It complies with industry standards for integration into various panel types including S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, and F2. This bolt-on, three-pole breaker is engineered for demanding applications in industrial control panels, switchboards, and motor control centers, with lugs required to be sourced separately for installation.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Long Time and Instantaneous Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 225A
  • Dimensions: 5.906" W x 9.843" H x 6.693" D (150mm x 250mm x 170mm)
  • Weight: 8.501 lb (3.86 kg)
  • Standards: Designed for compliant integration into specified panel types
  • Applications: Industrial power distribution, switchboards, motor control centers, control panels
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • Connection: Bolt-On
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: FD Frame
  • AIC rating: 65kA @ 480V AC
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Panel Type: Compatible with S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
  • Additional Info: Lugs are not included and must be purchased separately


Product Identification
  • UPC: 783643318502
  • GTIN: 00783643318502
