Siemens HFXD63B100 - Molded Case Circuit Breaker 100A 3P 65kA
Siemens HFXD63B100 - Molded Case Circuit Breaker 100A 3P 65kA

Siemens HFXD63B100 - Molded Case Circuit Breaker 100A 3P 65kA

Siemens
Price
Save $17,331.17
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price

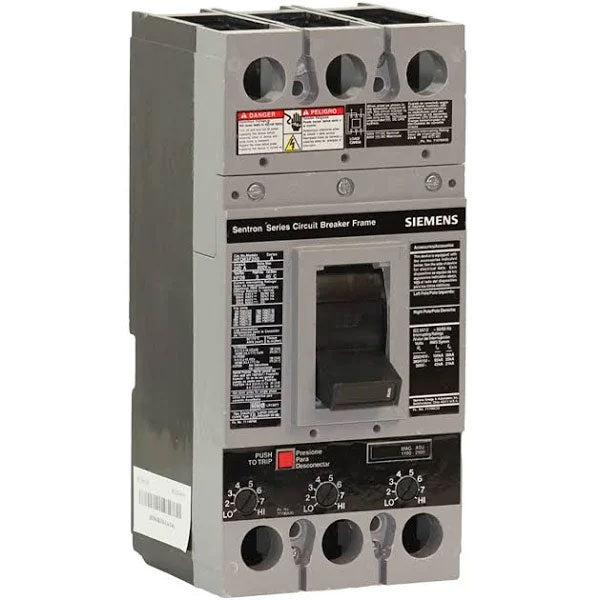

Siemens HFXD63B100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 100A current rating and a 600V AC voltage rating, housed within a compact FD frame measuring 5.906" W x 9.843" H x 6.693" D and weighing 8.982 lb. This thermal-magnetic breaker, part of the Sentron Series, offers both long-time and instantaneous trip functions and is certified to UL and IEC standards for global compliance. It is engineered for integration into various panel types including S4, P4, SPP, F1, and F2, making it suitable for protecting feeders and branch circuits in commercial and industrial facilities.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Frame Size: FD Frame
  • Poles: 3
  • AIC Rating: 65kA at 480V
  • Phase: 3
  • Functions: Long Time and Instantaneous Trip
  • Dimensions: 5.906" W x 9.843" H x 6.693" D (150mm x 250mm x 170mm)
  • Weight: 8.982 lb (4.07 kg)
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Certification: UL, IEC
  • Panel Type Compatibility: S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
  • Connection: Bolt-On (Lugs not included)
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643318458
  • GTIN: 00783643318458
