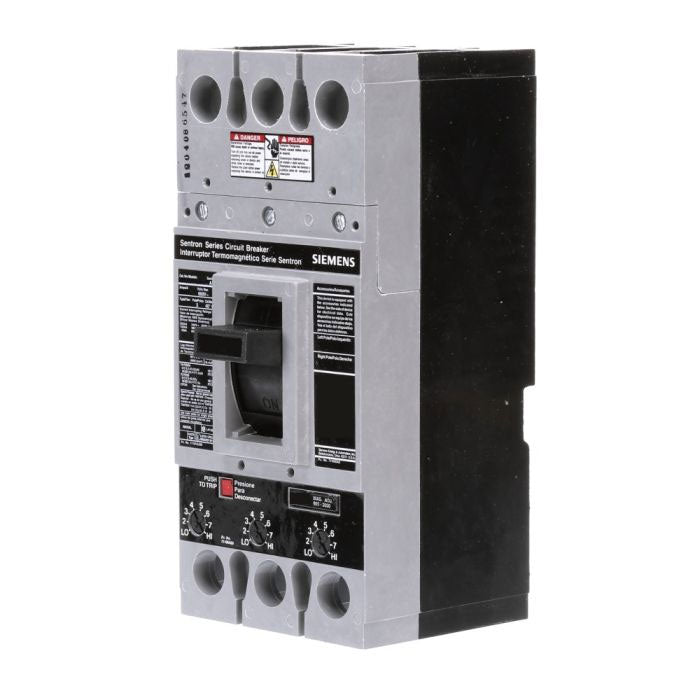

Siemens HFD63B150 - Molded Case Circuit Breaker 150A 600VAC
Siemens HFD63B150 - Molded Case Circuit Breaker 150A 600VAC

Siemens HFD63B150 - Molded Case Circuit Breaker 150A 600VAC

Siemens
Price
Save $18,060.31
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Siemens HFD63B150 is a molded case circuit breaker from the Sentron Series designed to provide reliable thermal-magnetic protection for three-phase industrial power distribution systems. It features a 150A current rating and a 600V AC voltage rating, housed within a compact FD frame measuring 5.906" W x 9.843" H x 6.693" D and weighing 9.524 lb. This bolt-on breaker offers a 65kA interrupting capacity at 480V and is constructed for operation in temperatures from -25°C to 70°C, complying with standard industrial panel types including S4, P4, SPP, and F2. Its long-time and instantaneous trip functions safeguard circuits, typically accepting copper wire from AWG 6 to 350 KCMIL or aluminum from AWG 4 to 350 KCMIL, making it suitable for main feeder and branch circuit protection in commercial and industrial facilities.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Long Time and Instantaneous Trip
  • Voltage Rating: 600V AC
  • Current Rating: 150A
  • Dimensions: 5.906" W x 9.843" H x 6.693" D (150mm x 250mm x 170mm)
  • Standards: Designed for standard industrial panel types (S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2)
  • Applications: Main feeder and branch circuit protection in three-phase industrial and commercial power distribution
  • Phase: 3
  • AIC Rating: 65kA at 480V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: FD Frame
  • Wire Size: AWG 6 to 350 KCMIL (Copper), AWG 4 to 350 KCMIL (Aluminum)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 9.524 lb
  • Additional Info: Lugs are not included and must be purchased separately


Product Identification
  • UPC: 783643211827
  • GTIN: 00783643211827
