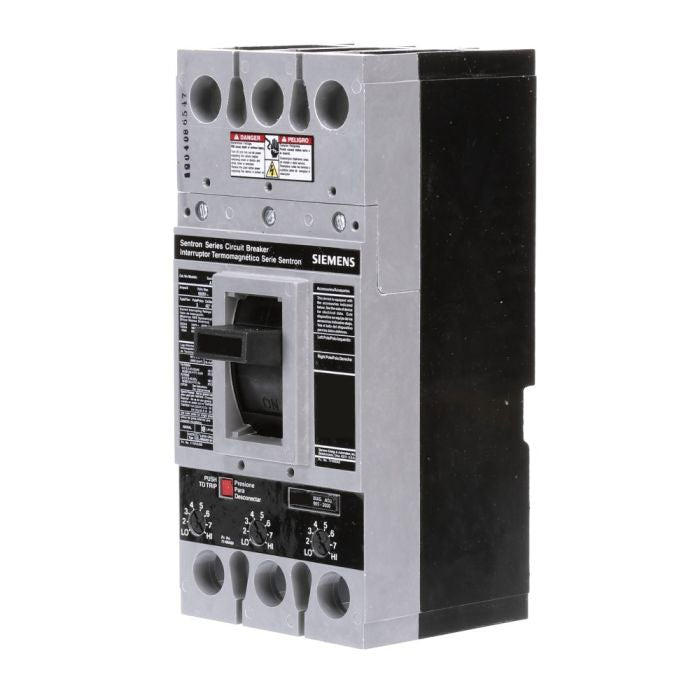

Siemens HFD63B125 - Molded Case Circuit Breaker 125A 600V 3P
Siemens HFD63B125 - Molded Case Circuit Breaker 125A 600V 3P

Siemens HFD63B125 - Molded Case Circuit Breaker 125A 600V 3P

Siemens
Price
Save $11,793.84
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens HFD63B125 is a molded case circuit breaker from the Sentron Series designed to provide reliable thermal-magnetic protection for three-phase industrial power distribution systems. It features a 125A current rating and a 600V AC voltage rating, housed within a compact FD frame measuring 5.906" W x 9.843" H x 6.693" D and weighing 8.576 lb. The breaker is constructed for operation in temperatures from -25°C to 70°C and complies with industry standards for integration into various panel types including S4, P4, SPP, and F-series enclosures. Its 65kA interrupting capacity at 480V makes it suitable for protecting feeders and branch circuits in commercial and industrial facilities, supporting copper wire from AWG 6 to 350 KCMIL and aluminum from AWG 4 to 350 KCMIL with its bolt-on connection (note: lugs are not included).

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection with Long Time and Instantaneous Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 125A
  • Dimensions: 5.906" W x 9.843" H x 6.693" D (150mm x 250mm x 170mm)
  • Standards: Designed for compliant installation in listed panel types (S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2)
  • Applications: Industrial and commercial power distribution, feeder and branch circuit protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • AIC Rating: 65kA @ 480V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: FD Frame
  • Trip Type: Thermal Magnetic
  • Panel Type: S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
  • Breaker Type: Molded Case
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Wire Size: AWG 6 to 350 KCMIL (Cu), AWG 4 to 350 KCMIL (Al)
  • Weight: 8.576 lb
  • Mounting: Panel Mount
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643211810
  • GTIN: 00783643211810
