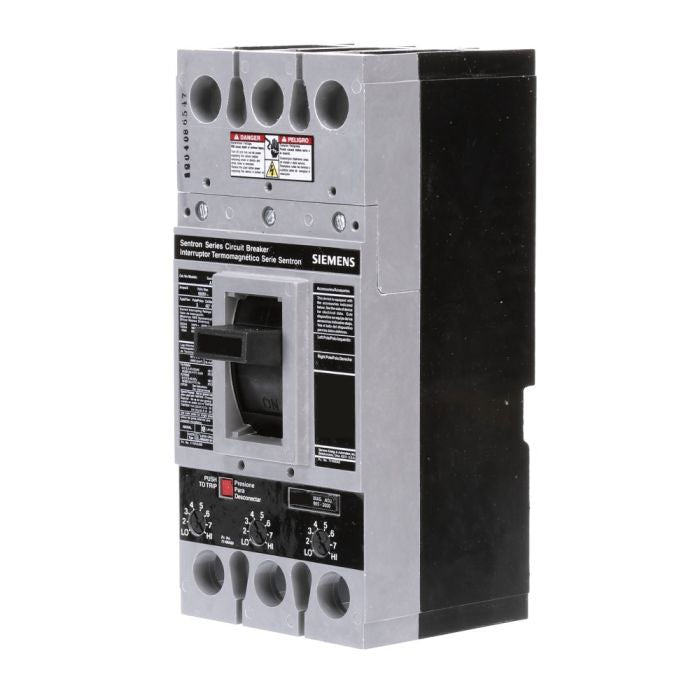

Siemens HFD63B100 - Molded Case Circuit Breaker 100A 600V 3P
Siemens HFD63B100 - Molded Case Circuit Breaker 100A 600V 3P

Siemens HFD63B100 - Molded Case Circuit Breaker 100A 600V 3P

Siemens
Price
Save $17,465.70
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Siemens HFD63B100 is a molded case circuit breaker from the Sentron Series designed to provide reliable thermal-magnetic protection for three-phase industrial power distribution systems. It features a 100A current rating and a 600V AC voltage rating, housed within a compact FD frame with dimensions of 5.906" W x 9.843" H x 6.693" D and a weight of 0.022 lb. The breaker is constructed for bolt-on connection in compatible panel types and operates effectively across a temperature range of -25°C to 70°C (-13°F to 158°F). It complies with industry standards for protection, offering a 65kA interrupting capacity at 480V AC and is engineered for integration into various industrial panelboards and switchboards where robust circuit protection is required.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection with Long Time and Instantaneous Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 5.906" W x 9.843" H x 6.693" D (150mm x 250mm x 170mm)
  • Standards: Designed for compliance with relevant industrial safety and performance standards
  • Applications: Industrial power distribution, panelboards, switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • Connection: Bolt-On
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: FD Frame
  • Trip Type: Thermal Magnetic
  • Panel Type: Compatible with S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
  • Breaker Type: HFD
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • AIC rating: 65kA @ 480V AC
  • Wire Size: Accepts AWG 6 to 350 KCMIL (Copper) or AWG 4 to 350 KCMIL (Aluminum)
  • Weight: 0.022 lb
  • Family: Sentron Series
  • Country of Origin: Mexico
  • Additional Info: Lugs are not included and must be purchased separately


Product Identification
  • UPC: 783643211797
  • GTIN: 00783643211797
