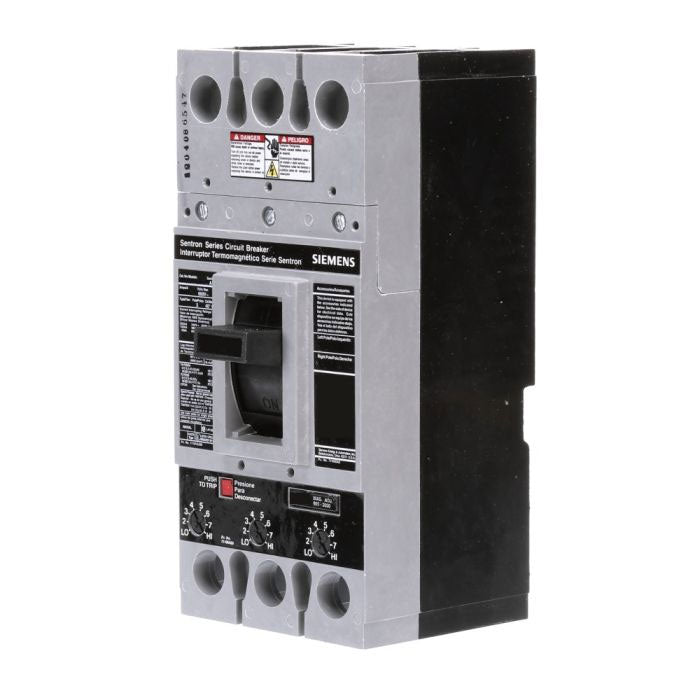

Siemens HFD63B090 - Molded Case Circuit Breaker, 90A 3P
Siemens HFD63B090 - Molded Case Circuit Breaker, 90A 3P

Siemens HFD63B090 - Molded Case Circuit Breaker, 90A 3P

Siemens
Price
Save $11,527.07
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens HFD63B090 is a molded case circuit breaker from the Sentron Series designed to provide reliable thermal-magnetic protection for three-phase industrial power distribution systems. It features a 90A current rating and a 600V AC voltage rating, housed within a compact FD frame measuring 5.906" W x 9.843" H x 6.693" D and weighing 9.48 lb. The breaker is constructed for operation in temperatures from -25°C to 70°C and complies with industry standards for integration into various panel types including S4, P4, SPP, F1, and F2 configurations. Its 65kA interrupting capacity at 480V makes it suitable for protecting feeder and branch circuits in commercial and industrial facilities, supporting copper wire from AWG 6 to 350 KCMIL and aluminum from AWG 4 to 350 KCMIL with its bolt-on connection (note: lugs are not included).

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Long Time and Instantaneous Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 90A
  • Dimensions: 5.906" W x 9.843" H x 6.693" D (150mm x 250mm x 170mm)
  • Weight: 9.48 lb
  • Standards: Designed for compliant integration into listed panelboards
  • Applications: Industrial and commercial power distribution, feeder and branch circuit protection
  • Phase: 3
  • AIC Rating: 65kA @ 480V AC
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time, Instantaneous Trip
  • Frame Size: FD Frame
  • Panel Type: Compatible with S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Wire Size: AWG 6 to 350 KCMIL (Copper), AWG 4 to 350 KCMIL (Aluminum)
  • Mounting: Panel Mount
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643211780
  • GTIN: 00783643211780
