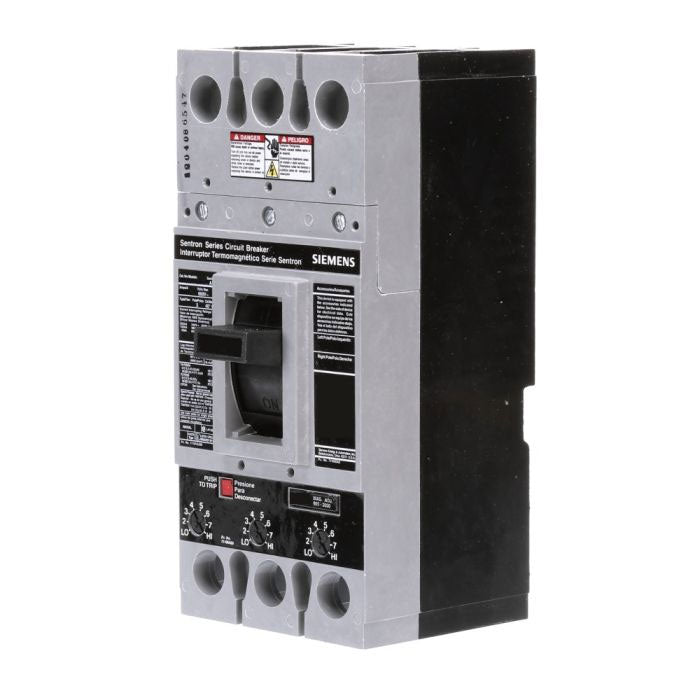

Siemens HFD63B080 - Molded Case Circuit Breaker 80A 600V 3P
Siemens HFD63B080 - Molded Case Circuit Breaker 80A 600V 3P

Siemens HFD63B080 - Molded Case Circuit Breaker 80A 600V 3P

Siemens
Price
Save $11,721.61
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens HFD63B080 is a molded case circuit breaker from the Sentron Series designed to provide reliable overcurrent and short-circuit protection for three-phase industrial power distribution systems. It features an 80A continuous current rating and a 600V AC voltage rating, housed within a compact FD frame measuring 5.906" W x 9.843" H x 6.693" D and weighing 8.444 lb. This thermal-magnetic breaker offers both long-time and instantaneous trip functions, ensuring compliance with rigorous industrial safety standards for panel types including S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, and F2. Its 65kA interrupting capacity at 480V AC makes it suitable for protecting feeders and branch circuits in commercial and industrial facilities, operating reliably within a temperature range of -25°C to 70°C (-13°F to 158°F).

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Long Time and Instantaneous Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 80A
  • Frame Size: FD Frame
  • Poles: 3
  • Phase: 3
  • AIC Rating: 65kA @ 480V AC
  • Connection: Bolt-On
  • Wire Size: AWG 6 to 350 KCMIL (Copper), AWG 4 to 350 KCMIL (Aluminum)
  • Dimensions: 5.906" W x 9.843" H x 6.693" D (150mm x 250mm x 170mm)
  • Weight: 8.444 lb (3.83 kg)
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Panel Type Compatibility: S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
  • Family: Sentron Series
  • Country of Origin: Mexico
  • Additional Info: Lugs are not included and must be purchased separately


Product Identification
  • UPC: 783643211773
  • GTIN: 00783643211773
