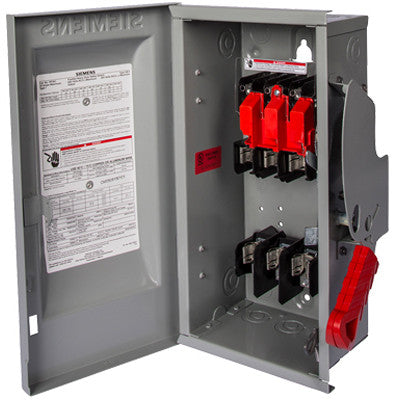

Siemens HF462 - Fusible Disconnect Switch 600V 60A (200kA AIC @600V)

Siemens HF462 is a fusible disconnect switch designed for industrial power distribution systems requiring solid-state protection and high fault current interruption. The unit operates at 600V AC with a 60A current rating and features a 200kA interrupting capacity at rated voltage, housed in a NEMA 1 enclosure with bolt-on connections for secure installation. Its four-pole single configuration utilizes Class R fuses (4-wire compatible) and provides long-time/instantaneous (LI) protection functions for three-phase circuits. The switch complies with industry standards for PGP frame compatibility and is engineered for panelboards, motor control centers, and other applications demanding reliable circuit isolation and overload protection.

Key Features & Specifications

• Type: Fusible disconnect switch with solid-state protection
• Voltage Rating: 600V AC
• Current Rating: 60A
• AIC Rating: 200kA@600V
• Configuration: Single, 4-pole
• Connection: Bolt-on
• Fuse Class: R
• Wire Compatibility: 4-wire
• Phase: 3
• NEMA Rating: 1
• Protection Functions: LI (Long-Time and Instantaneous)
• Coil Voltage: 48V (min/max)
• Compatible Frames: PGP
• Weight: 60 lb

Product Identification

• UPC: 051712105798
