Siemens HF364SS Disconnect Switch (Fusible) Stainless Steel 200A 600V Nema 4/4X - Essential Electric Supply

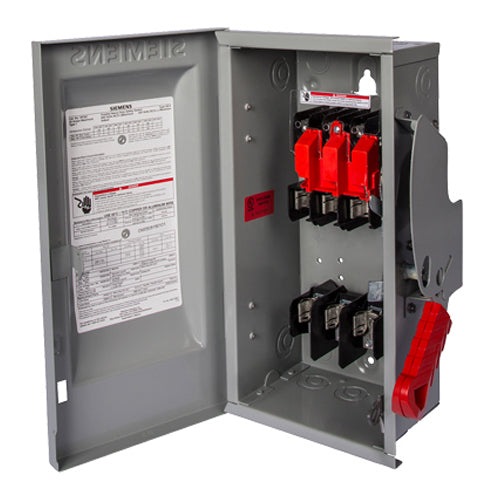

Siemens HF364SS - Fusible Disconnect Switch 200A 600V 3P NEMA 4X
Siemens HF364SS Disconnect Switch (Fusible) Stainless Steel 200A 600V Nema 4/4X - Essential Electric Supply
Siemens HF364SS - Fusible Disconnect Switch 200A 600V 3P NEMA 4X

Siemens HF364SS - Fusible Disconnect Switch 200A 600V 3P NEMA 4X

Siemens
Price
Save $24,635.45
/
Title
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price
Siemens HF364SS is a fusible disconnect switch designed for providing a visible means of isolation and overcurrent protection in industrial power distribution systems. It is rated for 600V AC and a continuous current of 200A, featuring a robust three-pole, single-configuration construction with dimensions of 18.898 x 9.843 x 34.646 inches and a weight of 2.205 lb. The switch is UL listed, carries a NEMA 4X rating for corrosion and weather resistance, and is designed to operate within a temperature range of -25°C to 70°C (-13°F to 158°F). Its high interrupting capacity of 200kA at 600V makes it suitable for demanding applications such as motor control centers, industrial machinery, and main service entrance equipment where reliable circuit protection is critical.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, HF Type, VBII Series
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Dimensions: 18.898 x 9.843 x 34.646 inch
  • Standards: UL listed, NEMA 4X
  • Applications: Industrial power distribution, motor control, service entrance
  • Switch Type: Fusible
  • Configuration: Single
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC rating: 200kA@600V
  • Poles: 3
  • Fuse Class: R
  • Enclosure: NEMA 4X
  • Country of Origin: Mexico
  • Weight: 2.205 lb


Product Identification
  • UPC: 040892169041
  • GTIN: 00040892169041
