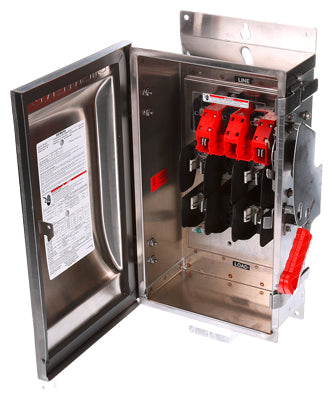

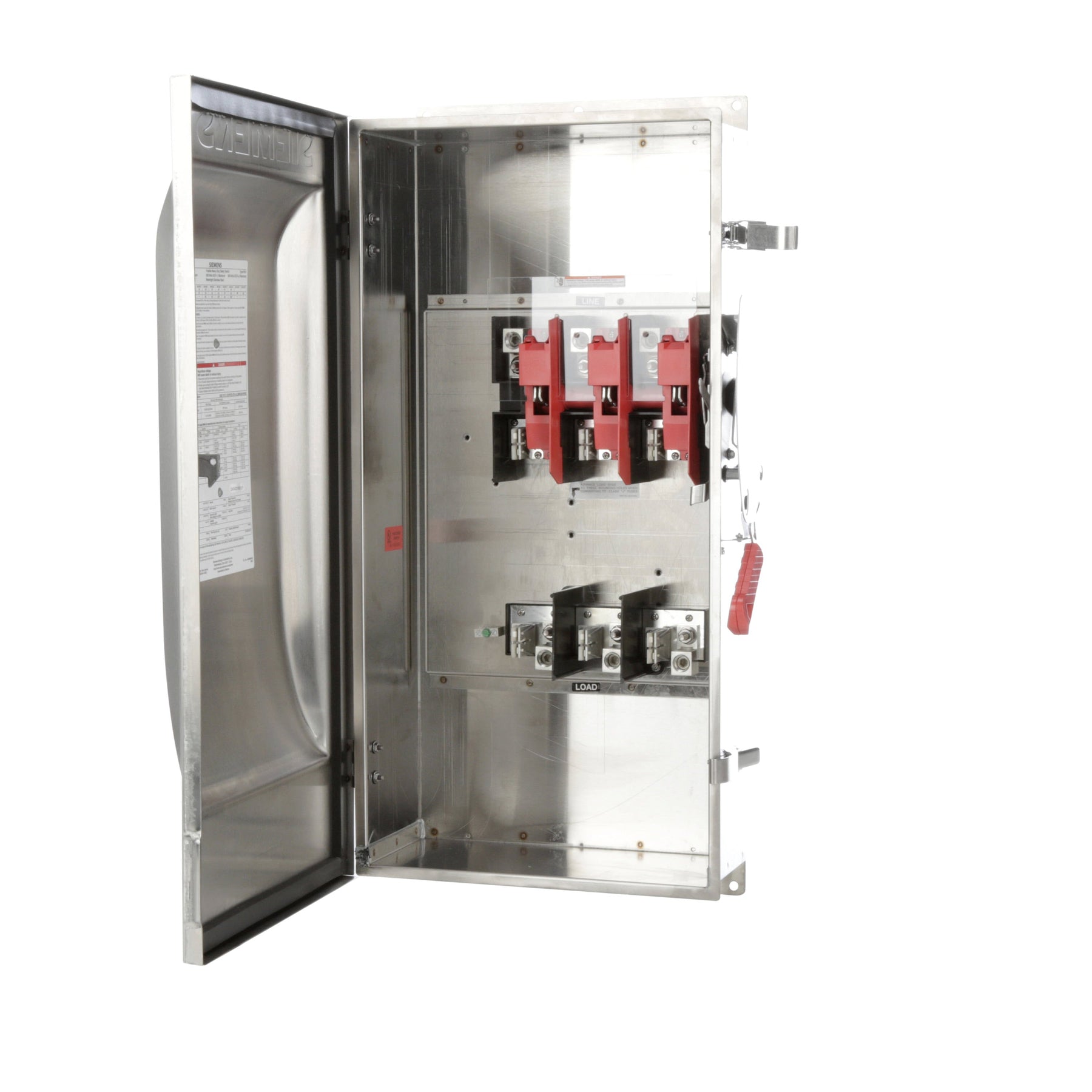

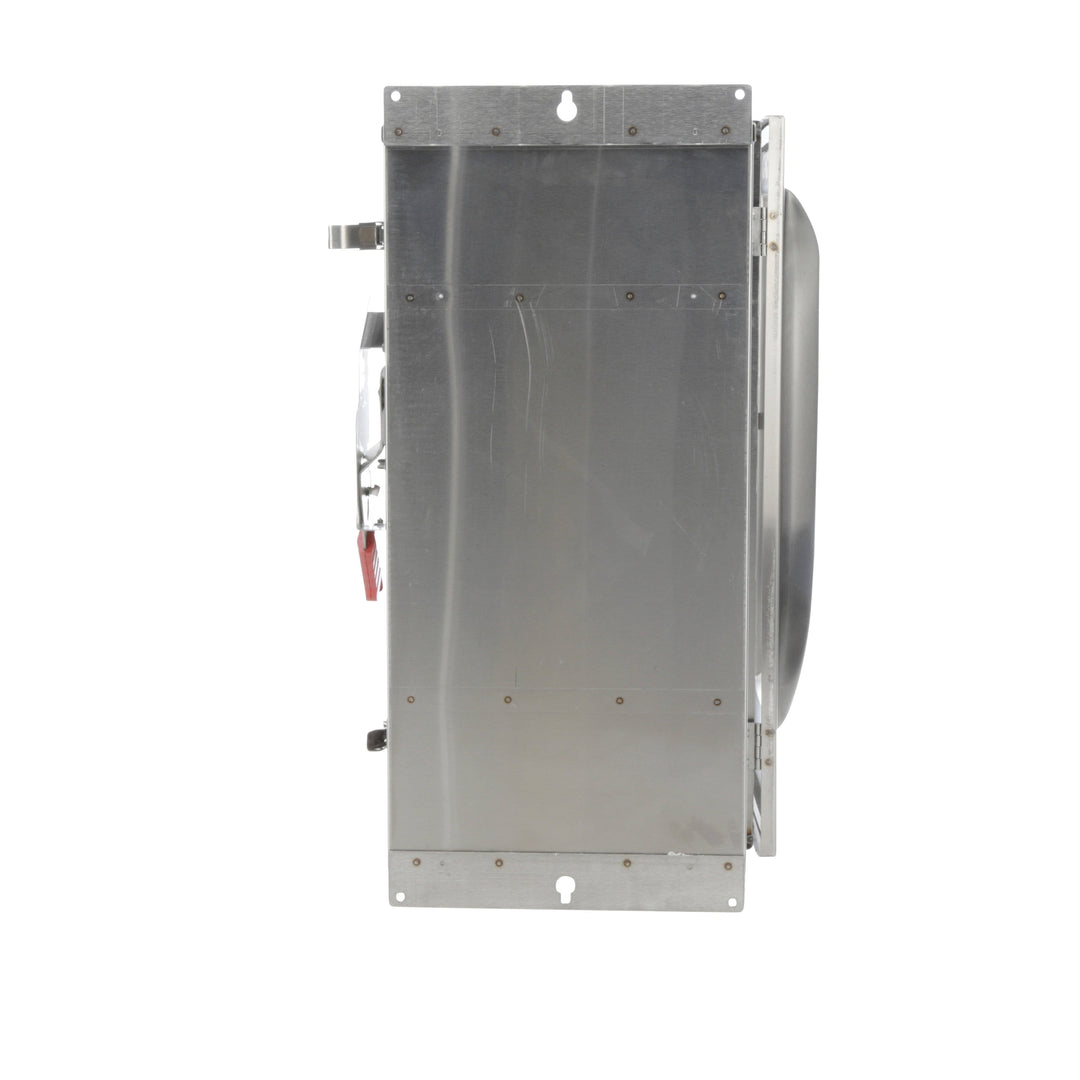

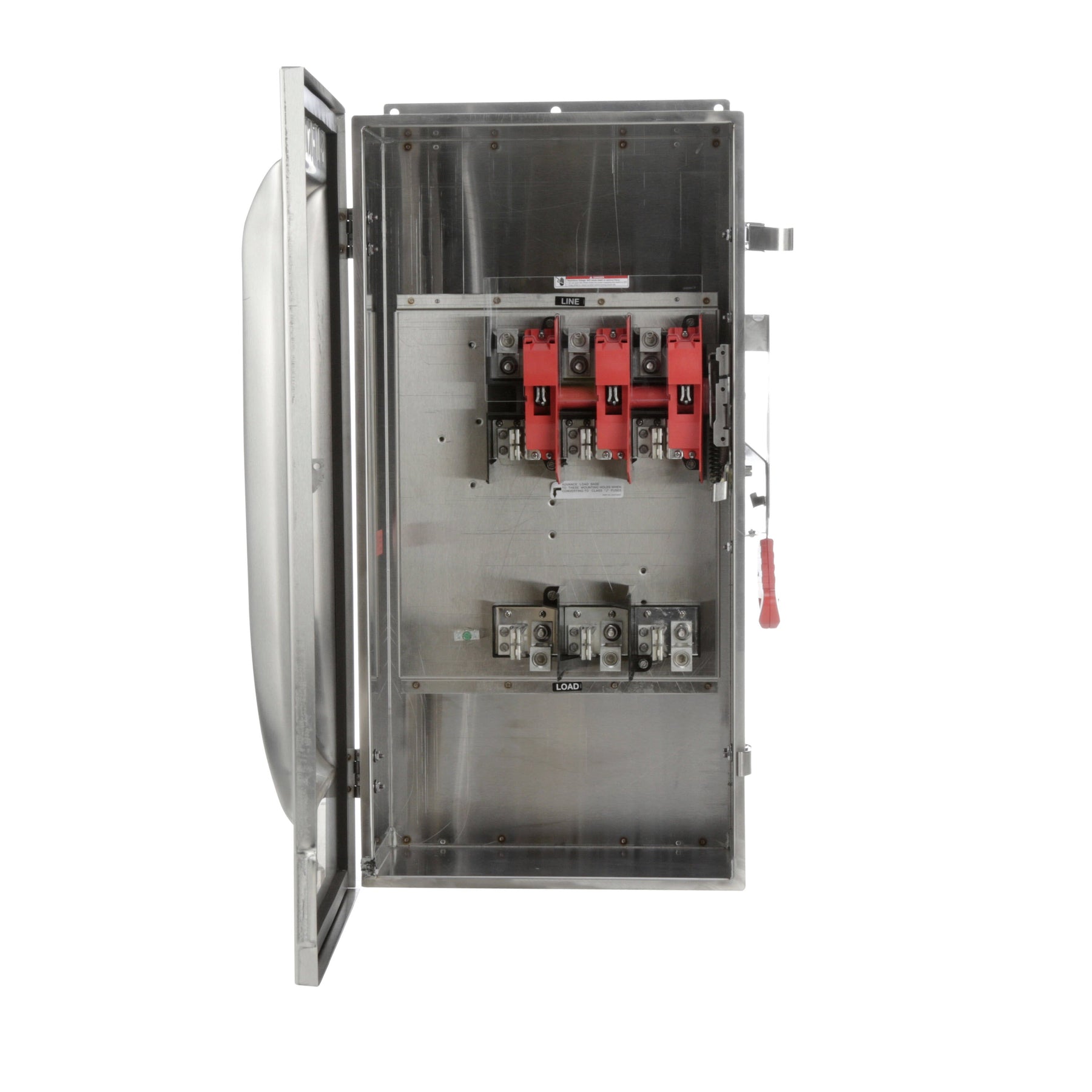

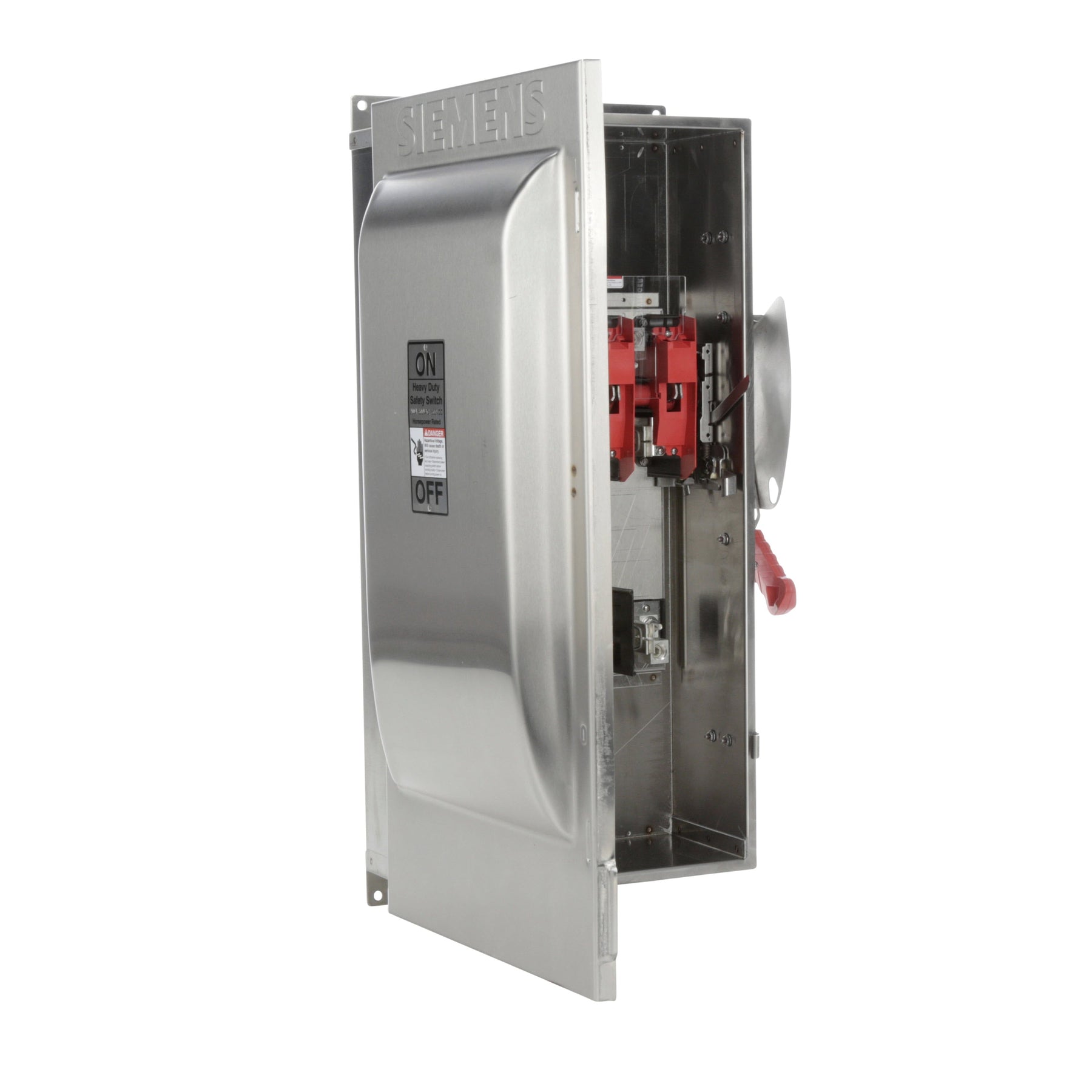

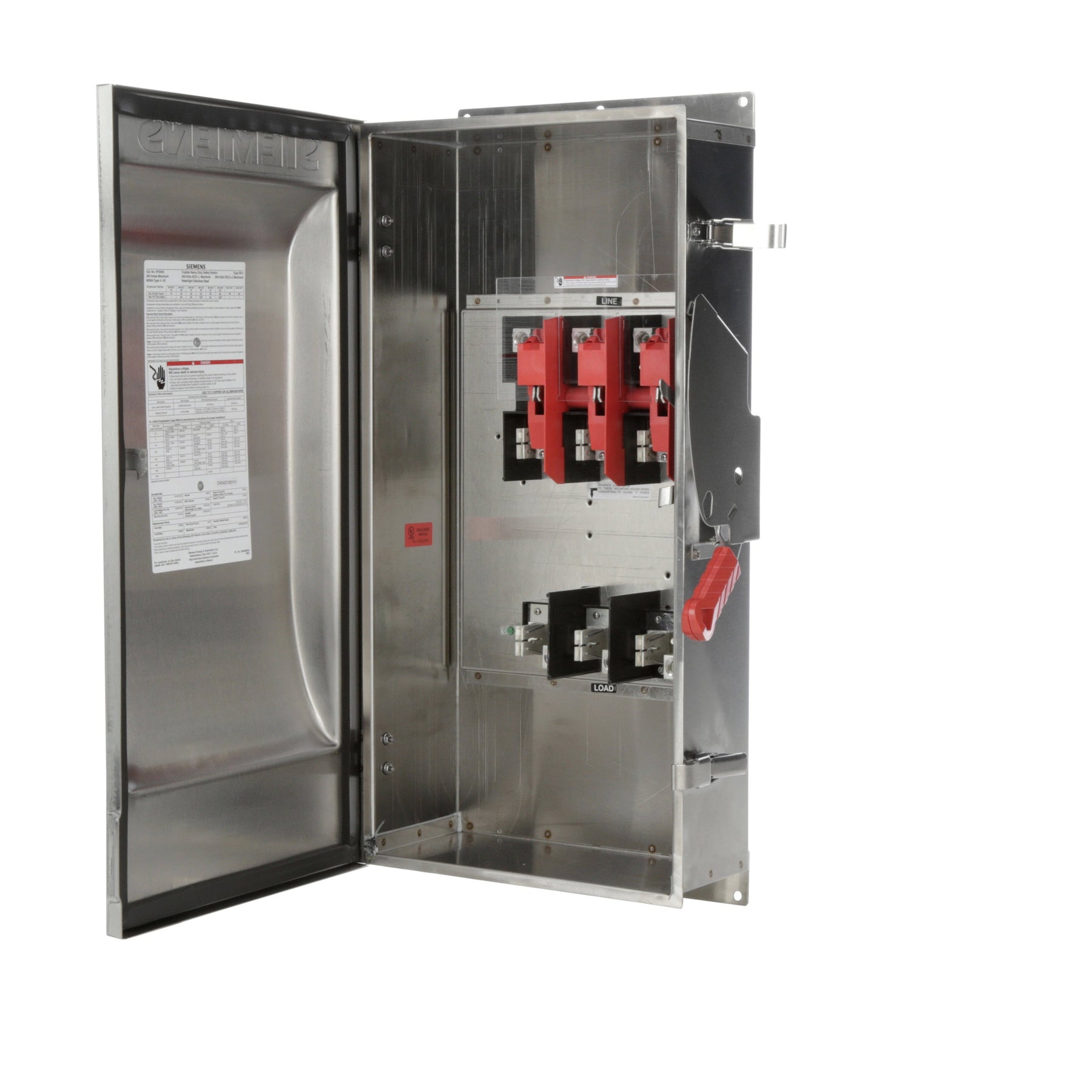

Siemens HF364S - Fusible Disconnect Switch 200A 600V (NEMA 4X)

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens HF364S is a fusible disconnect switch designed for providing visible isolation and overcurrent protection in industrial power distribution systems. It features a 600V AC voltage rating and a 200A current rating for robust circuit protection. The switch is constructed with a durable NEMA 4X enclosure measuring 34.646 x 19.291 x 9.449 inches and weighing 52.117 lb, ensuring protection against corrosion and harsh environments. It is UL listed and offers a high interrupting capacity of 200kA at 600V. This three-phase, three-pole switch is typically applied in industrial panels and motor control centers compatible with PGP frames, operating reliably within a temperature range of -25°C to 70°C.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, VBII Series, HF Type
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Dimensions: 34.646 x 19.291 x 9.449 inch
  • Standards: UL listed, NEMA 4X
  • Applications: Industrial power distribution, motor control centers
  • Switch Type: Fusible
  • Configuration: Single
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC rating: 200kA@600V
  • Poles: 3
  • Compatible Frames: PGP
  • Weight: 52.117 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643152007
  • GTIN: 00783643152007
