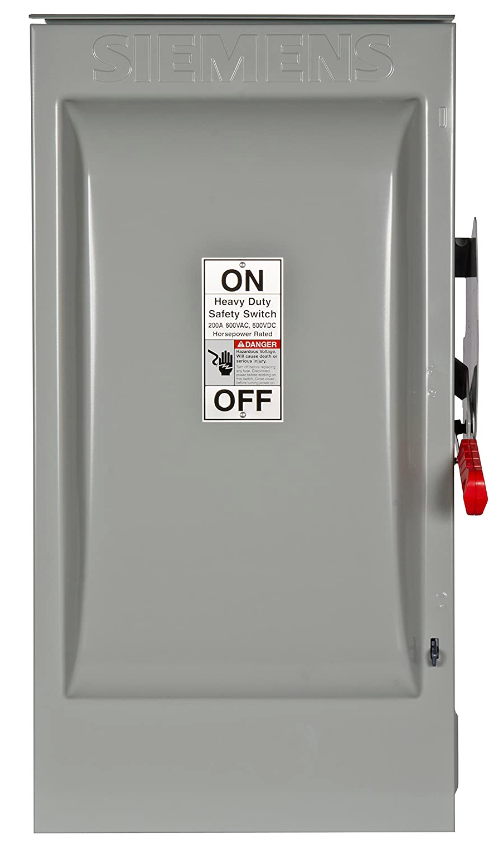

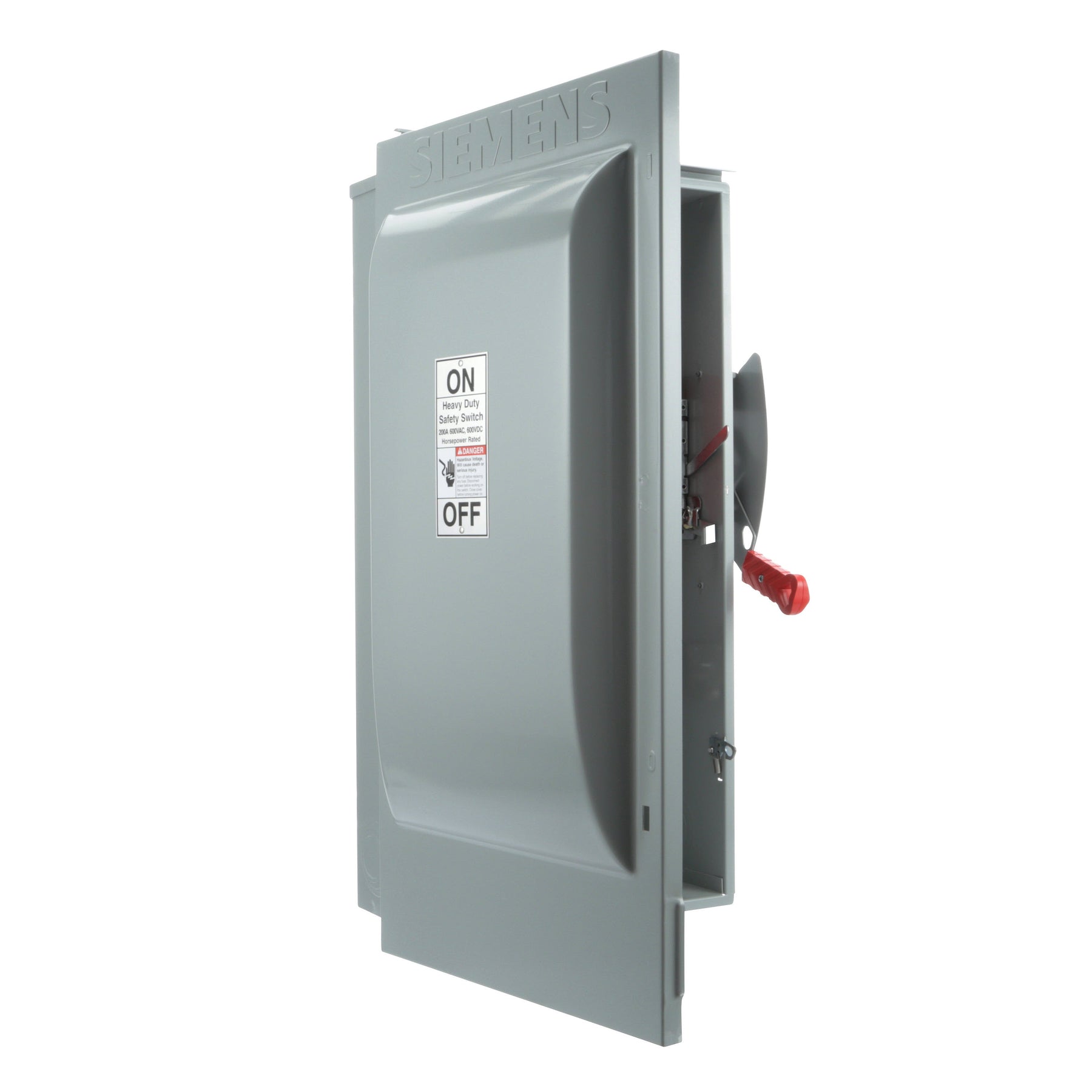

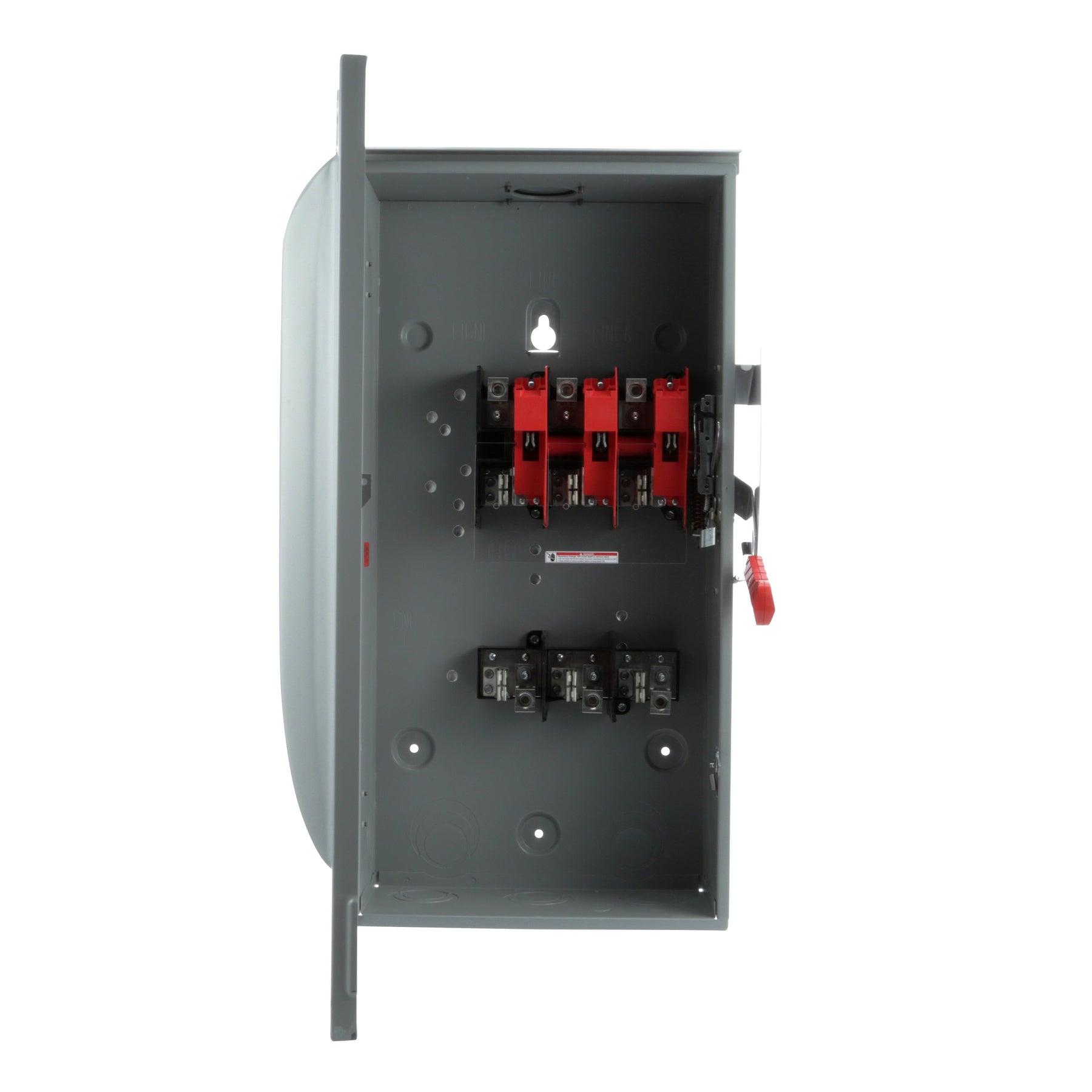

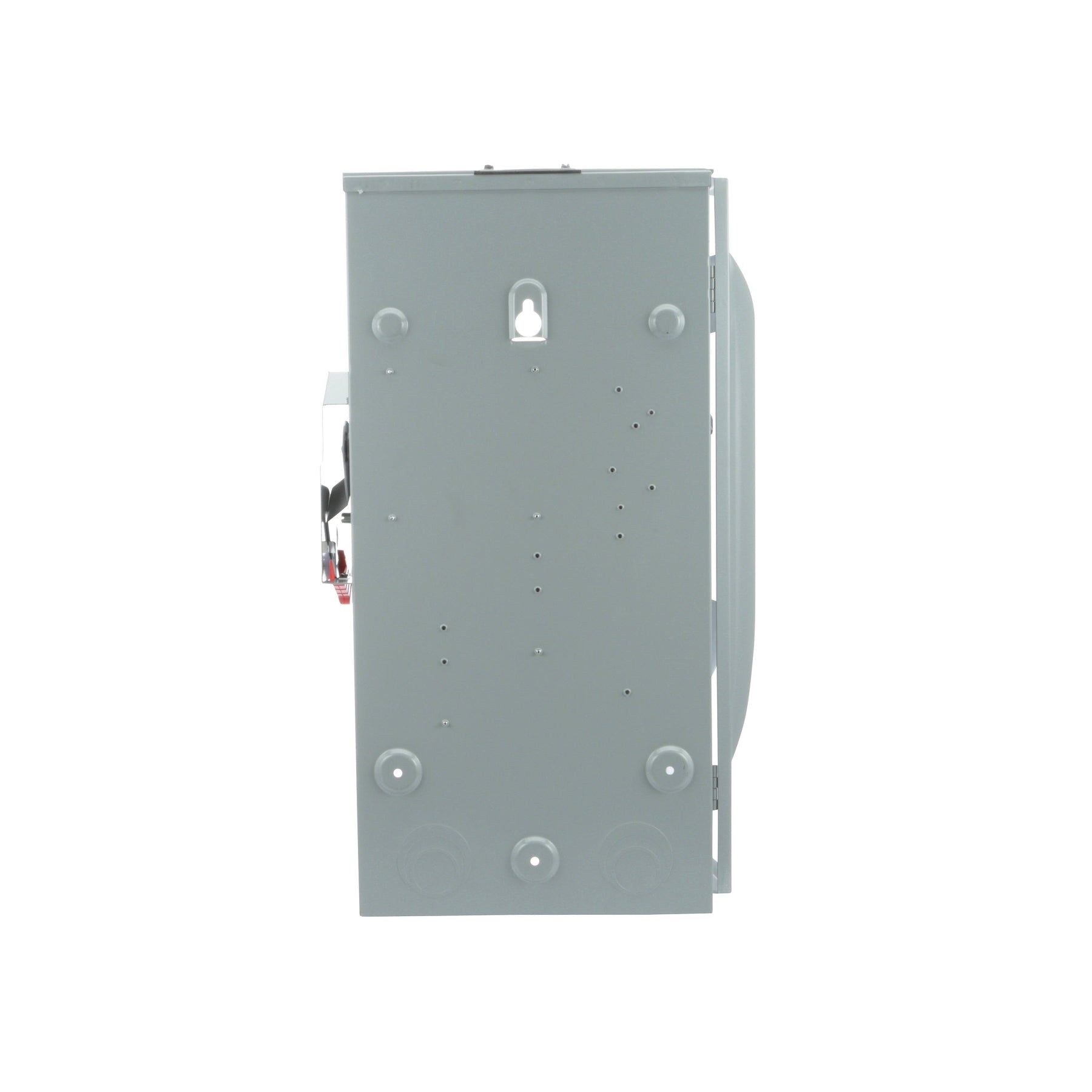

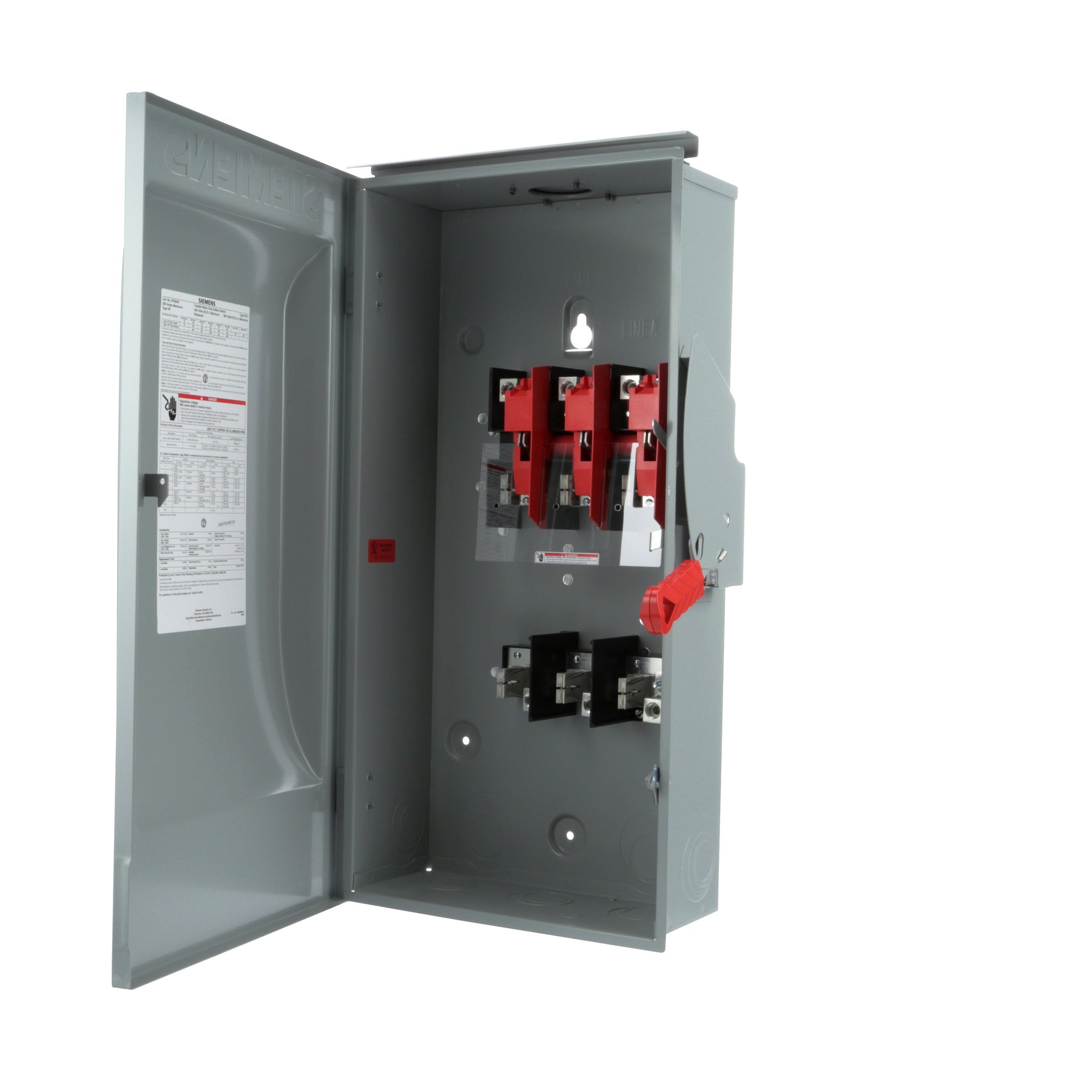

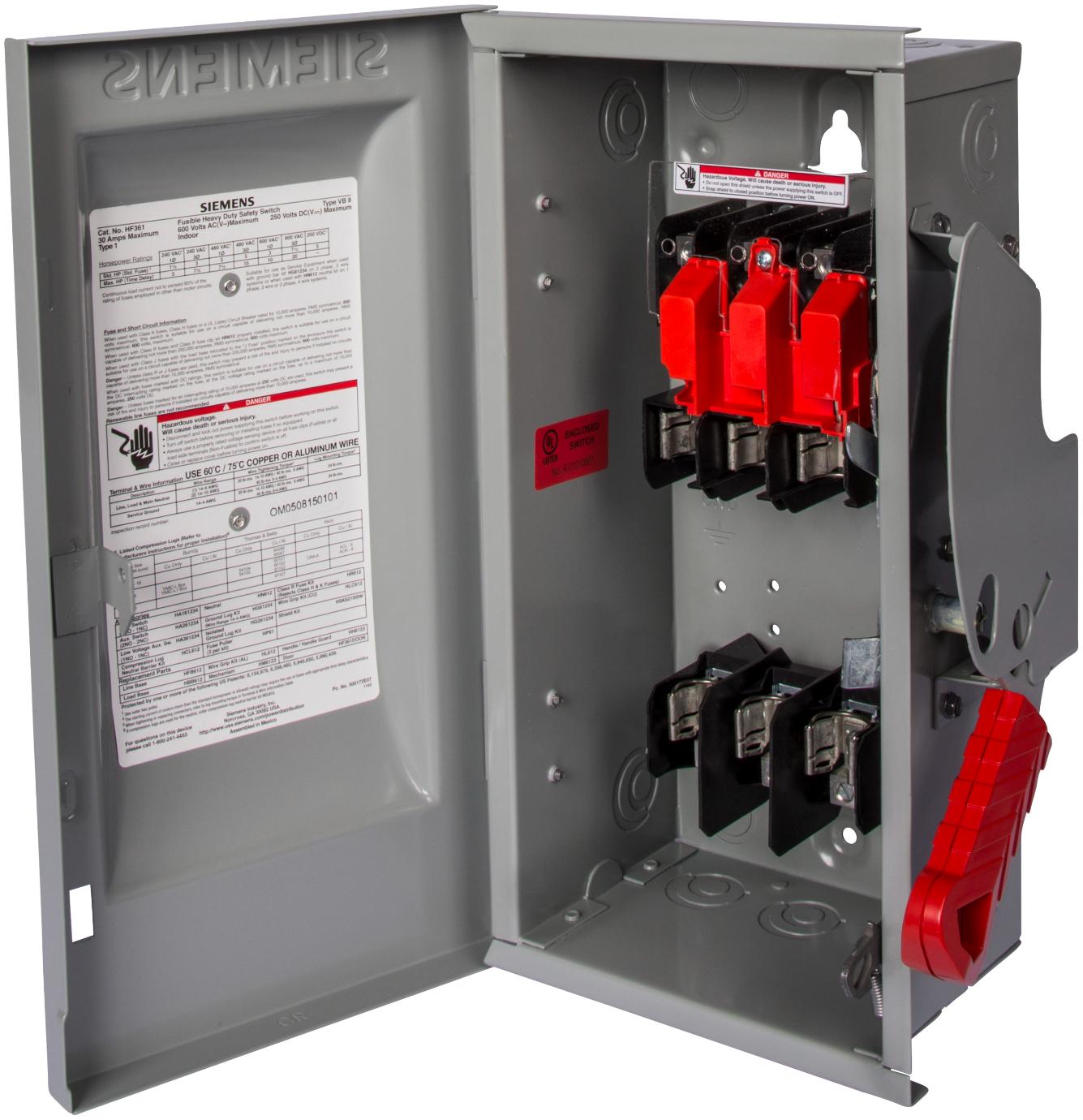

Siemens HF364R - Fusible Disconnect Switch, 200A, 600V AC, 3-Pole

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens HF364R is a fusible disconnect switch designed for providing visible isolation and overcurrent protection in three-phase industrial power distribution systems. It is rated for 600V AC operation with a 200A current rating and features a 200kA interrupting capacity at 600V for robust short-circuit protection. The switch is constructed within a NEMA 3R rated enclosure, measures 33.858 x 18.504 x 9.843 inches, weighs 42.285 lb, and operates reliably within a temperature range of -25°C to 70°C (-13°F to 158°F). It is UL listed and designed as part of the VBII series for compatibility with PGP frames, ensuring compliance with industry standards for safety and performance in demanding applications such as motor control centers and main service disconnects.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, VBII Series, HF type
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Configuration: Single, 3-Pole
  • AIC Rating: 200kA @ 600V
  • Phase: 3
  • Fuse Class: R
  • NEMA Rating: NEMA 3R
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 33.858 x 18.504 x 9.843 inch
  • Weight: 42.285 lb
  • Standards: UL Listed
  • Compatible Frames: PGP
  • Applications: Industrial power distribution, motor control, main service disconnects
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643151321
  • GTIN: 00783643151321
