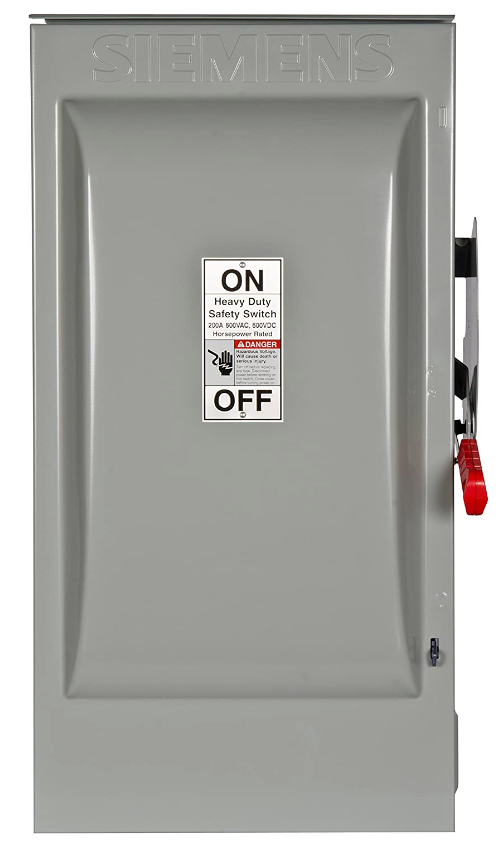

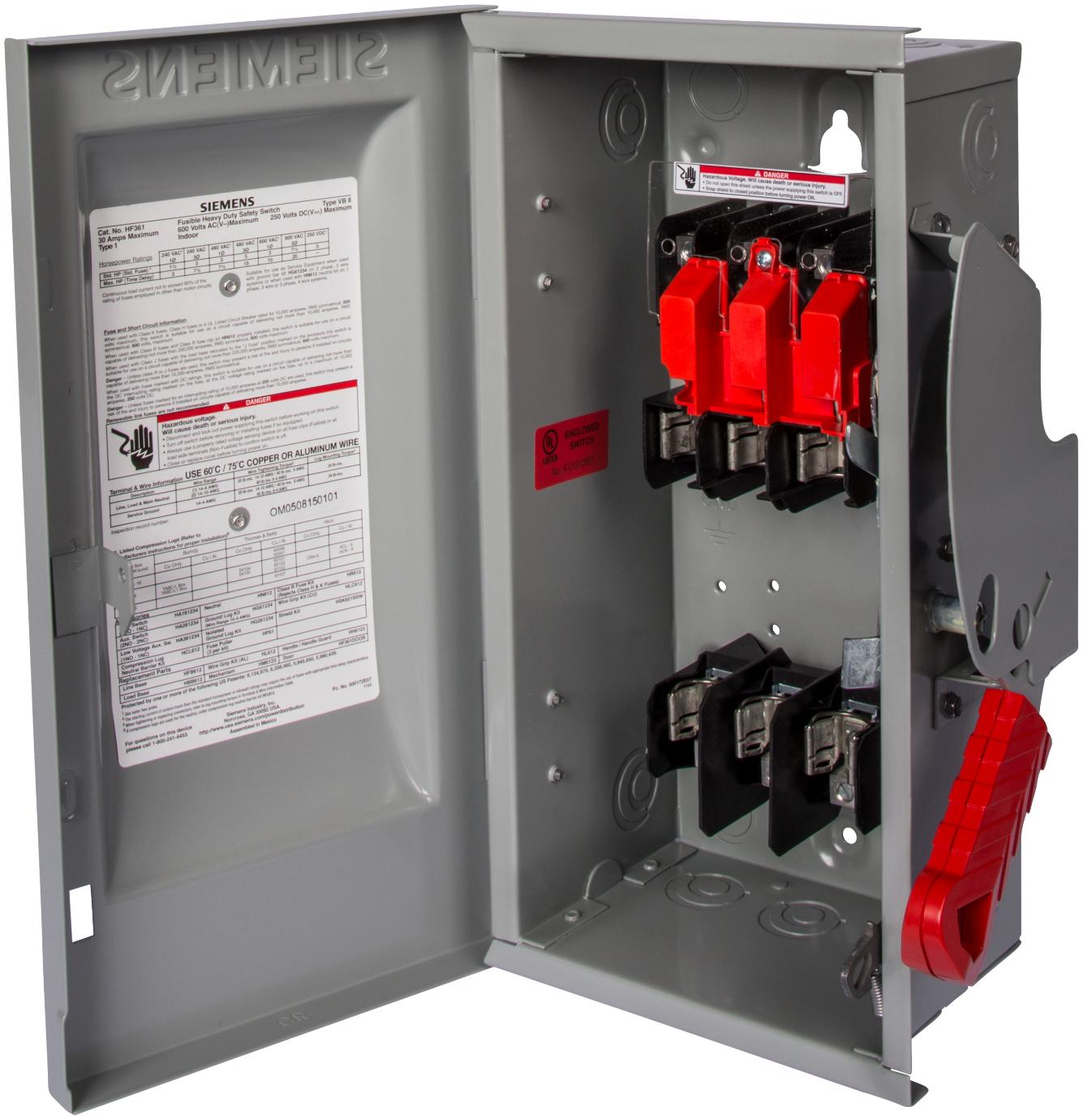

Siemens HF364N - Fusible Disconnect Switch 200A 600V (3-Pole NEMA 1)

Siemens HF364N is a fusible safety disconnect switch designed for reliable circuit protection and isolation in industrial power distribution systems. This 3-pole switch features a 600V AC voltage rating and 200A current handling capacity, housed in a robust NEMA 1 enclosure measuring 17.0 x 31.1 inches with a substantial 60 lb construction weight. The unit carries UL certification and operates effectively across a wide temperature range from -25°C to 70°C (-13°F to 158°F). With its impressive 200kA interrupting rating at 600V and compatibility with Class R fuses in PGP frames, this VBII Series component provides essential safety isolation for three-phase industrial machinery, motor control centers, and power distribution equipment.

Key Features & Specifications

• Type: Fusible safety disconnect switch, HF type, single configuration
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 17.0 in x 31.1 in
• Standards: UL listed
• Applications: Industrial power distribution, motor control centers, machinery isolation
• Switch Type: Fusible
• Configuration: Single
• Temp Rating: -25°C to 70°C (-13°F to 158°F)
• Phase: 3
• Amperage: 200A
• AIC rating: 200kA@600V
• Poles: 3
• Nema Rating: NEMA 1
• Fuse Class: R
• Compatible Frames: PGP
• Weight: 60 lb
• Family: VBII Series
• Country of Origin: Mexico

Product Identification

• UPC: 783643151116
• GTIN: 00783643151116
