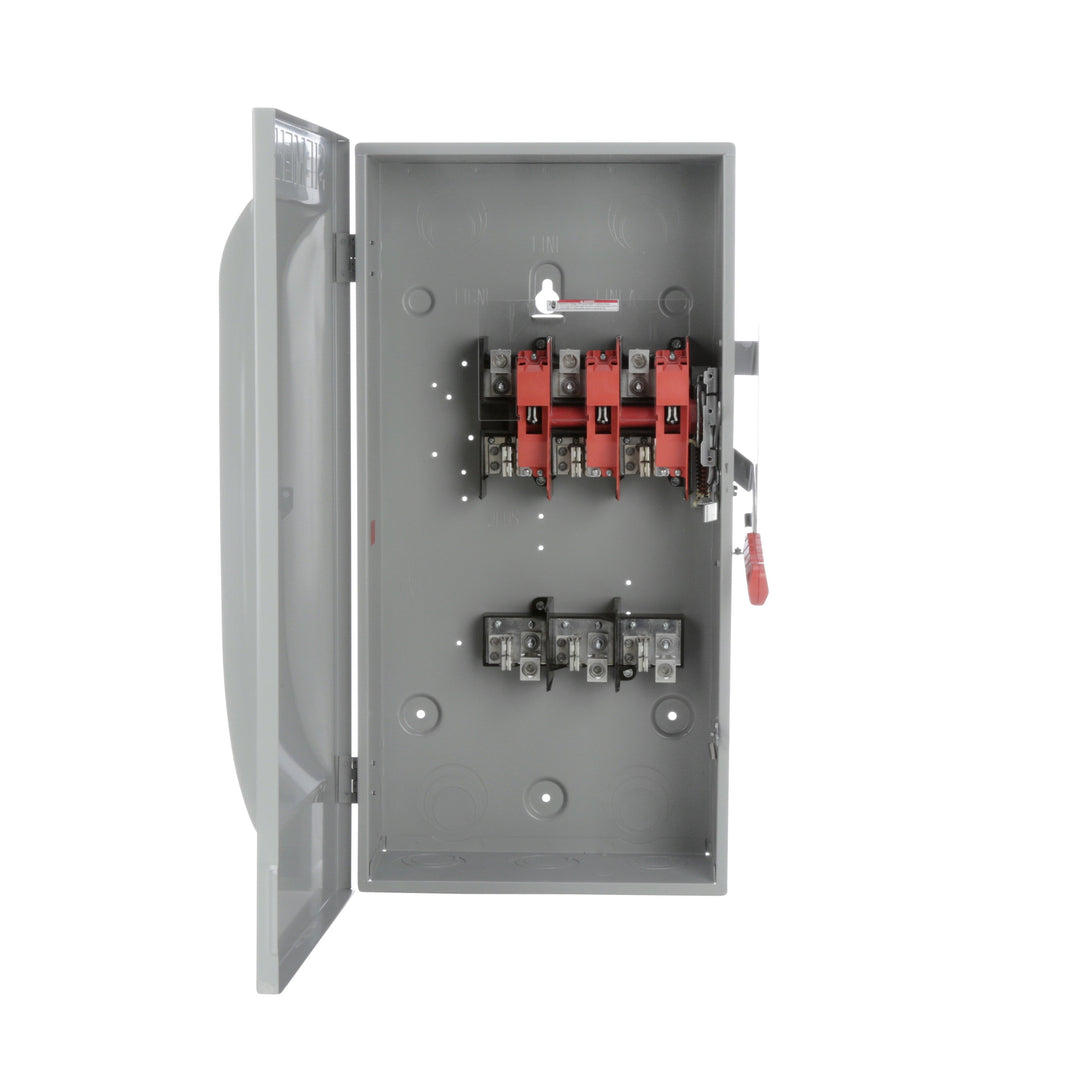

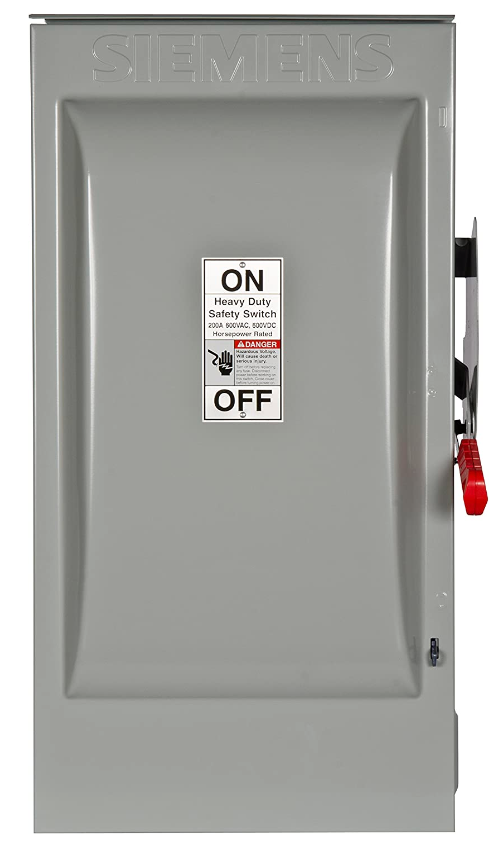

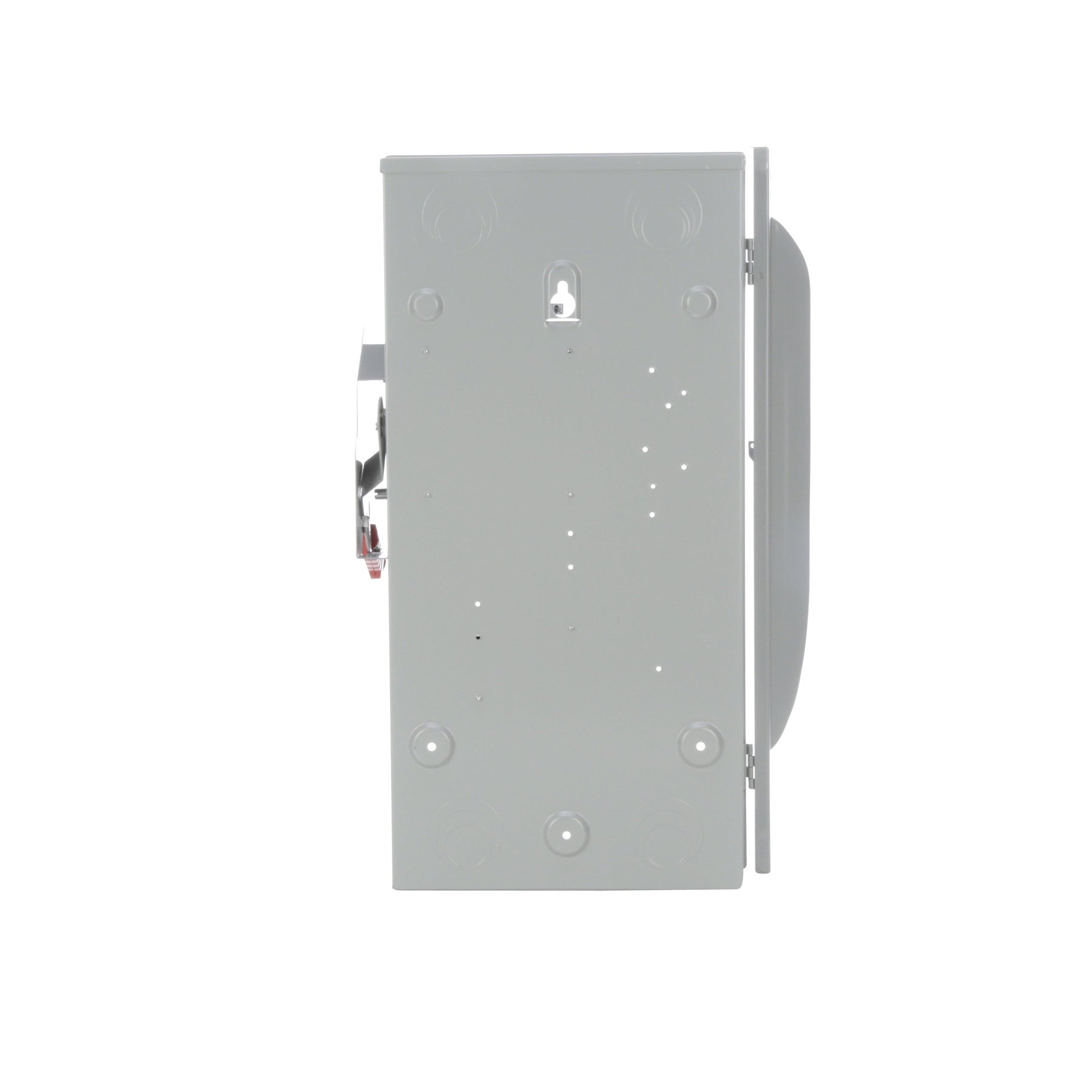

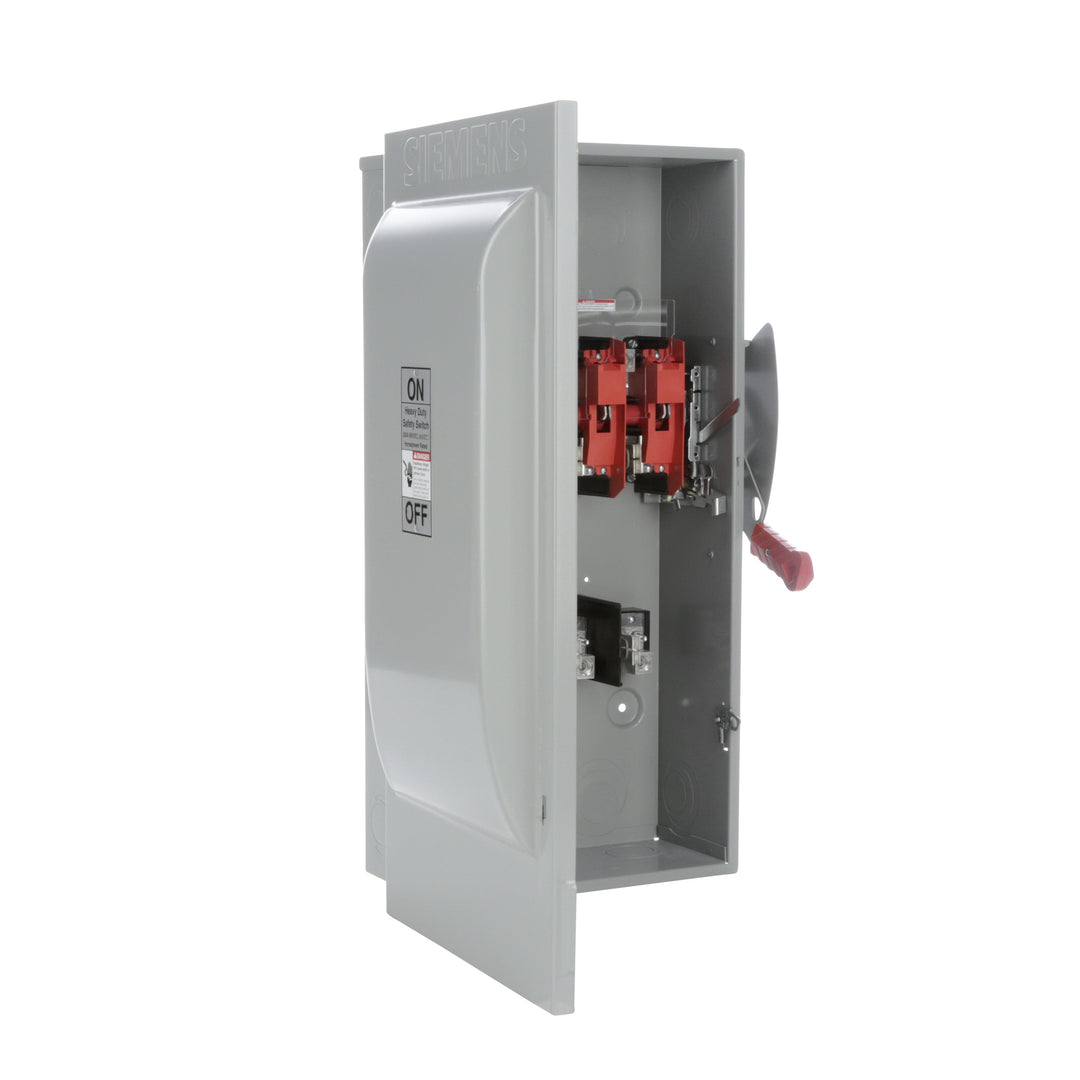

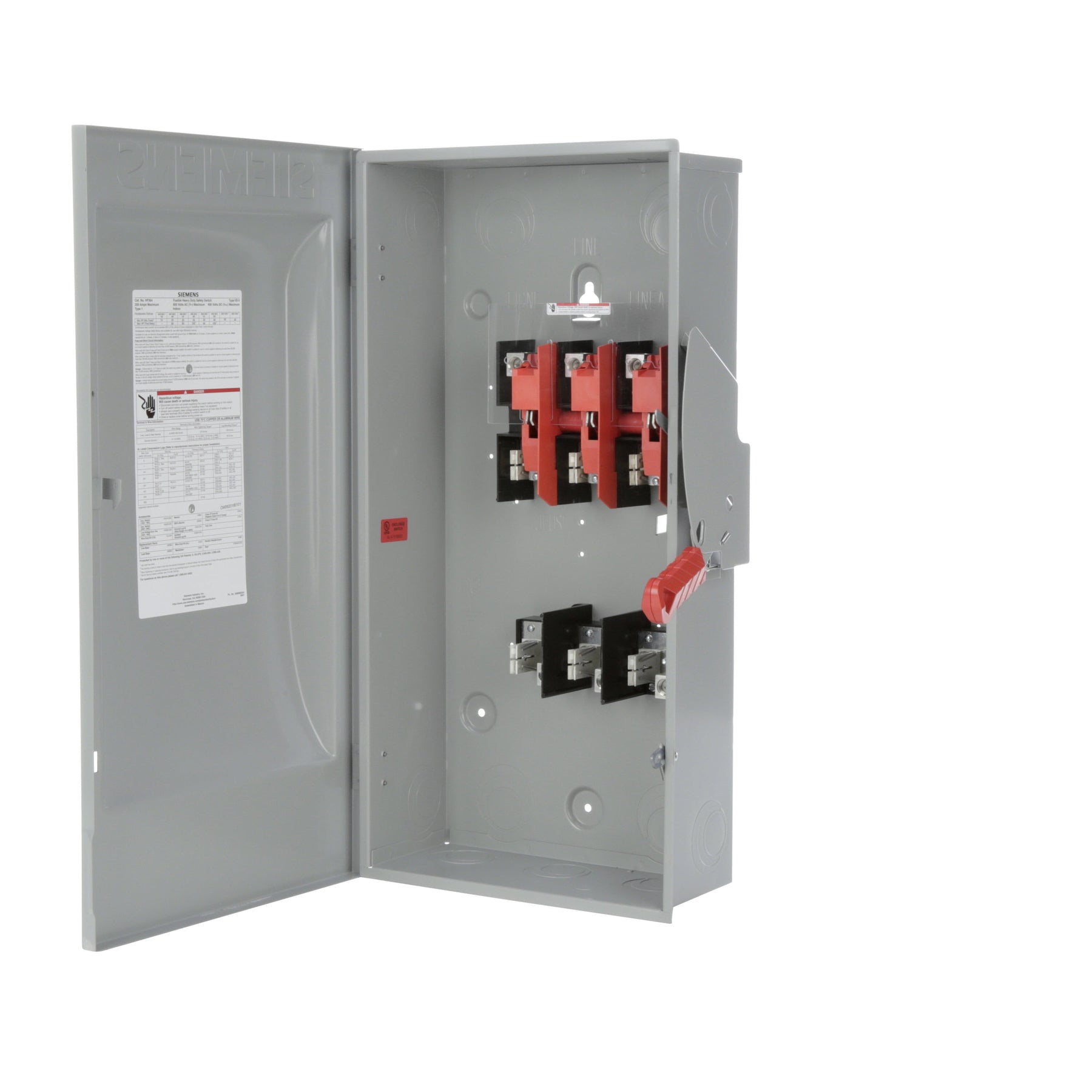

Siemens HF364 - Fusible Disconnect Switch 200A 600V 3-Pole

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens HF364 is a fusible disconnect switch designed for providing visible isolation and overcurrent protection in three-phase industrial power distribution systems. It is rated for 600V AC operation with a continuous current rating of 200A and a high interrupting capacity of 200kA at 600V. The switch features a robust NEMA 1 enclosure measuring 33.858 x 20.079 x 10.236 inches and weighing 40.896 lb, constructed for reliable operation in ambient temperatures from -25°C to 70°C. It is UL listed and designed for compatibility with Siemens PGP panelboards, ensuring adherence to industry safety standards for applications such as motor control centers and main service disconnects.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, VBII Series, HF type
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Configuration: Single, 3-Pole
  • AIC Rating: 200kA @ 600V
  • Fuse Class: R
  • Phase: 3
  • NEMA Rating: NEMA 1
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 33.858 x 20.079 x 10.236 inch
  • Weight: 40.896 lb
  • Standards: UL Listed
  • Compatible Frames: PGP
  • Applications: Industrial power distribution, main disconnects, motor control centers
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643151031
  • GTIN: 00783643151031
