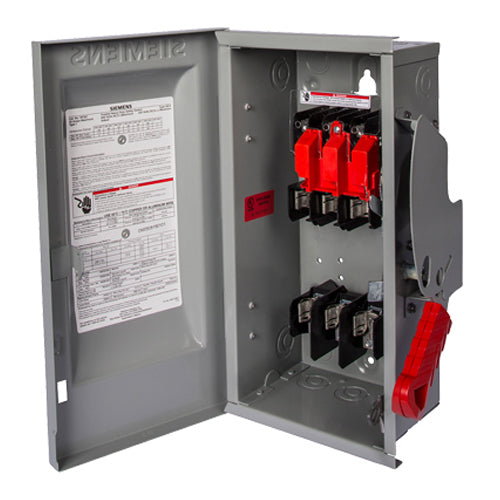

Siemens HF363SS - Fusible Disconnect Switch 100A 600V 3P

Siemens
Price
Save $17,341.51
/
Title
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price
Siemens HF363SS is a fusible disconnect switch designed for providing a visible means of isolation and overcurrent protection in three-phase industrial power circuits. It is rated for 100A at 600V AC and features a 200kA interrupting capacity at 600V for robust short-circuit protection. The switch is constructed within a NEMA 4X rated enclosure measuring 13.78 x 7.874 x 21.654 inches and weighing 2.205 lb, ensuring durability in harsh environments with an operational temperature range of -25°C to 70°C. This UL-listed component from the VBII Series complies with industry safety standards and is engineered for reliable service in applications such as motor control centers, industrial machinery, and power distribution panels.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, HF Type, Single Configuration
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 13.78 x 7.874 x 21.654 inch
  • Standards: UL listed, NEMA 4X Enclosure Rating
  • Applications: Industrial power distribution, motor control, machinery isolation
  • Switch Type: Fusible
  • Configuration: Single
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC rating: 200kA@600V
  • Poles: 3
  • Protection: Fuse-based overcurrent and short-circuit
  • Fuse Class: R
  • Family: VBII Series
  • Weight: 2.205 lb


Product Identification
  • UPC: 040892169034
  • GTIN: 00040892169034
