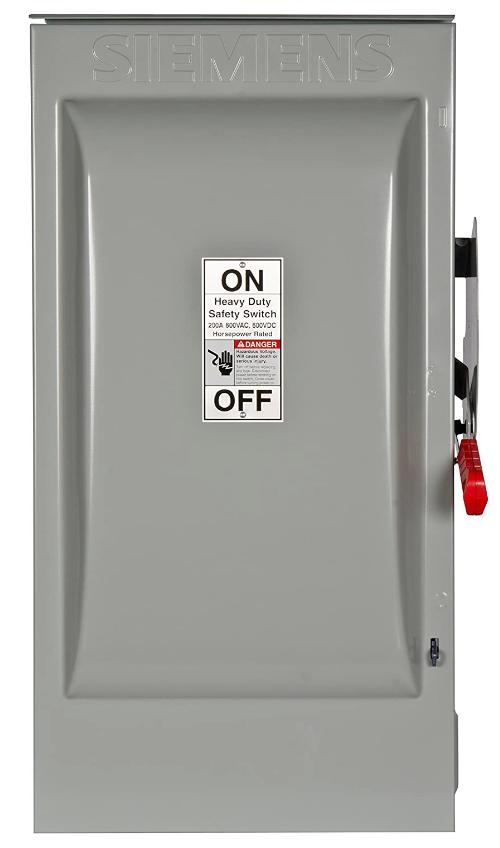

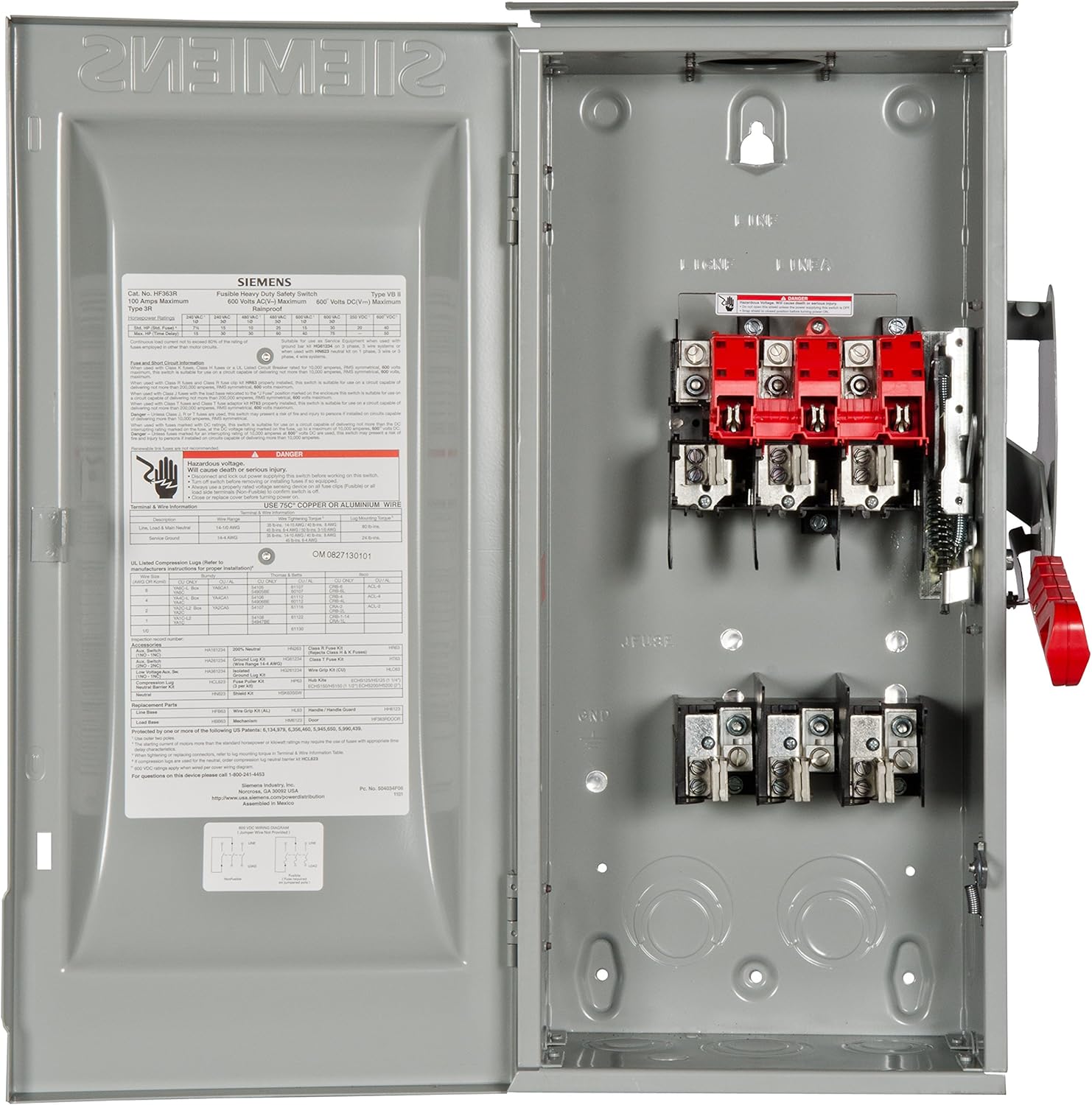

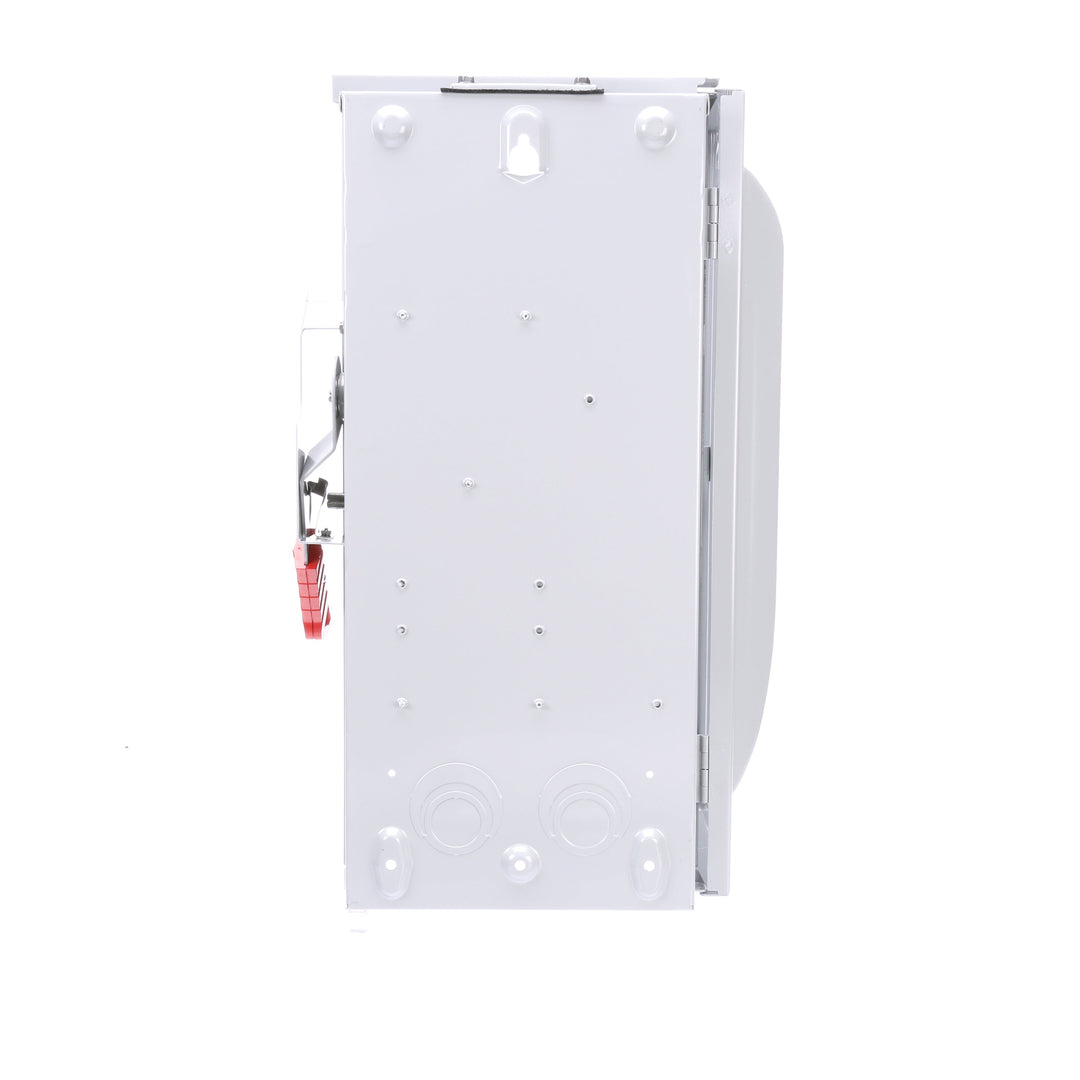

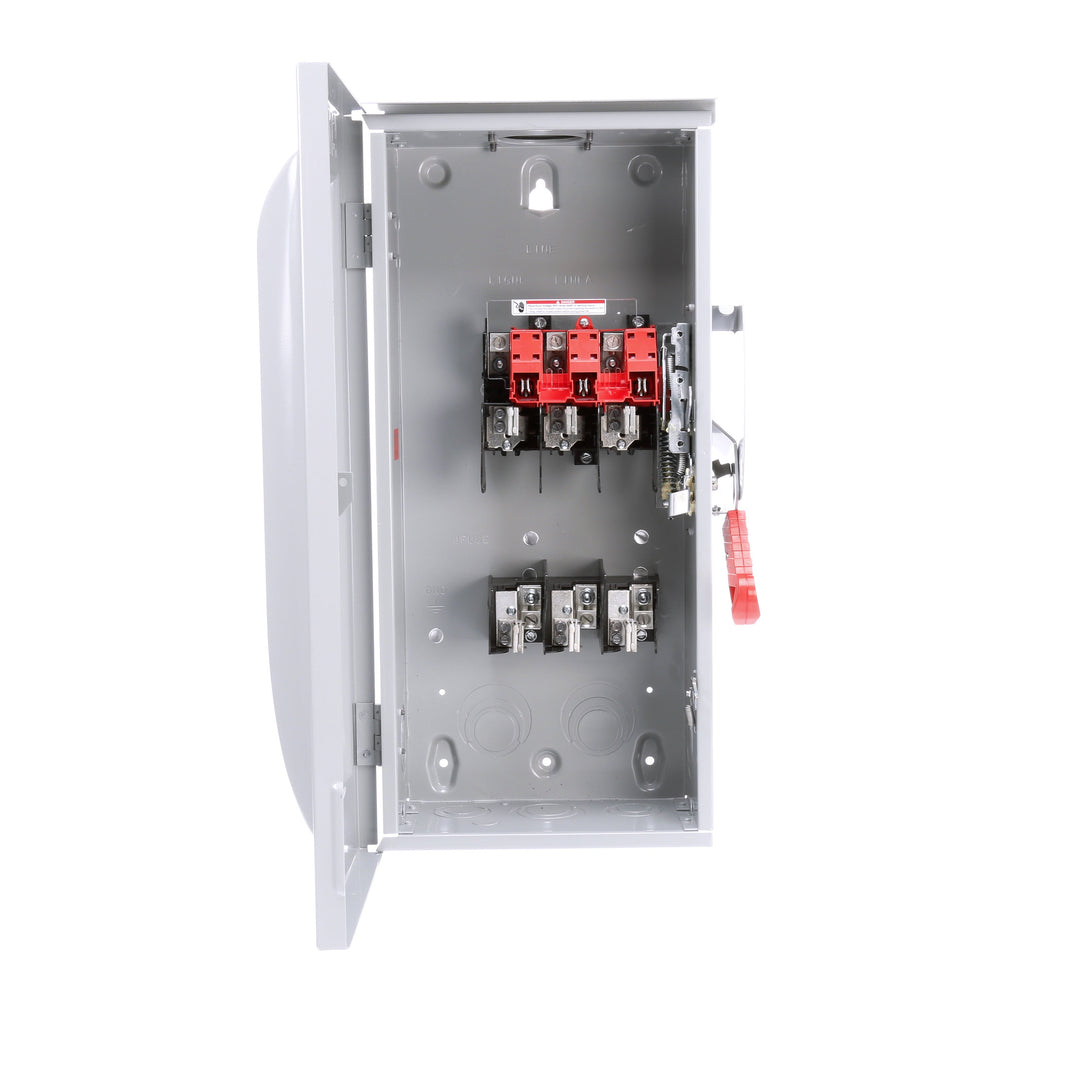

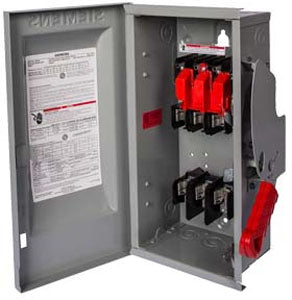

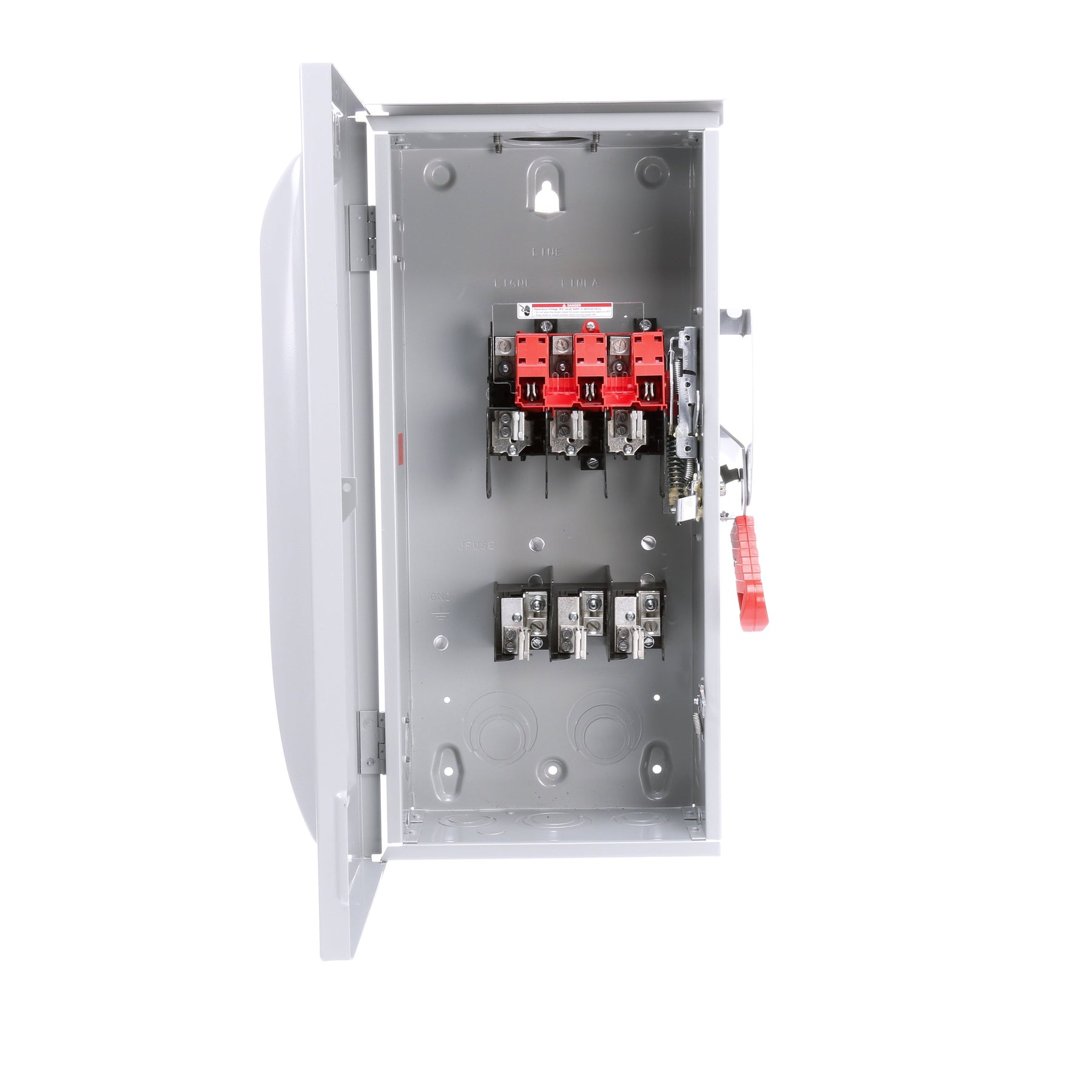

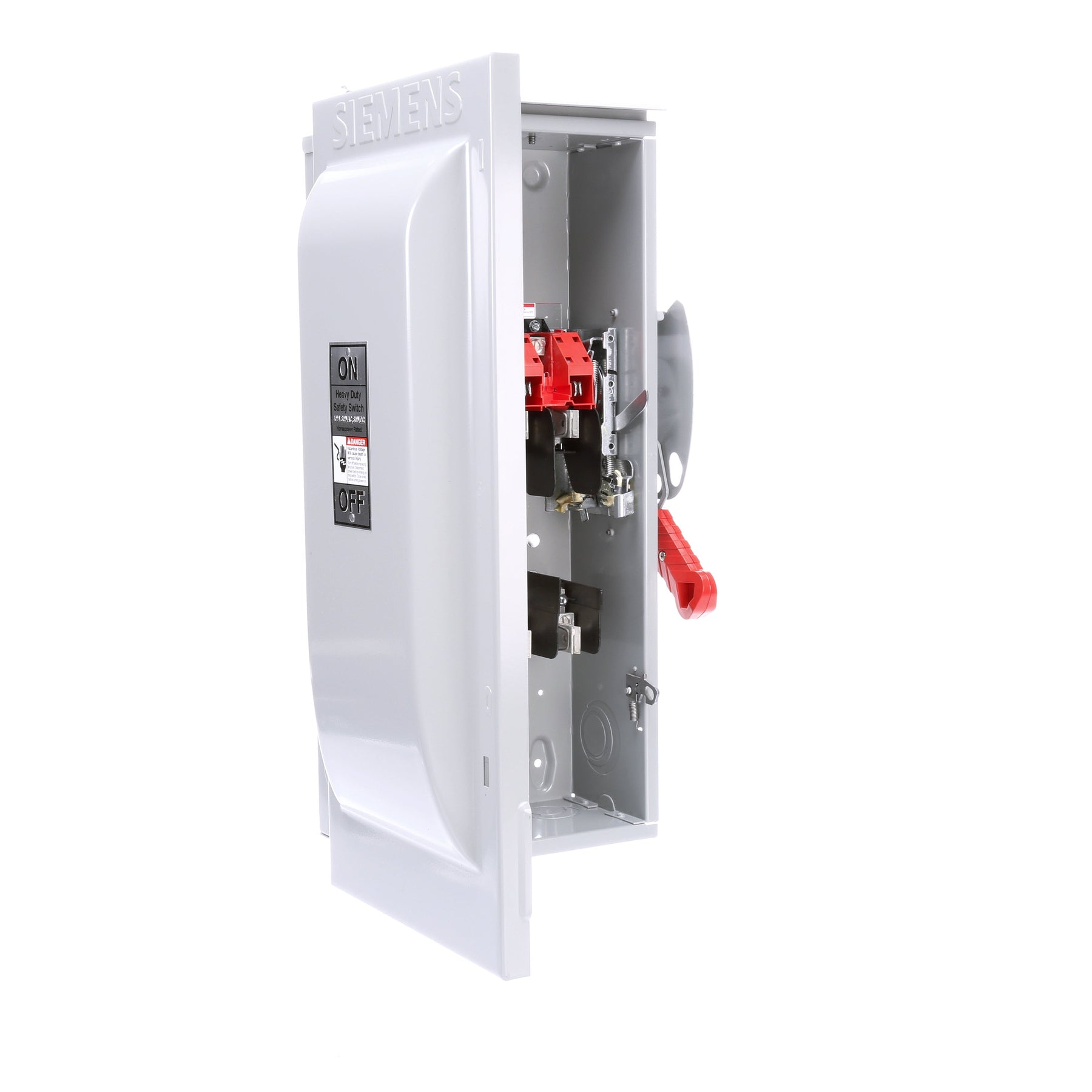

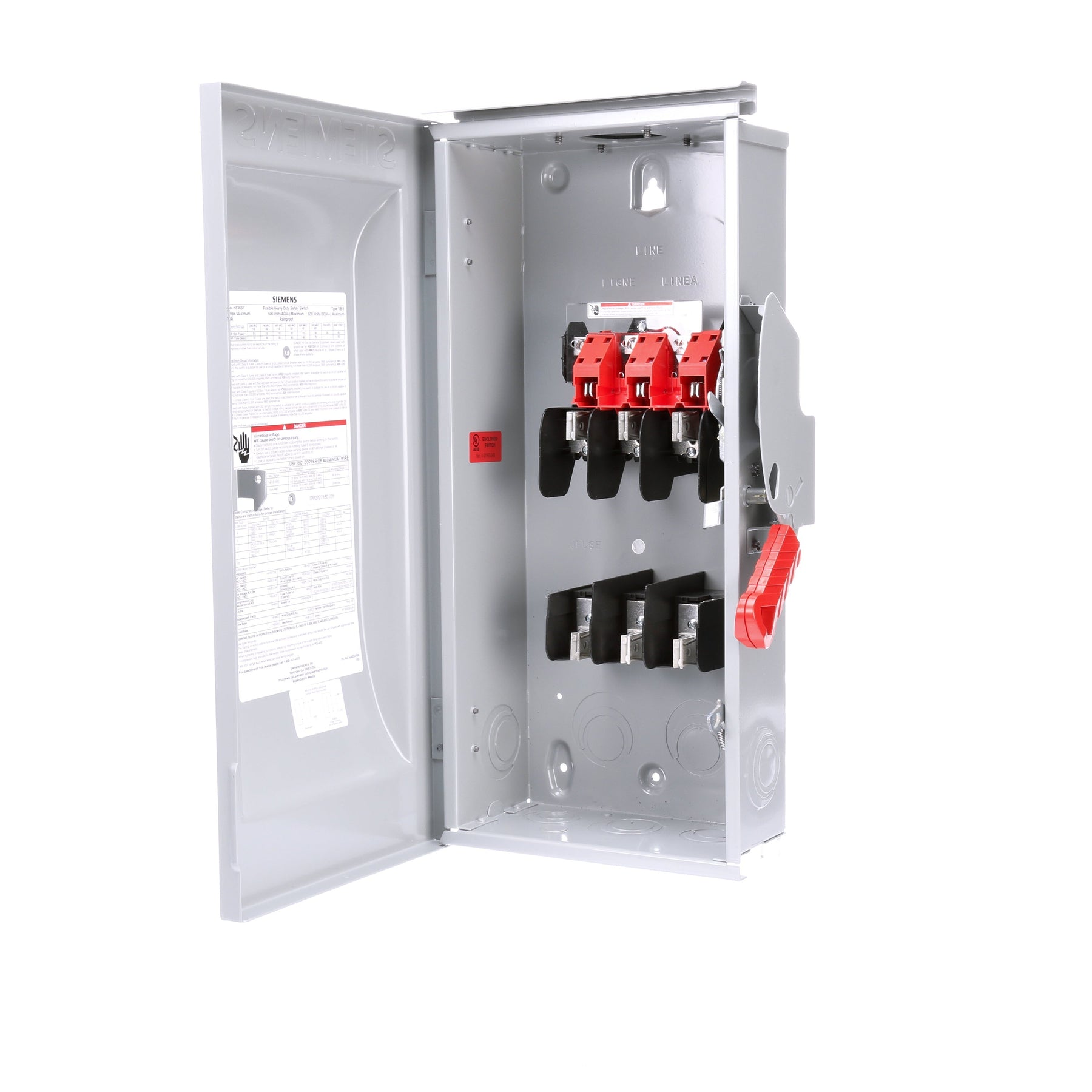

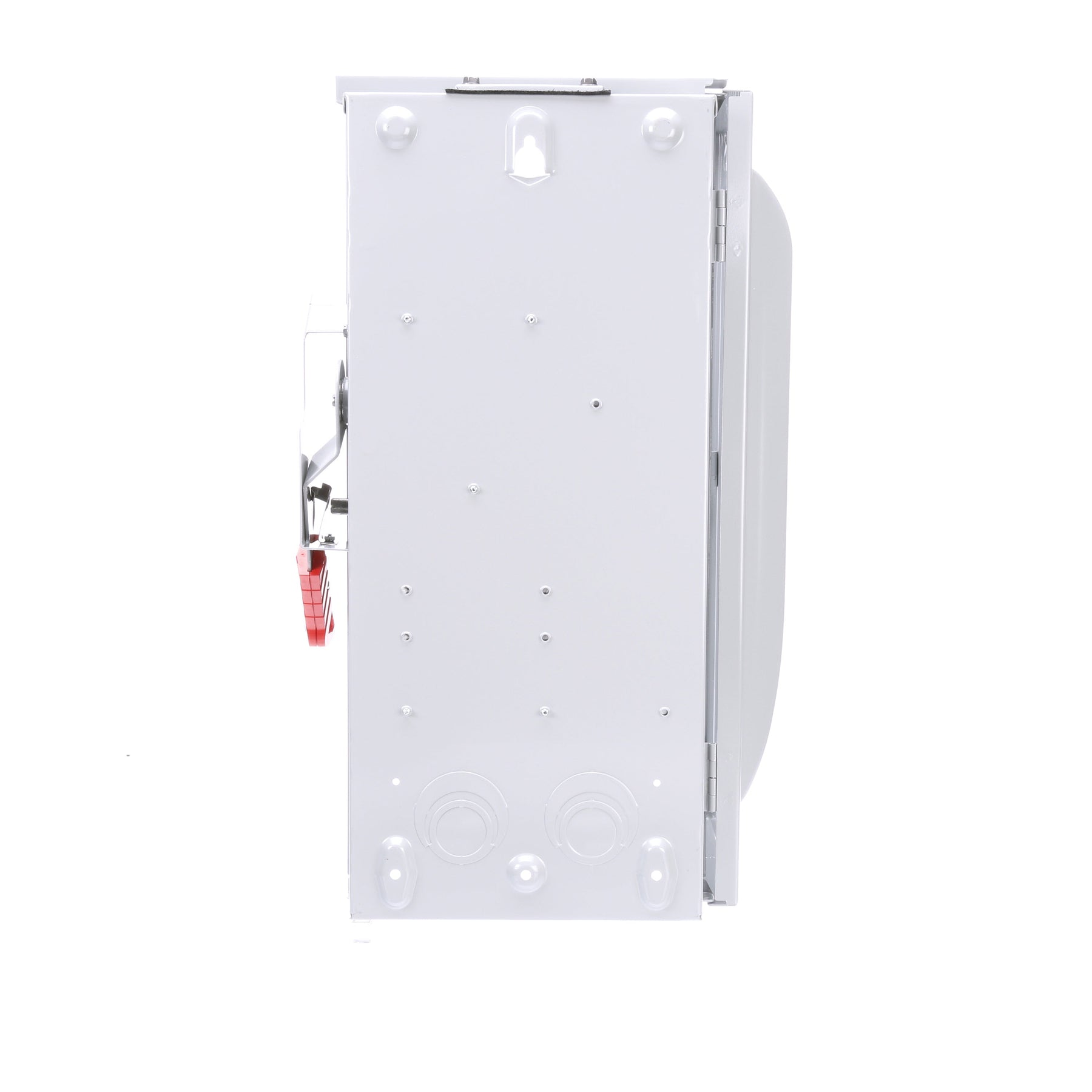

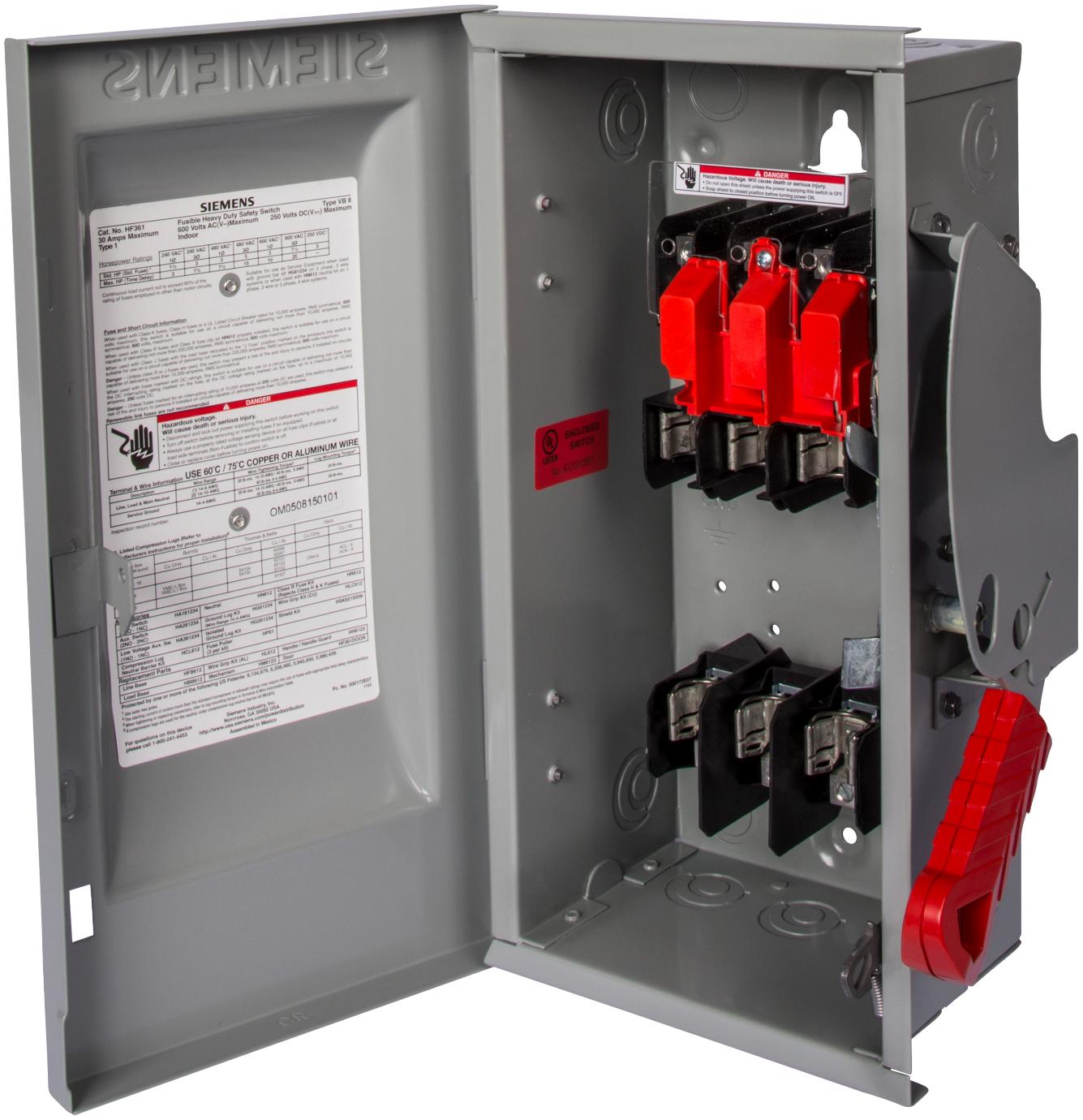

Siemens HF363R is a fusible disconnect switch designed for providing a visible break and overcurrent protection in industrial power distribution systems. It is rated for 600V AC, 3-phase operation with a 100A current rating and a 200kA interrupting capacity at 600V. The switch features a robust NEMA 3R enclosure measuring 25.591 x 13.78 x 7.874 inches and weighing 21.649 lb, constructed for reliable operation in temperatures from -25°C to 70°C. It is UL listed and designed for compatibility with PGP frames, ensuring adherence to industry safety standards. This disconnect is typically applied in motor control centers and panelboards for isolating and protecting electrical circuits.
Key Features & Specifications
Type: Fusible Disconnect Switch, VBII Series, HF type, single configuration
Voltage Rating: 600V AC
Current Rating: 100A
Dimensions: 25.591 x 13.78 x 7.874 inch (650 x 350 x 200 mm)
Standards: UL listed, NEMA 3R enclosure rating
Applications: Industrial power distribution, motor control centers, panelboards
Switch Type: Fusible
Configuration: Single
Temp Rating: -25°C to 70°C (-13°F to 158°F)
Phase: 3
AIC rating: 200kA @ 600V
Poles: 3
Protection: Overcurrent via Class R fuses
Fuse Class: R
Compatible Frames: PGP
Weight: 21.649 lb
Country of Origin: Mexico
Product Identification
UPC: 783643151307
GTIN: 00783643151307
