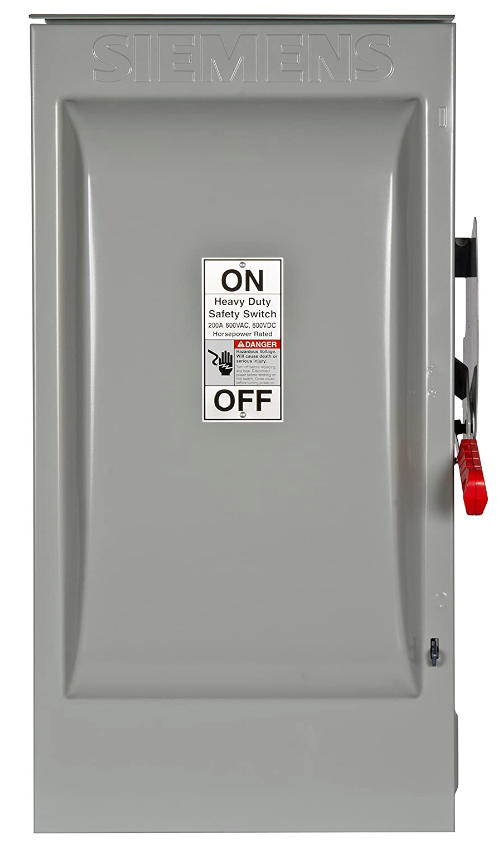

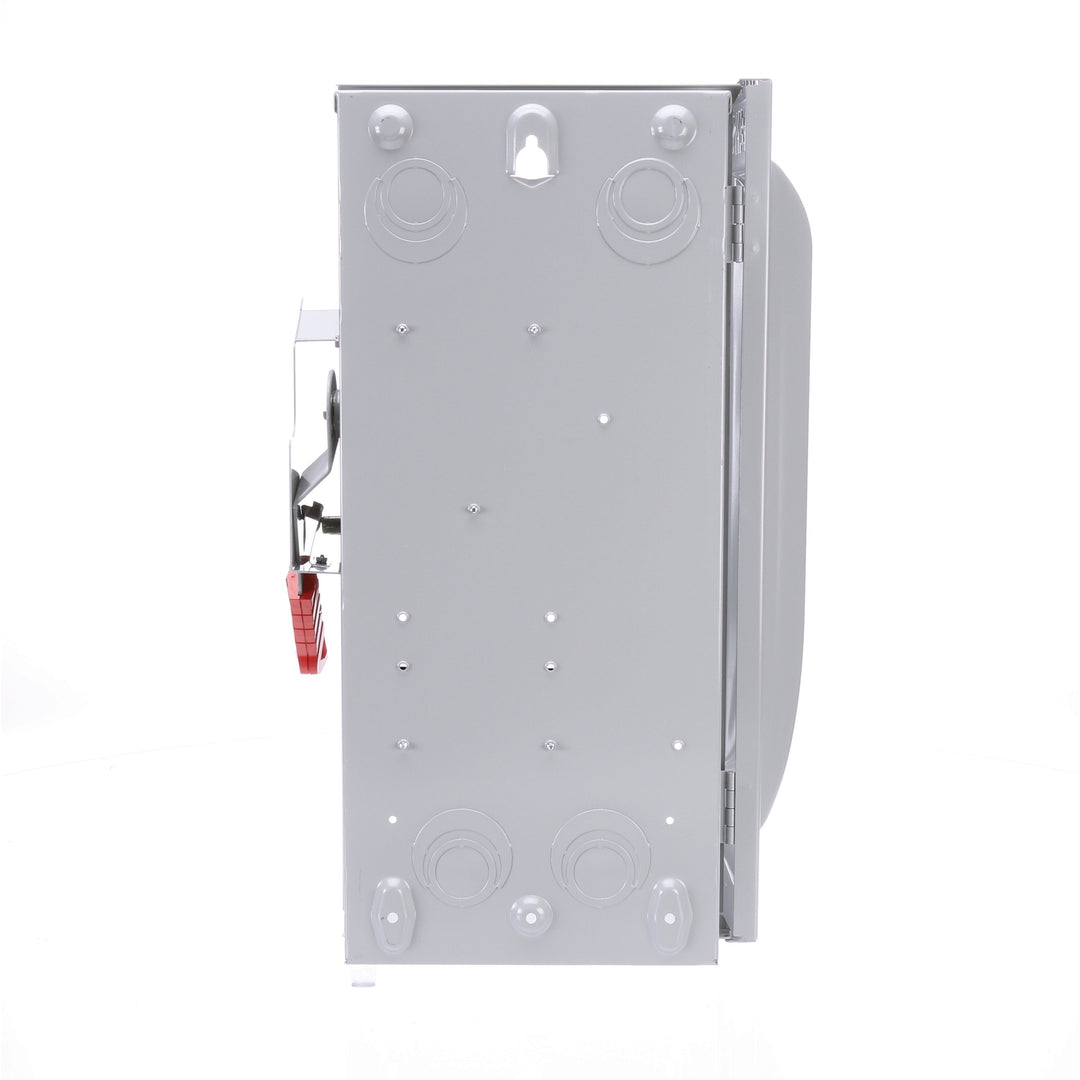

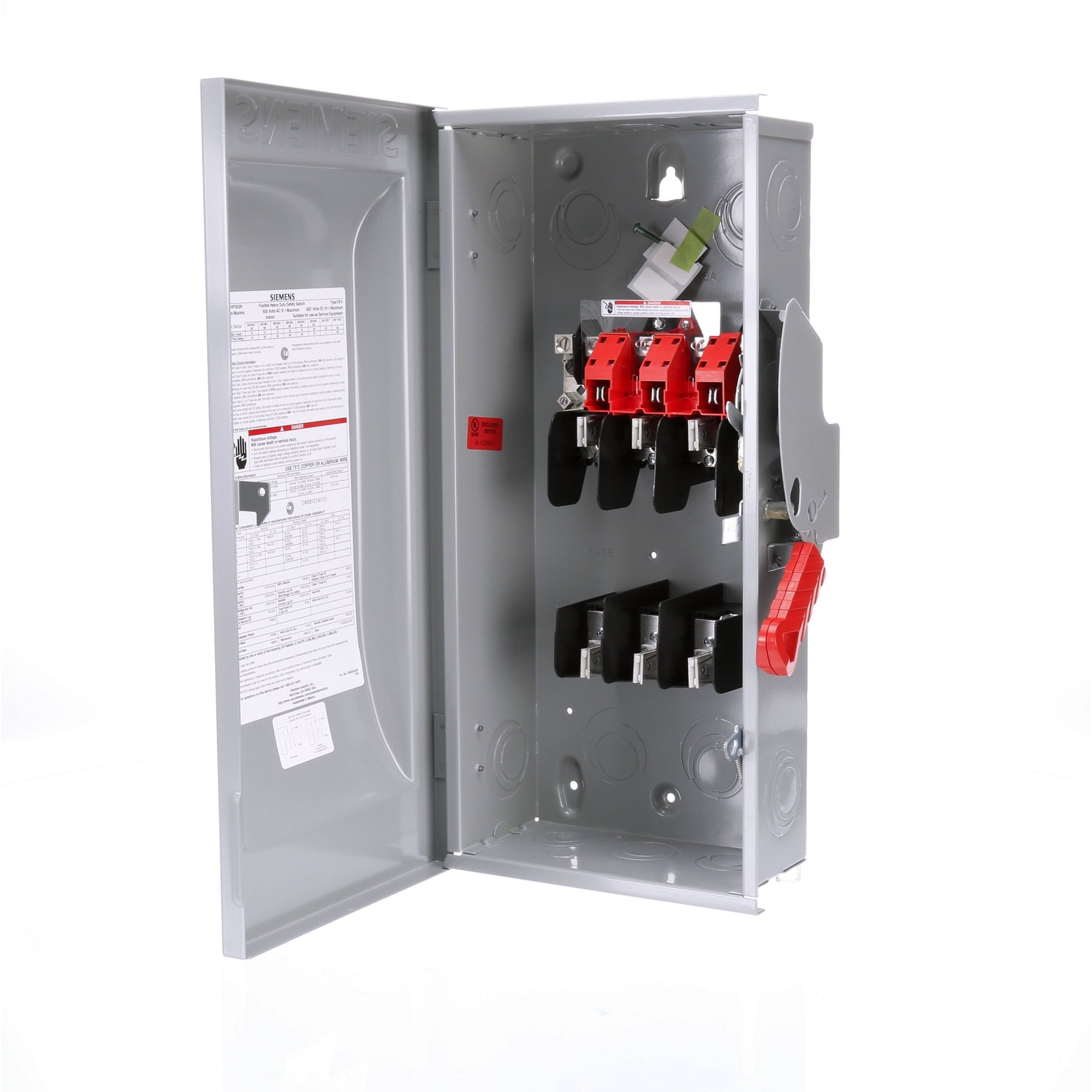

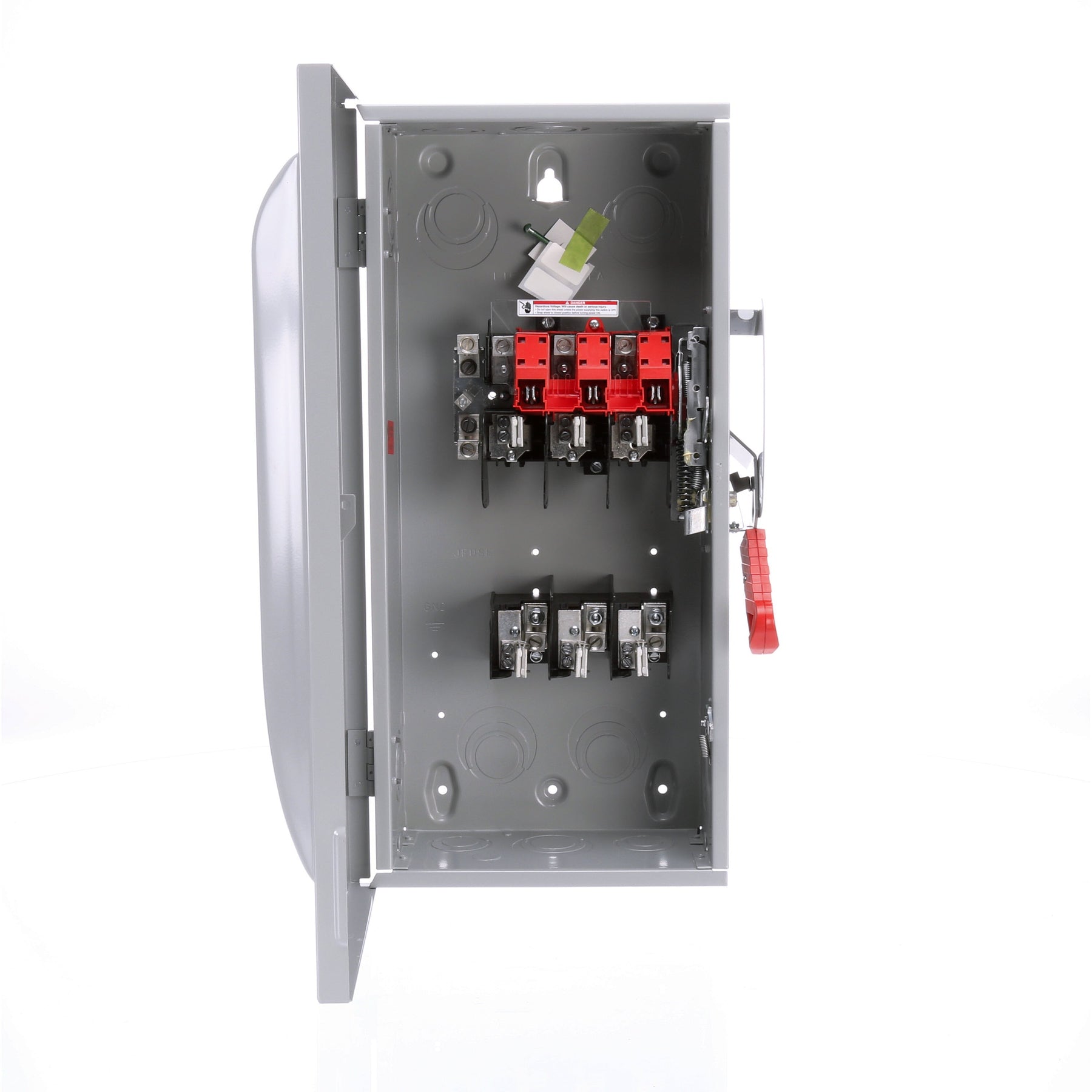

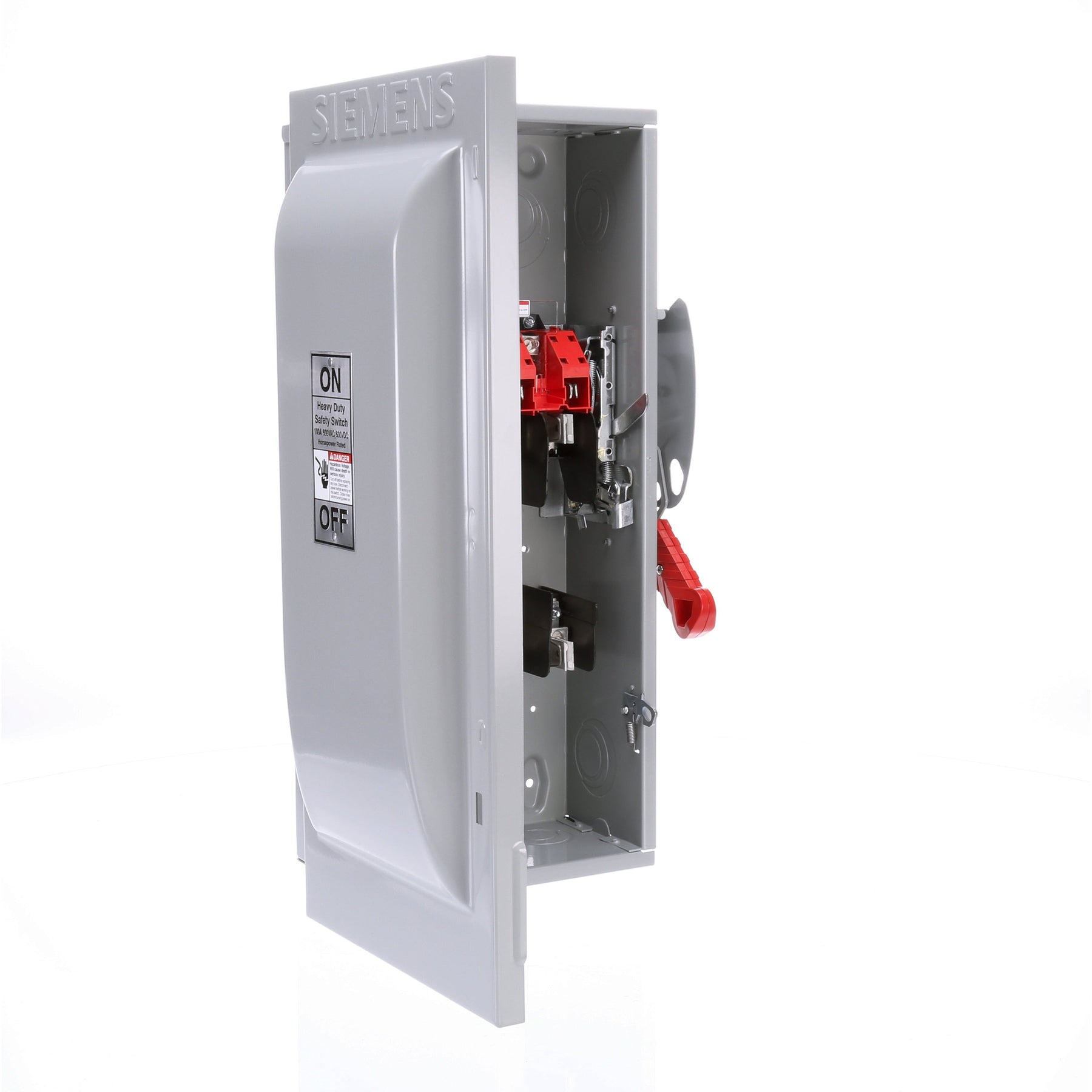

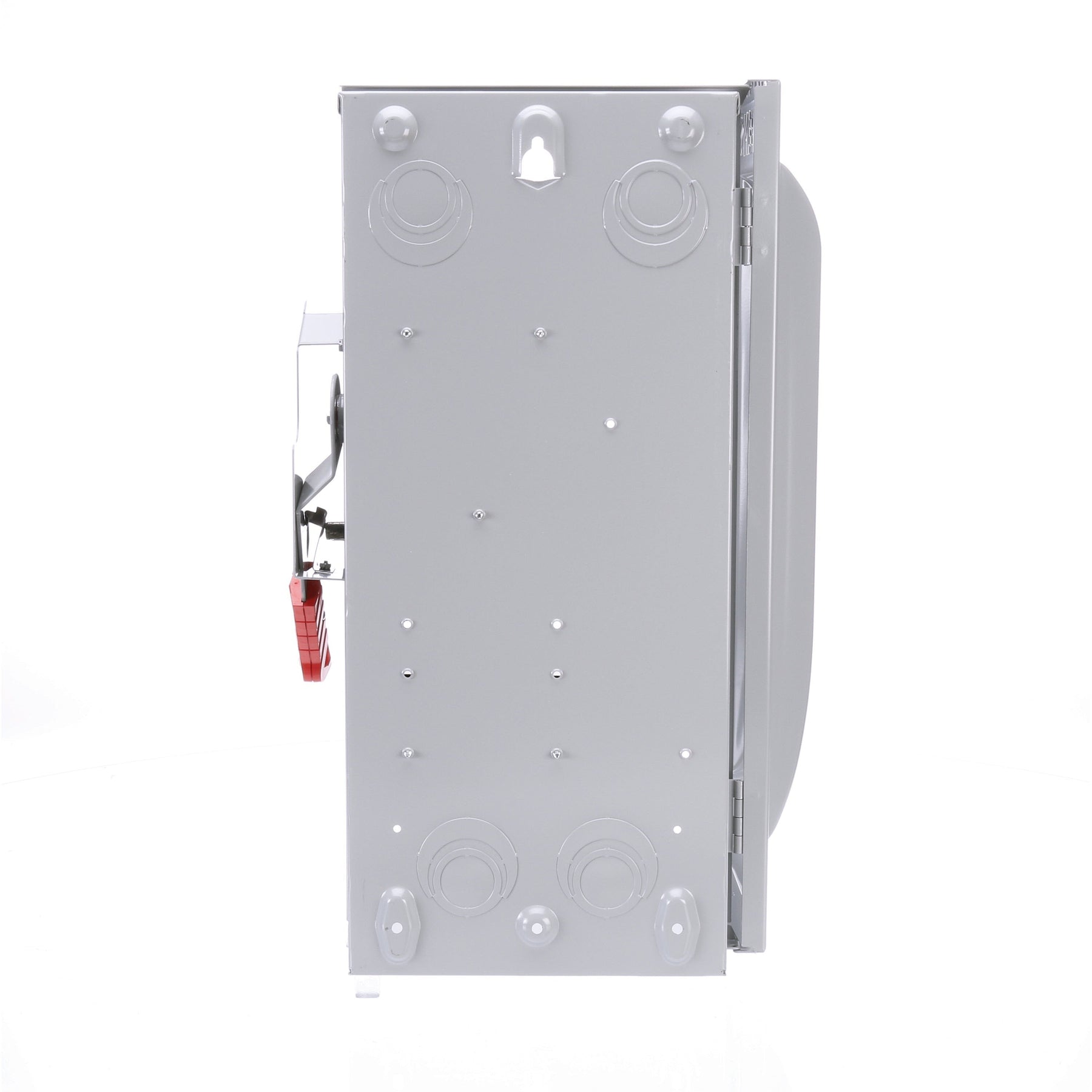

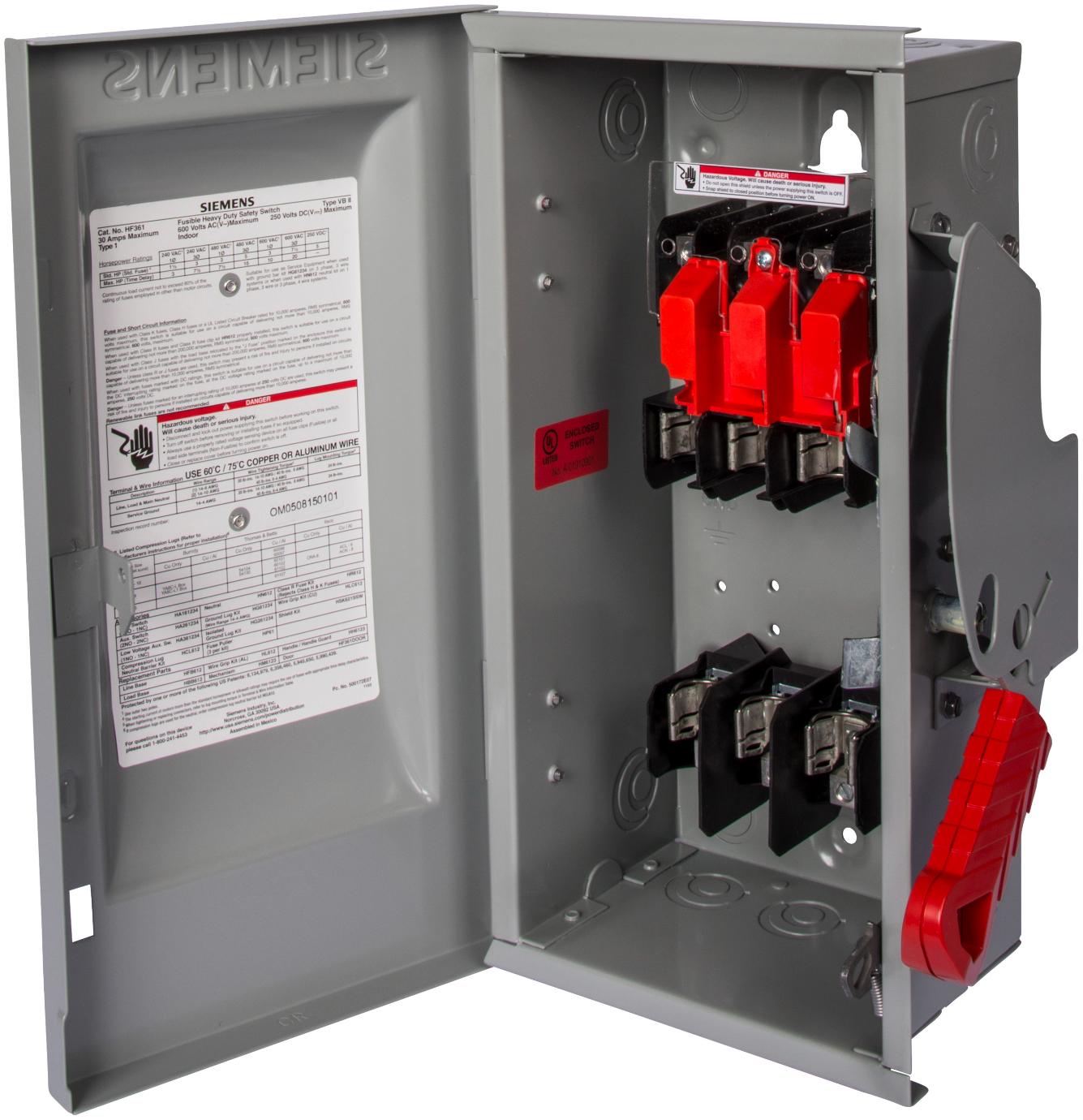

Siemens HF363N - Fusible Disconnect Switch, 100A 600V 3-Pole

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens HF363N is a fusible disconnect switch designed for providing visible isolation and overcurrent protection in three-phase industrial power distribution systems. It is rated for 600V AC operation with a continuous current rating of 100A and features a high interrupting capacity of 200kA at 600V. The switch is constructed within a NEMA 1 enclosure measuring 25.591 x 14.173 x 7.874 inches and weighing 20.834 lb, designed for operation in temperatures from -25°C to 70°C. It is UL listed and compatible with Siemens PGP panelboards, ensuring compliance with industry safety standards for industrial control and motor branch circuits.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, VBII Series, HF type, single configuration
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 25.591 x 14.173 x 7.874 inch (650 x 360 x 200 mm)
  • Standards: UL listed
  • Applications: Industrial power distribution, motor branch circuit protection, panelboard isolation
  • Switch Type: Fusible
  • Configuration: Single
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC rating: 200kA @ 600V
  • Connection: Fusible
  • Poles: 3
  • Protection: Overcurrent (via Class R fuses)
  • Nema Rating: NEMA 1
  • Fuse Class: R
  • Compatible Frames: PGP
  • Enclosure: NEMA 1
  • Country of Origin: Mexico
  • Weight: 20.834 lb


Product Identification
  • UPC: 783643151109
  • GTIN: 00783643151109
