Siemens
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

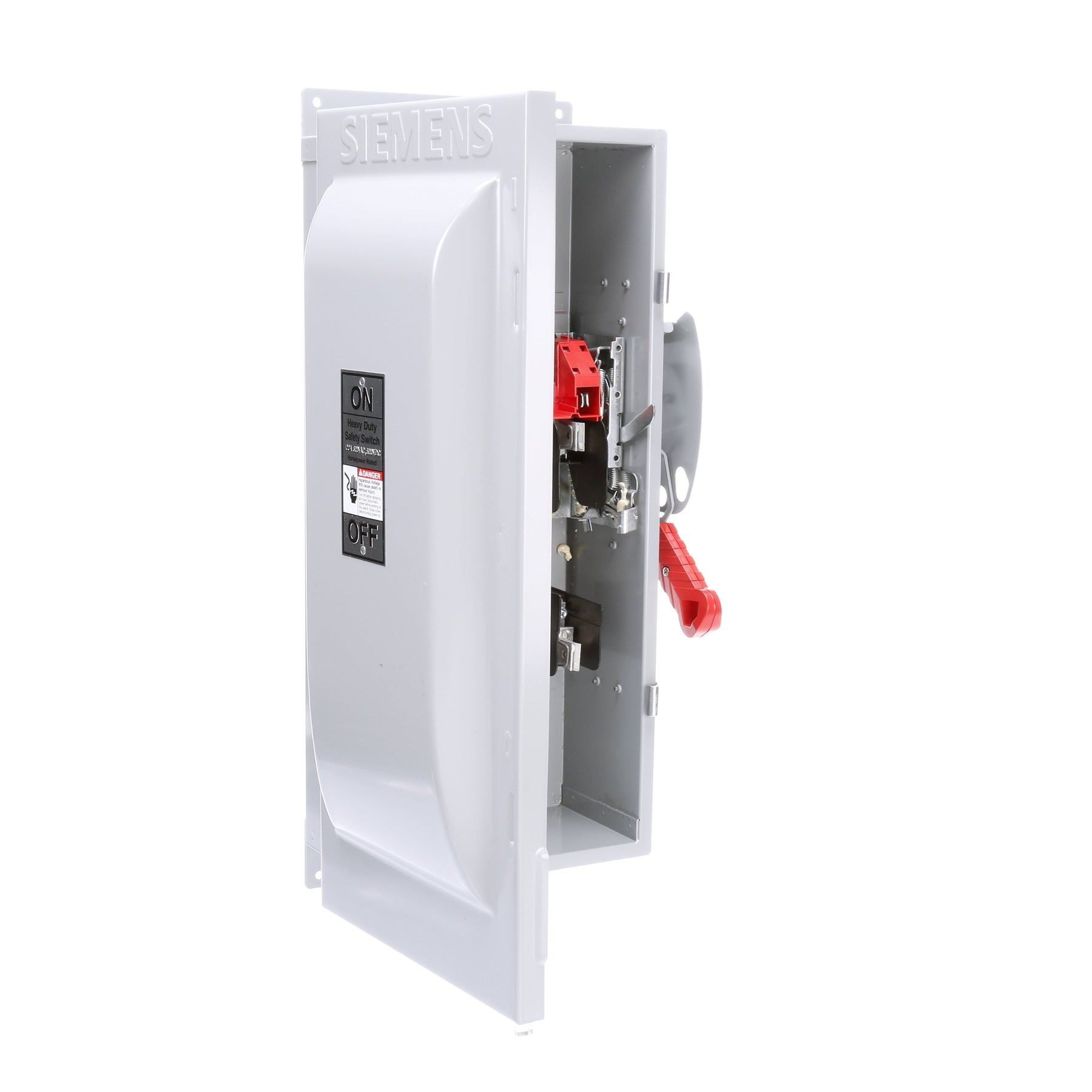

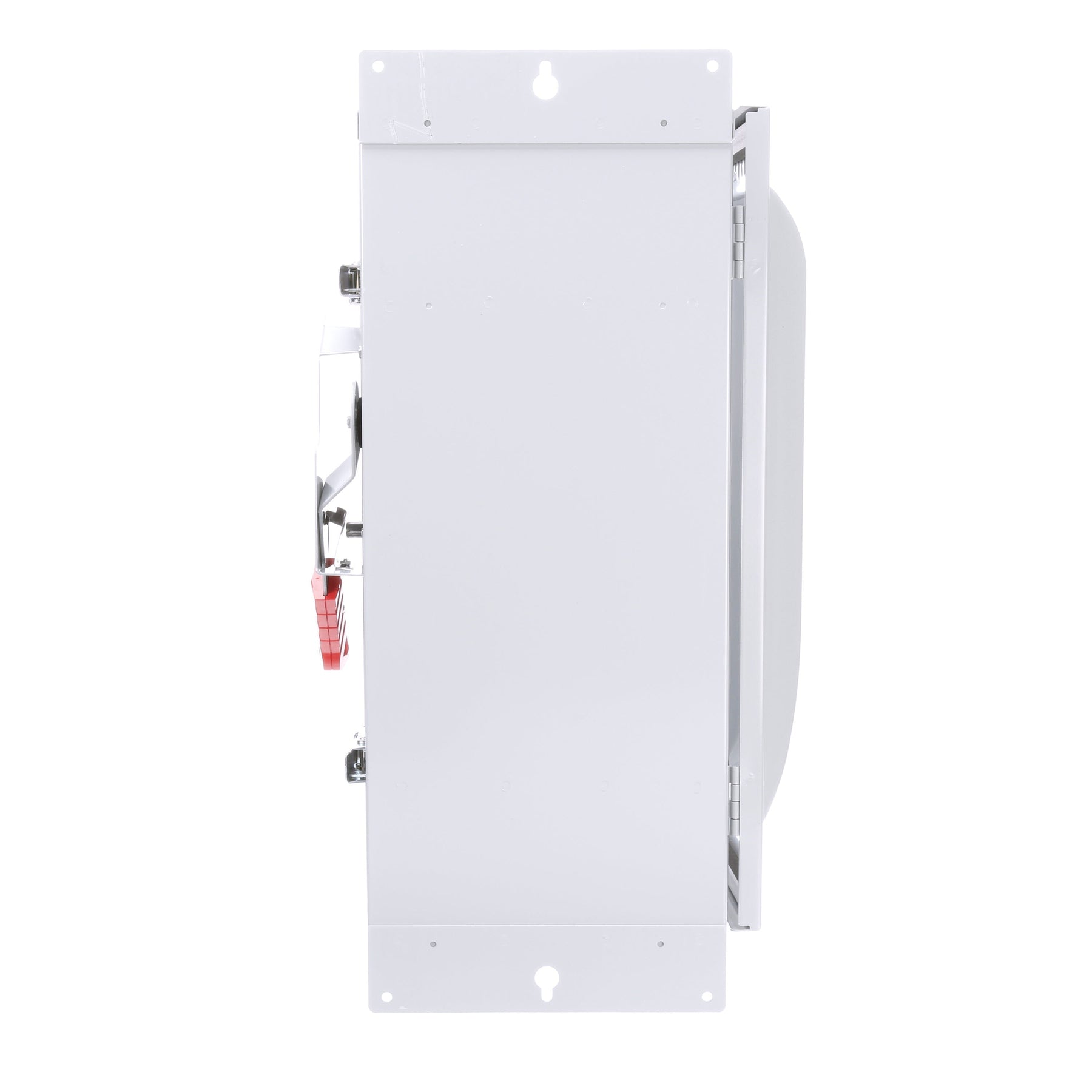

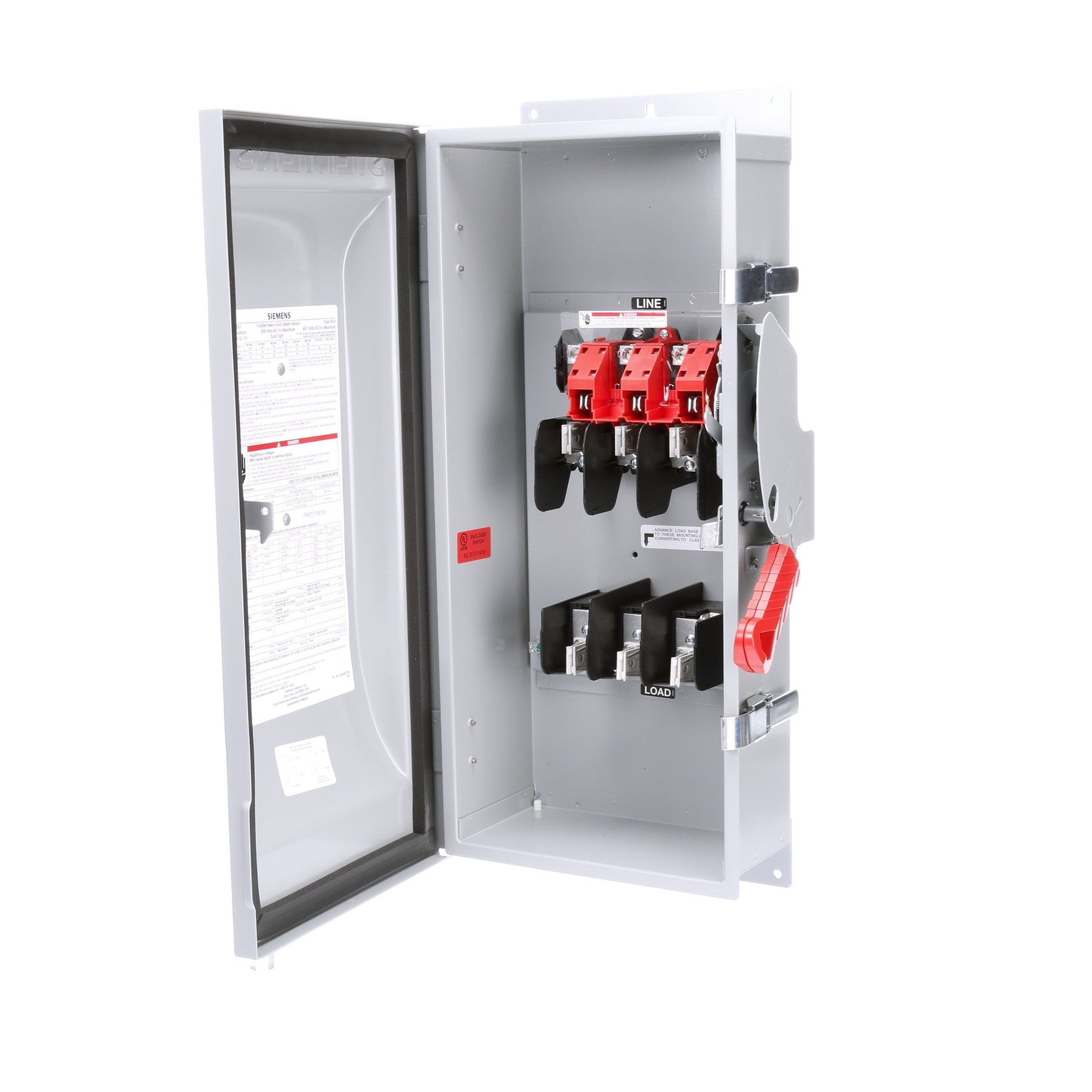

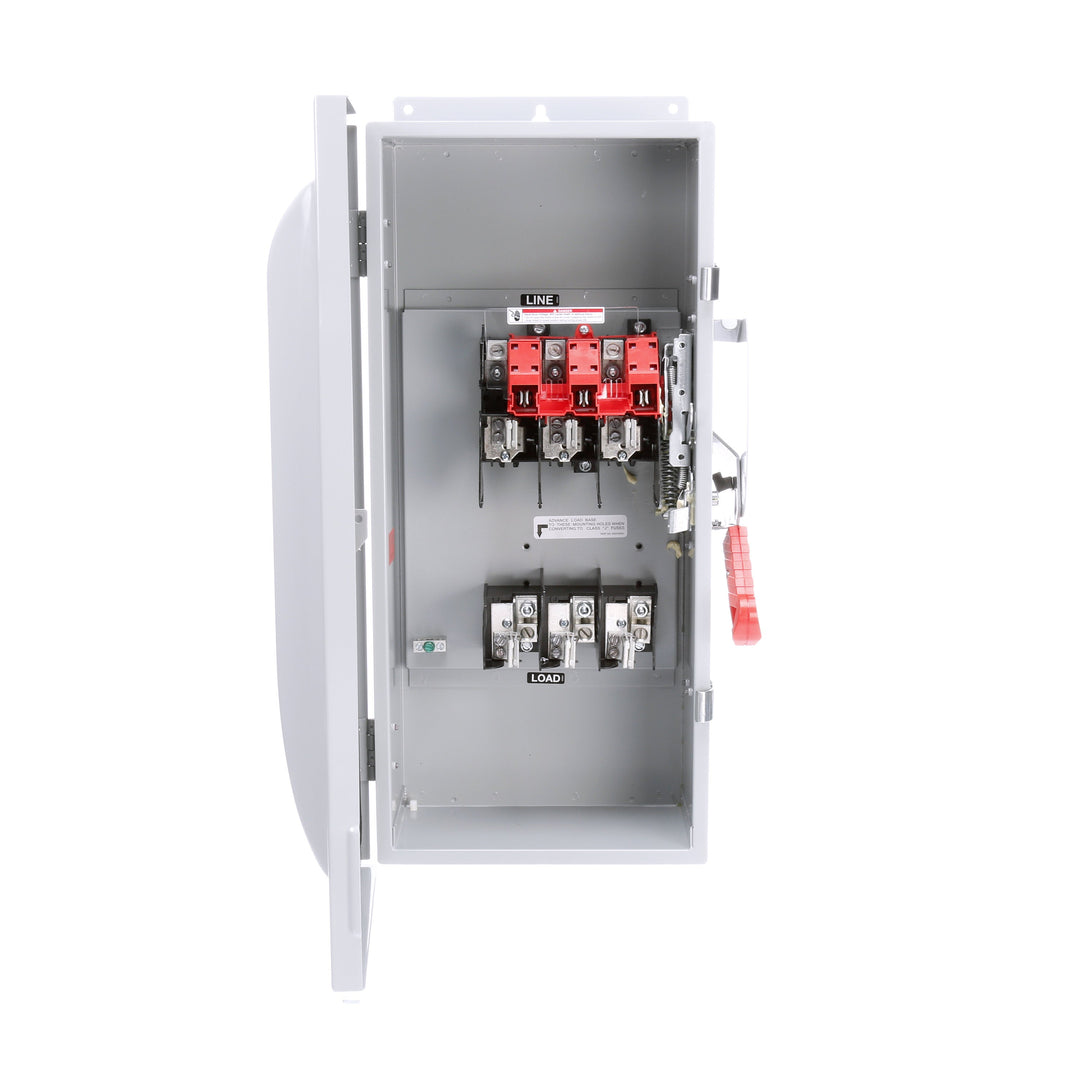

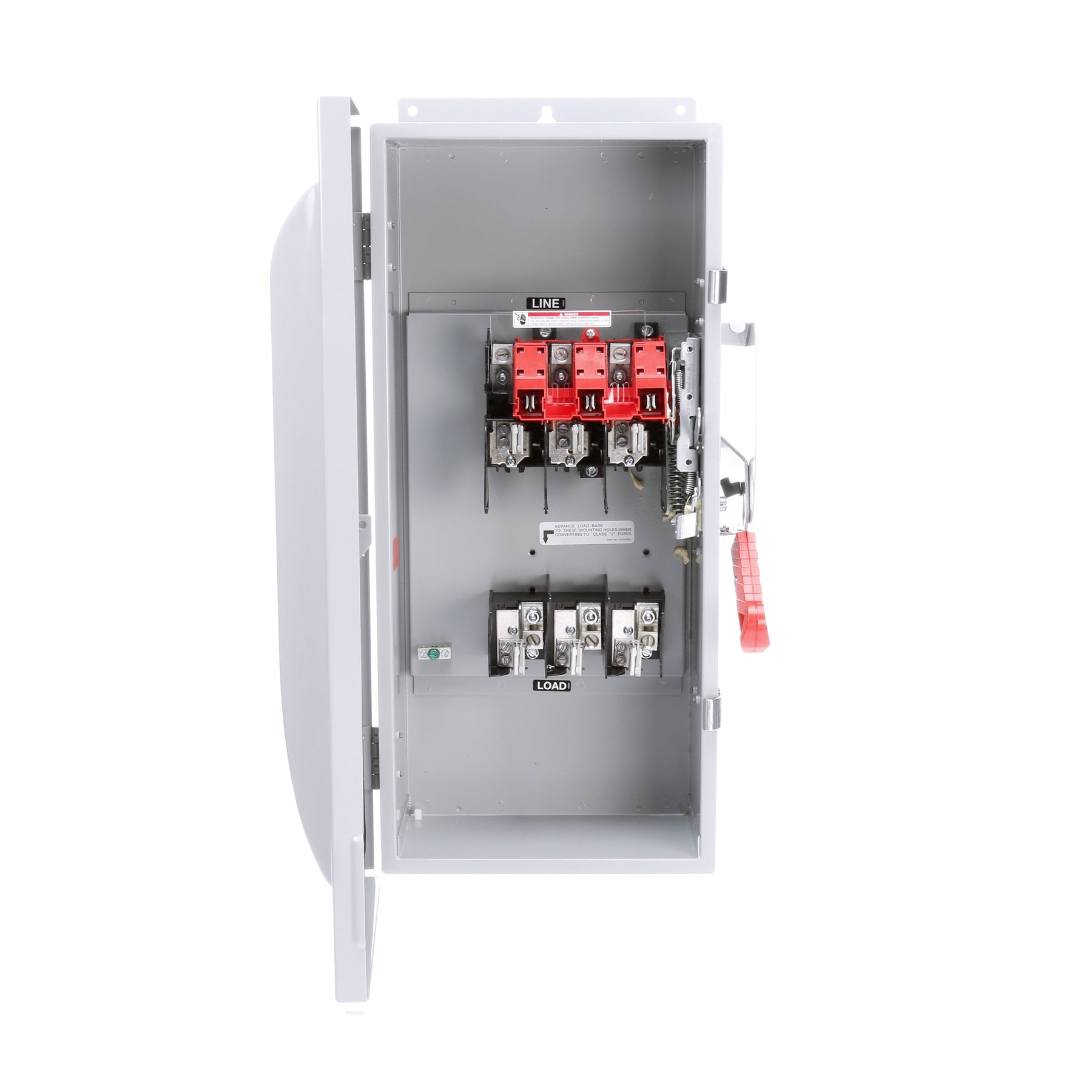

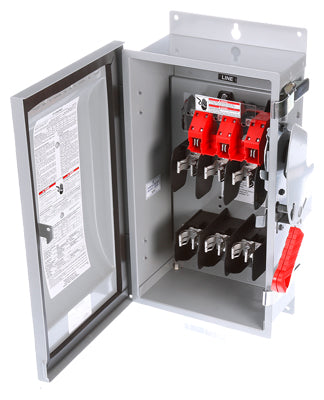

Siemens HF363J is a fusible disconnect switch designed for providing a visible break and overcurrent protection in three-phase industrial power distribution systems. It is rated for 600V AC operation with a continuous current rating of 100A and a high interrupting capacity of 200kA at 600V. The switch features a robust, single-configuration design with three poles, is housed in a NEMA 12 enclosure measuring 27.559 x 14.173 x 8.268 inches and weighing 26.257 lb, and operates reliably within a temperature range of -25°C to 70°C. This UL-listed component complies with industry safety standards and is engineered for integration into compatible PGP frames, making it suitable for use in motor control centers, industrial machinery, and panelboards where reliable circuit isolation and protection are required.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, VBII Series, HF Type
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Fuse Class: R
  • Switch Style: Fusible
  • Nema Rating: NEMA 12
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 27.559" x 14.173" x 8.268"
  • Weight: 26.257 lb
  • Standards: UL Listed
  • Compatible Frames: PGP
  • Applications: Industrial power distribution, motor control centers, panelboards
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643151833
  • GTIN: 00783643151833
