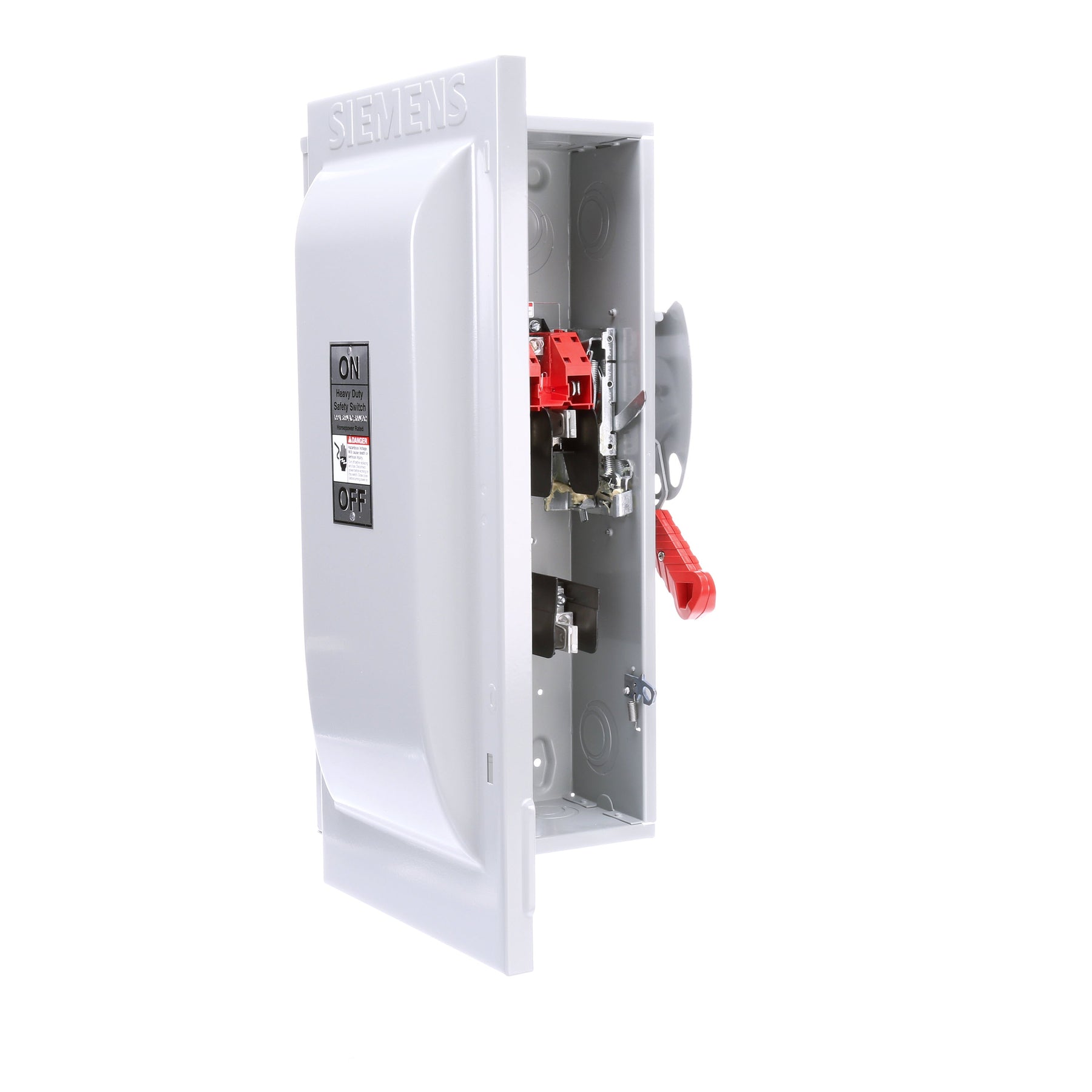

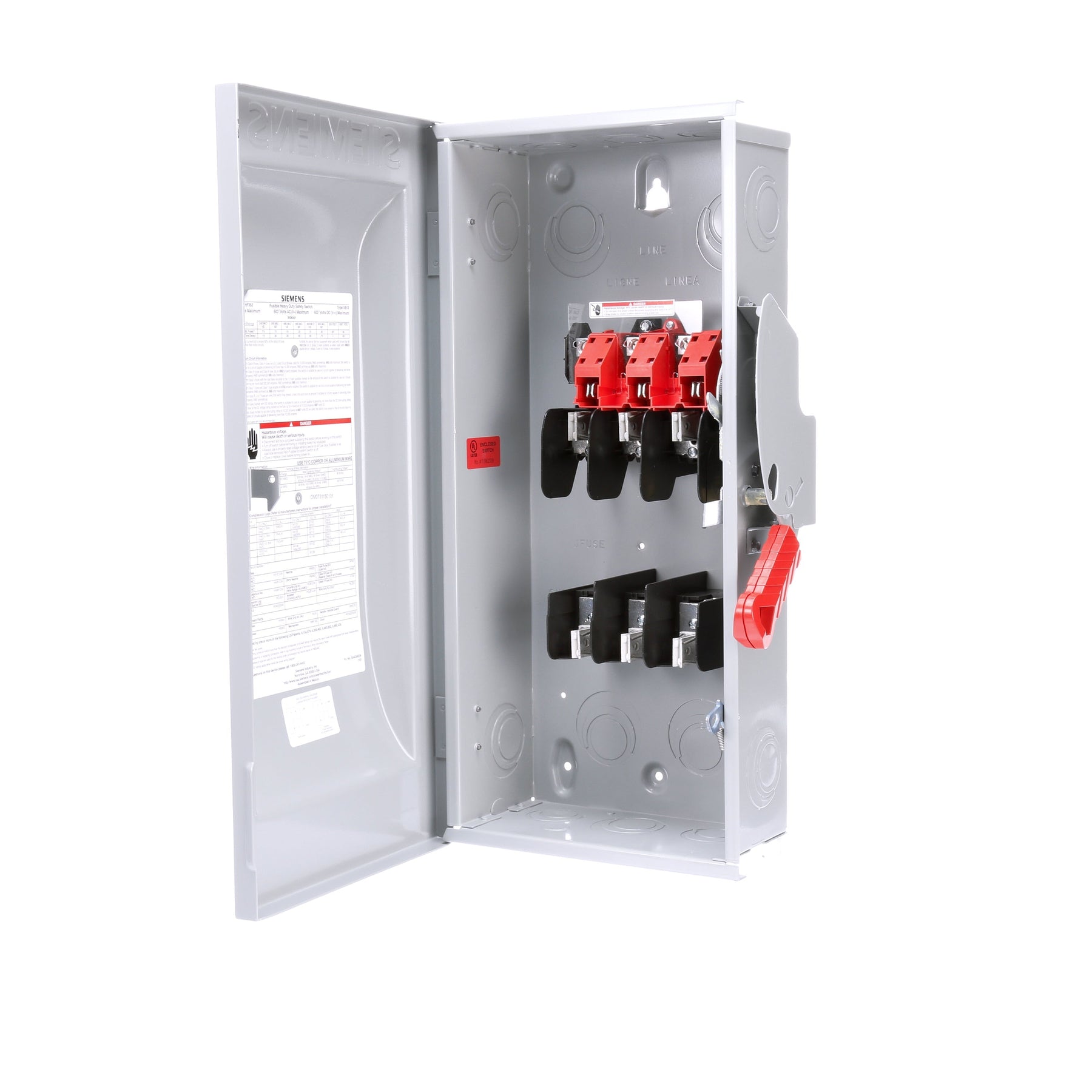

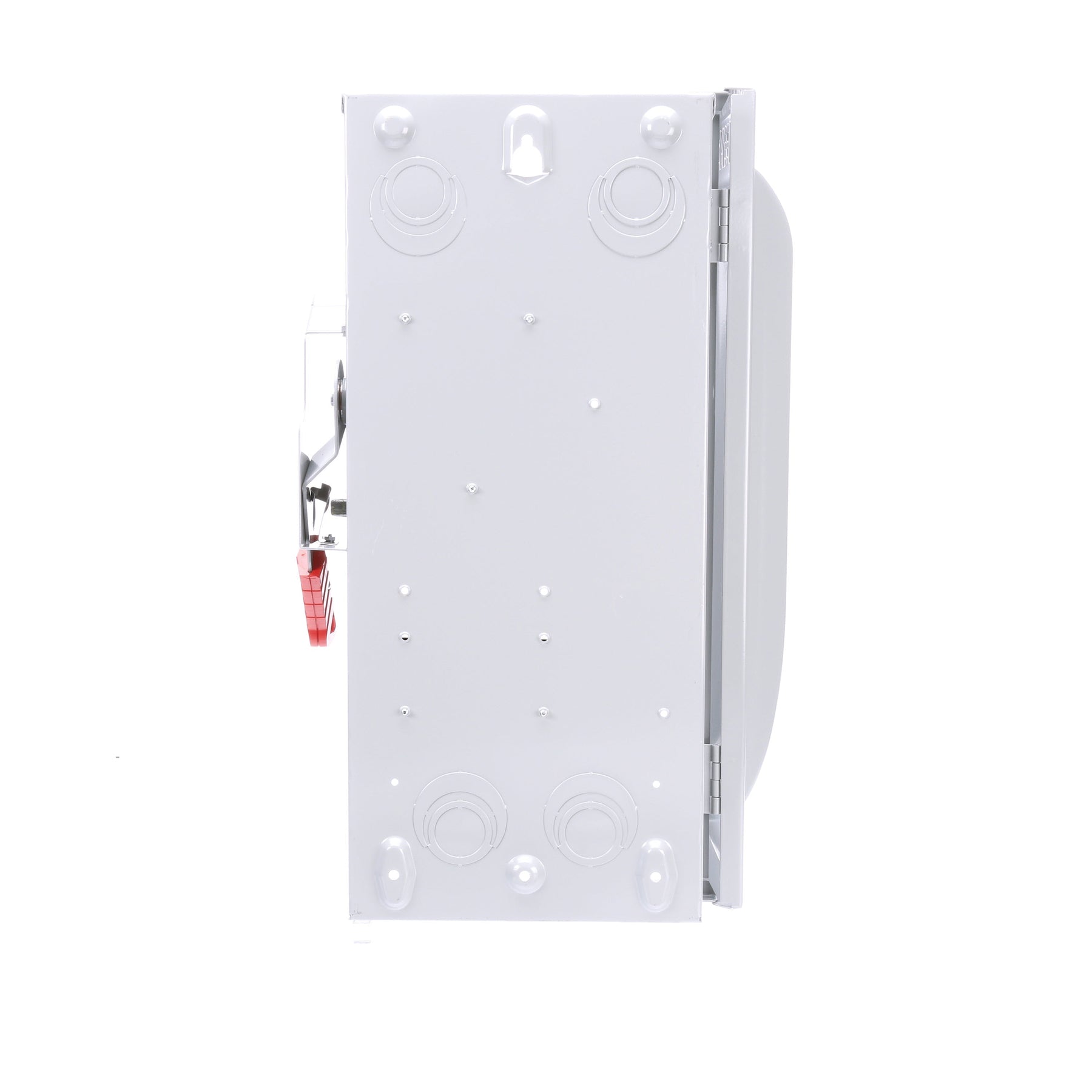

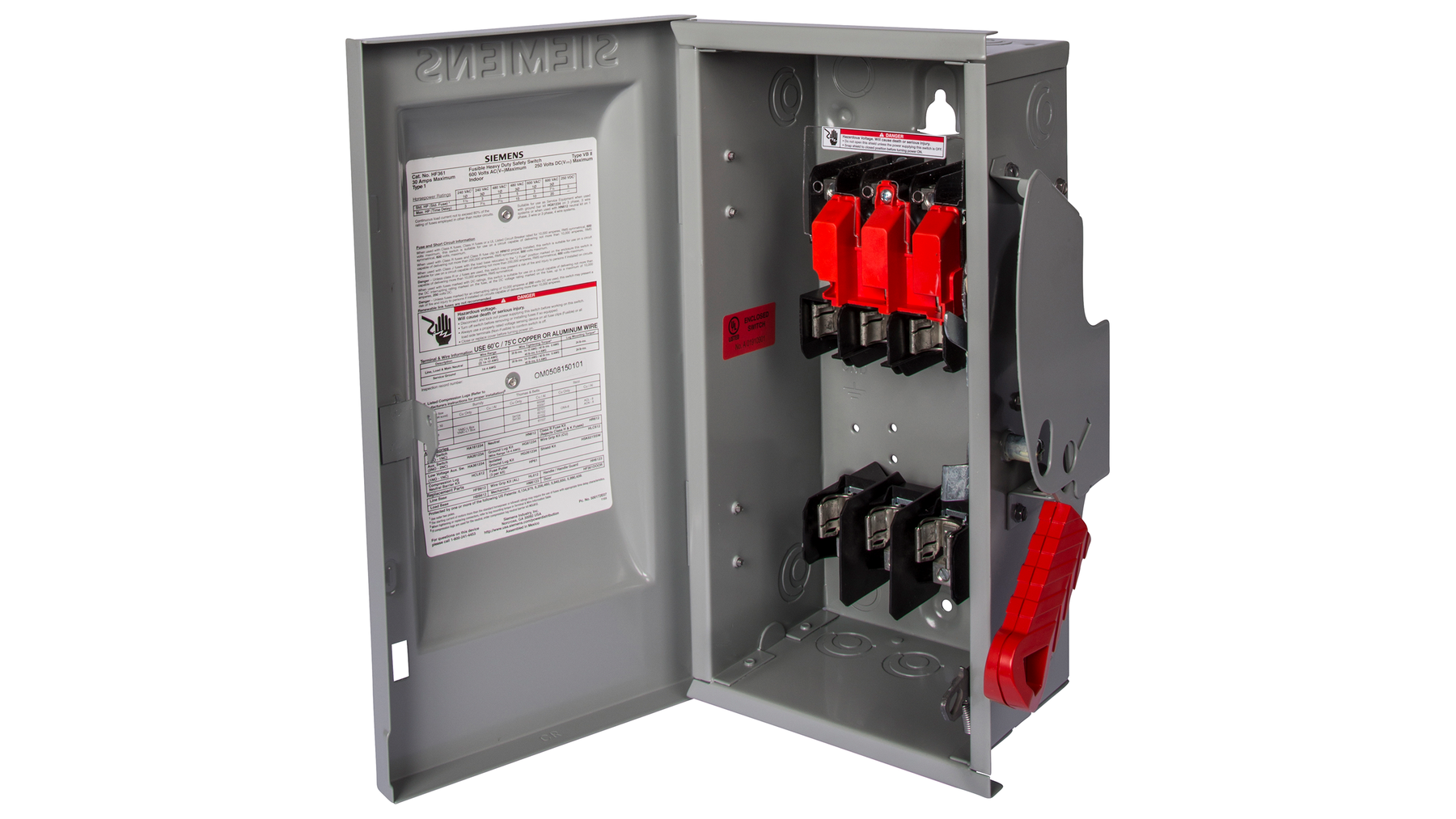

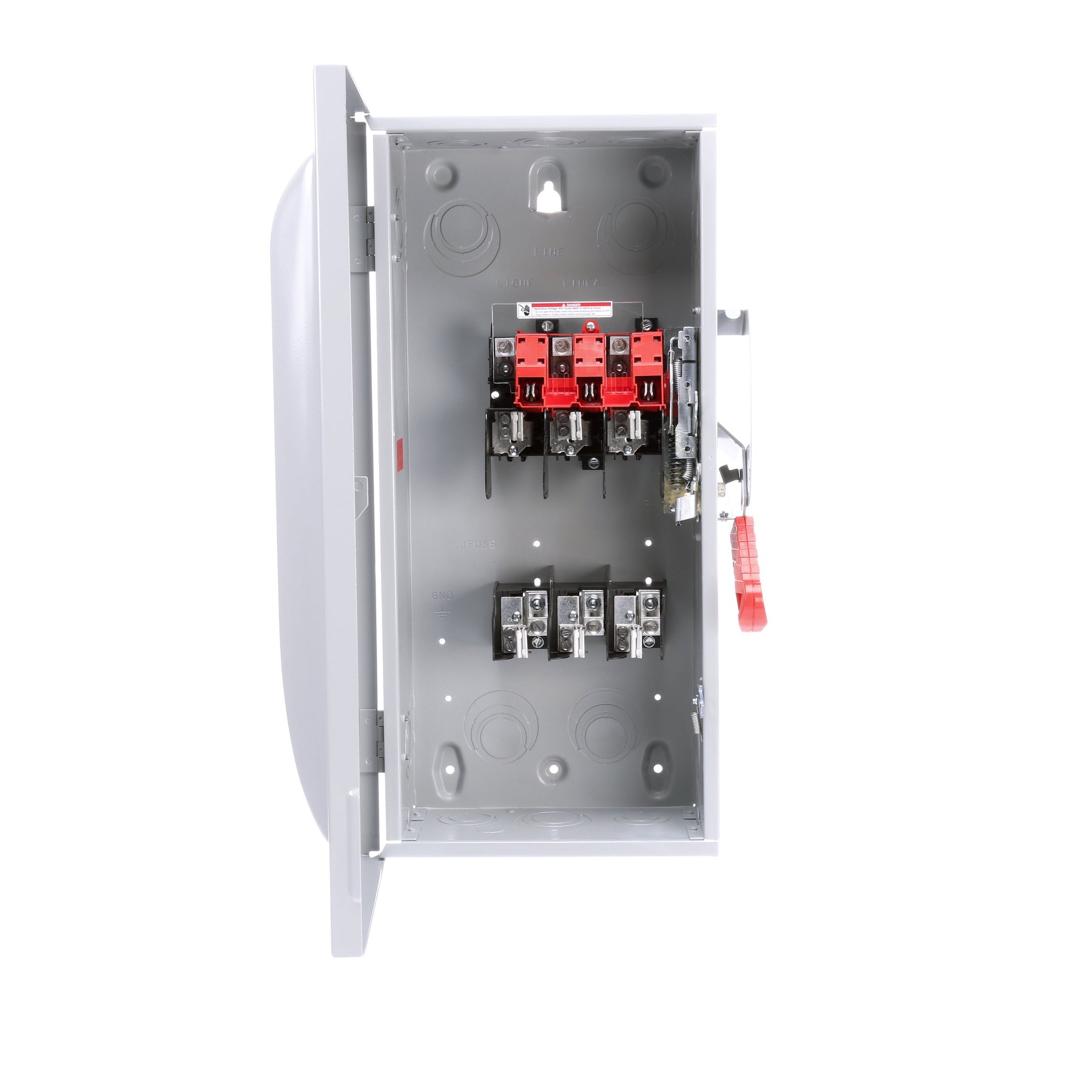

Siemens HF363 - Fusible Disconnect Switch, 100A, 600V AC

Siemens
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens HF363 is a fusible disconnect switch designed for providing visible isolation and circuit protection in industrial power distribution. It is rated for 600V AC systems with a 100A current rating and features a 200kA interrupting capacity at 600V for robust short-circuit protection. The switch is constructed with a NEMA 1 enclosure measuring 650 x 350 x 200 mm (25.591 x 13.78 x 7.874 inches) and weighing 20.834 lb, and it operates reliably within a temperature range of -25°C to 70°C (-13°F to 158°F). This UL-listed device complies with industry standards and is part of the VBII series, compatible with PGP frames. Its three-pole, single-configuration, fusible design makes it suitable for controlling and protecting motors, feeders, and branch circuits in manufacturing and commercial facilities.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, VBII Series, HF Type
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 650 x 350 x 200 mm (25.591 x 13.78 x 7.874 inches)
  • Standards: UL Listed
  • Applications: Industrial power distribution for motor, feeder, and branch circuit protection
  • Switch Type: Fusible
  • Configuration: Single
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC rating: 200kA @ 600V
  • Poles: 3
  • Nema Rating: NEMA 1
  • Fuse Class: R
  • Compatible Frames: PGP
  • Enclosure: NEMA 1
  • Country of Origin: Mexico
  • Weight: 20.834 lb


Product Identification
  • UPC: 783643151024
  • GTIN: 00783643151024
