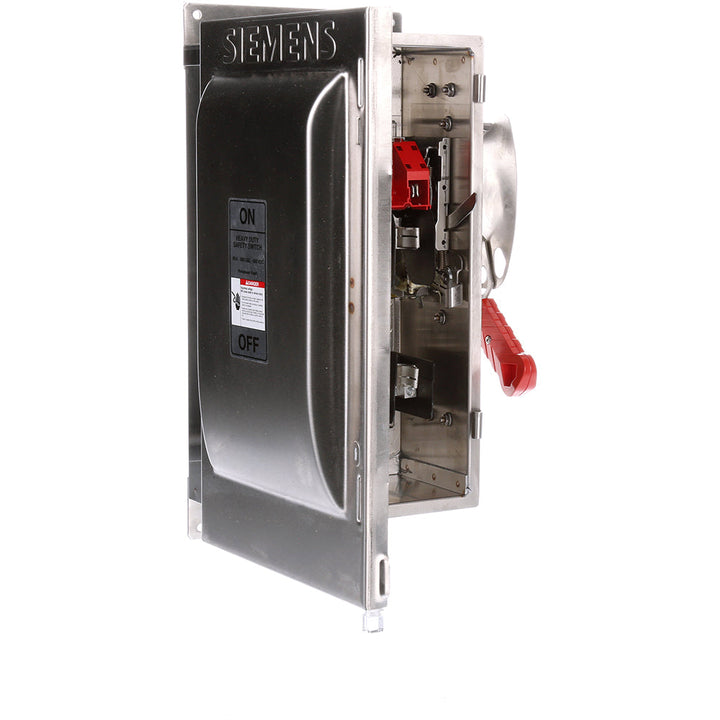

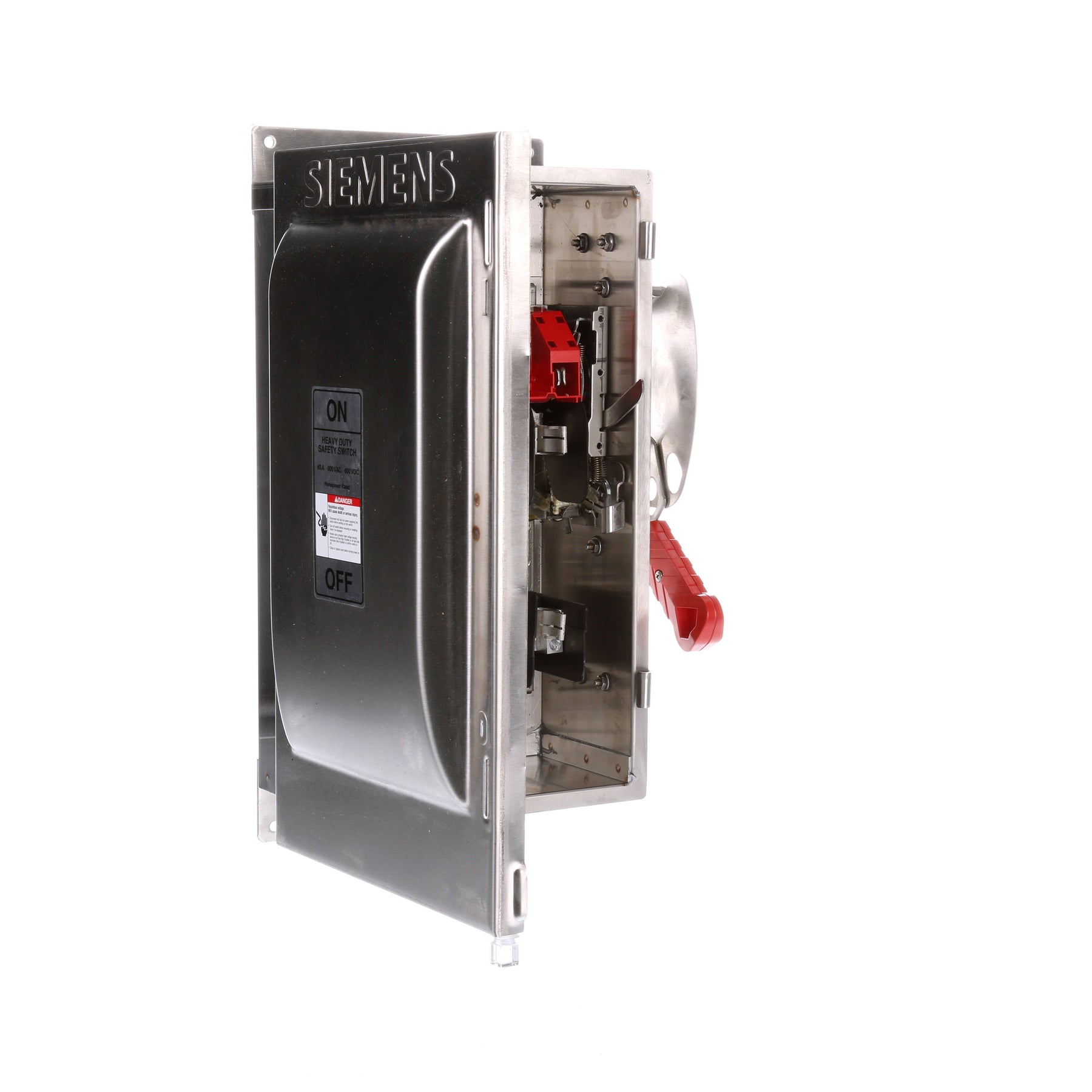

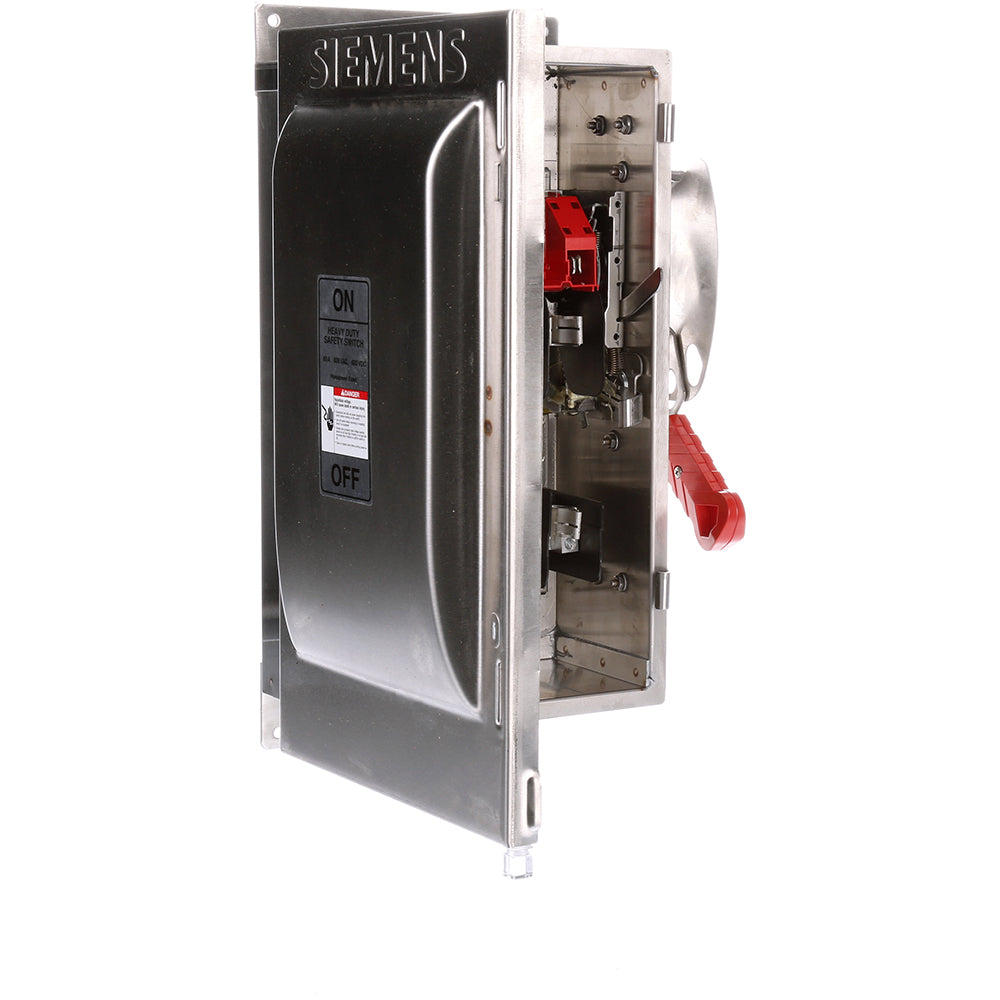

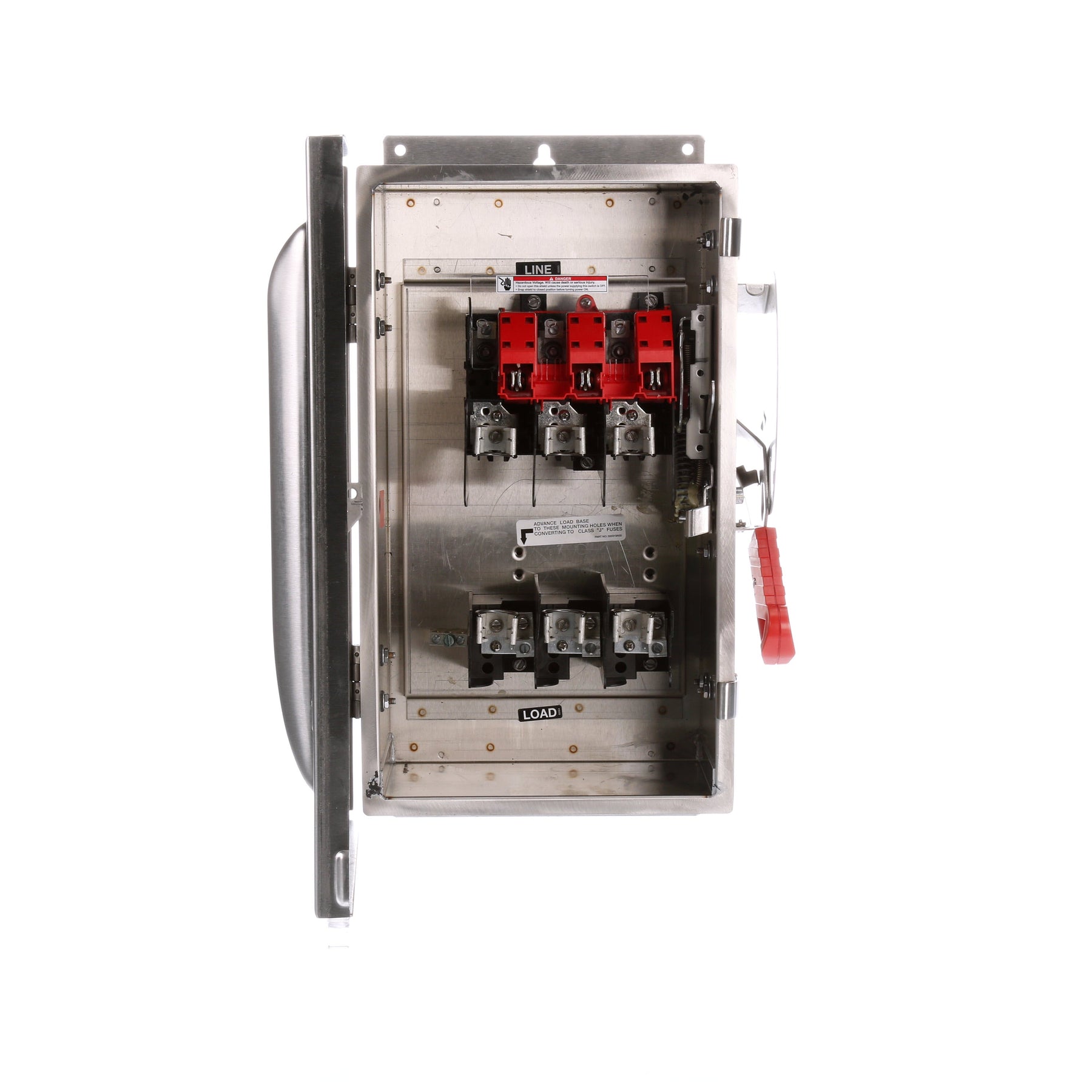

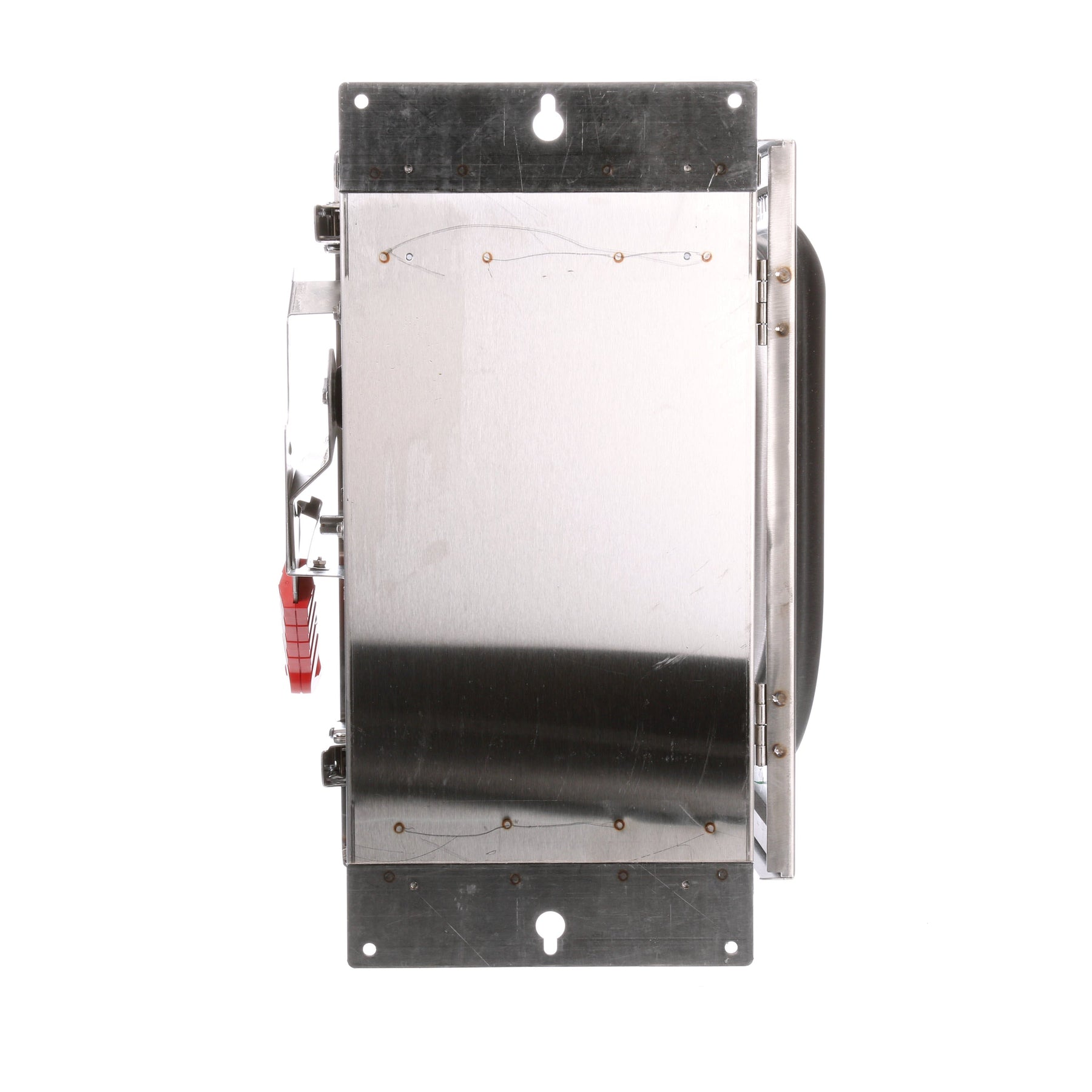

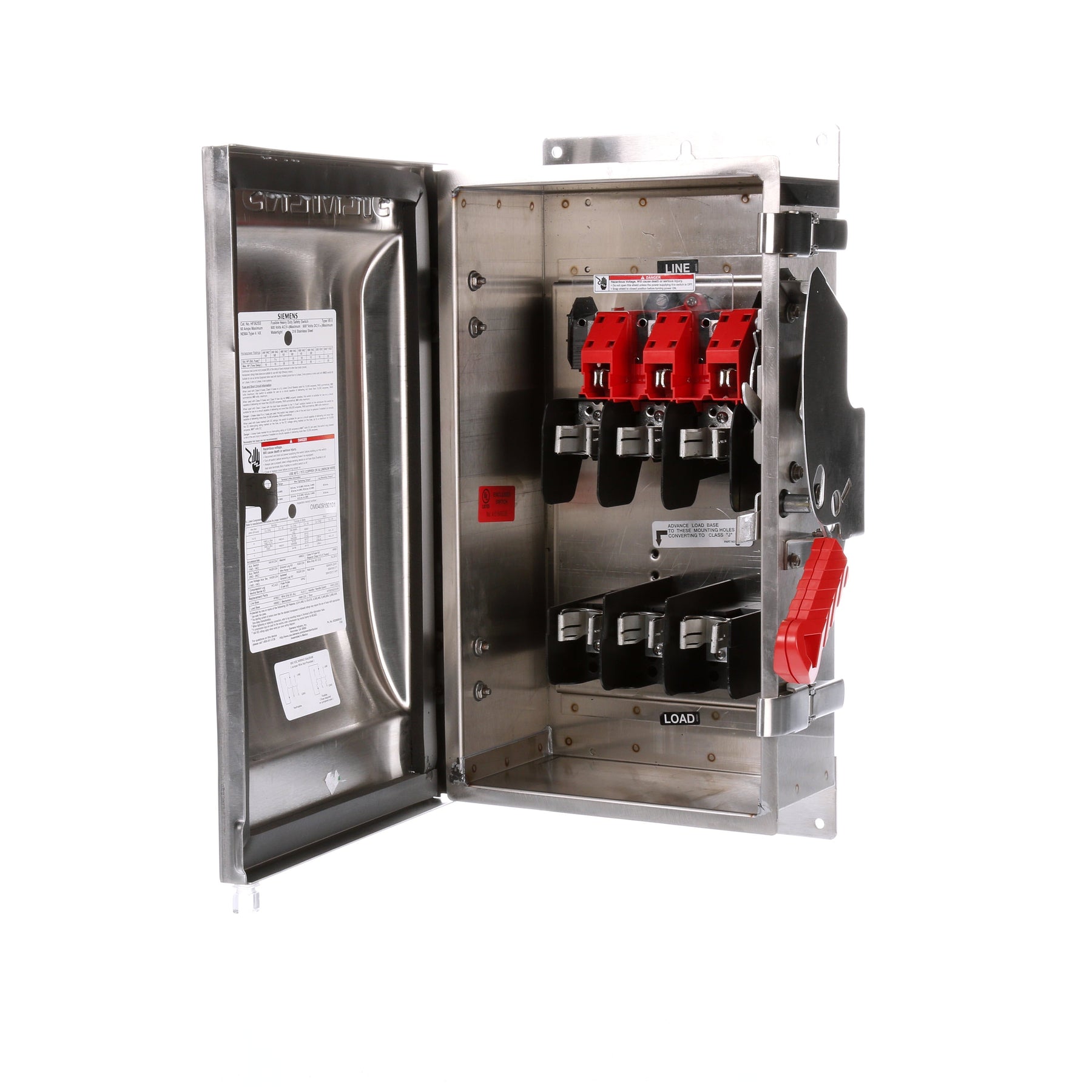

Siemens HF362SS is a fusible disconnect switch designed for providing a visible break and overcurrent protection in three-phase industrial power circuits. It is rated for 600V AC and a continuous current of 60A, featuring a robust construction with dimensions of 13.78 x 7.874 x 21.654 inches (350 x 200 x 550 mm) and a weight of 2.205 lb. The switch is UL listed and carries a NEMA 4X rating for corrosion and weather resistance, suitable for operation in temperatures from -25°C to 70°C. Its high interrupting capacity of 200kA at 600V makes it applicable for demanding environments like industrial control panels and motor feeder circuits.
Key Features & Specifications
Type: Fusible Disconnect Switch, VBII Series, HF type
Voltage Rating: 600V AC
Current Rating: 60A
Configuration: Single, 3-Pole
Phase: 3
AIC Rating: 200kA @ 600V
NEMA Rating: 4X
Temp Rating: -25°C to 70°C (-13°F to 158°F)
Dimensions: 13.78 x 7.874 x 21.654 in (350 x 200 x 550 mm)
