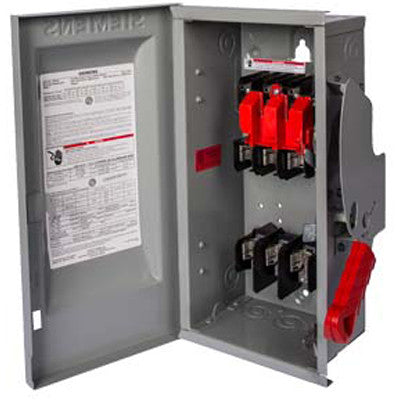

Siemens HF362SCHW - Fusible Disconnect Switch, 600V AC 60A

Siemens
Price
Save $15,066.61
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens HF362SCHW is a fusible disconnect switch designed for providing a visible break and overcurrent protection in industrial power distribution systems. It is rated for 600V AC, 60A, and 3-phase operation, featuring a solid-state protection mechanism with long-time and instantaneous (LI) trip functions for coordinated circuit protection. The switch is constructed within a NEMA 4X rated enclosure measuring 350 x 200 x 710 mm (13.78" x 7.874" x 27.953") and weighing 30.269 lb, built for harsh environments with an operational temperature range of -25°C to 70°C (-13°F to 158°F). It complies with UL standards and is designed for use with Class R fuses, offering a high 200kA interrupting capacity at 600V. Typical applications include service entrance disconnects, motor control center (MCC) feeder disconnects, and main disconnects for industrial machinery and HVAC systems.

Key Features & Specifications
  • Type: HF Series, VBII Family, Fusible Disconnect Switch, 3-Pole, Single Configuration, Slow-Make/Slow-Break, Ferrule Connection
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 350 x 200 x 710 mm (13.78" x 7.874" x 27.953")
  • Standards: UL Listed
  • Applications: Service Entrances, MCC Feeders, Industrial Machinery Main Disconnects
  • Switch Type: Fusible Disconnect
  • Configuration: Single
  • Coil Voltage Maximum: 120V
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Shipping Dimensions: 350 x 200 x 710 mm (13.78" x 7.874" x 27.953")
  • Phase: 3
  • Voltage: 600V AC
  • Amperage: 60A
  • AIC rating: 200kA @ 600V
  • Connection: Ferrule
  • Poles: 3
  • Protection: Solid State
  • Functions: LI - Long-Time and Instantaneous
  • Frame Size: Compatible with PGP Frames
  • Coil Voltage Minimum: 110V
  • Fuse Class: R
  • Nema Rating: NEMA 4X
  • Switch Style: Fusible
  • Certification: UL listed
  • Country of Origin: Mexico


Product Identification
  • UPC: 078364343597
  • GTIN: 00783643435971
