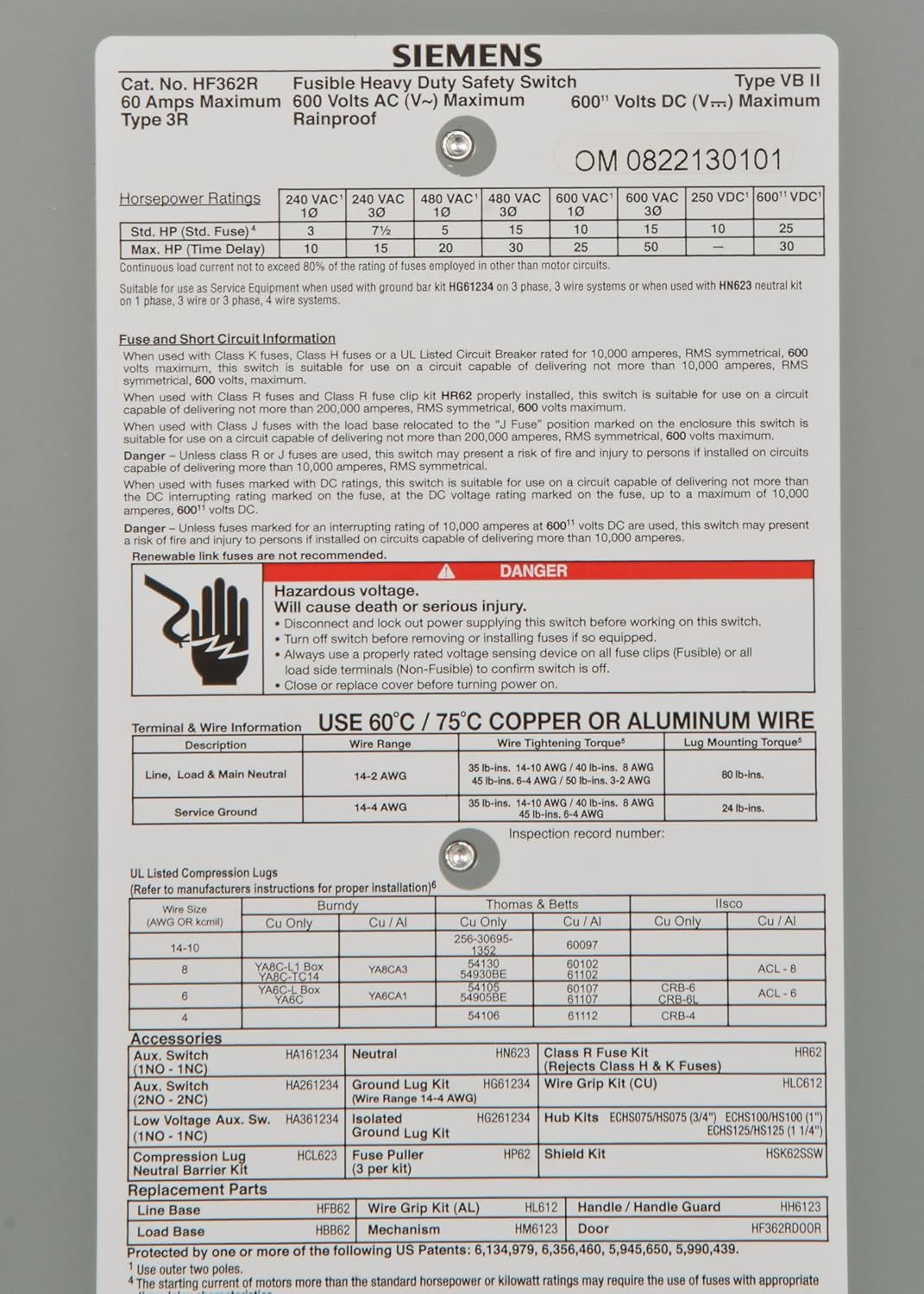

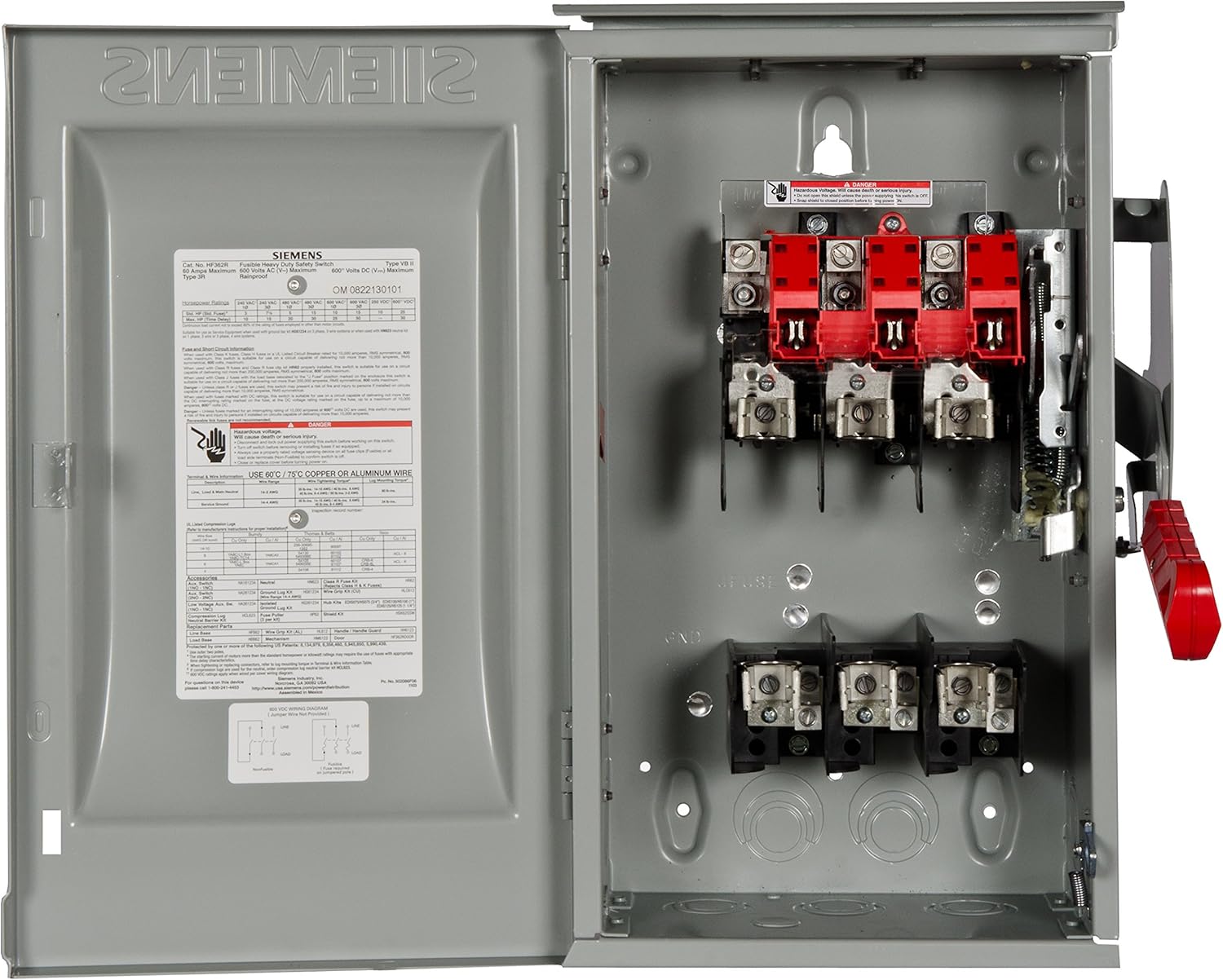

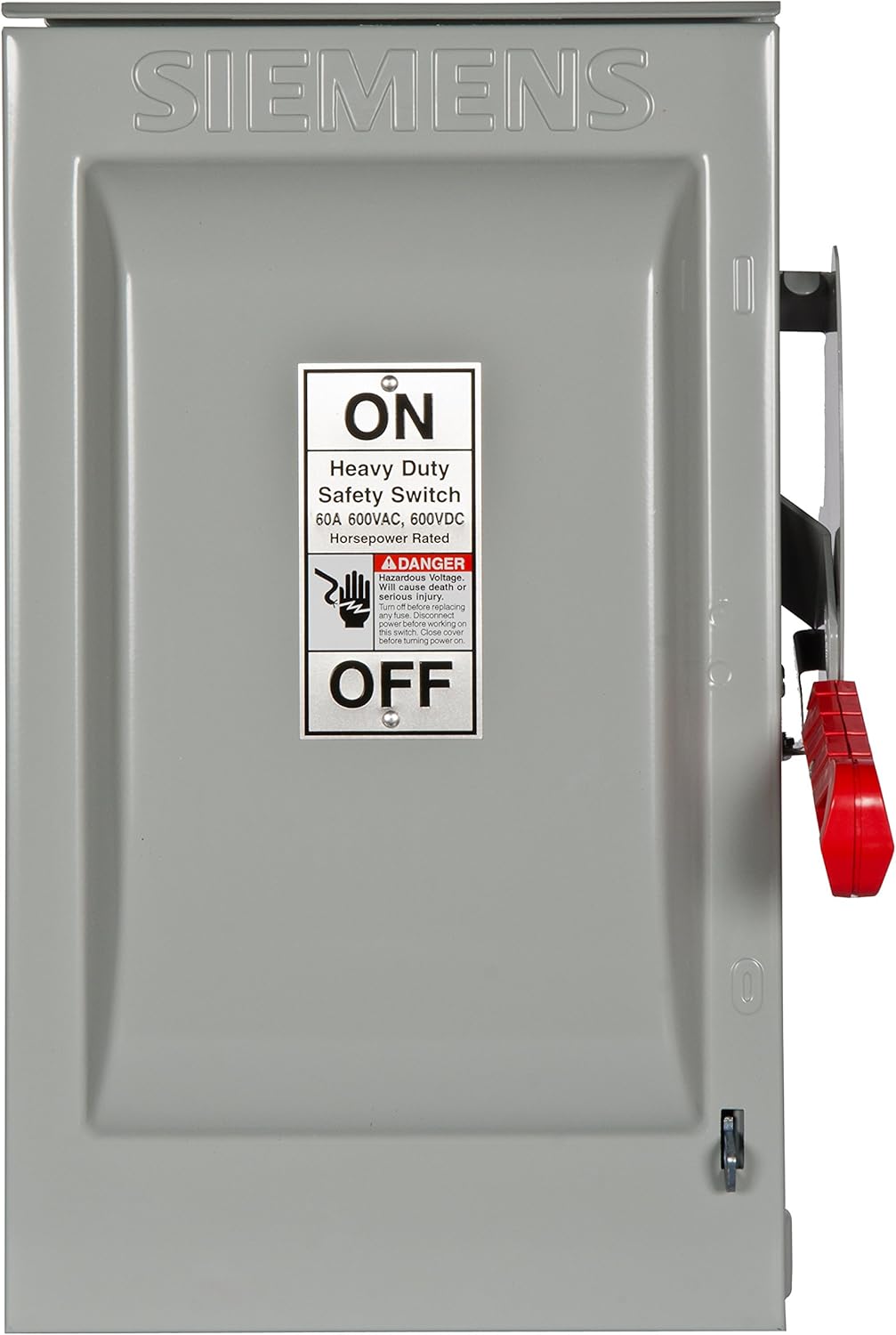

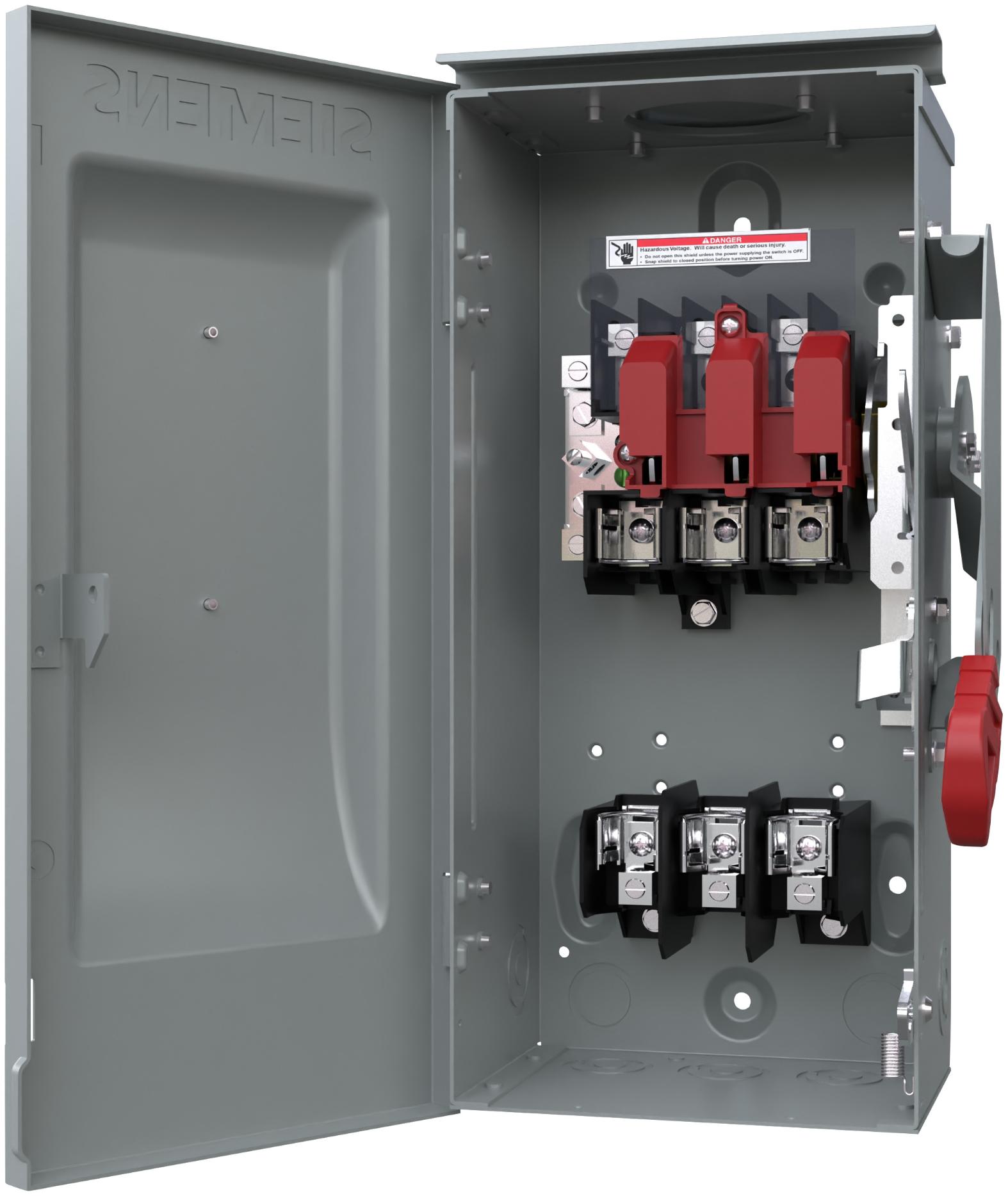

Siemens HF362R is a fusible disconnect switch designed for providing visible isolation and overcurrent protection in three-phase industrial power distribution systems. It features a 600V AC voltage rating and a 60A current rating, housed in a robust NEMA 3R enclosure measuring 16.93 x 10.41 x 9.21 inches and weighing 19 lb for durable outdoor or indoor use. The switch is UL listed and offers a high interrupting capacity of 200kA at 600V, ensuring reliable protection for compatible PGP frames. It is engineered for typical applications in motor control centers and panelboards, operating effectively within a temperature range of -25°C to 70°C.
Key Features & Specifications
Type: Fusible Disconnect Switch, VBII Series, HF type, single configuration
Voltage Rating: 600V AC
Current Rating: 60A
Dimensions: 16.93 x 10.41 x 9.21 inch (430 x 264.5 x 234 mm)
Standards: UL listed, NEMA 3R enclosure rating
Applications: Industrial power distribution, motor control centers, panelboards
