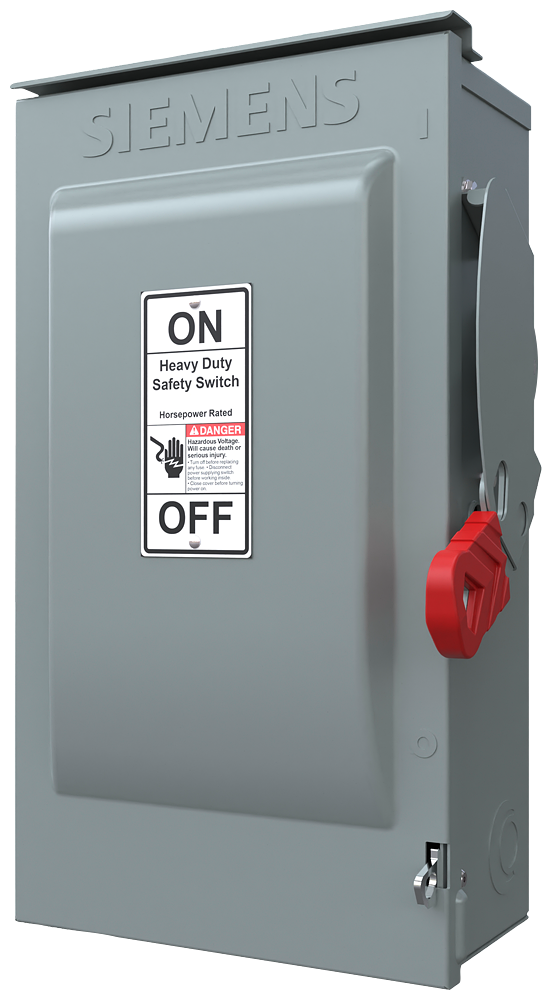

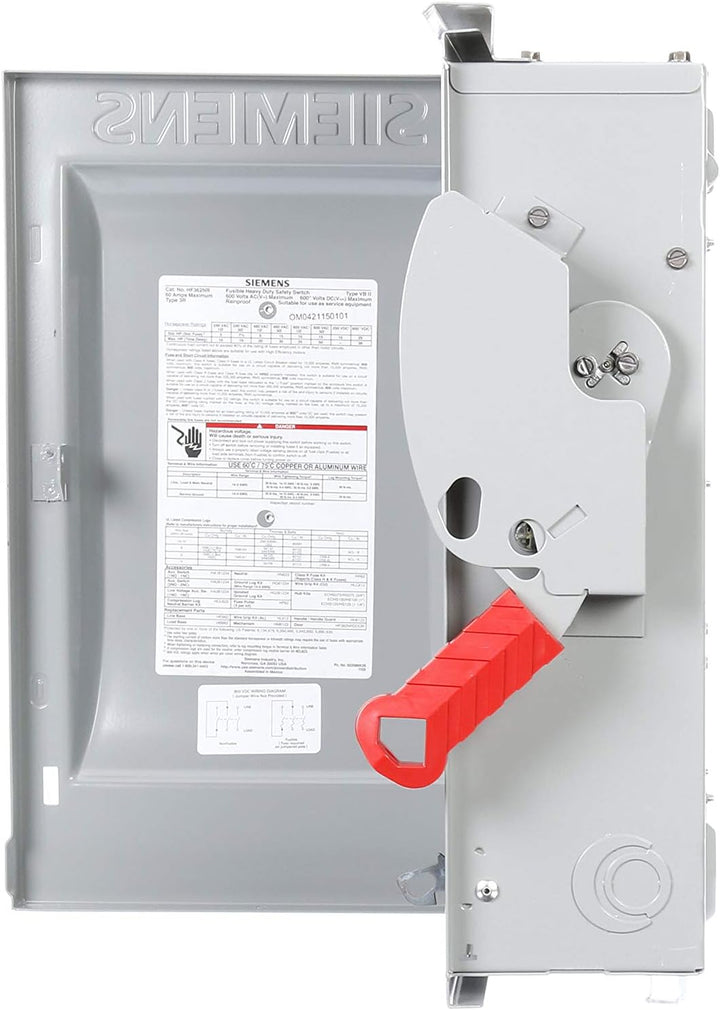

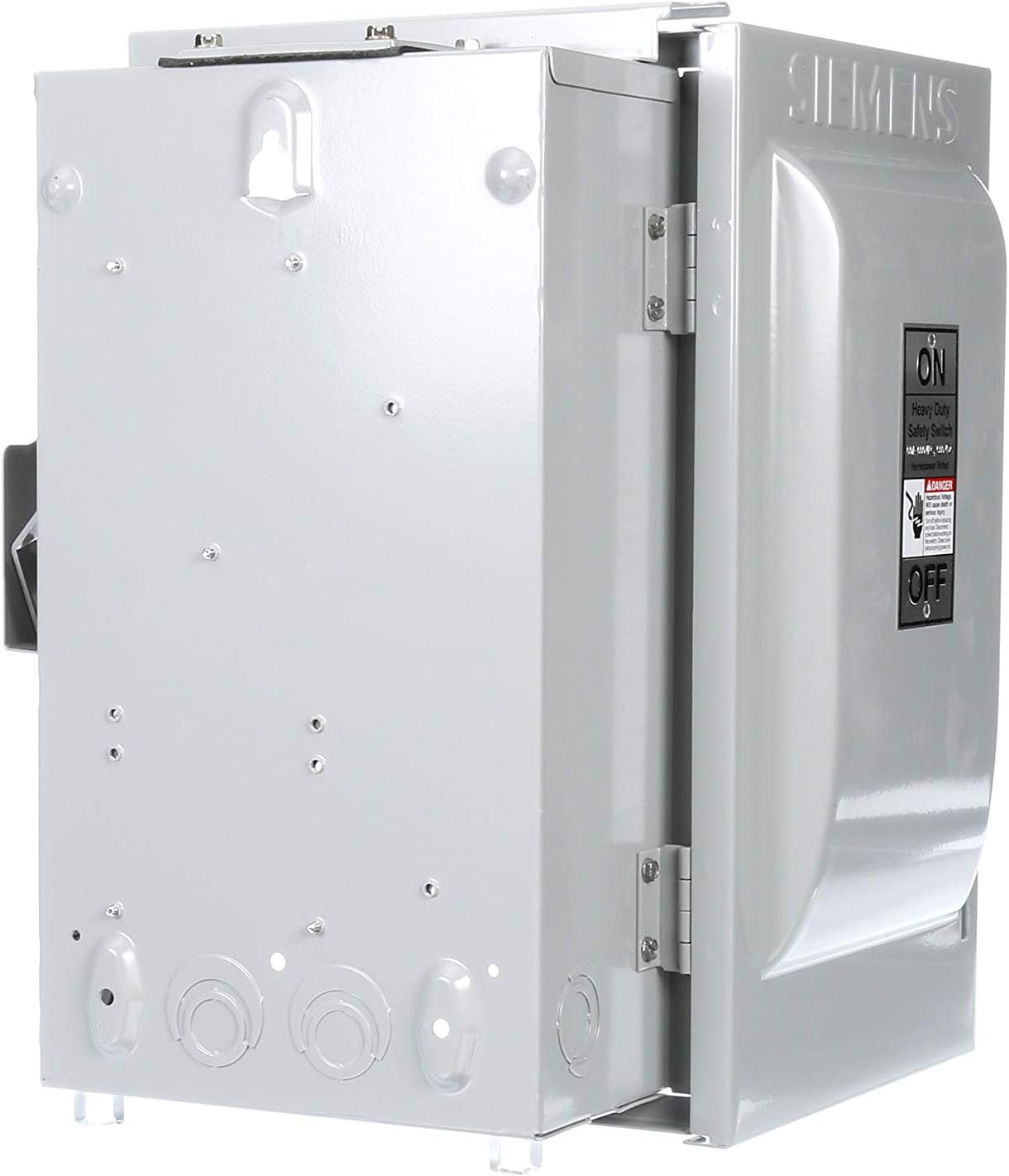

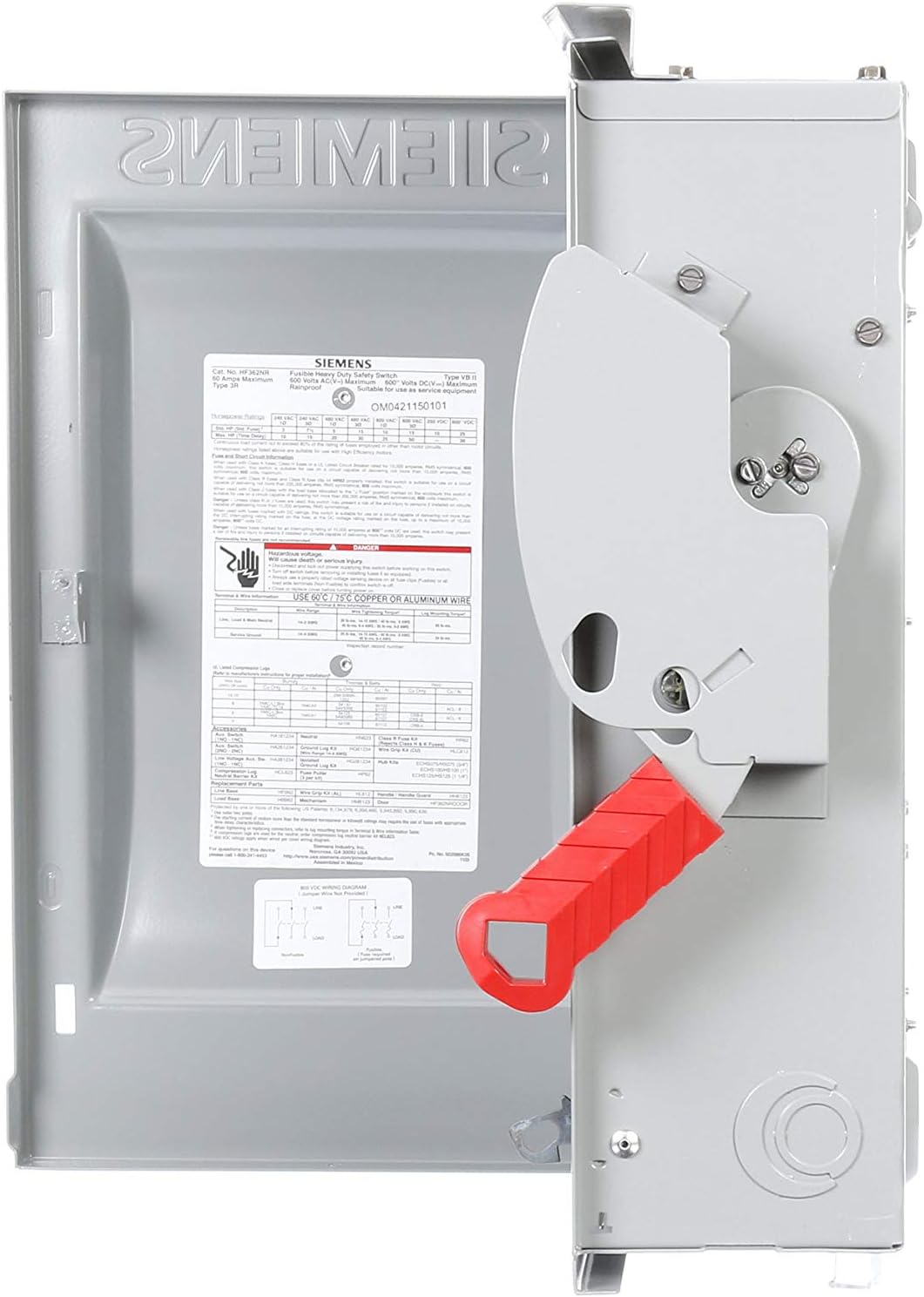

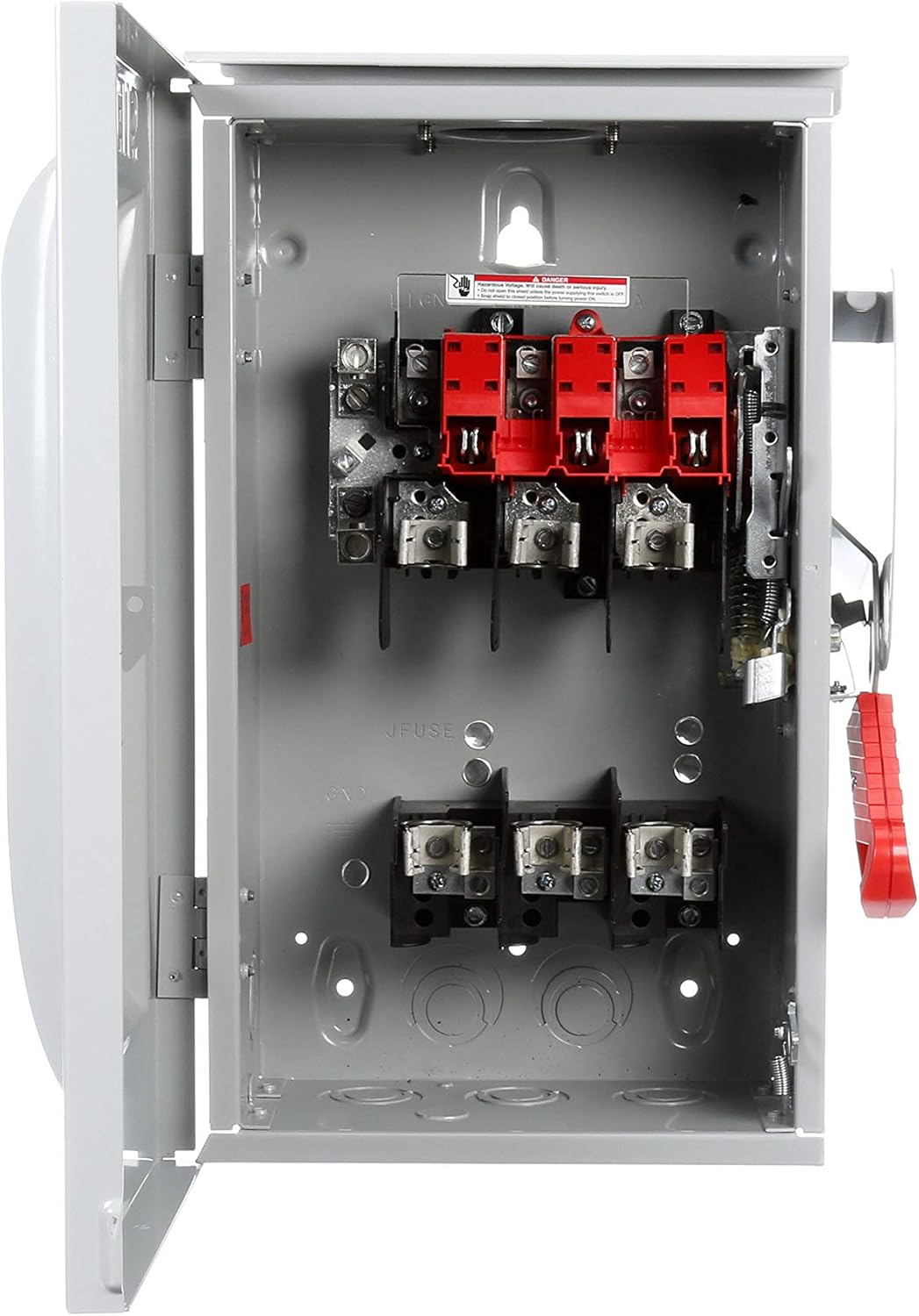

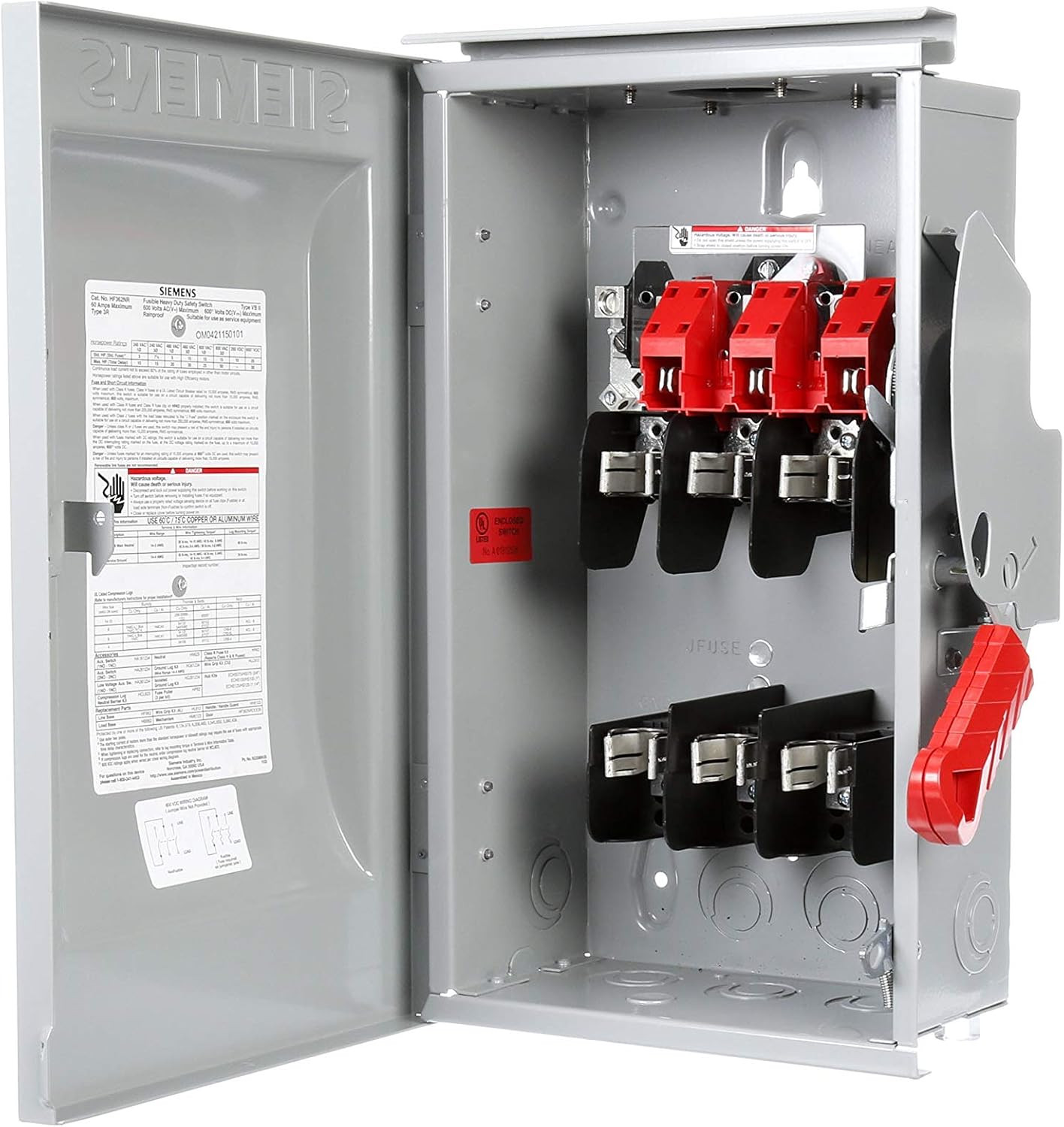

Siemens HF362NR is a fusible disconnect switch designed for providing a visible means of isolation and overcurrent protection in industrial power distribution systems. It is rated for 600V AC, 60A, and 3-phase operation, featuring a robust construction with dimensions of 16.93" x 10.41" x 9.21" (430 x 264 x 234 mm) and a weight of 19 lb. The switch is UL listed, carries a NEMA 3R enclosure rating for outdoor use, and offers an interrupting capacity of 200kA at 600V. It is engineered for reliable service in applications such as motor control centers and panelboards, operating within a temperature range of -25°C to 70°C.
Key Features & Specifications
Type: Fusible Disconnect Switch, VBII Series, HF type
Voltage Rating: 600V AC
Current Rating: 60A
Phase: 3
Configuration: Single
Poles: 3
AIC Rating: 200kA @ 600V
Fuse Class: R
Switch Style: Fusible
NEMA Rating: 3R
Temp Rating: -25°C to 70°C (-13°F to 158°F)
Dimensions: 16.93 x 10.41 x 9.21 inch (430 x 264 x 234 mm)
Weight: 18.999 lb
Standards/Certification: UL Listed
Compatible Frames: PGP
Mounting: Panel Mount
Country of Origin: Mexico
Product Identification
UPC: 783643151673
GTIN: 00783643151673
