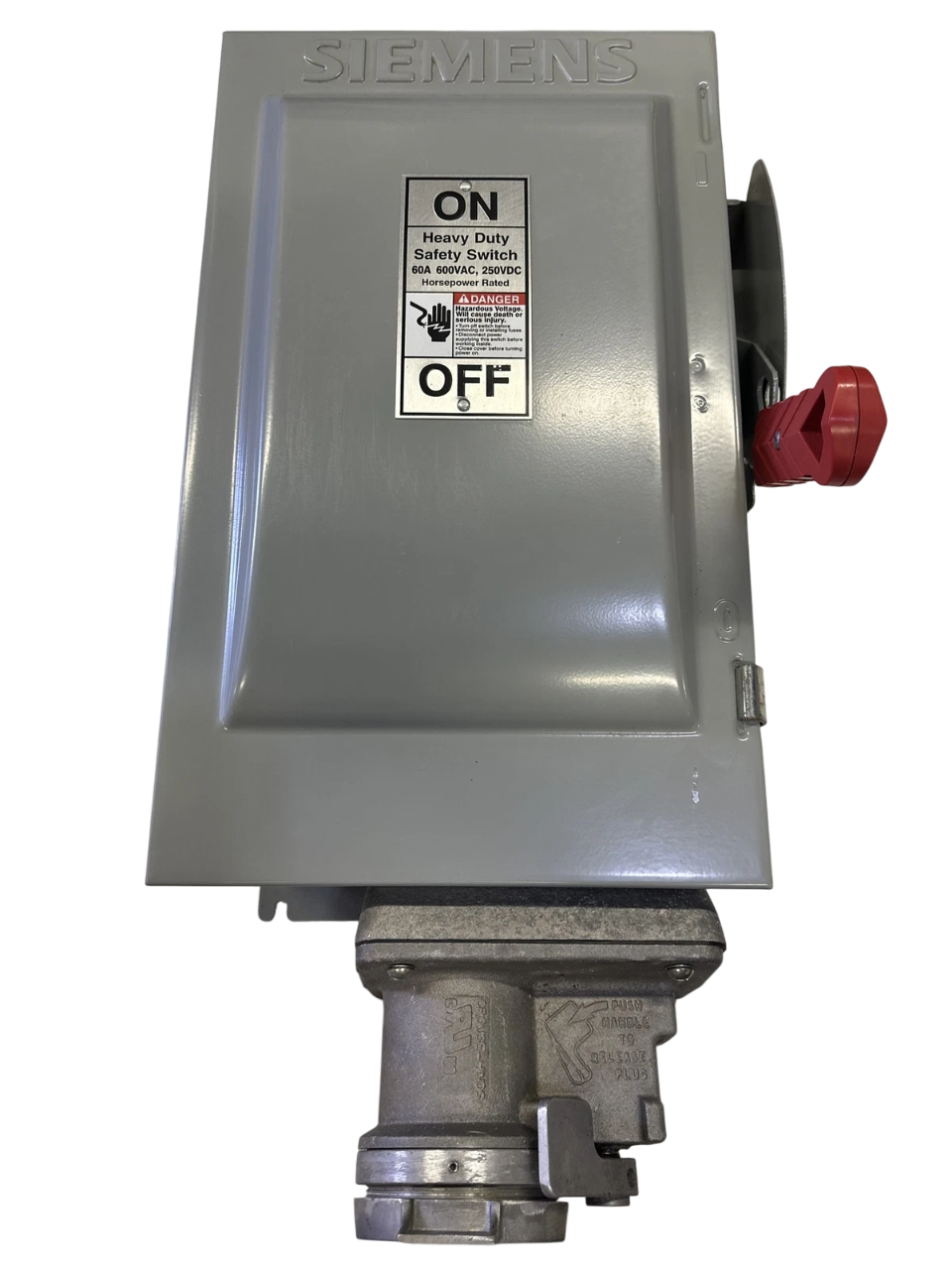

Siemens HF362JCH is a fusible disconnect switch designed for providing a visible break and overcurrent protection in industrial power distribution. It is rated for 600V AC systems with a 60A current rating and features a 200kA interrupting capacity at 600V for robust short-circuit protection. The switch is constructed as a 3-pole, single-configuration unit within a NEMA 12 enclosure, measuring 350 x 200 x 710 mm (13.78" x 7.87" x 27.95") and weighing 28.97 lb, and it operates reliably within a temperature range of -25°C to 70°C (-13°F to 158°F). This UL-listed component, part of the VBII series and compatible with PGP frames, is engineered for compliance with industrial safety standards. Its design makes it suitable for controlling and isolating motor loads and feeder circuits in manufacturing and machinery applications.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, HF Type, VBII Series
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Fuse Class: R
  • NEMA Rating: NEMA 12
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 350 x 200 x 710 mm (13.78" x 7.87" x 27.95")
  • Weight: 28.97 lb
  • Standards: UL Listed
  • Compatible Frames: PGP
  • Switch Style: Fusible
  • Applications: Industrial motor control, power feeder isolation
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643435858
  • GTIN: 00783643435858
