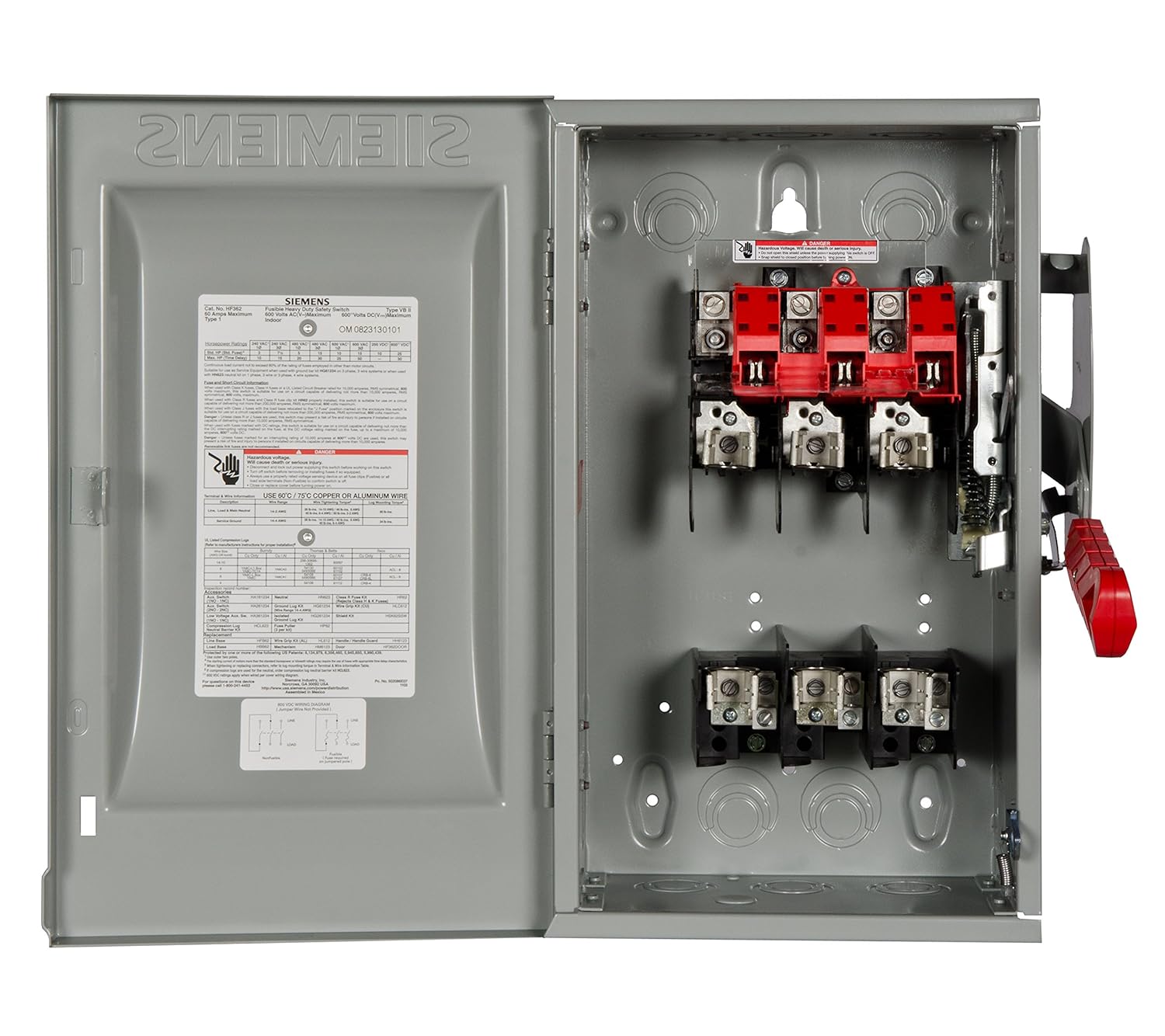

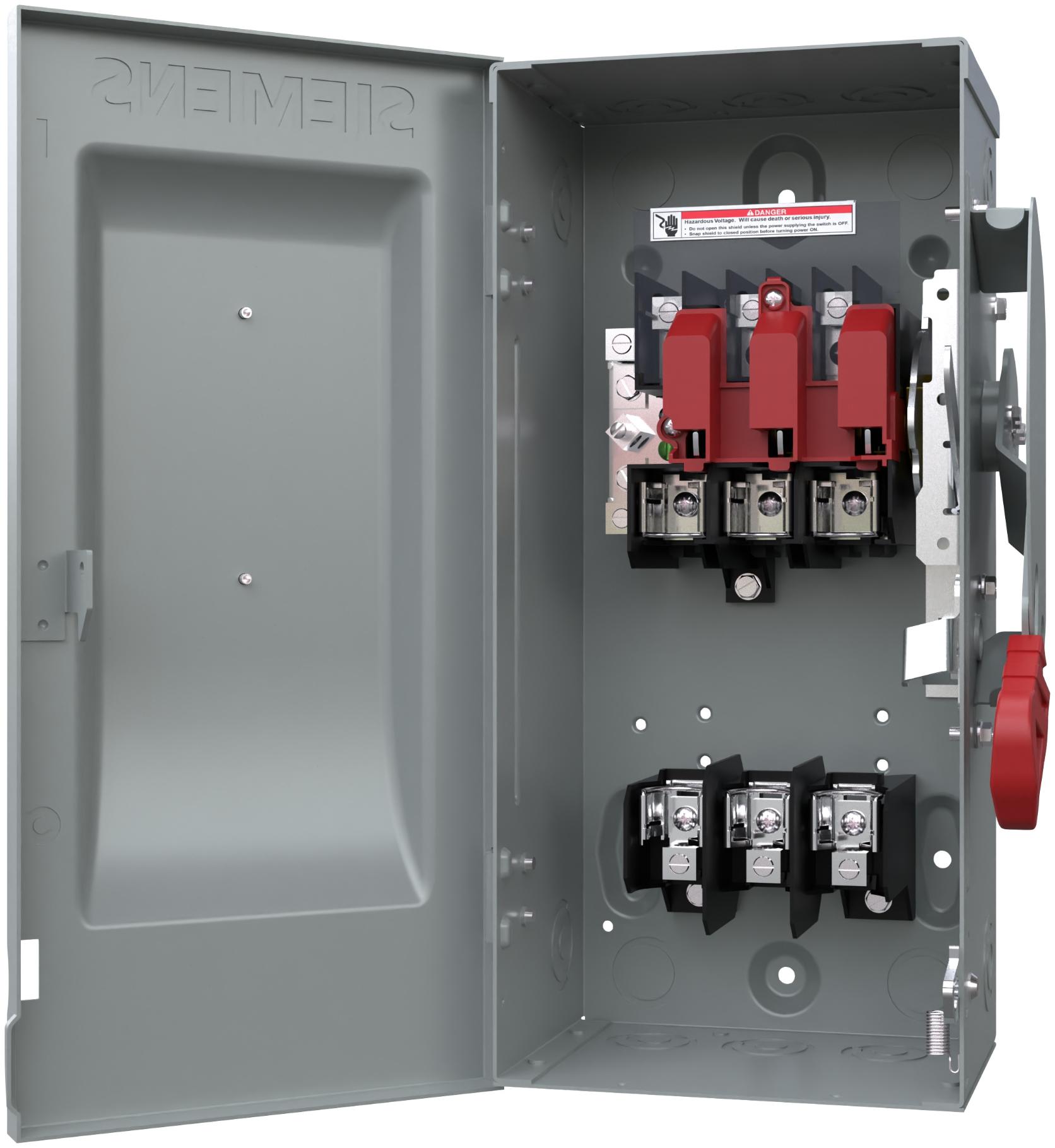

Siemens HF362 - Fusible Disconnect Switch 600V AC 60A (200kA AIC @600V)

Siemens HF362 is a fusible safety disconnect switch designed for industrial power distribution protection. This UL-listed 600V ACV device handles 60A current with a 200kA interrupting capacity, featuring a rugged NEMA 1 enclosure measuring 11.5" x 17.5" and weighing 19 lb. The three-pole single-configuration switch complies with industrial safety standards using Class R fuses, compatible with ED frames in the VBII series. Its robust construction makes it suitable for three-phase motor control and high-capacity circuit protection in manufacturing facilities.

Key Features & Specifications

• Type: Fusible disconnect switch with Class R fuse protection
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 11.5 in x 17.5 in (292.1 mm x 444.5 mm)
• Standards: UL listed, NEMA 1 rated
• Applications: Industrial power distribution, motor control circuits
• Switch Style: Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC rating: 200kA@600V
• Fuse Class: R
• Weight: 19 lb (8.62 kg)
• Compatible Frames: ED
• Family: VBII Series

Product Identification

• UPC: 783643151017
• GTIN: 00783643151017
