Siemens HF361S - R Fuse 30A 600V (NEMA 4X)

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

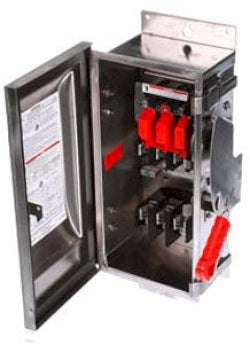

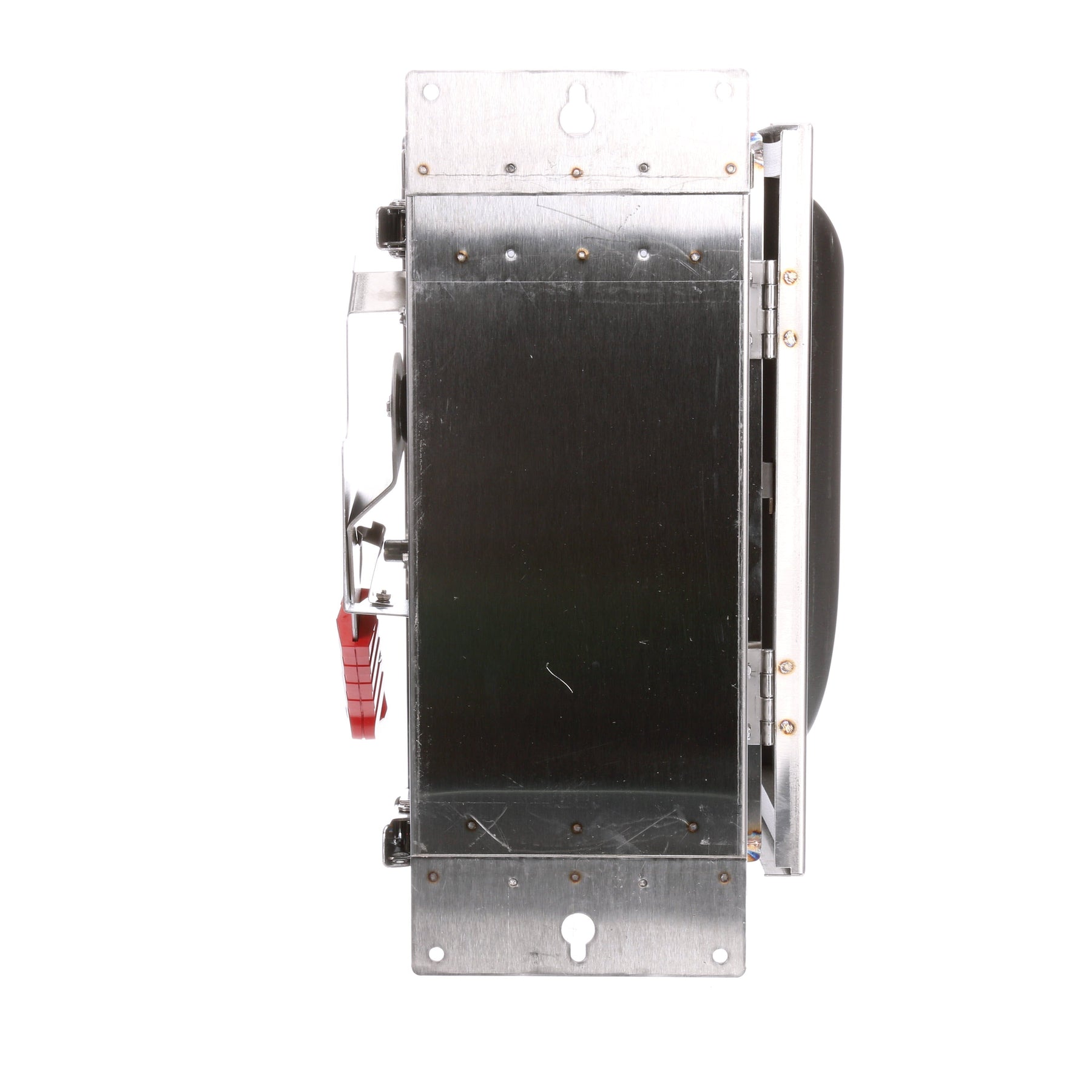

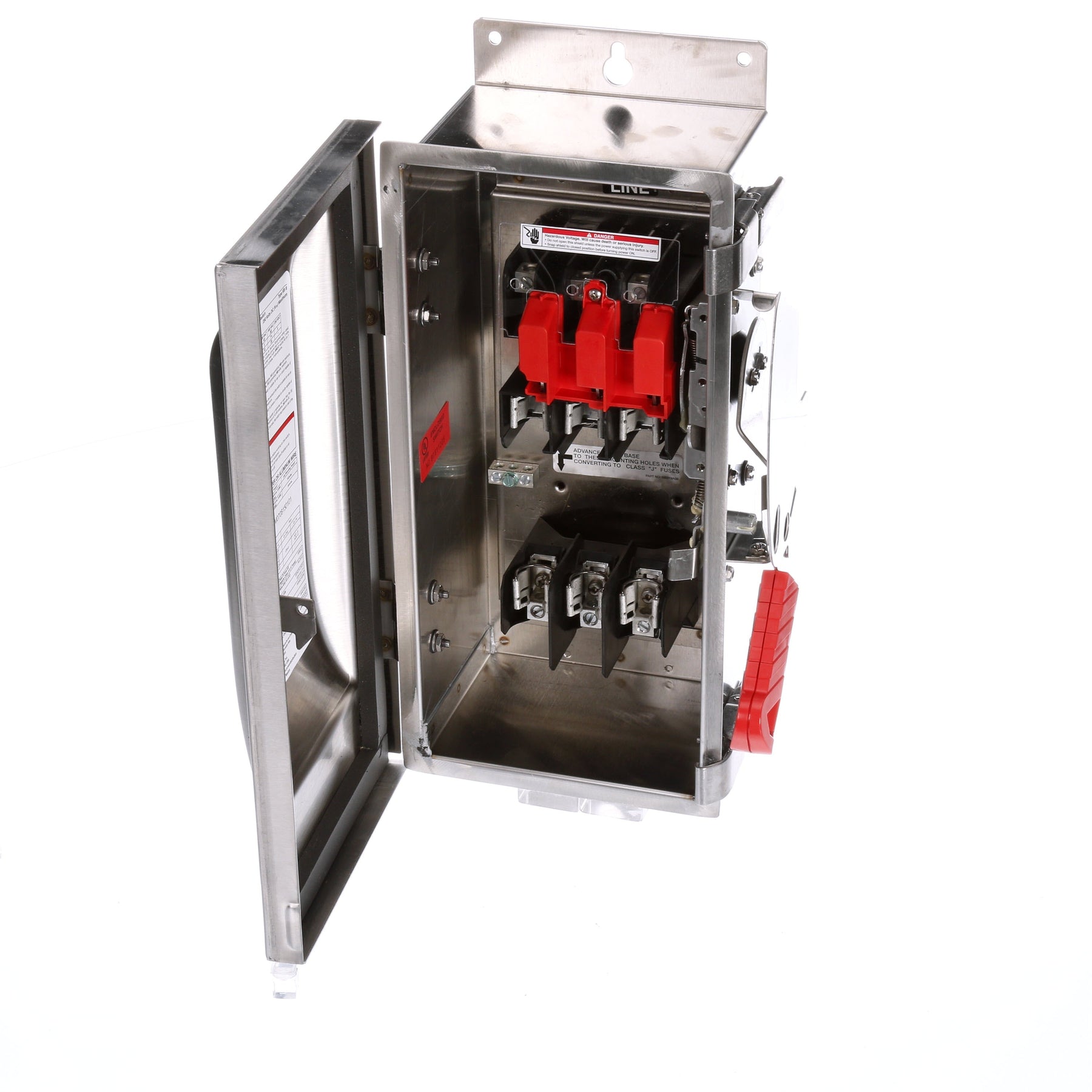

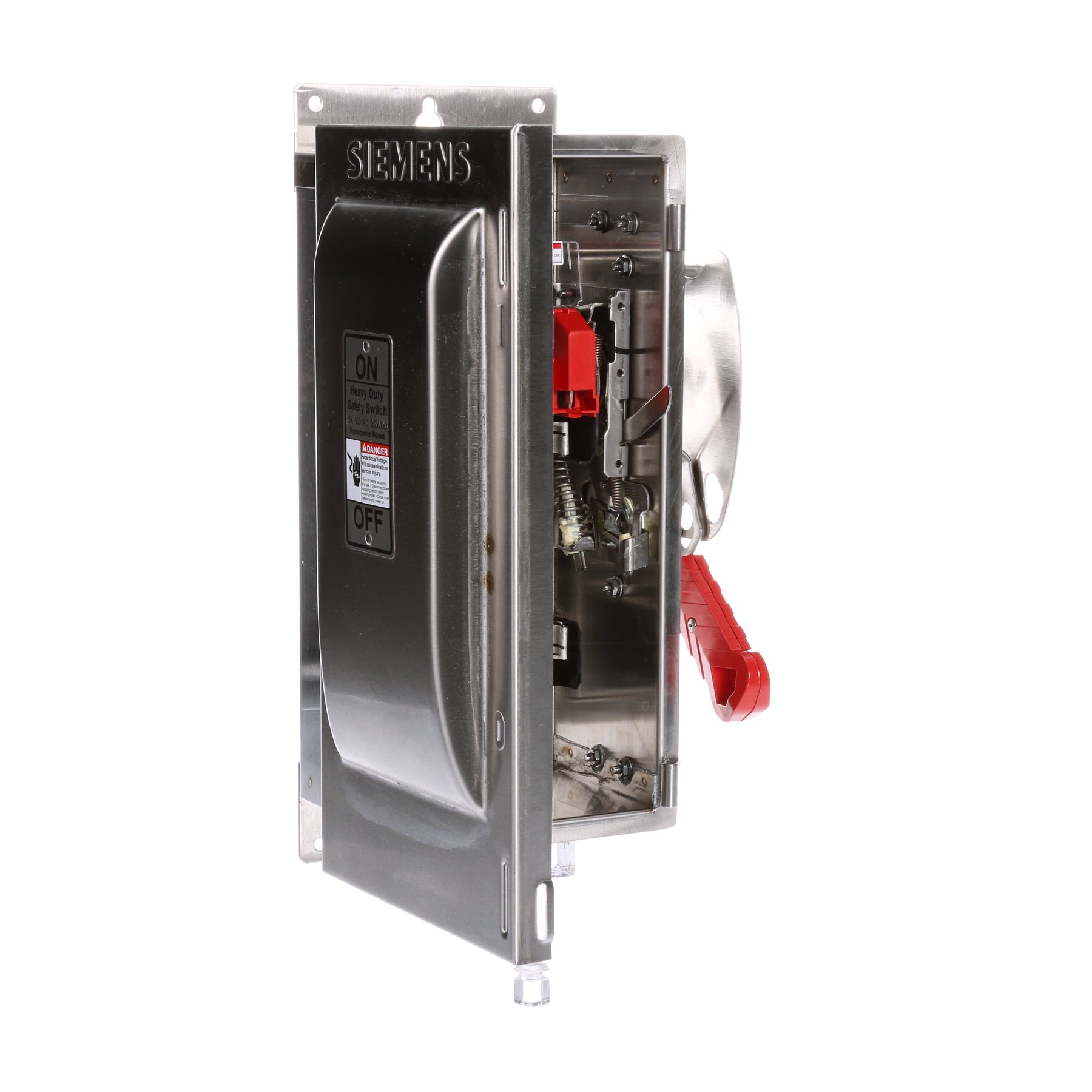

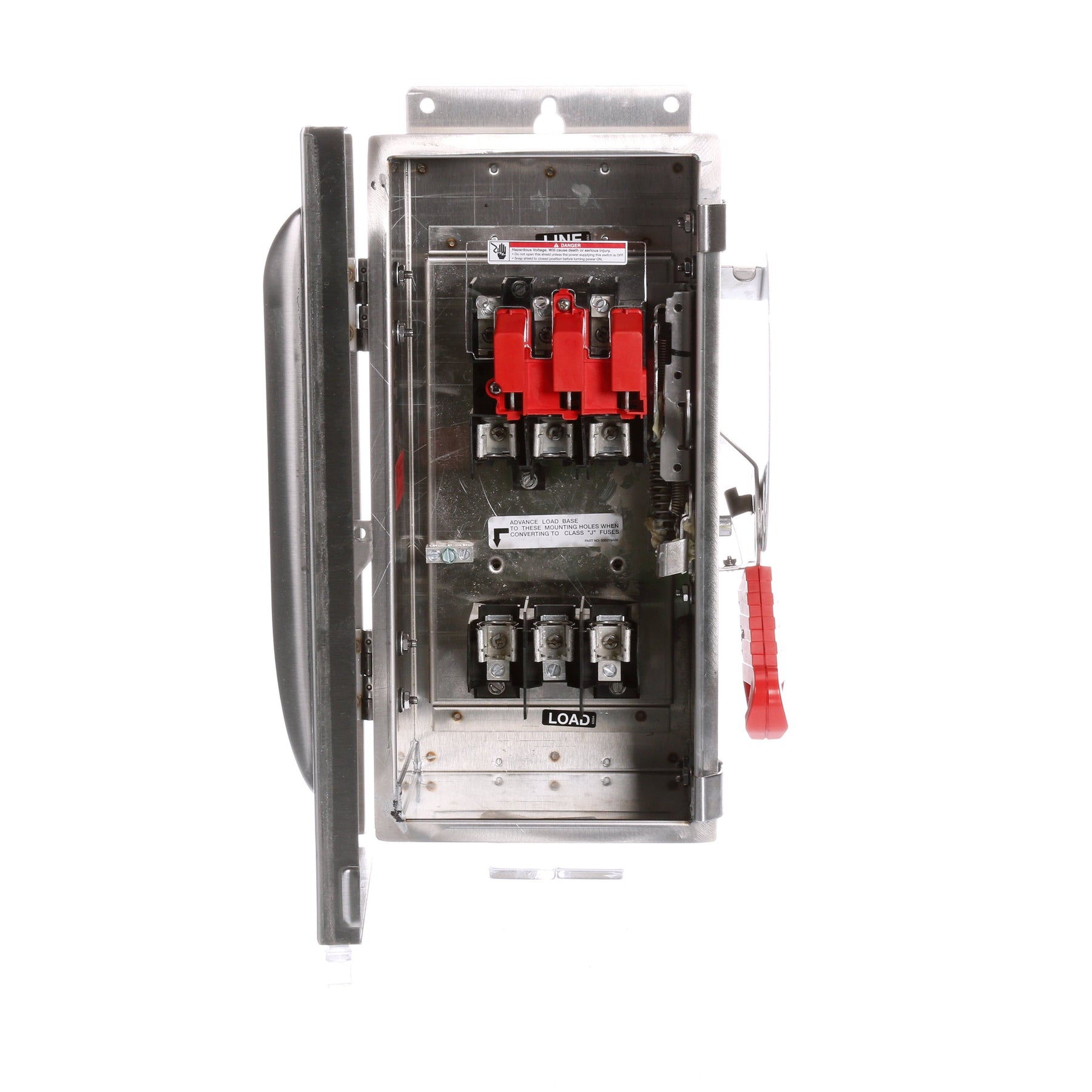

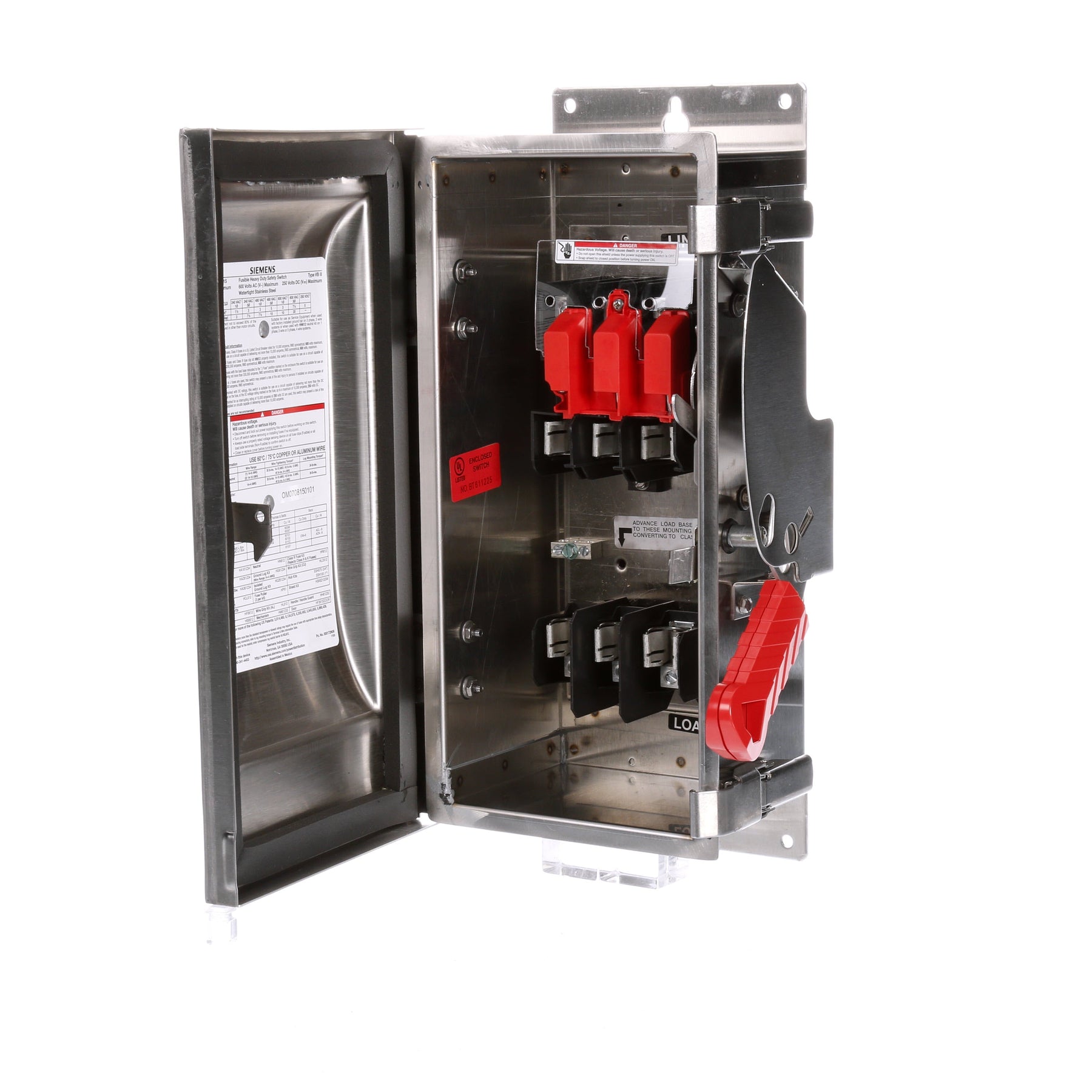

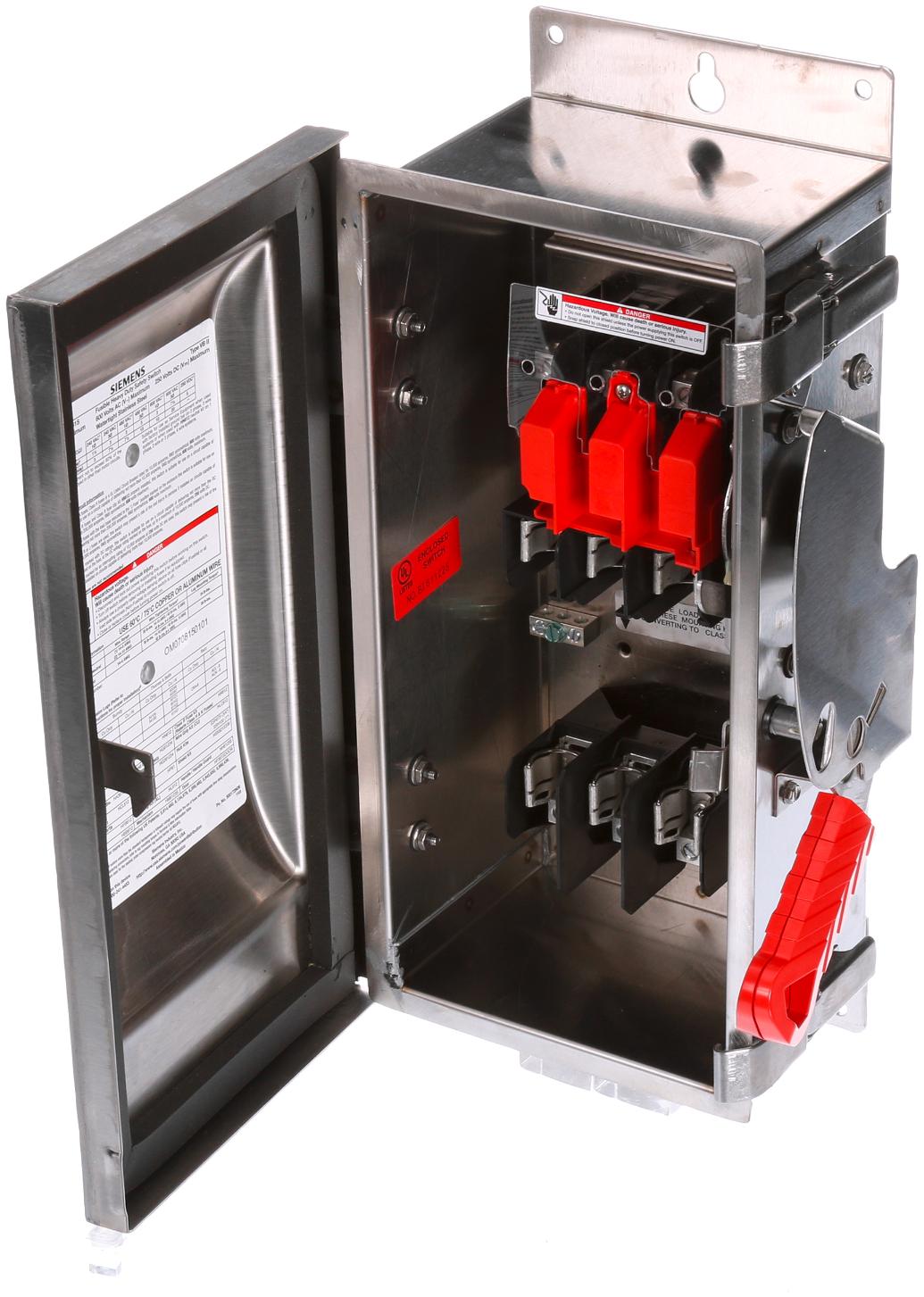

Siemens HF361S is a heavy duty fusible disconnect switch designed for low voltage circuit protection in demanding industrial environments. This 30A, 600VAC, 3-pole switch features a NEMA 4X 304 grade stainless steel enclosure for harsh conditions, weighs 17.637 lb, and measures 20.079 x 11.417 x 7.874 inches. It offers a double break visible blade design for clear ON/OFF indication and supports up to 200kA interrupting capacity at 600V with Class R fuses. The switch is UL listed under file E4776, meeting UL98 and UL50 standards, and is suitable for use as service entrance equipment. Typical applications include industrial power distribution and motor control centers requiring reliable, high-interrupting-capacity disconnection.

Key Features & Specifications
  • Type: Fusible Disconnect Switch
  • Amperage: 30 A
  • Voltage Rating: 600 VAC / 250 VDC
  • Poles: 3
  • Phase: 3
  • Configuration: Single
  • Fuse Class: R
  • AIC Rating: 200kA@600V
  • Nema Rating: NEMA 4X
  • Enclosure Material: 304 Grade Stainless Steel
  • Mounting Type: Enclosed, Type 4X Stainless Steel
  • Contact Form: Triple-Pole Single-Throw (TPST)
  • Switch Style: Fusible
  • Compatible Frames: PAF
  • Temp Rating: -13°F - 158°F (-25°C - 70°C)
  • Dimensions: 20.079 x 11.417 x 7.874 inch
  • Weight: 17.637 lb
  • Certification: UL listed
  • Family: VBII Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643151970
  • GTIN: 00783643151970
