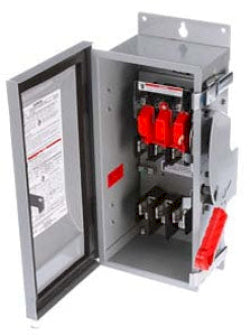

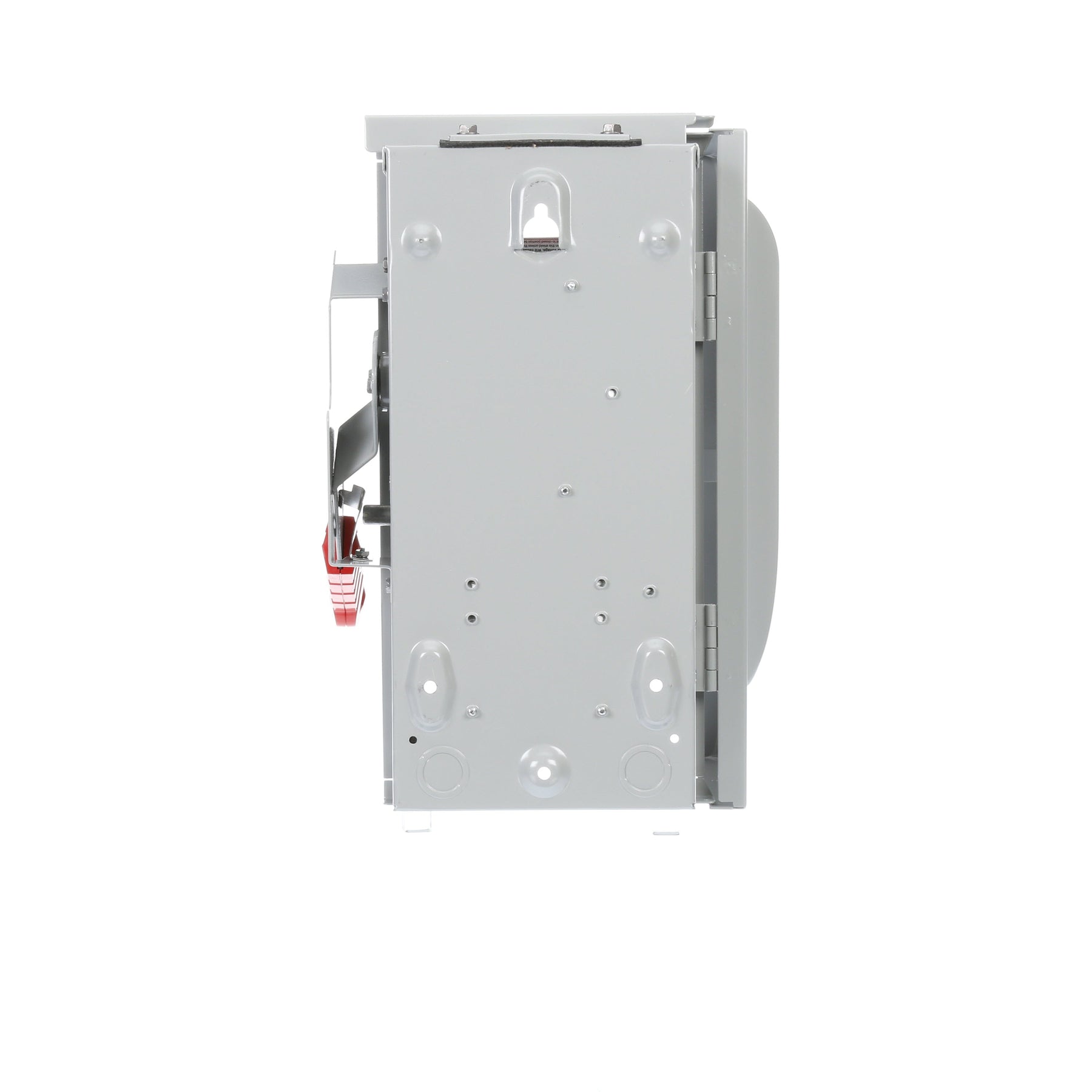

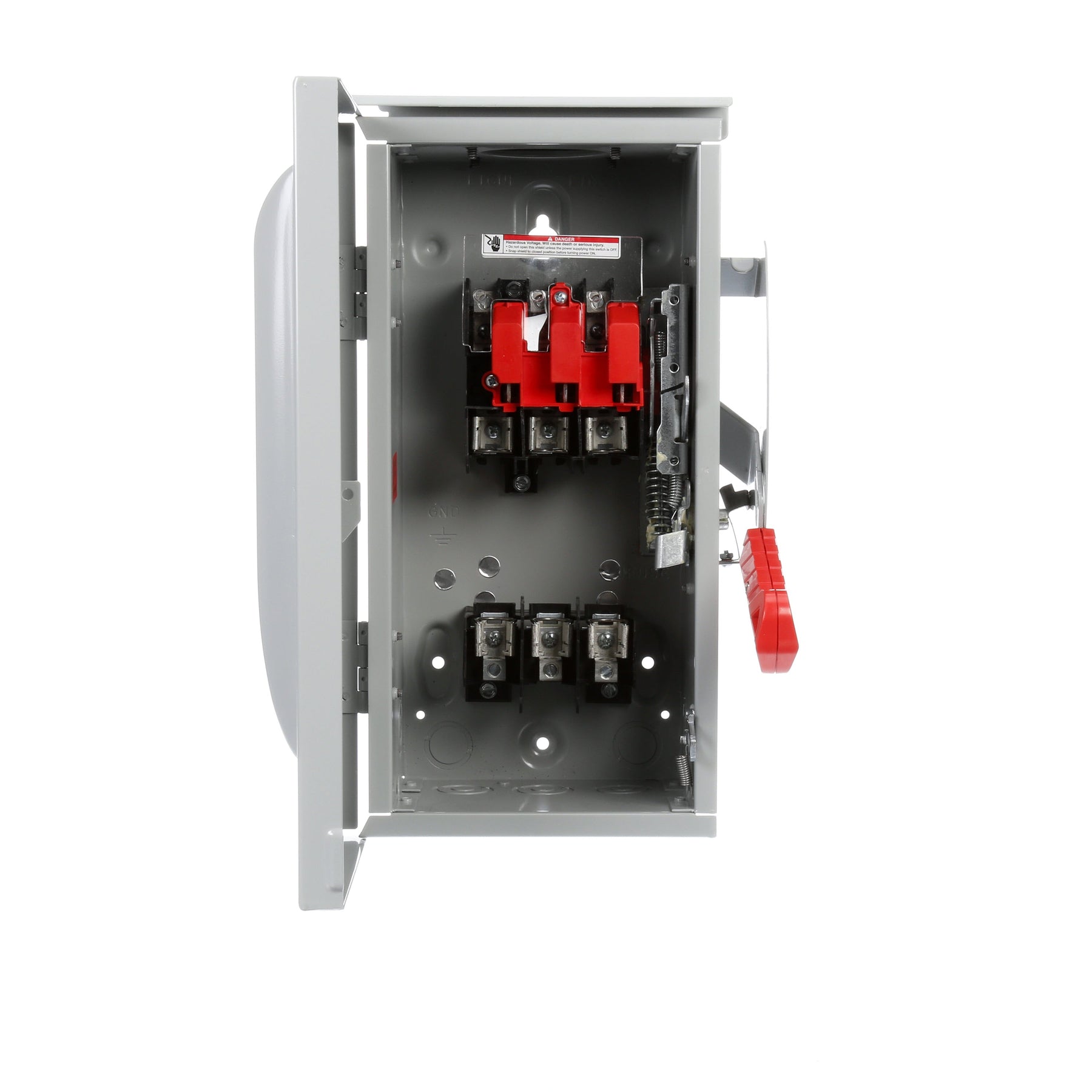

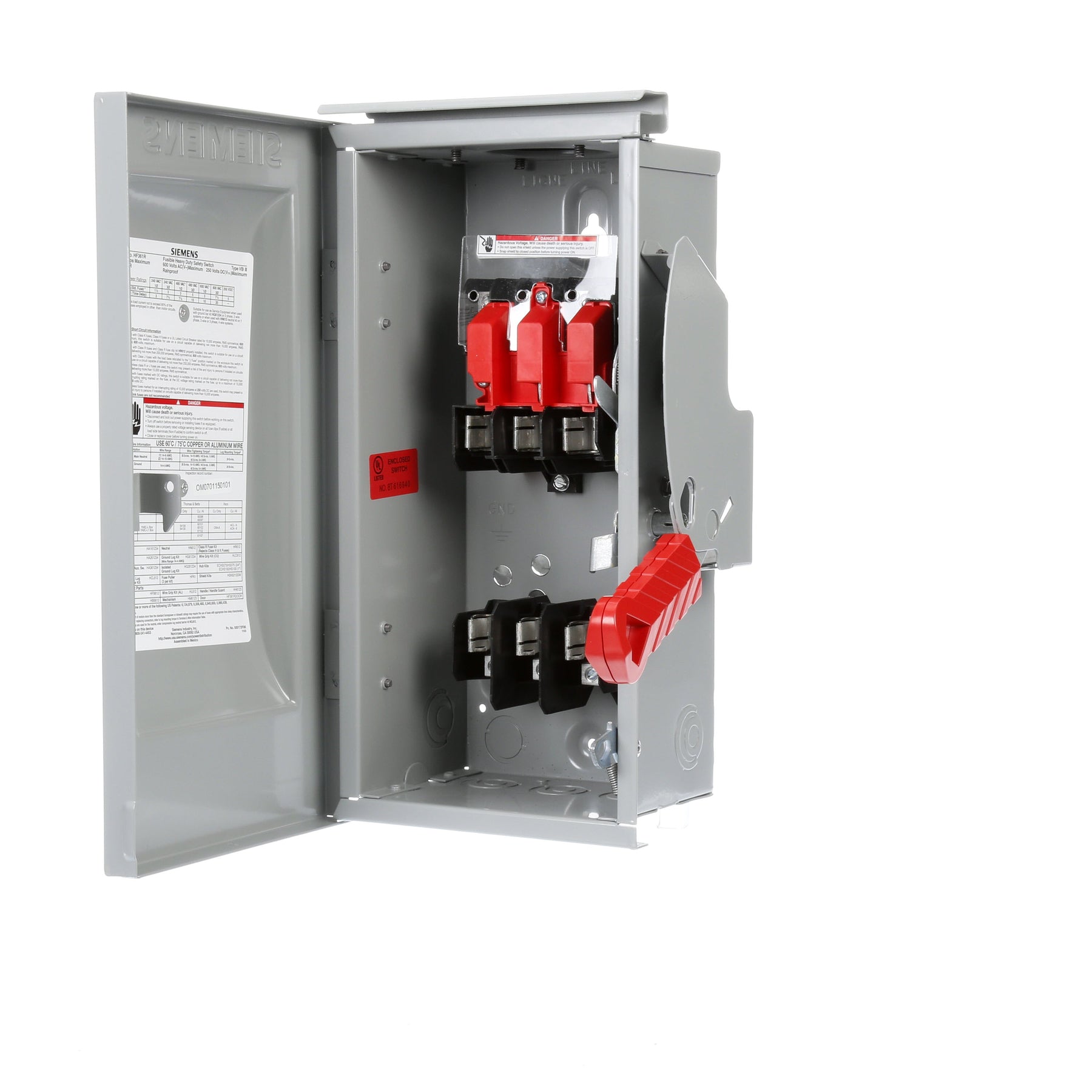

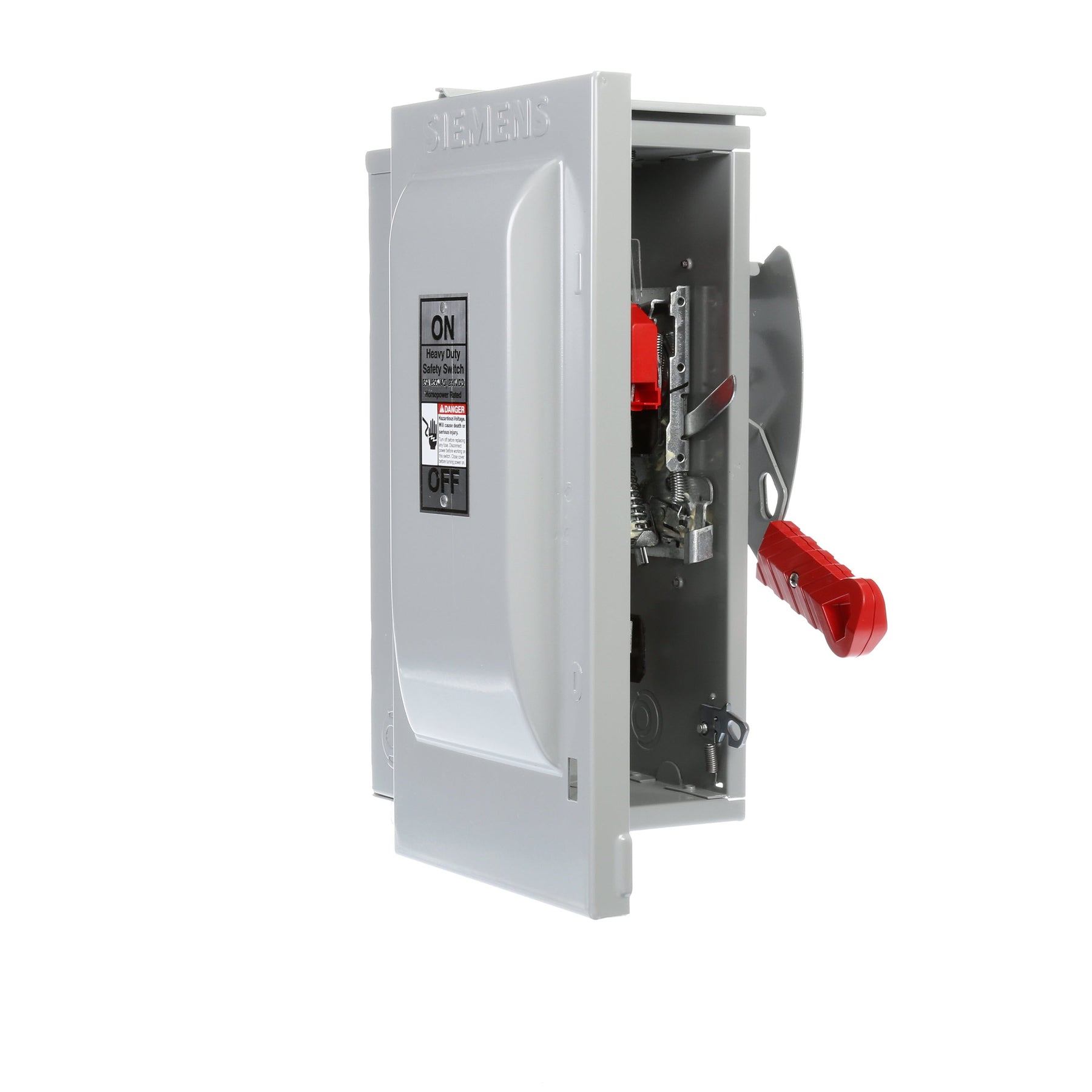

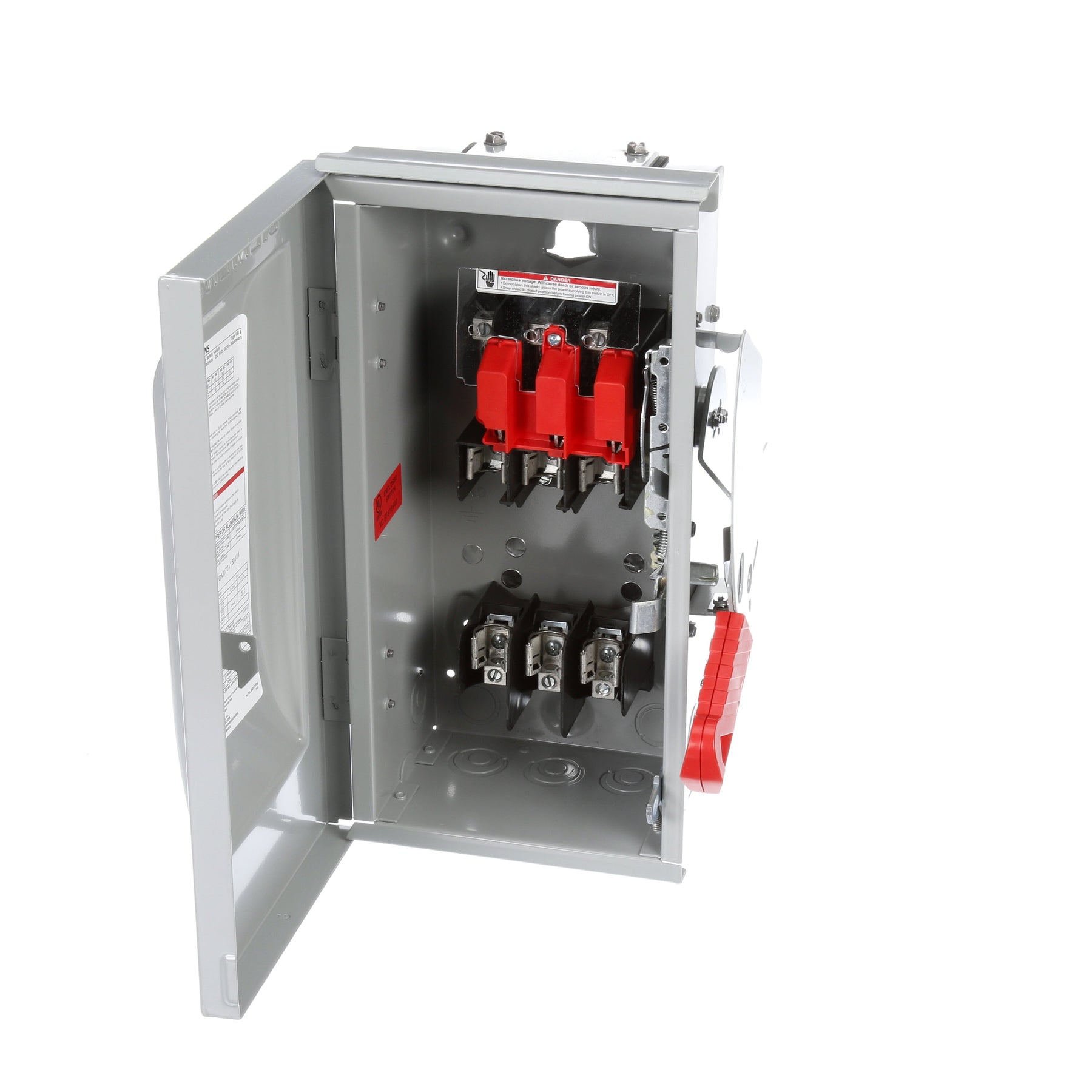

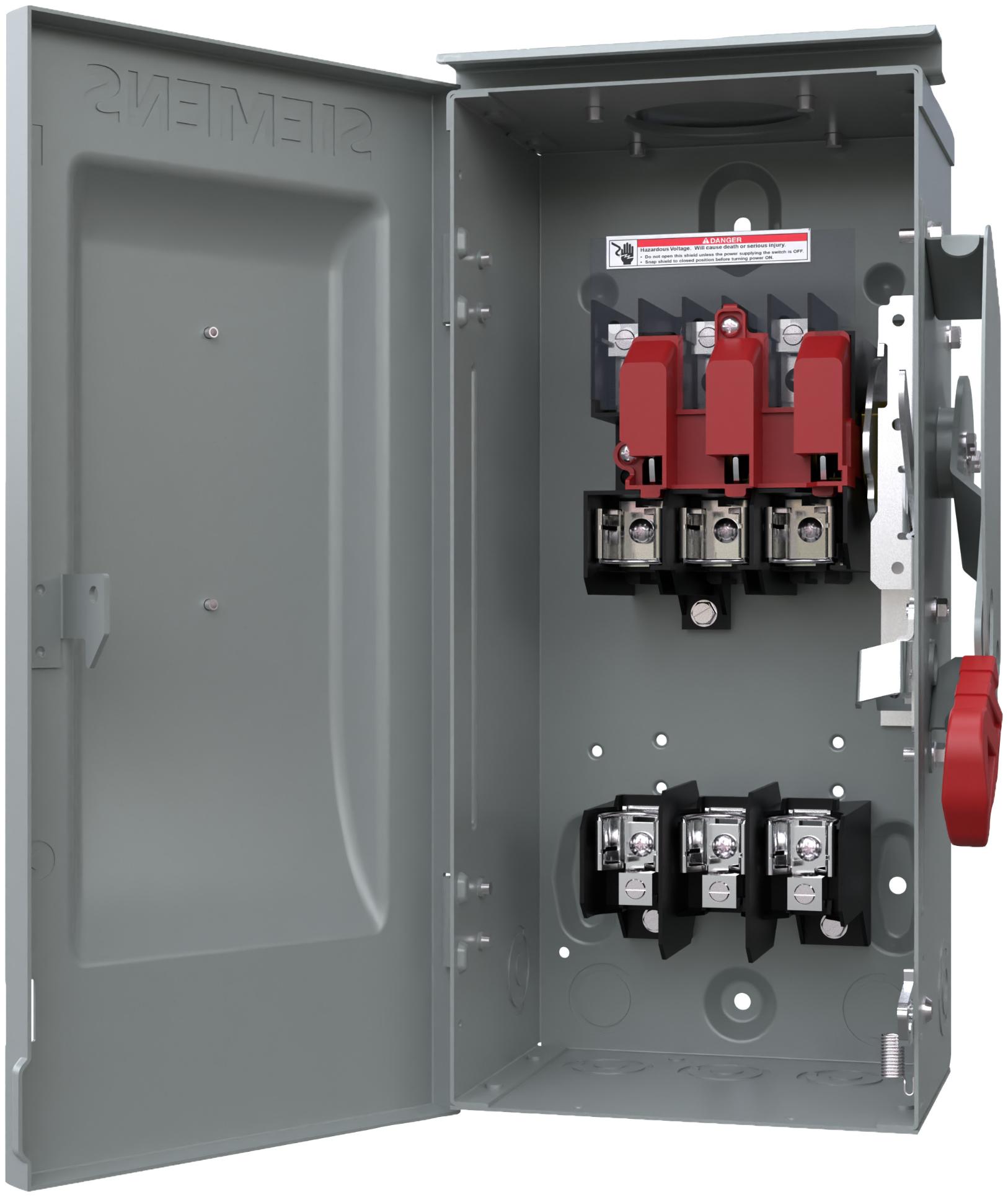

Siemens HF361R - Fusible Disconnect Switch, 30A 600V 3-Pole

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens HF361R is a fusible disconnect switch designed for providing visible isolation and overcurrent protection in three-phase industrial power distribution systems. It features a 600V AC voltage rating and a 30A current rating, housed in a robust NEMA 3R enclosure measuring 14.91 x 7.88 x 9.18 inches (378.7 x 200.2 x 233.2 mm) and weighing 11.047 lb for durable outdoor or indoor use. The switch is UL listed and engineered for an interrupting capacity of 200kA at 600V, operating reliably within a temperature range of -25°C to 70°C (-13°F to 158°F). Its 3-pole, single-configuration design with Class R fuse compatibility makes it suitable for motor control centers, HVAC systems, and industrial machinery protection.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, VBII Series, HF type
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 14.91 x 7.88 x 9.18 inch (378.7 x 200.2 x 233.2 mm)
  • Weight: 11.047 lb
  • Standards: UL listed, NEMA 3R enclosure rating
  • Applications: Industrial power distribution, motor control, machinery protection
  • Switch Type: Fusible
  • Configuration: Single
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC rating: 200kA @ 600V
  • Poles: 3
  • Fuse Class: R
  • Compatible Frames: PAF
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643151277
  • GTIN: 00783643151277
