Siemens HF361NR - Fusible Disconnect Switch, 30A 600V 3P

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

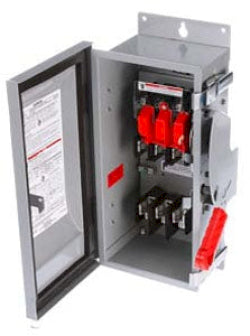

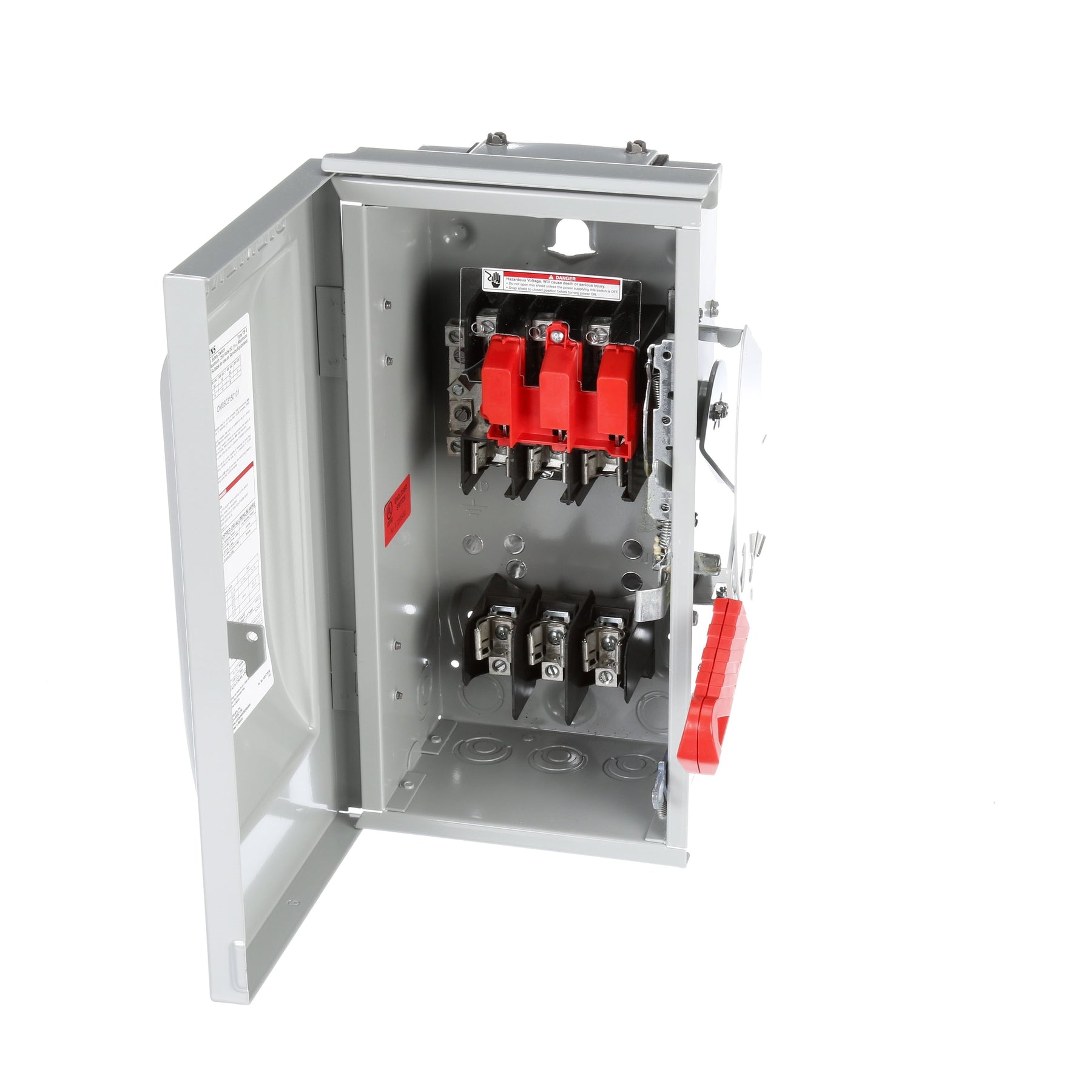

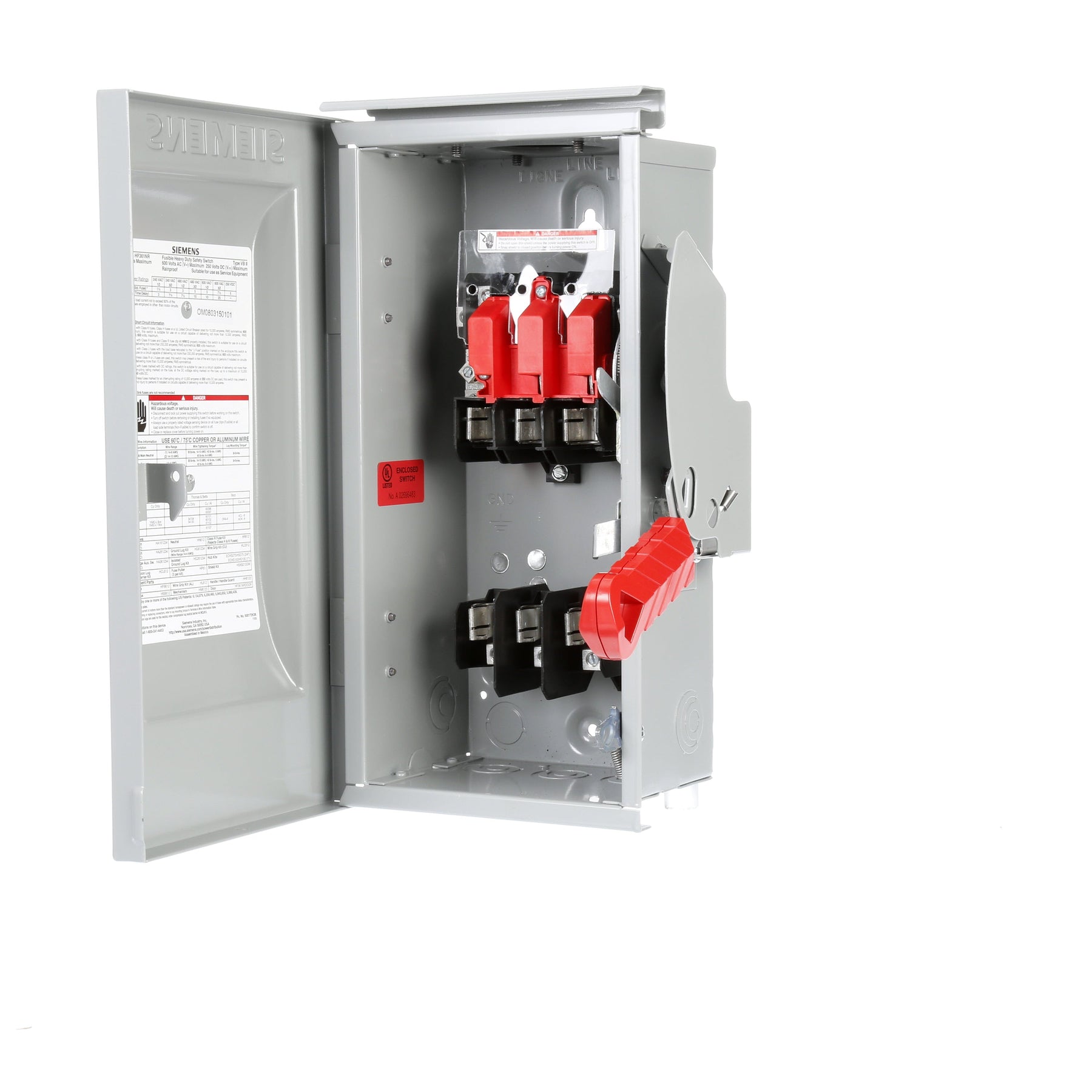

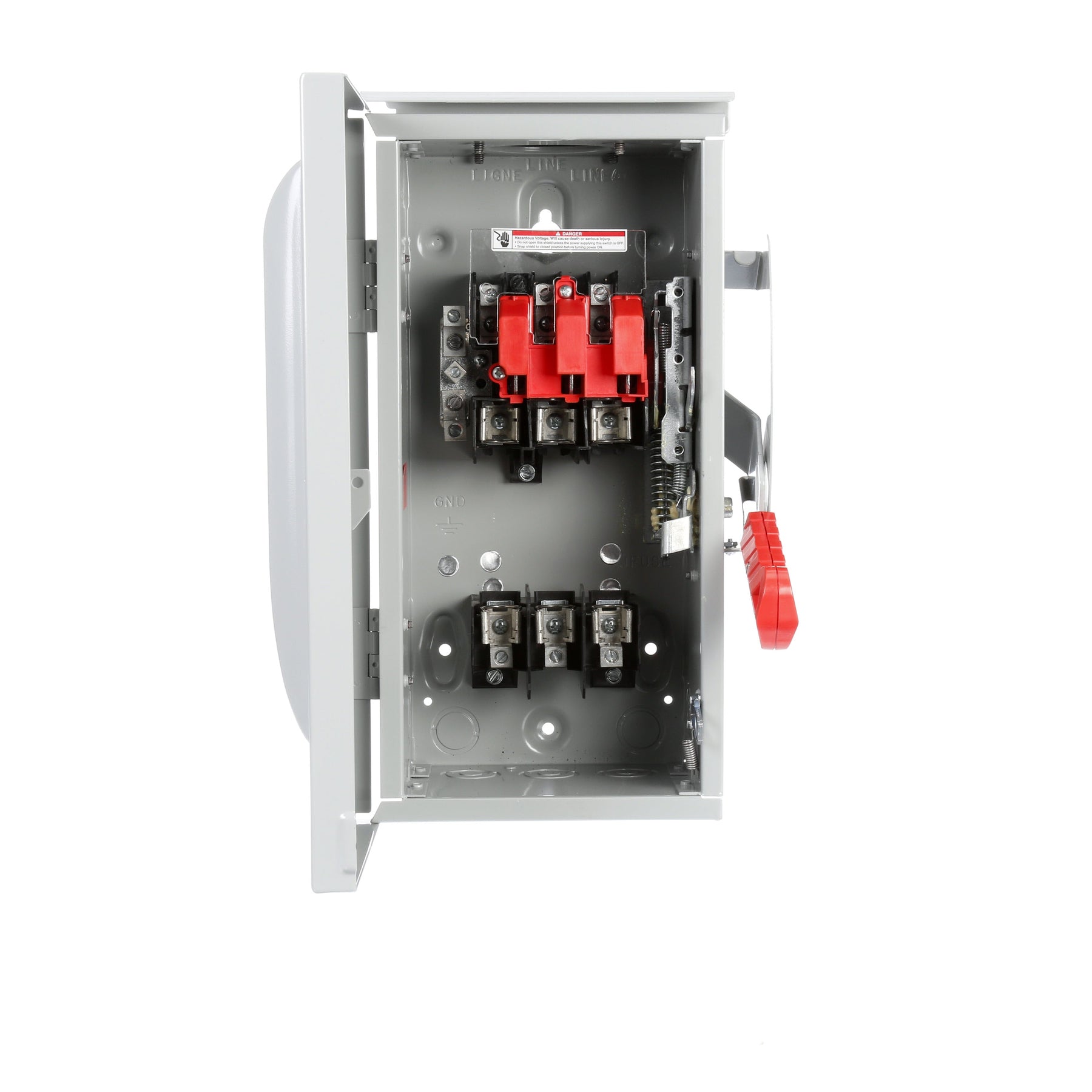

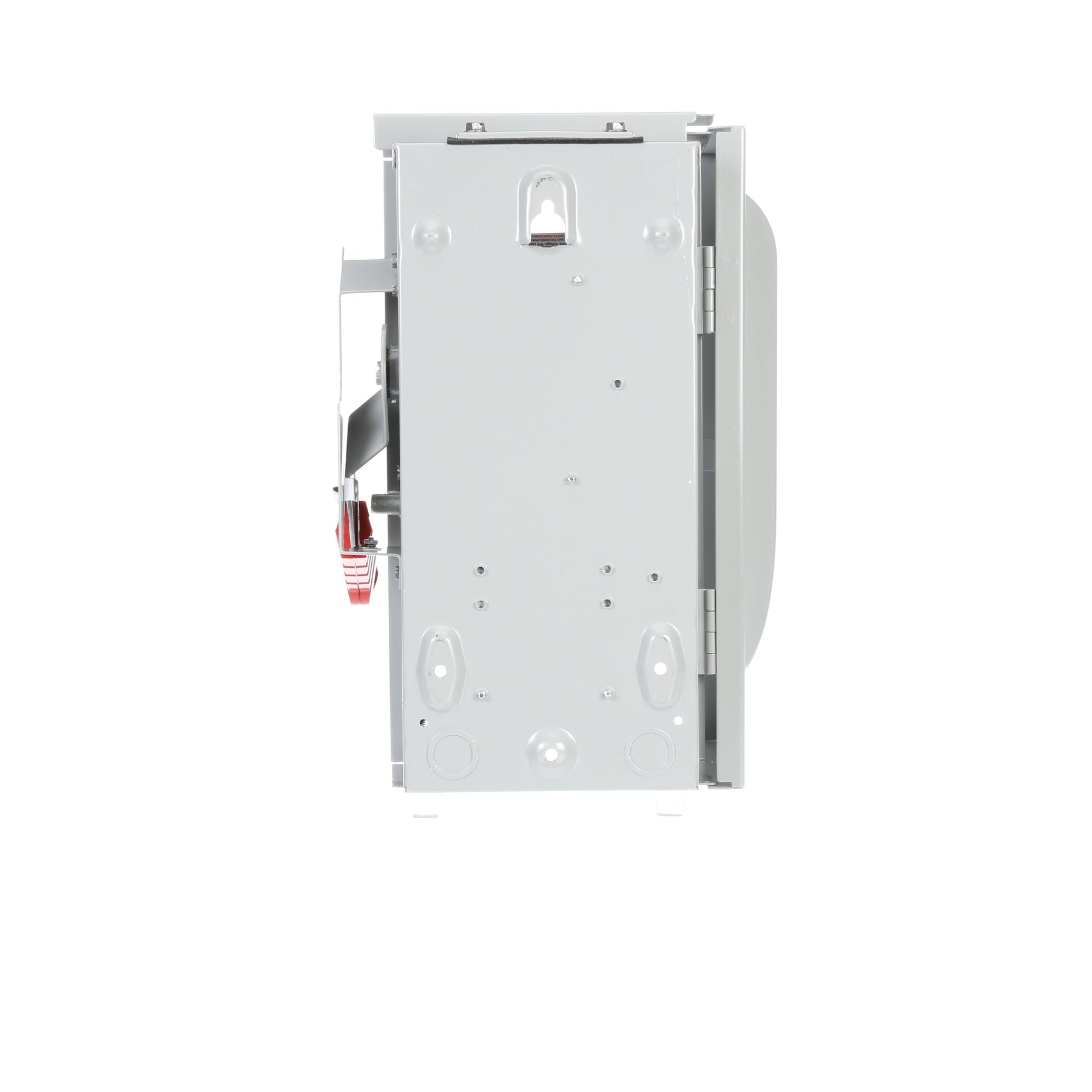

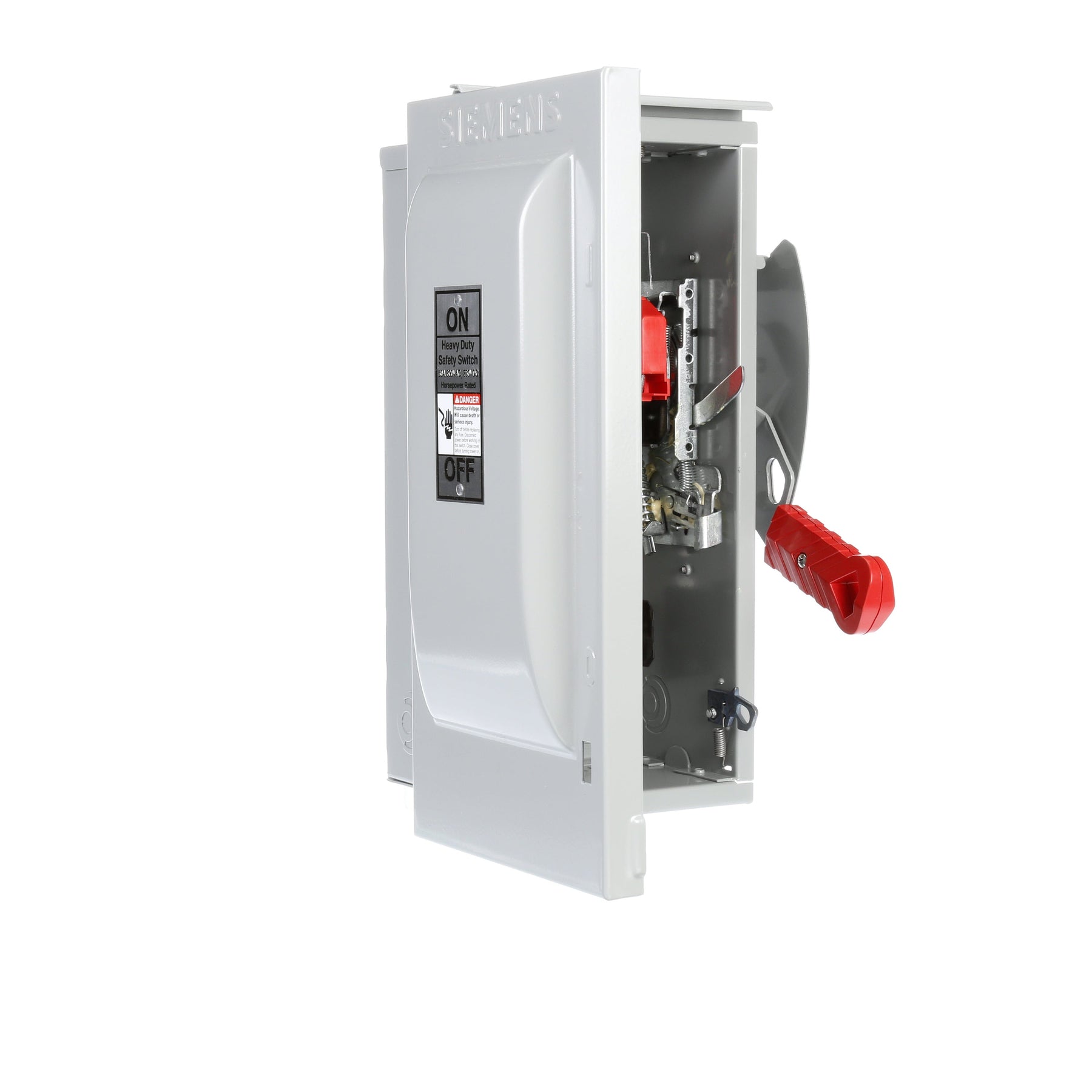

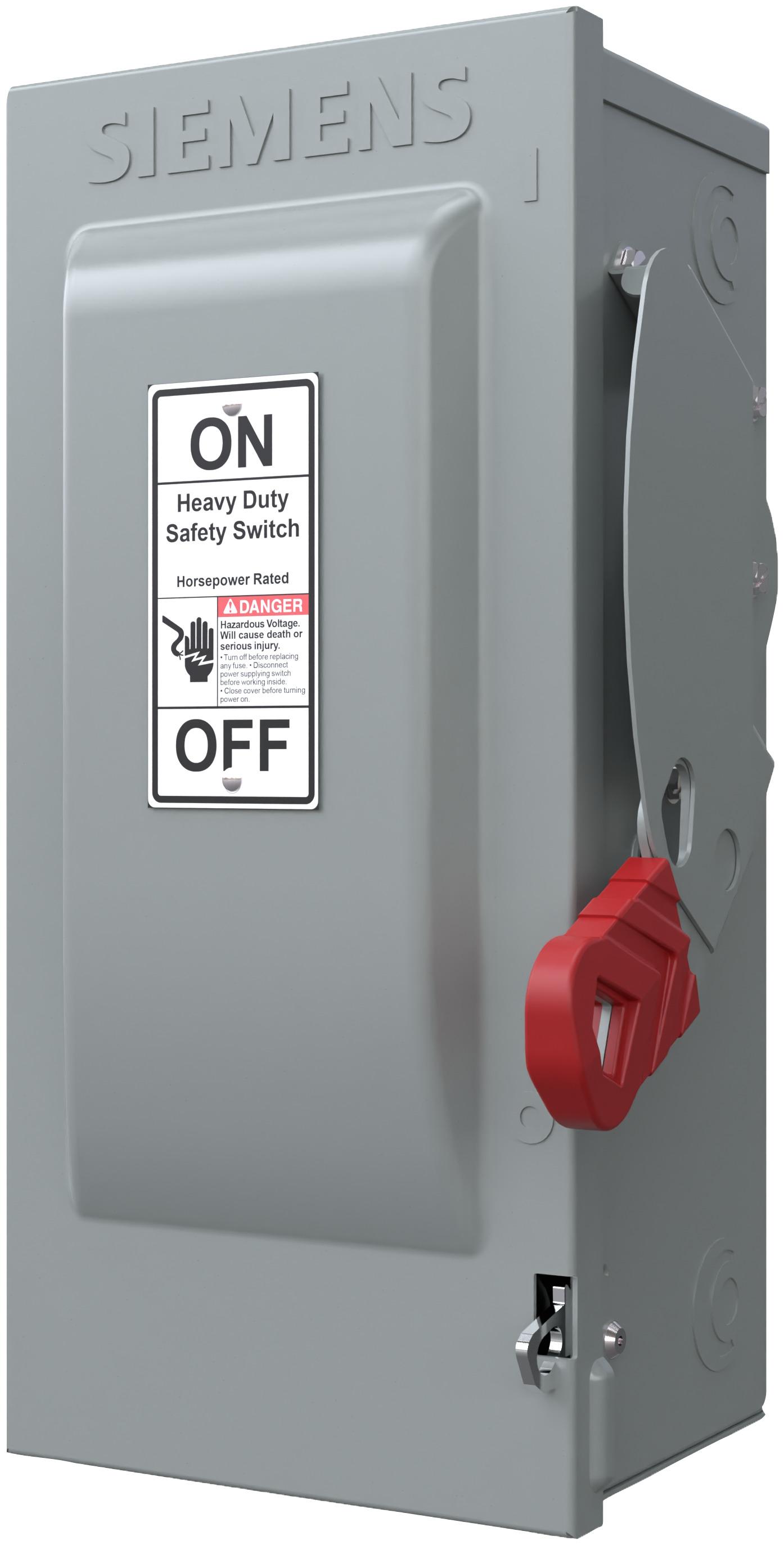

Siemens HF361NR is a fusible disconnect switch designed for providing visible isolation and overcurrent protection in three-phase industrial power distribution systems. It is rated for 600V AC operation with a 30A current rating and features a robust NEMA 3R enclosure measuring 14.91" x 7.88" x 9.18" (379mm x 200mm x 233mm) with a weight of 14 lb. The switch is UL listed and offers a high interrupting capacity of 200kA at 600V, ensuring reliable protection and compliance with industrial safety standards for applications such as motor control centers and panelboards.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, VBII Series, HF type, single configuration
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 14.91 x 7.88 x 9.18 inch (379 x 200 x 233 mm)
  • Standards: UL listed, NEMA 3R enclosure rating
  • Applications: Industrial power distribution, motor control, panelboard isolation
  • Switch Type: Fusible
  • Configuration: Single
  • Temp Rating: -13°F to 158°F (-25°C to 70°C)
  • Phase: 3
  • AIC rating: 200kA at 600V
  • Poles: 3
  • Protection: Overcurrent via Class R fuses
  • Fuse Class: R
  • Compatible Frames: PAF
  • Country of Origin: Mexico
  • Weight: 13.999 lb


Product Identification
  • UPC: 783643151666
  • GTIN: 00783643151666
