Siemens HF361N - Fusible Disconnect Switch, 30A 600V 3-Pole

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

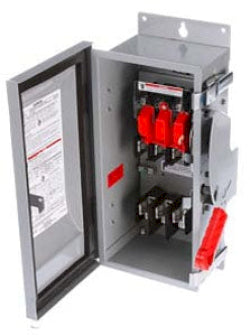

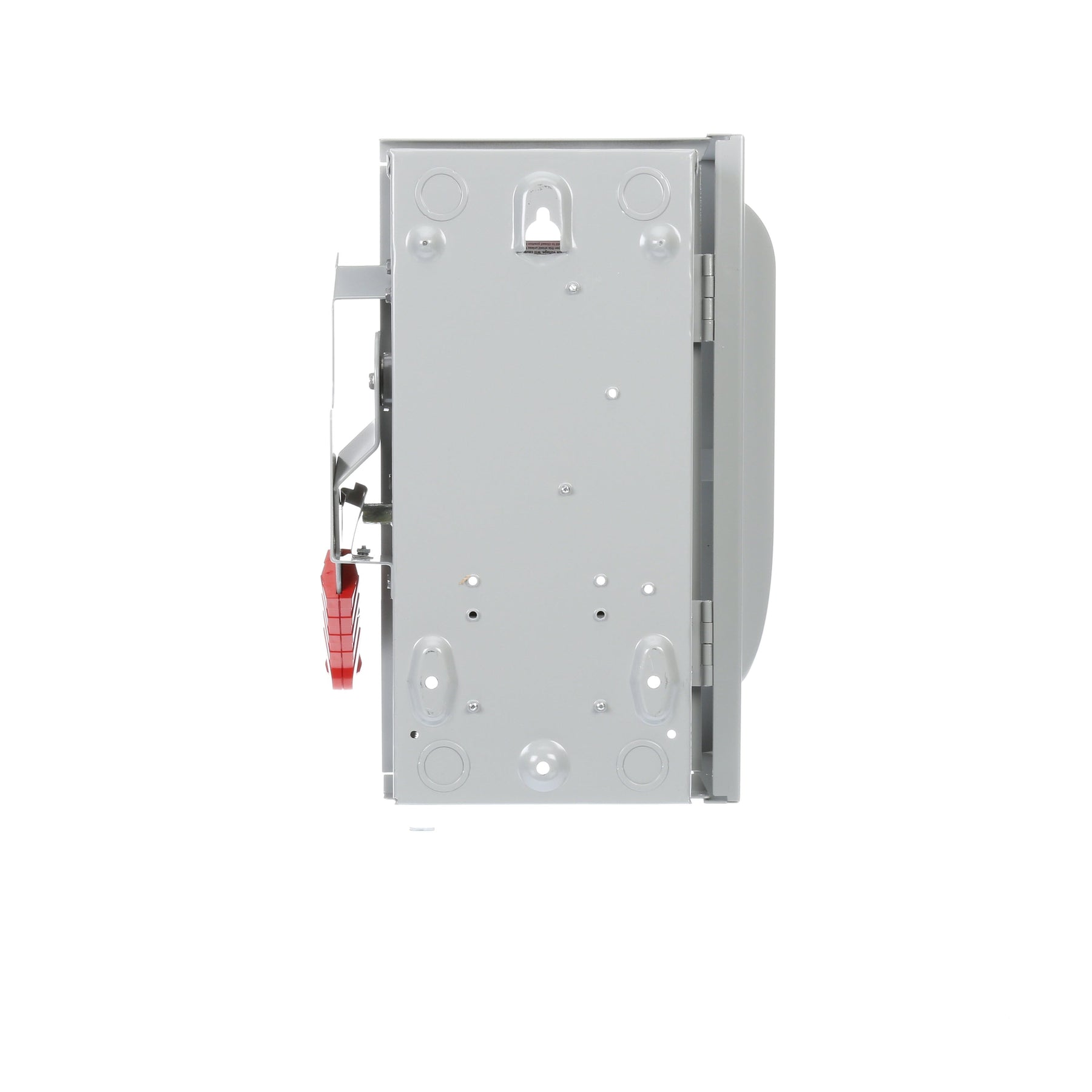

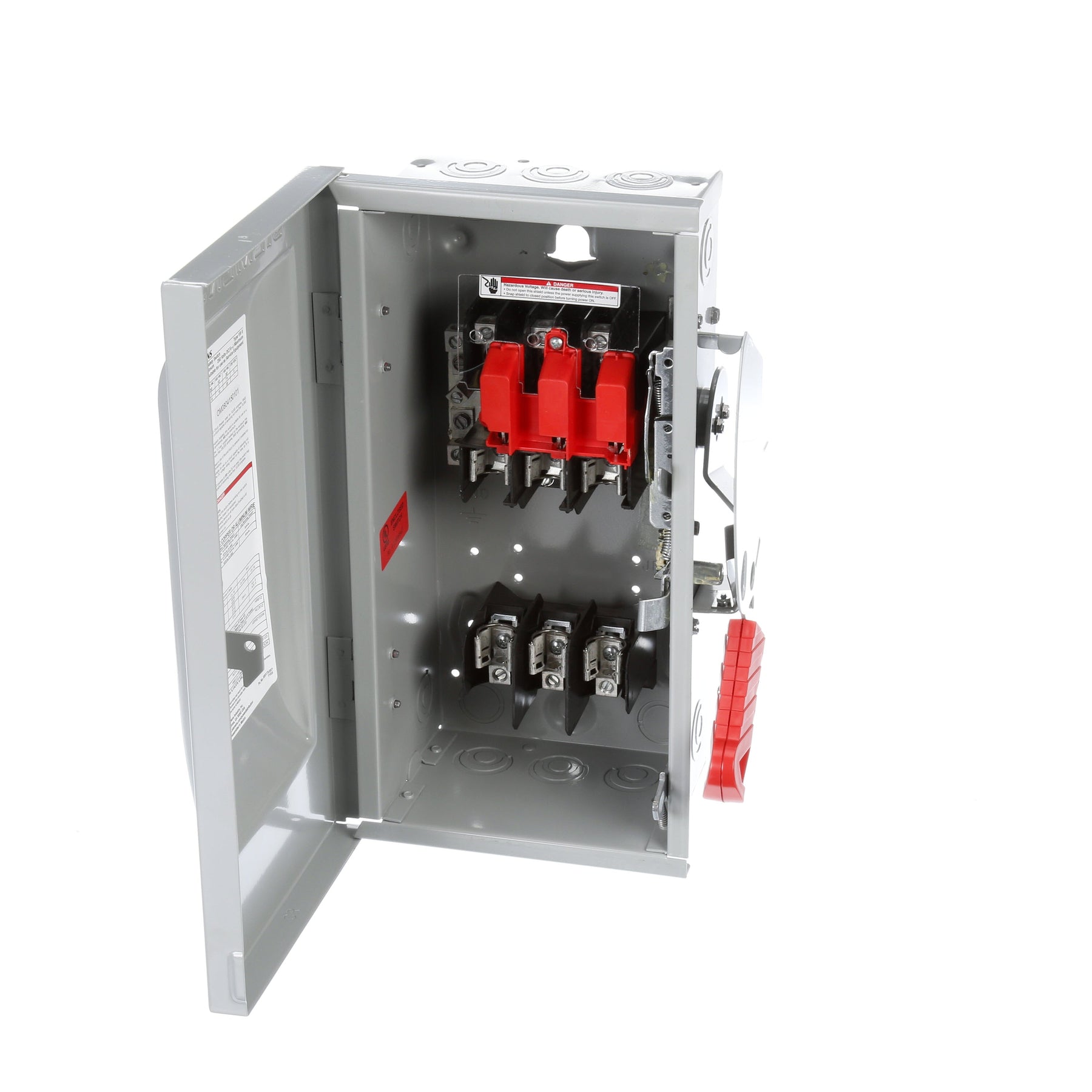

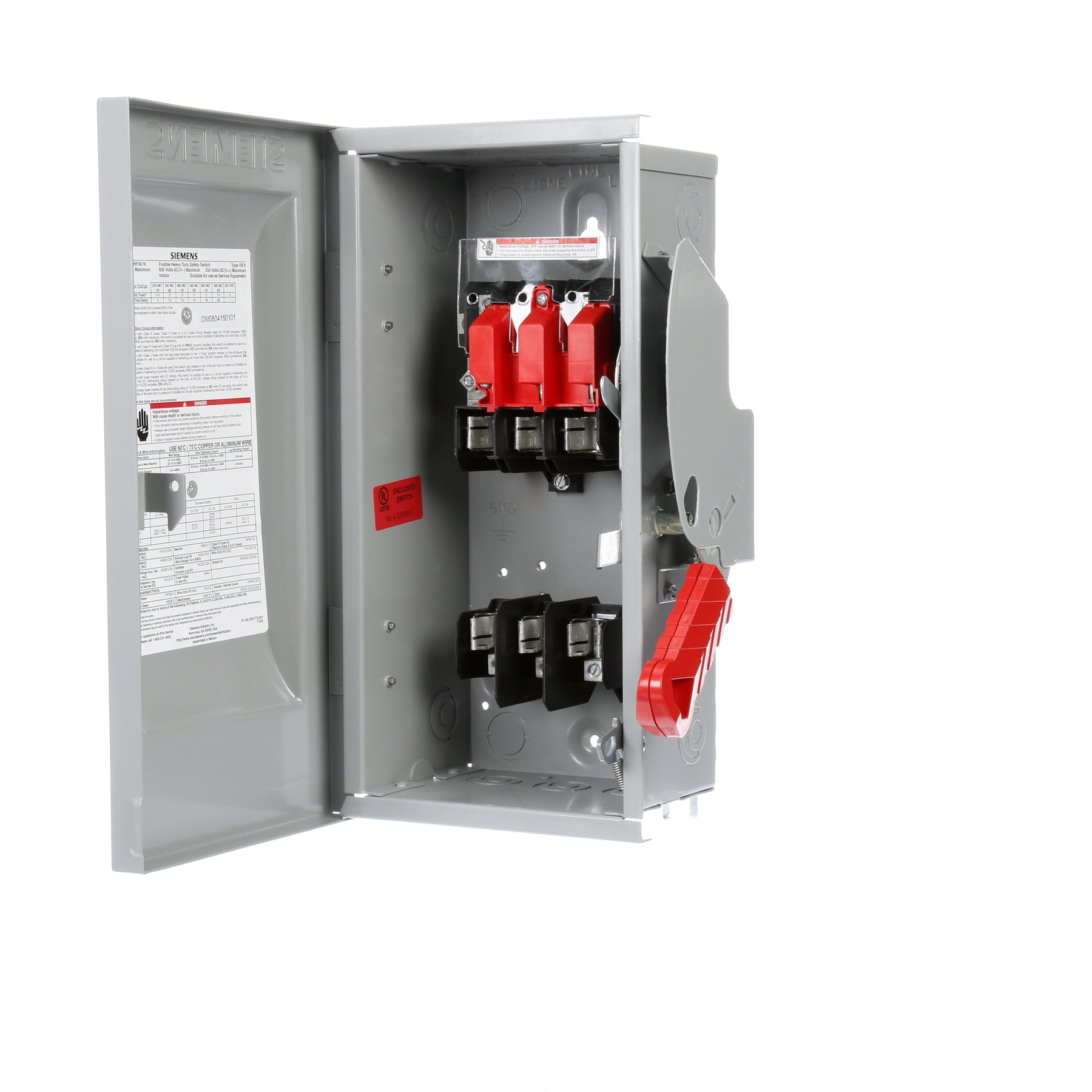

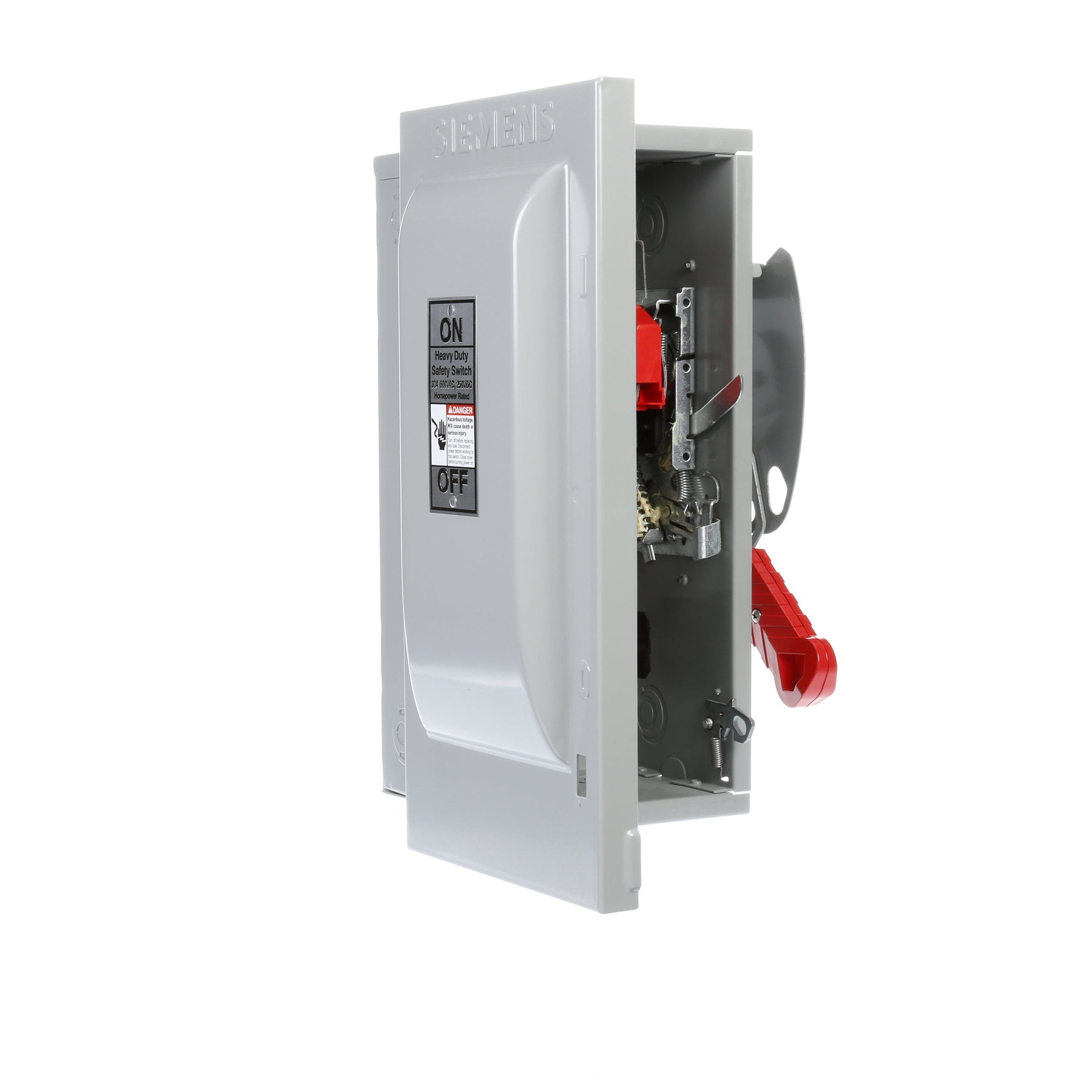

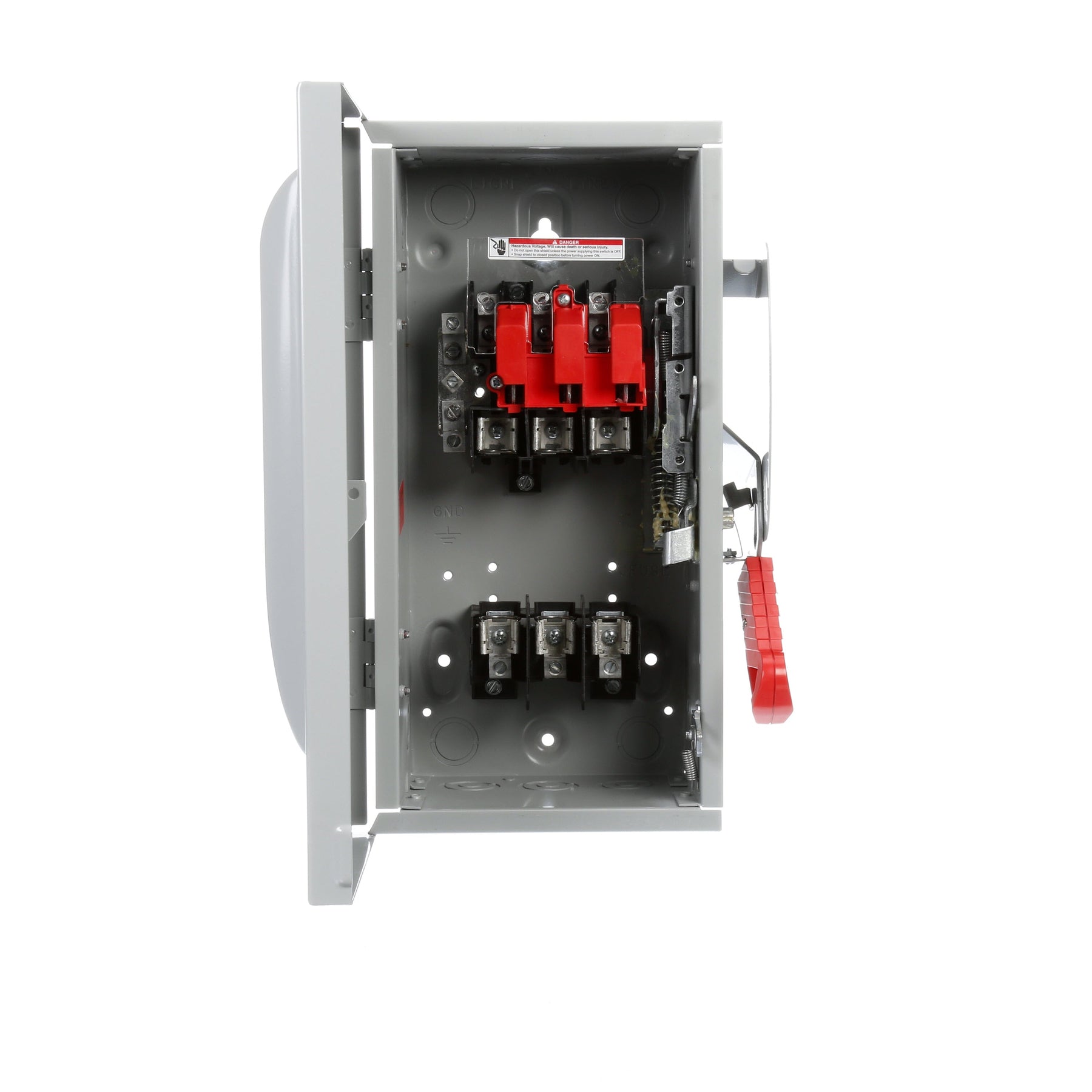

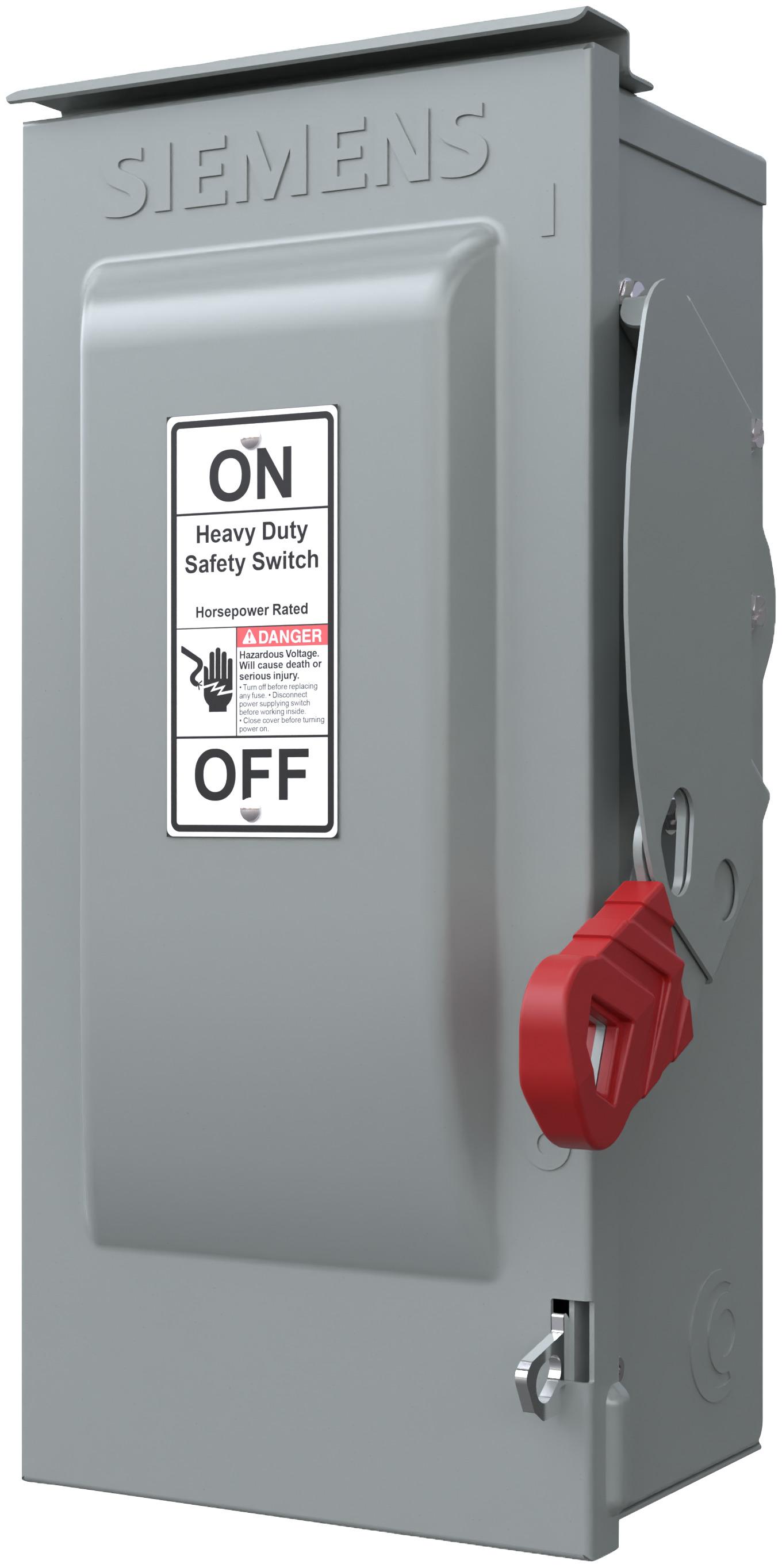

Siemens HF361N is a fusible disconnect switch designed for providing visible isolation and overcurrent protection in three-phase industrial power circuits. It is rated for 600V AC operation with a 30A current rating and features a 200kA interrupting capacity at 600V for robust short-circuit protection. The switch is constructed with a NEMA 1 enclosure measuring 14.6 x 7.75 x 8.89 inches and a weight of 13.001 lb, and it operates reliably within a temperature range of -25°C to 70°C. It is UL listed and designed for compatibility with PAF frames, ensuring adherence to industry safety standards. This disconnect is typically applied in motor control centers, industrial machinery, and panelboards where a secure means of disconnection and Class R fuse protection is required.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, VBII Series, HF type
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Configuration: Single, 3-Pole
  • AIC Rating: 200kA @ 600V
  • Fuse Class: R
  • NEMA Rating: NEMA 1
  • Phase: 3
  • Operating Temperature: -25°C to 70°C
  • Dimensions: 14.6 x 7.75 x 8.89 inch
  • Weight: 13.001 lb
  • Standards: UL Listed
  • Compatible Frames: PAF
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643151086
  • GTIN: 00783643151086
