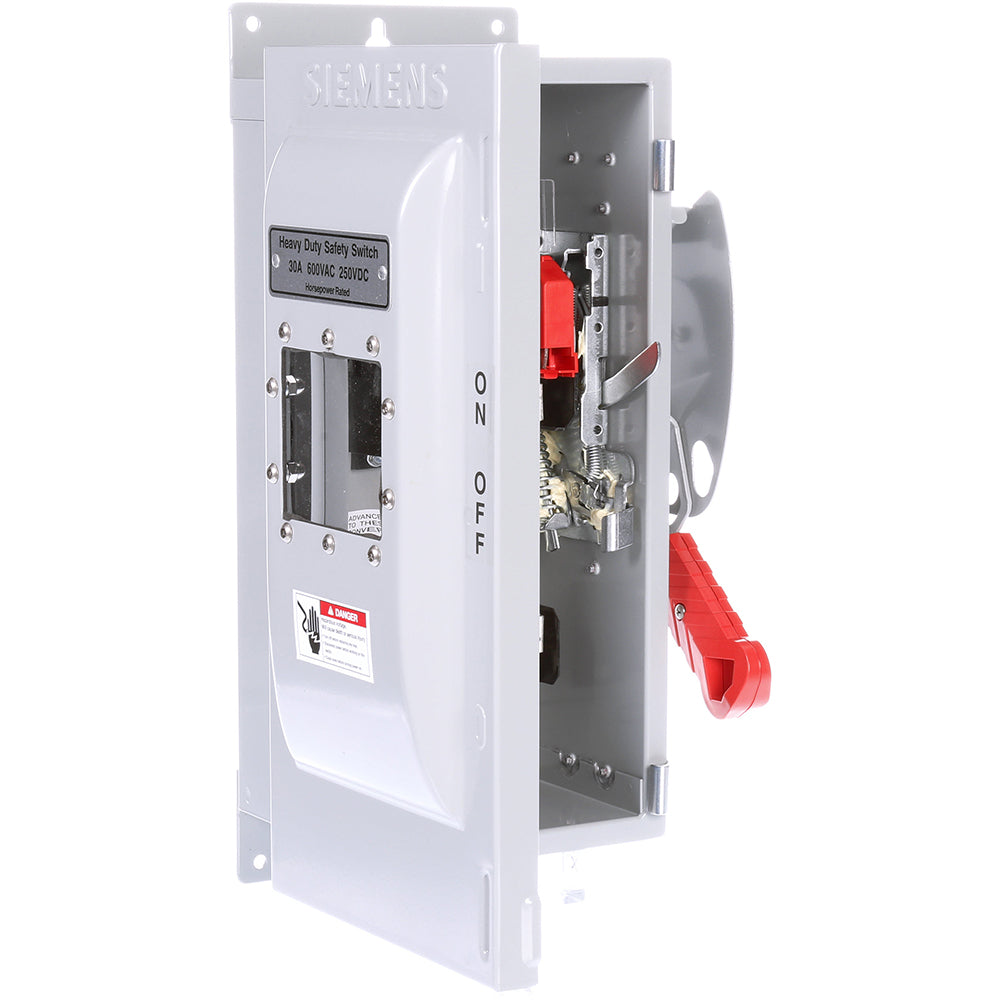

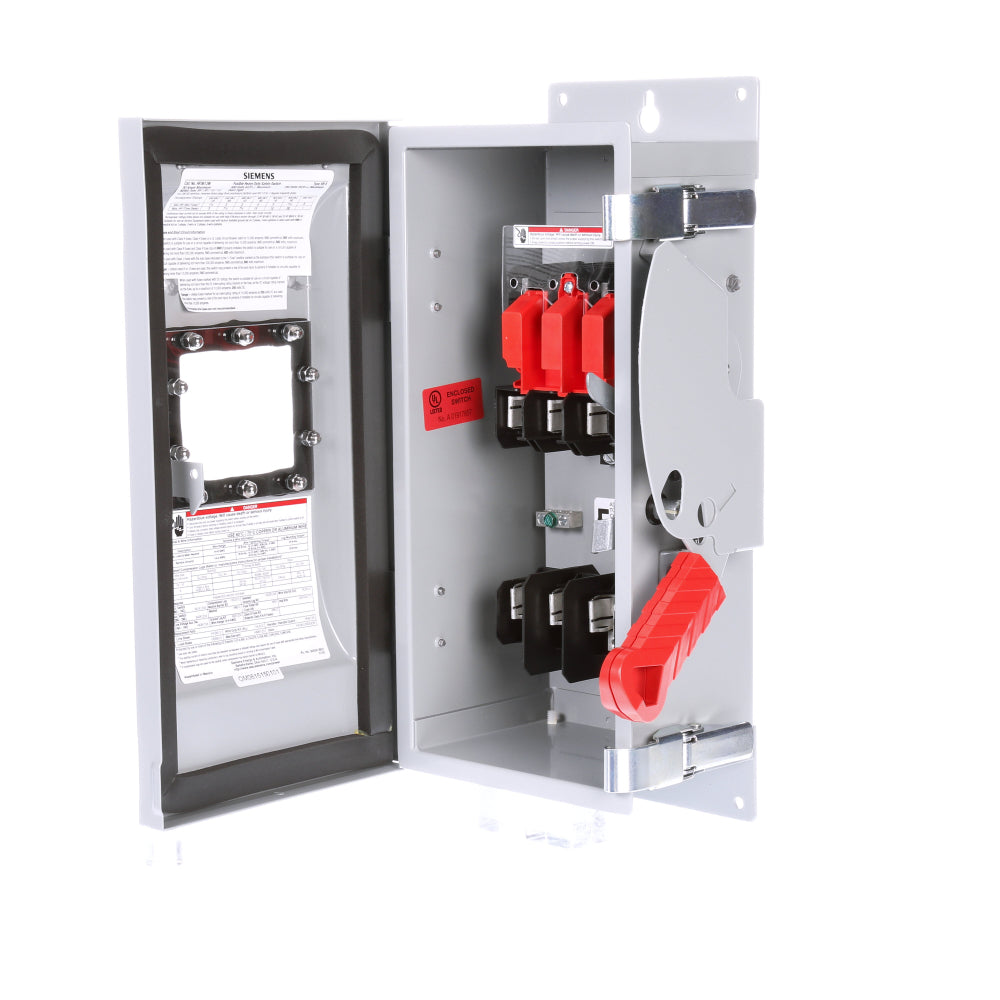

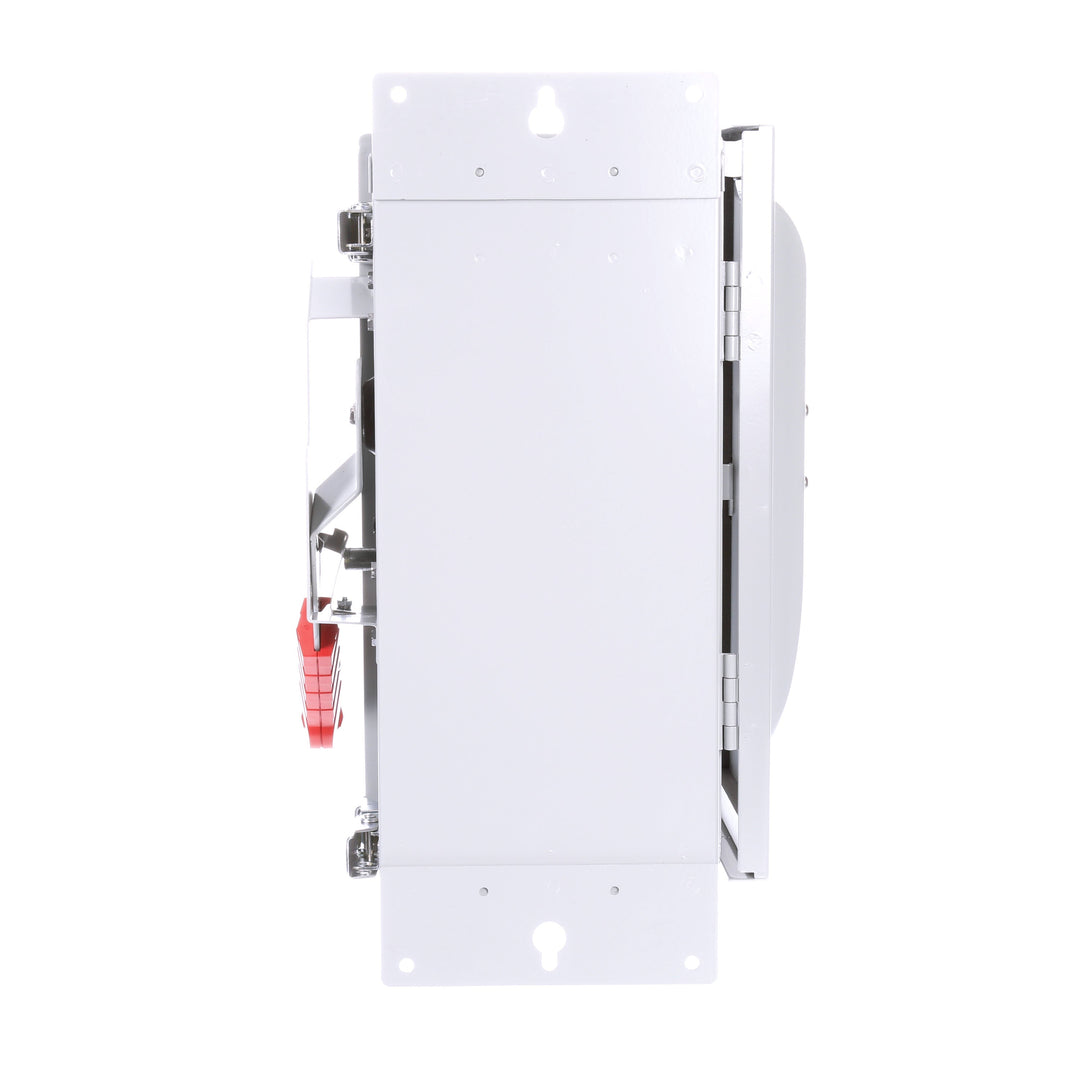

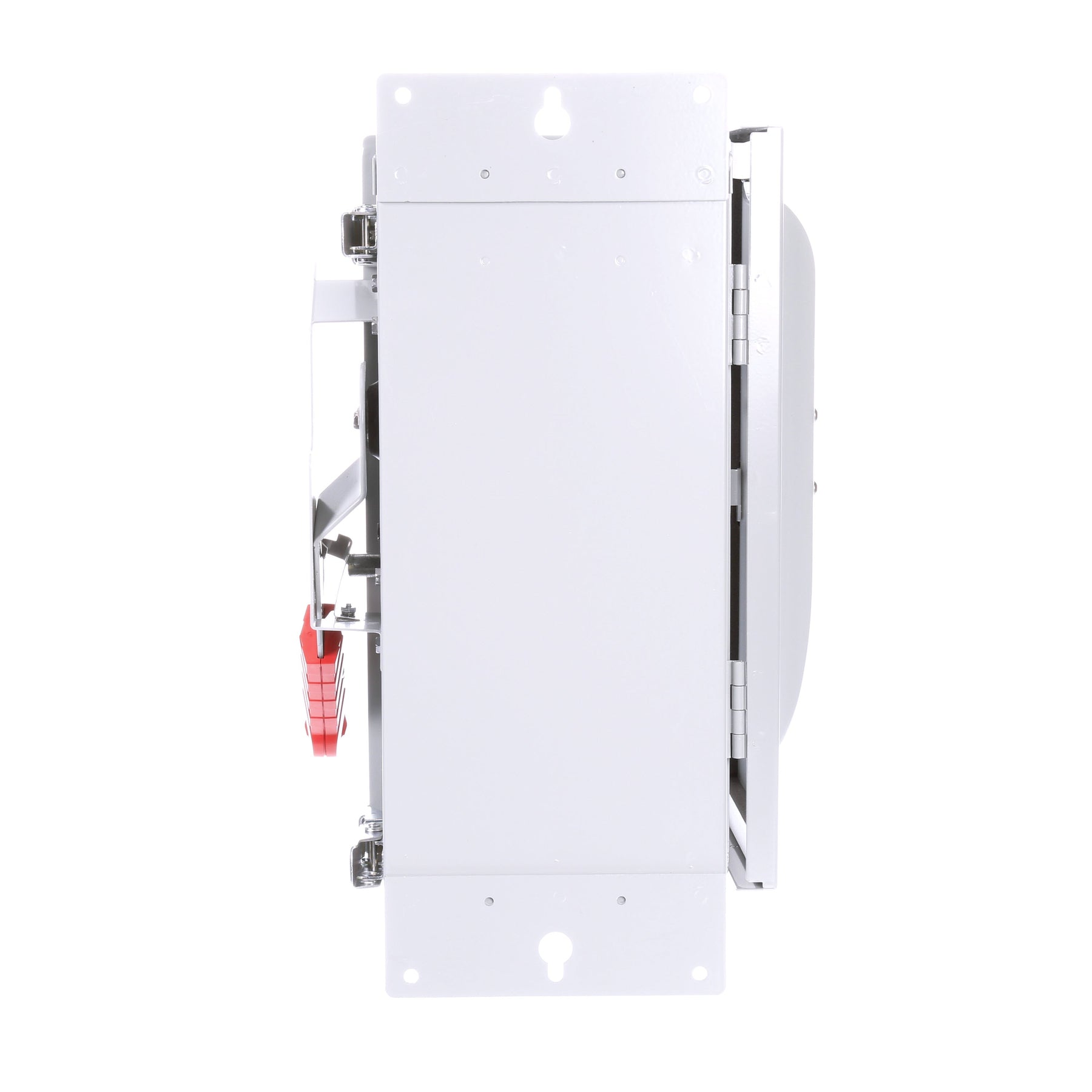

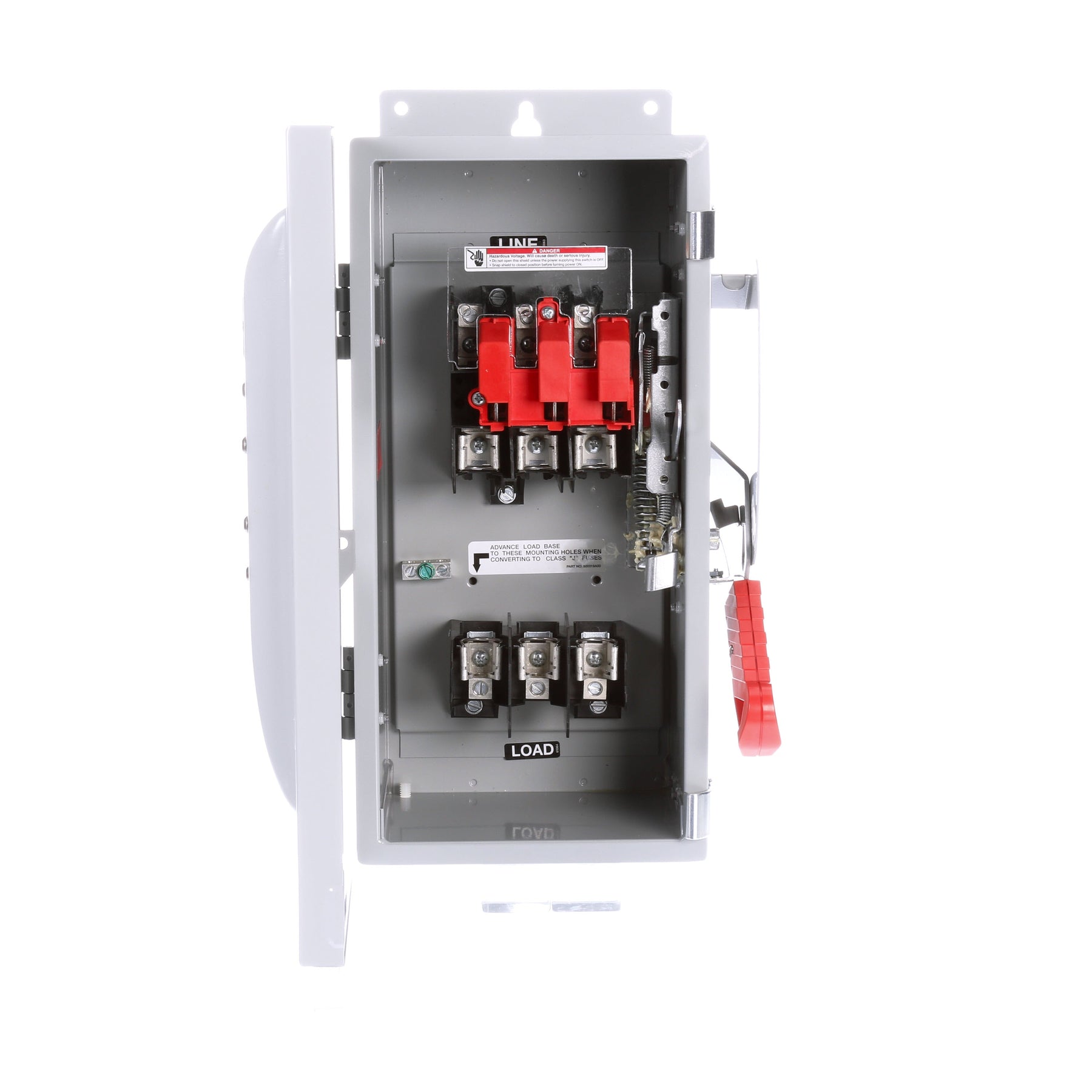

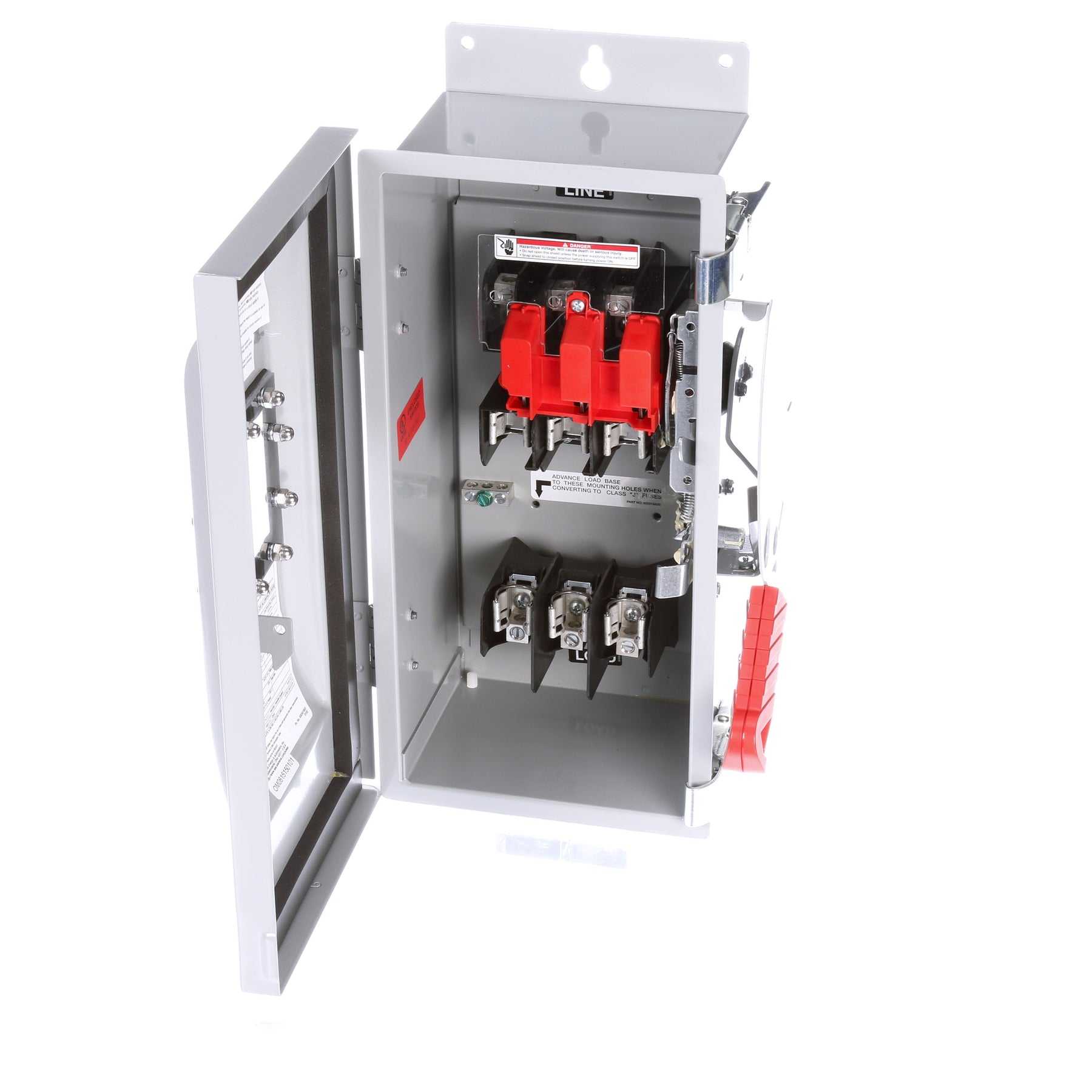

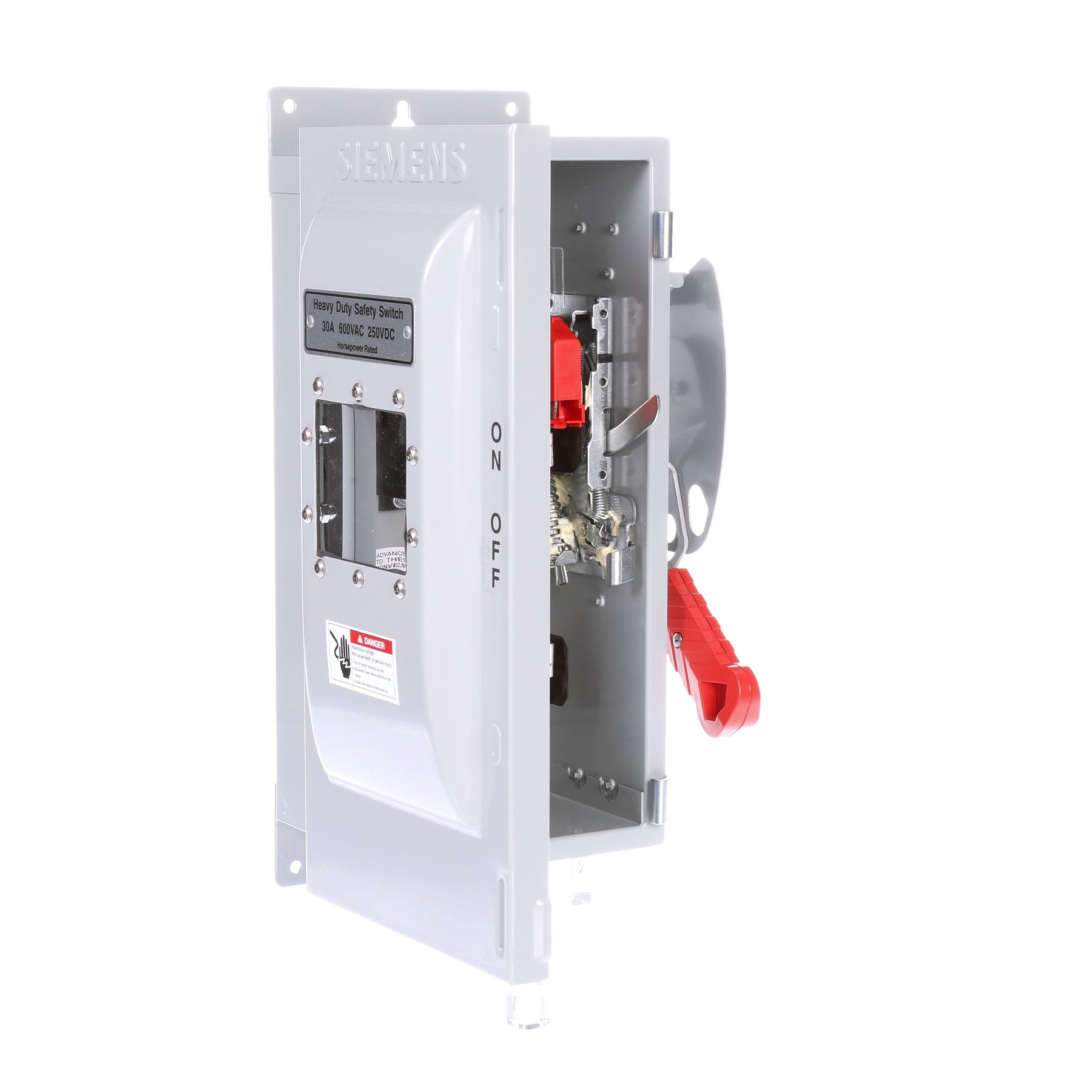

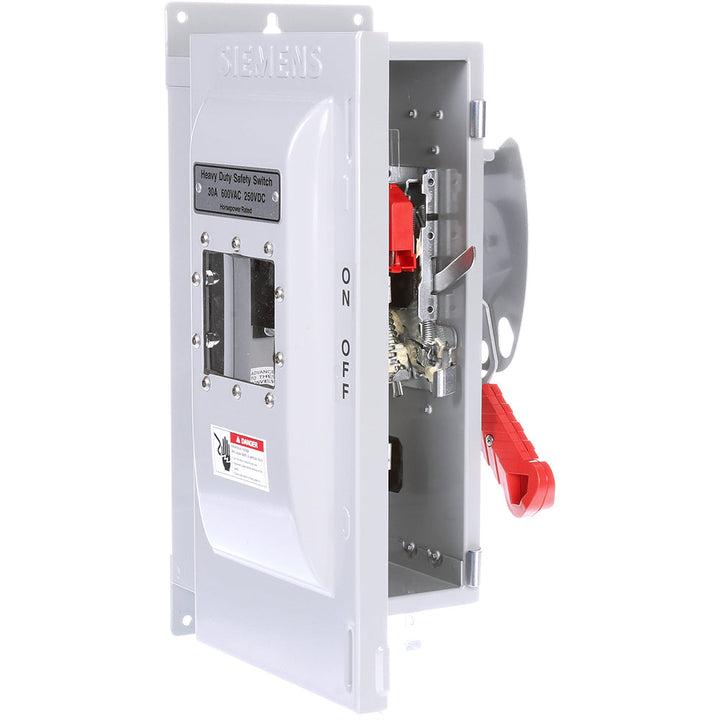

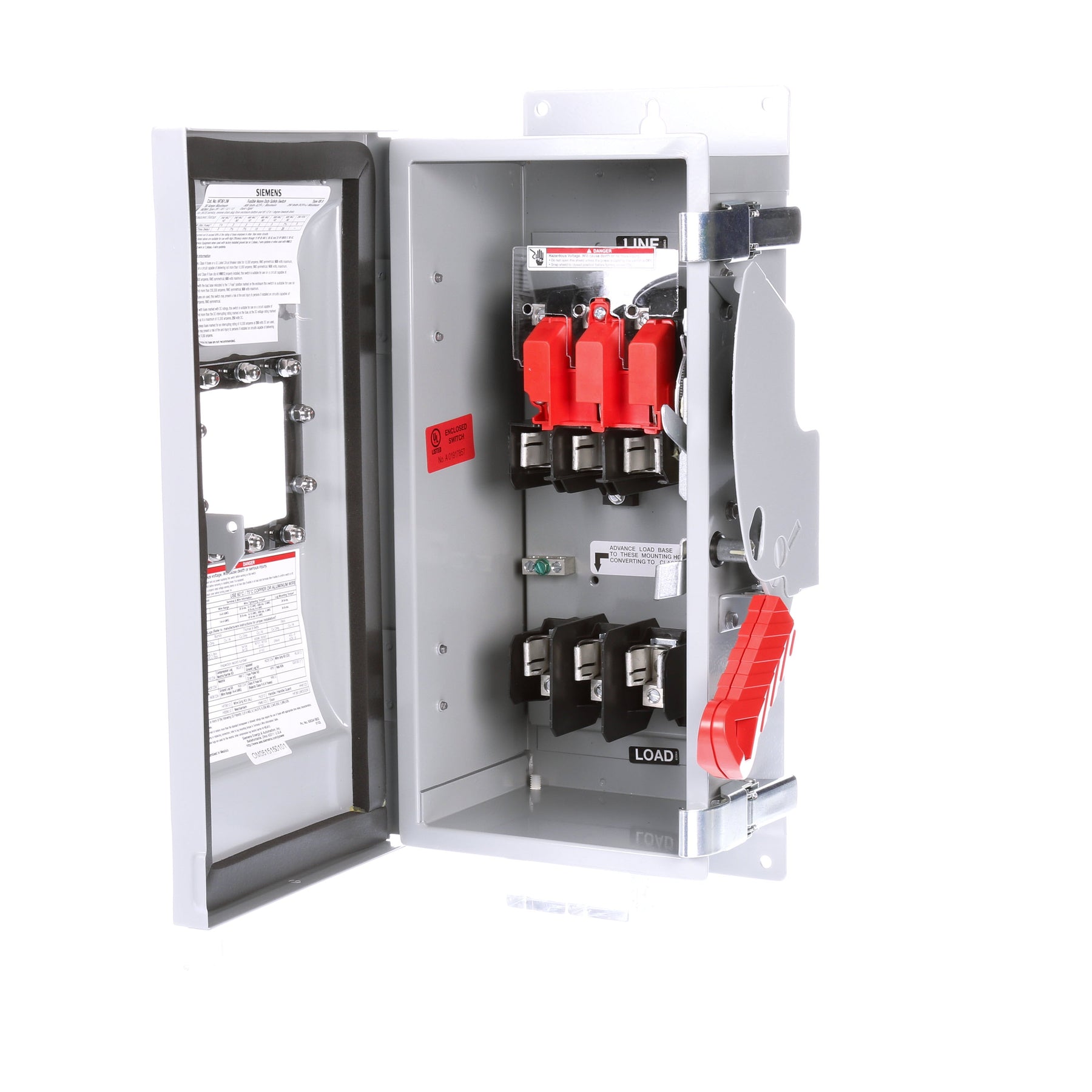

Siemens HF361JW - Fusible Disconnect Switch, 30A 600V 3-Pole

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens HF361JW is a fusible disconnect switch designed for providing safe isolation and overcurrent protection in three-phase industrial power circuits. It is rated for 600V AC and a continuous current of 30A, featuring a robust construction with three poles and a compact form factor measuring 20.079 x 11.417 x 7.874 inches (510 x 290 x 200 mm) and a weight of 16.336 lb. The switch is UL listed, carries a NEMA 12 enclosure rating for protection against dust and dripping water, and is designed to operate reliably within a temperature range of -25°C to 70°C (-13°F to 158°F). Its primary applications include motor control centers, industrial machinery, and panelboards where a 200kA interrupting capacity at 600V is required for safety.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, HF type, VBII Series, single configuration
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 20.079 x 11.417 x 7.874 inches (510 x 290 x 200 mm)
  • Weight: 16.336 lb
  • Standards: UL Listed, NEMA 12 Enclosure
  • Applications: Industrial motor control, panelboards, machinery isolation
  • Switch Type: Fusible
  • Configuration: Single
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • Amperage: 30A
  • AIC rating: 200kA @ 600V
  • Connection: 3-Wire
  • Poles: 3
  • Fuse Class: R
  • Compatible Frames: PAF
  • Country of Origin: Mexico


Product Identification
  • UPC: 078364322185
  • GTIN: 00783643221857
