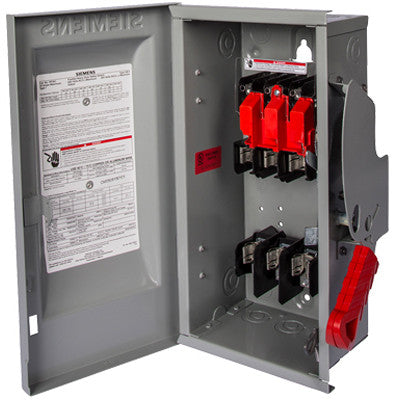

Siemens HF361JCH - Fusible Disconnect Switch, 30A 600V 3-Pole

Siemens
Price
Save $2,225.71
/
Title
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Siemens HF361JCH is a fusible disconnect switch designed for providing safe isolation and circuit protection in industrial power distribution. It is rated for 600V AC systems with a 30A current capacity and features a three-pole, single-configuration design within a robust NEMA 12 enclosure measuring 300 x 200 x 630 mm (11.811 x 7.874 x 24.803 inches). The switch is UL listed, operates within a temperature range of -25°C to 70°C (-13°F to 158°F), and offers a high interrupting capacity of 200kA at 600V. It is engineered for integration into compatible PAF frames, making it suitable for motor control centers and industrial panelboards requiring reliable circuit isolation and Class R fuse protection.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, VBII Series, HF type
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Fuse Class: R
  • NEMA Rating: NEMA 12
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 300 x 200 x 630 mm (11.811 x 7.874 x 24.803 in)
  • Weight: 22.641 lb
  • Standards: UL Listed
  • Compatible Frames: PAF
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643435841
  • GTIN: 00783643435841
