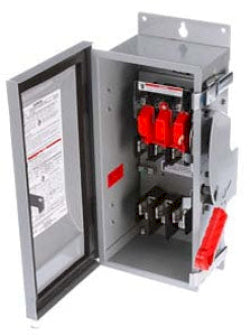

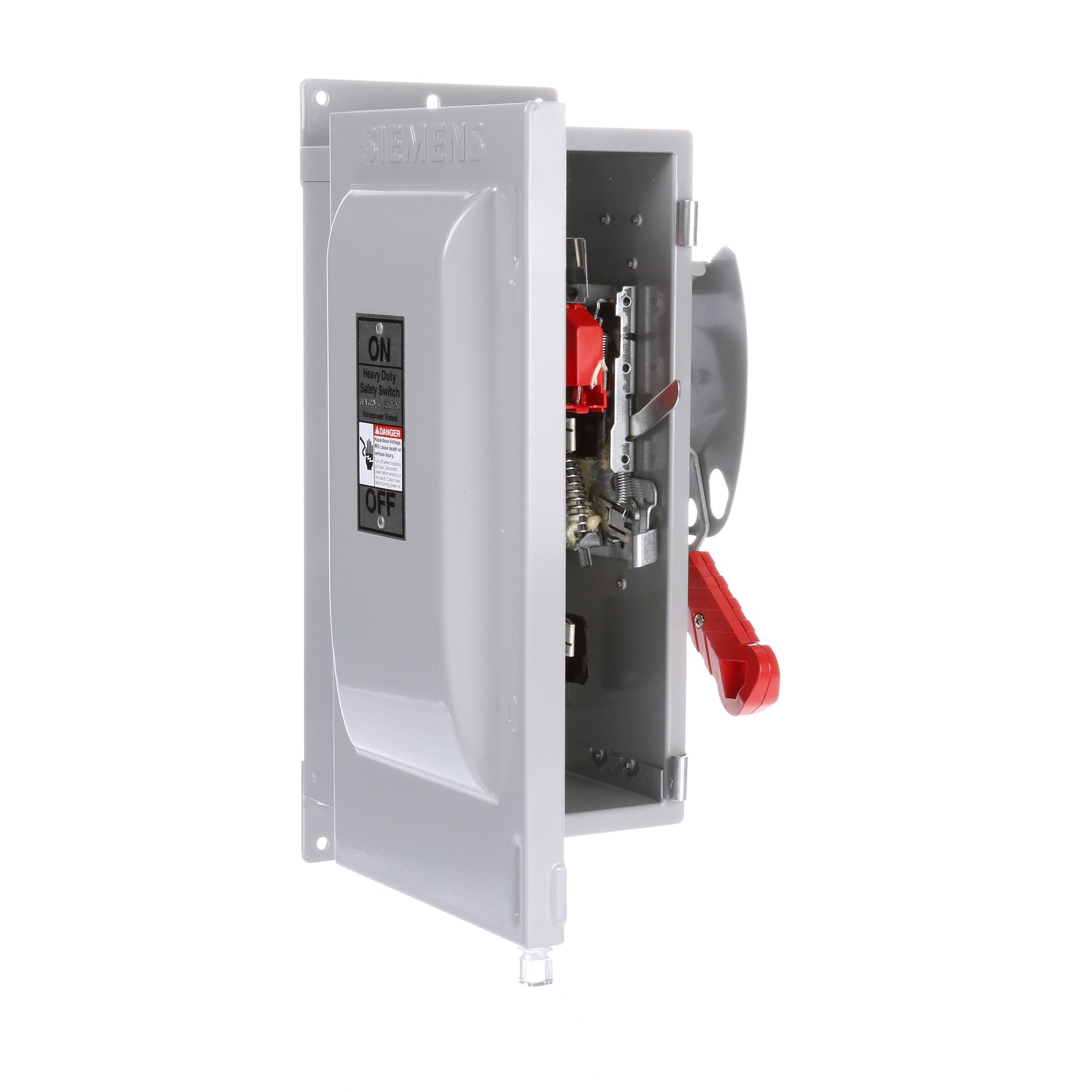

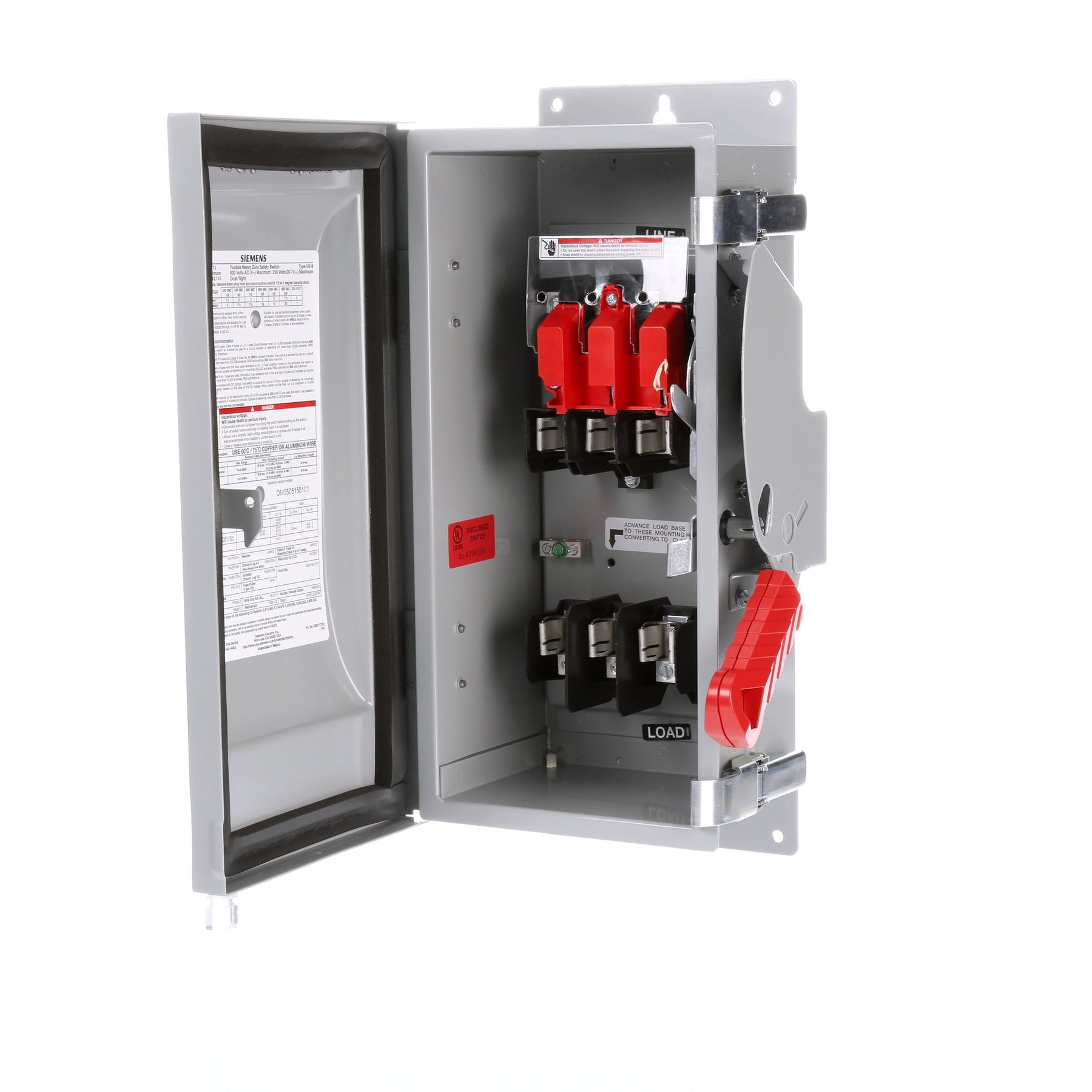

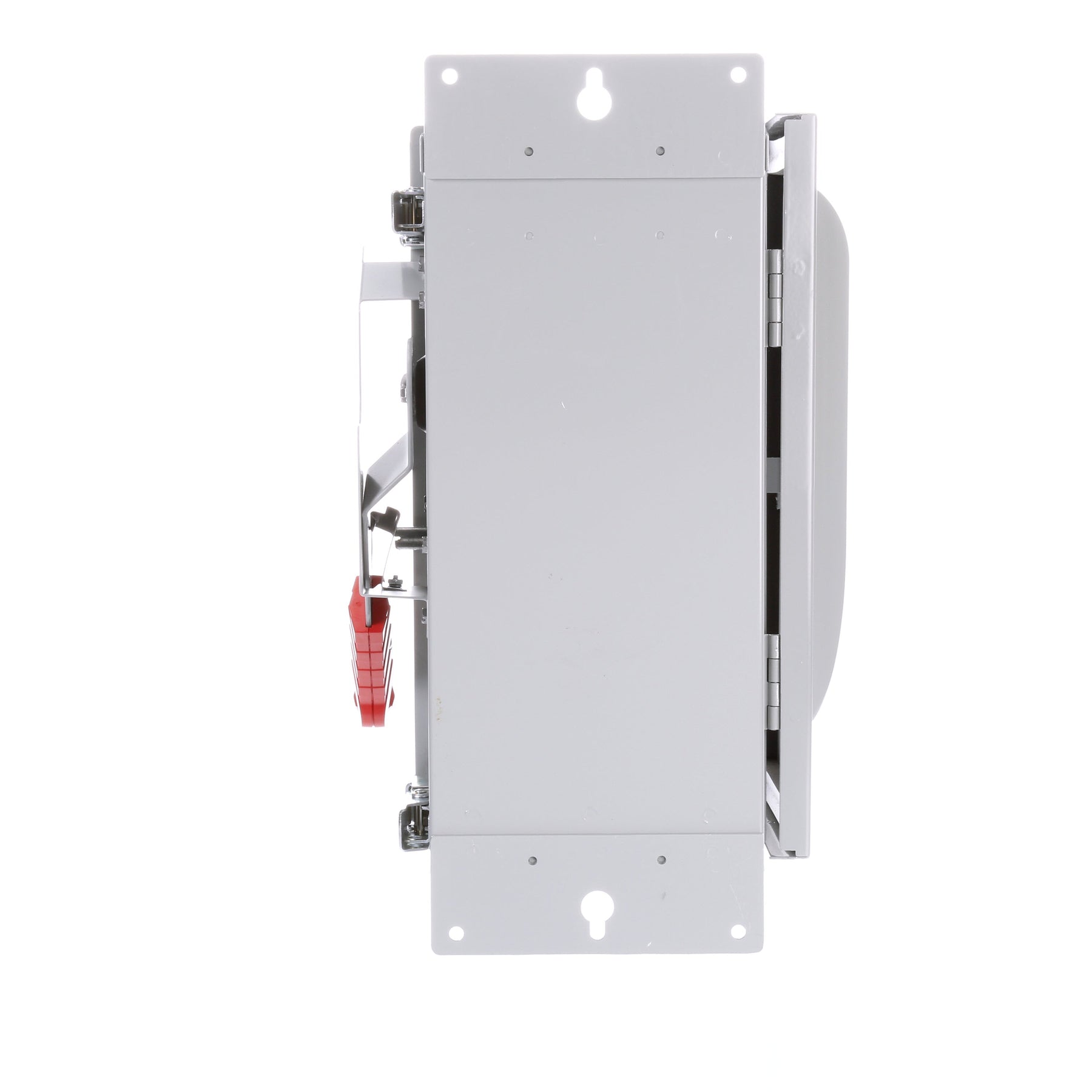

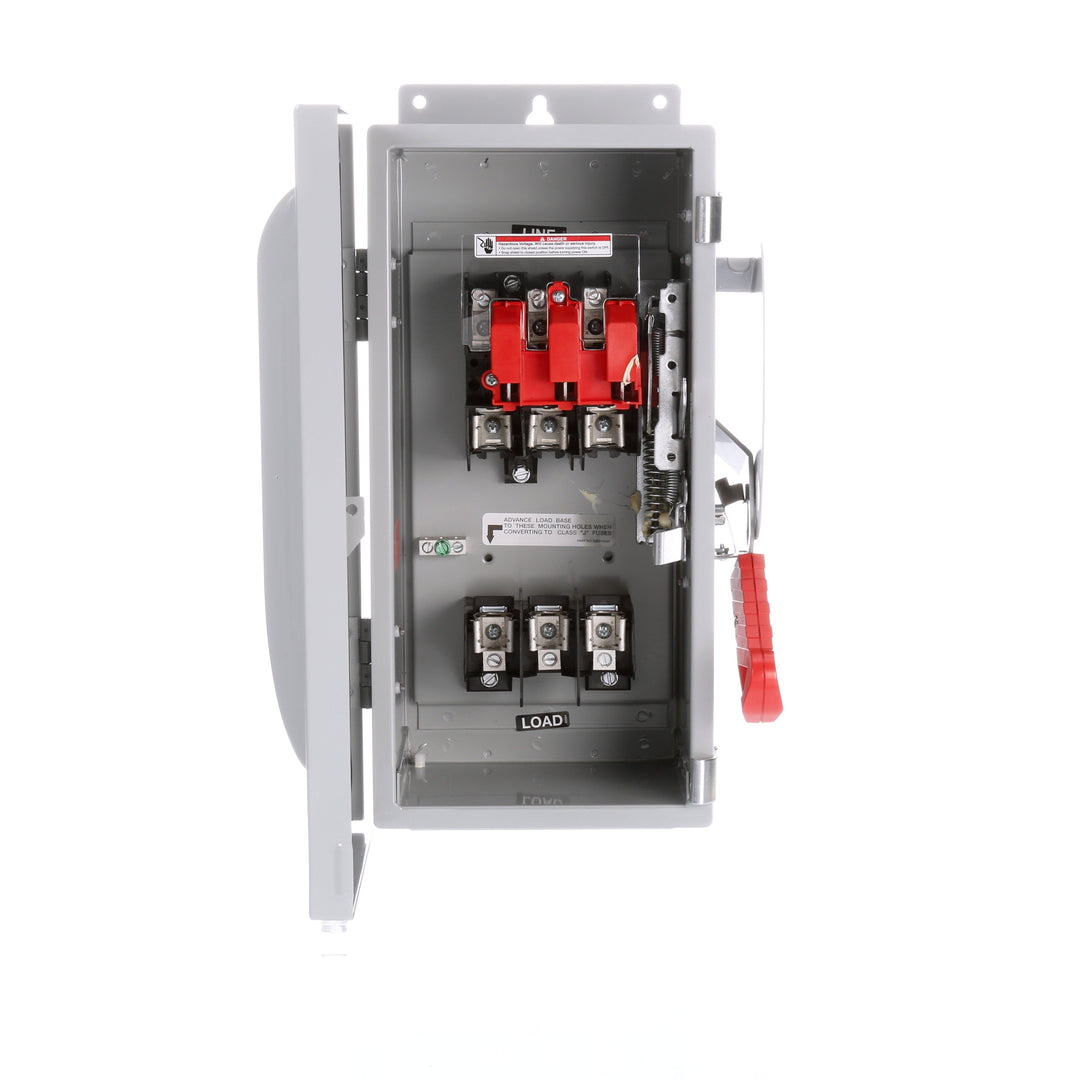

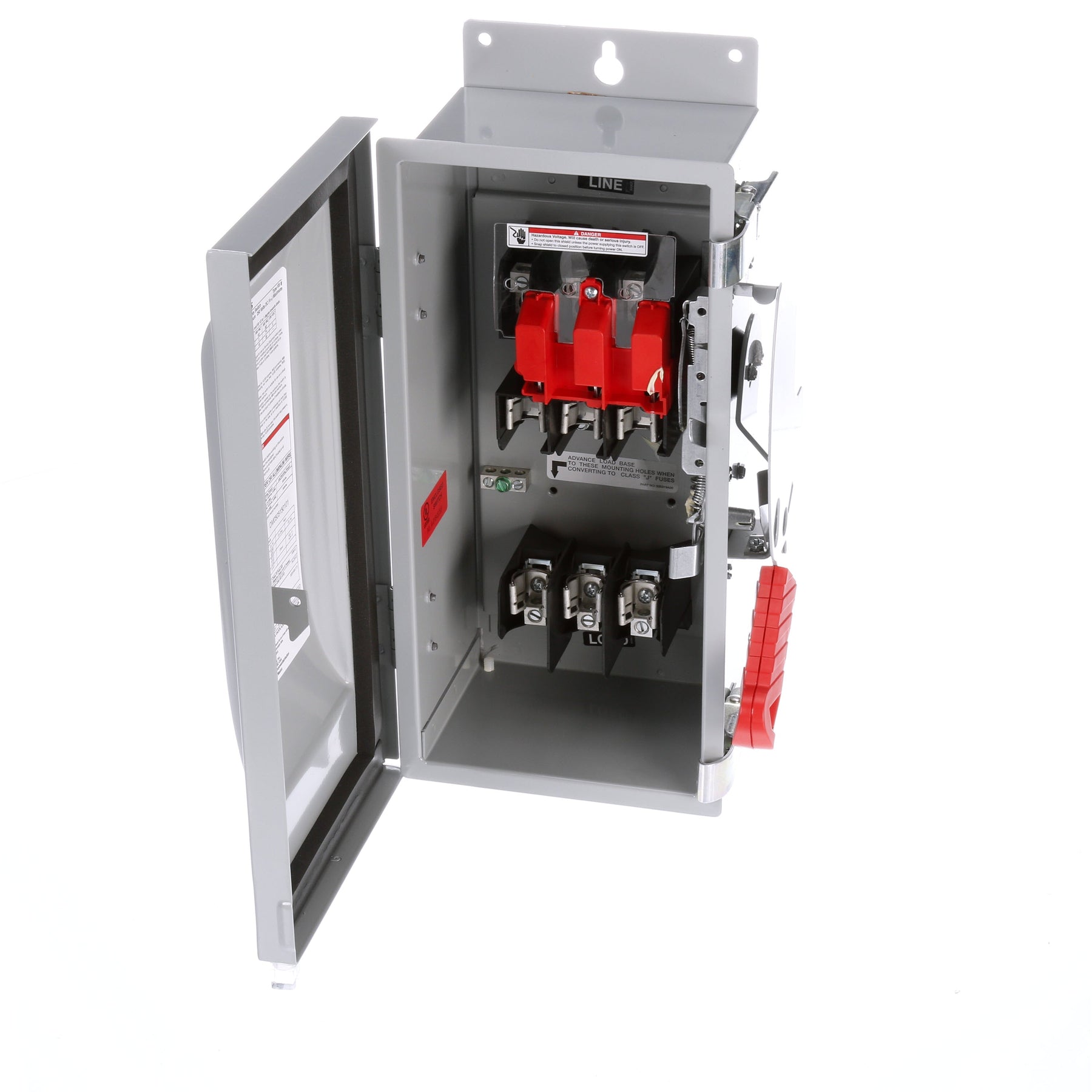

Siemens HF361J - Fusible Disconnect Switch 600V AC 30A (200kA AIC NEMA 12)

Siemens HF361J is a fusible safety disconnect switch designed for reliable circuit protection and isolation in industrial applications. This 3-pole switch operates at 600V AC with a 30A current rating and features a 200kA interrupting capacity at 600V for robust fault protection. The unit features a compact 9.0 x 15.4 inch NEMA 12 enclosure rated for temperatures from -25°C to 70°C (-13°F to 158°F) and carries UL certification for safety compliance. Designed for Class R fuse compatibility and PAF frame integration, this 20 lb disconnect switch provides essential safety isolation in three-phase industrial power distribution systems, motor control centers, and heavy machinery applications where reliable circuit interruption is critical.

Key Features & Specifications

• Type: Fusible safety disconnect switch, VBII Series
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 9.0 in x 15.4 in
• Standards: UL Certified
• Applications: Industrial power distribution, motor control centers, heavy machinery
• Switch Type: Disconnect
• Configuration: Single
• Temp Rating: -25°C to 70°C (-13°F to 158°F)
• Phase: 3
• AIC rating: 200kA@600V
• Connection: Fusible
• Poles: 3
• Protection: Circuit isolation and interruption
• Functions: Safety disconnect
• Compatible Frames: PAF
• Nema Rating: NEMA 12
• Fuse Class: R
• Enclosure: NEMA 12 rated
• Certification: UL
• Standards: UL safety standards
• Weight: 20 lb
• Country of Origin: Mexico

Product Identification

• UPC: 783643151819
• GTIN: 00783643151819
