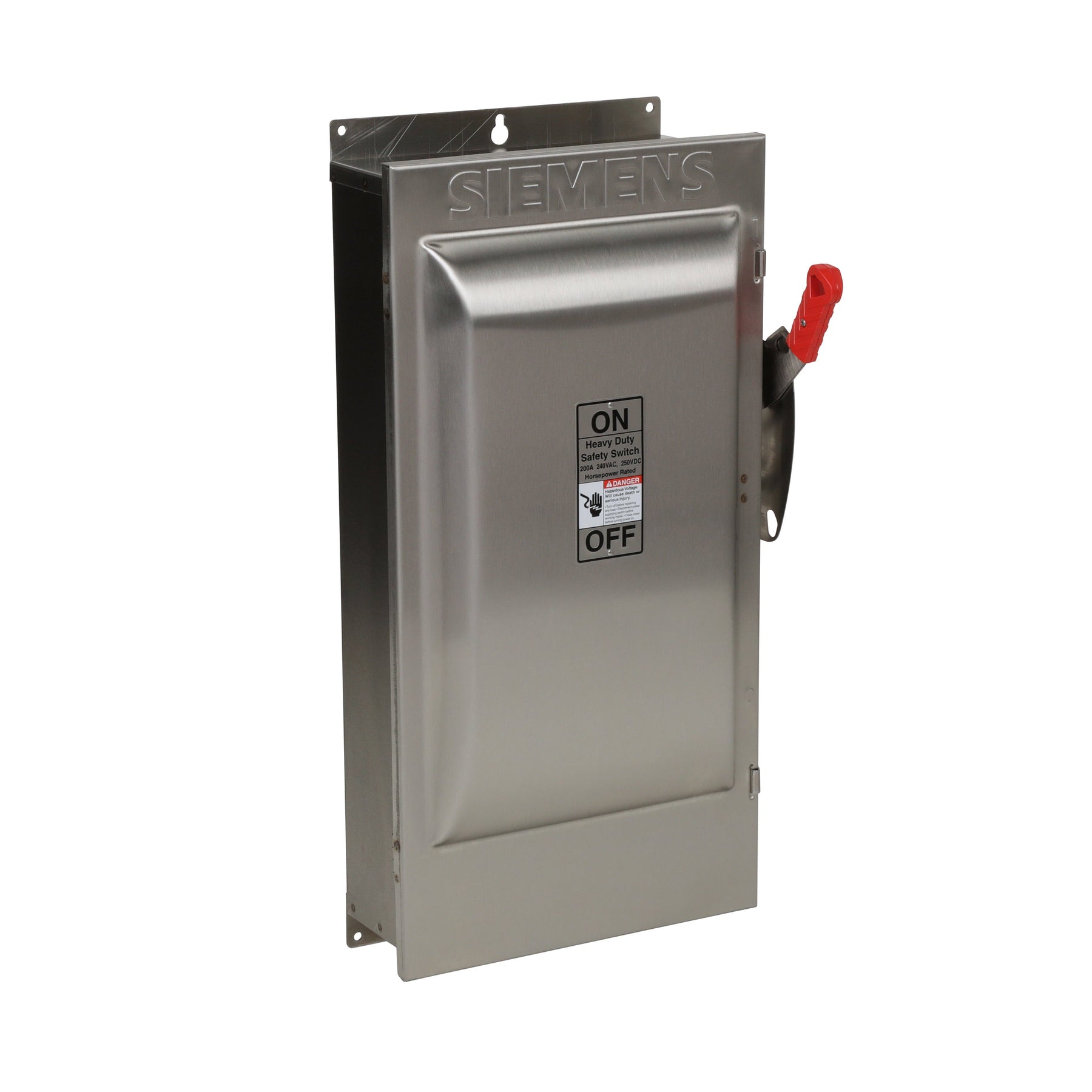

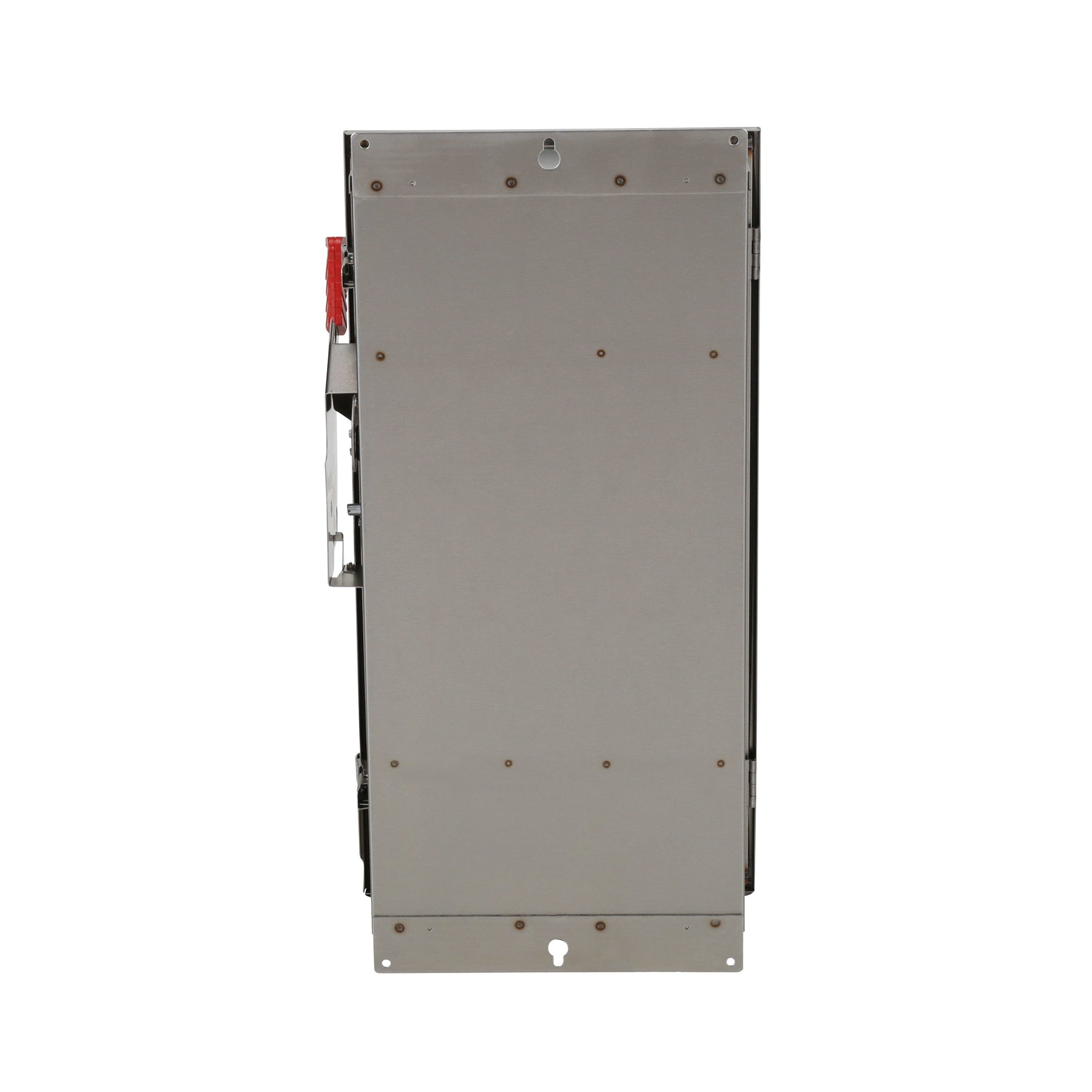

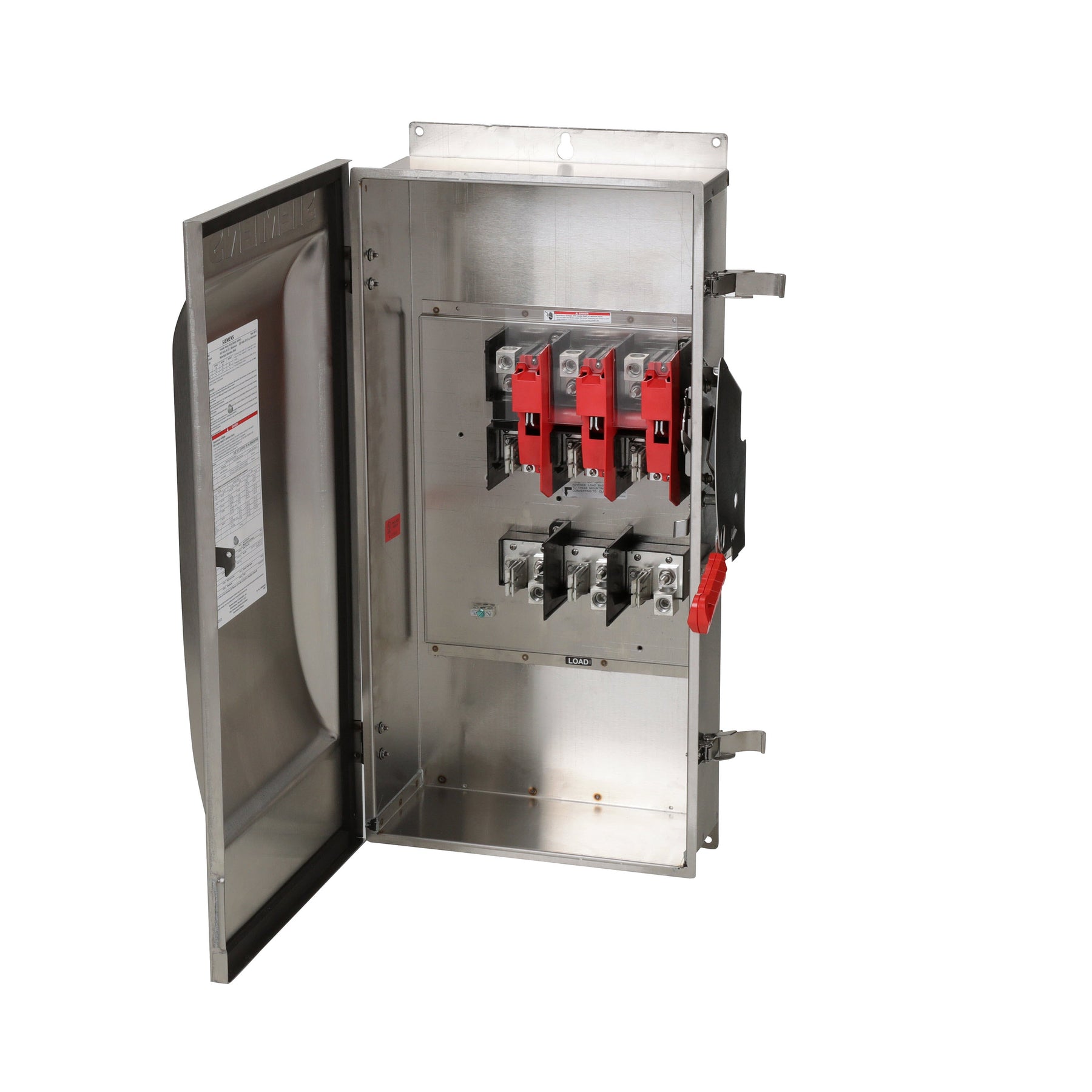

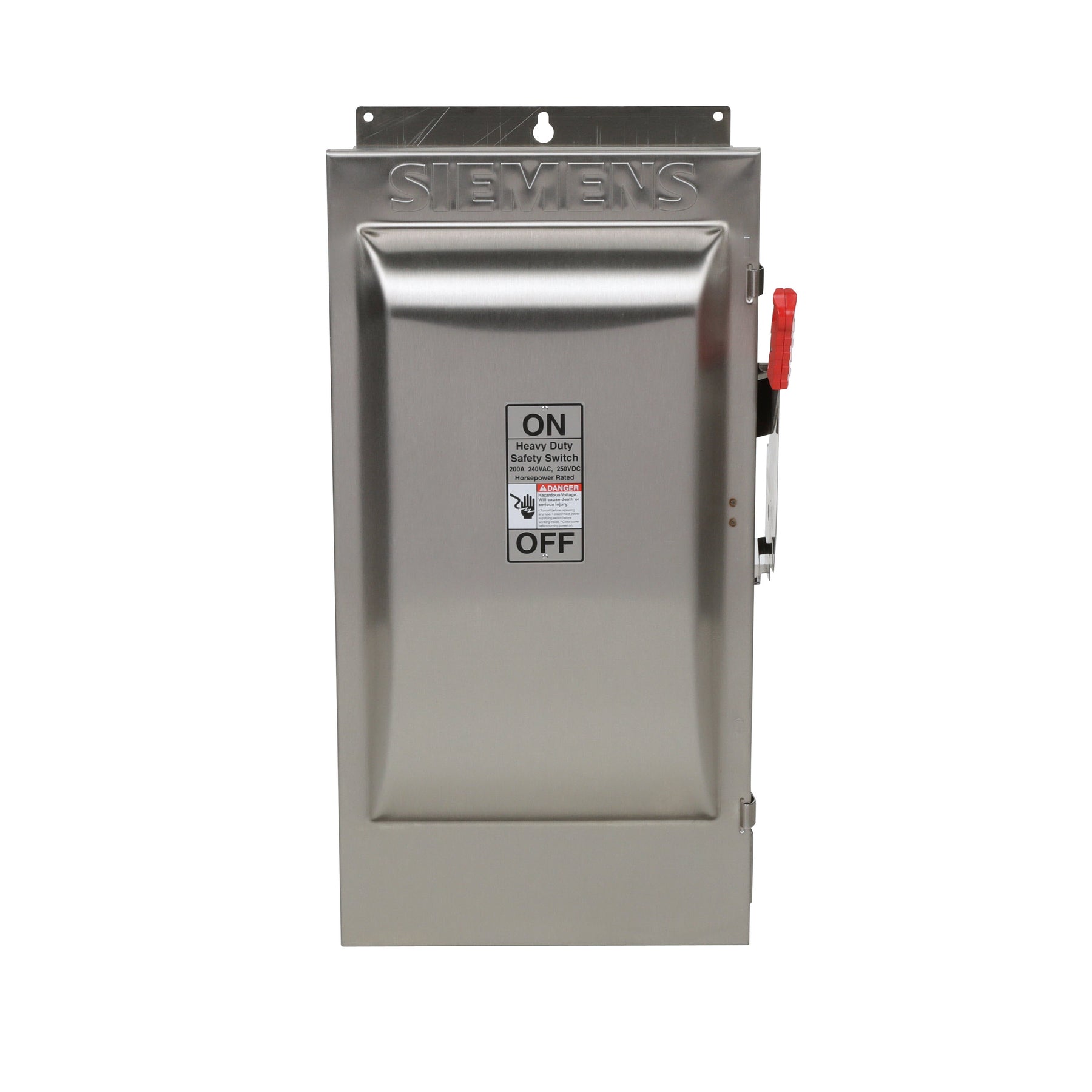

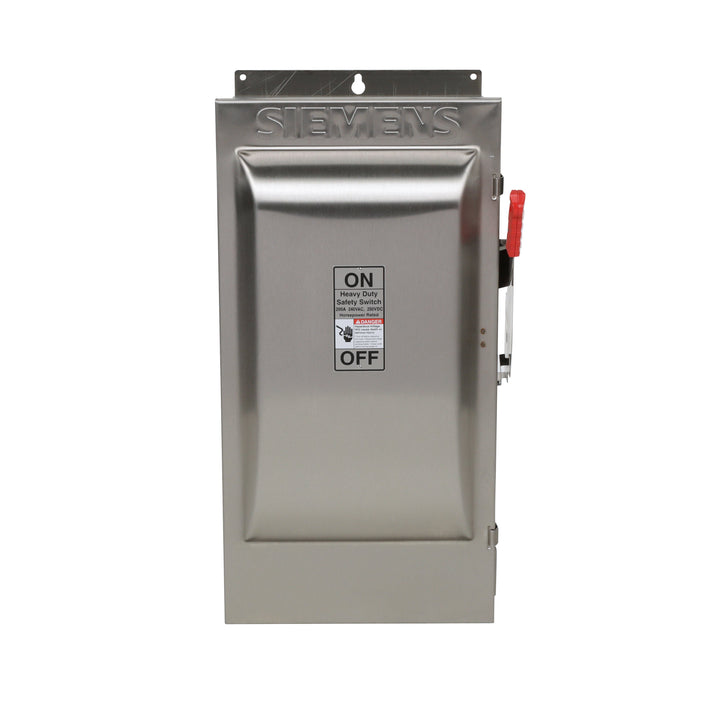

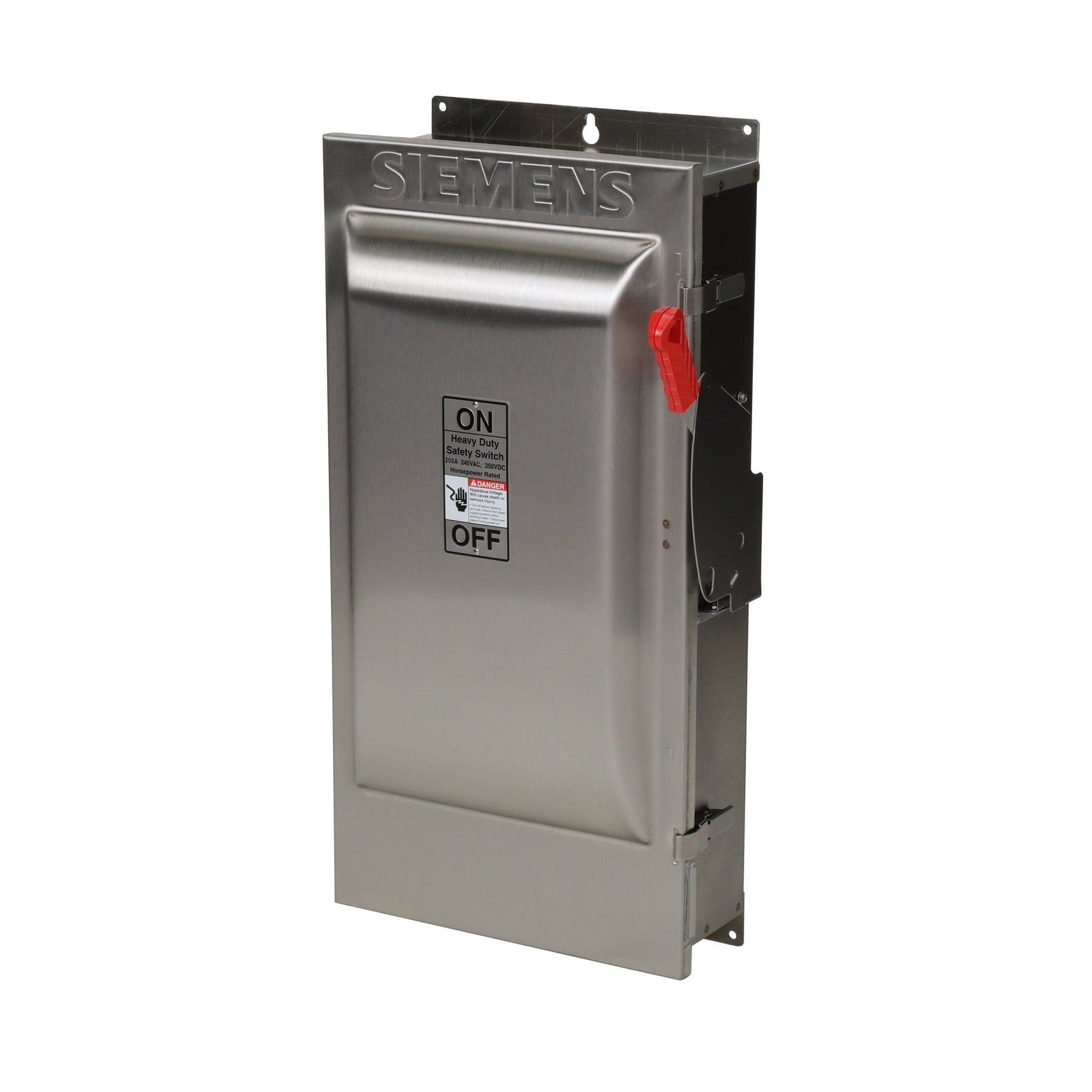

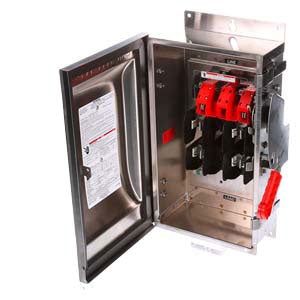

Siemens HF324S - Fusible Disconnect Switch 200A (200kA AIC @240V)

Siemens HF324S is a fusible disconnect switch designed for industrial power distribution systems requiring high fault current protection. This UL-listed switch features a 240V AC voltage rating and 200A current capacity with a 200kA@240V AIC rating for robust short-circuit protection. The NEMA 4X-rated enclosure measures 17.0 x 31.0 inches and weighs 60 lb, constructed with durable materials for harsh environments. Compliant with UL standards, this 3-phase switch is part of the VBII Series and compatible with NS frames, making it ideal for manufacturing plants, data centers, and heavy machinery applications.

Key Features & Specifications

• Type: Fusible disconnect switch (Class R fuse compatibility)
• Voltage Rating: 240V AC
• Current Rating: 200A
• Dimensions: 17.0 in x 31.0 in (431.8 mm x 787.4 mm)
• Standards: UL listed, NEMA 4X
• Applications: Industrial power distribution, motor control centers
• Switch Style: Fusible
• Configuration: Single
• Poles: 3
• AIC rating: 200kA@240V
• Phase: 3
• Weight: 60 lb (27.2 kg)
• Compatible Frames: NS
• Country of Origin: Mexico

Product Identification

• UPC: 783643150966
• GTIN: 00783643150966
