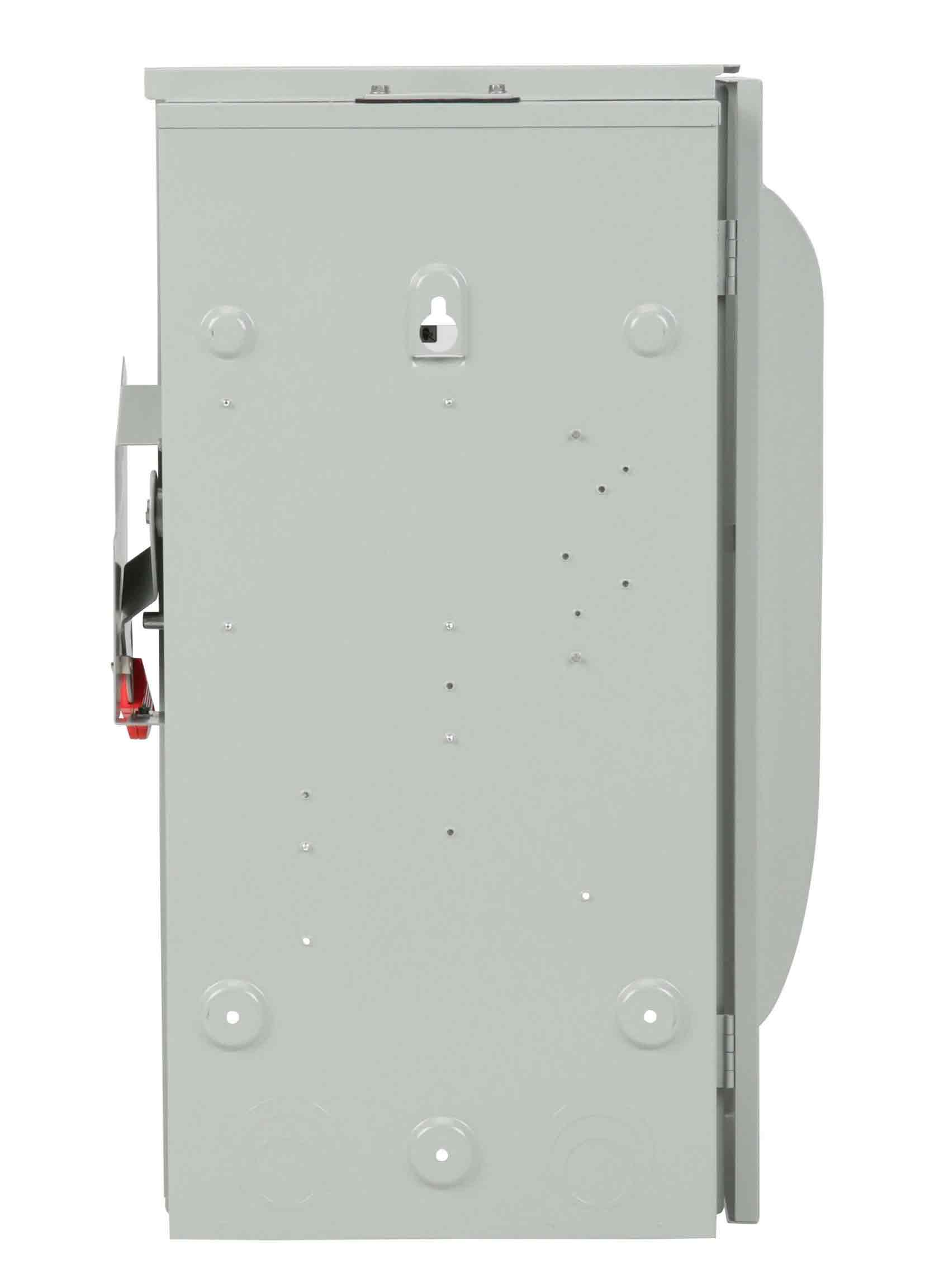

Siemens HF324NR - Fusible Disconnect Switch, 200A 3P (240V AC, 200kA AIC)

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

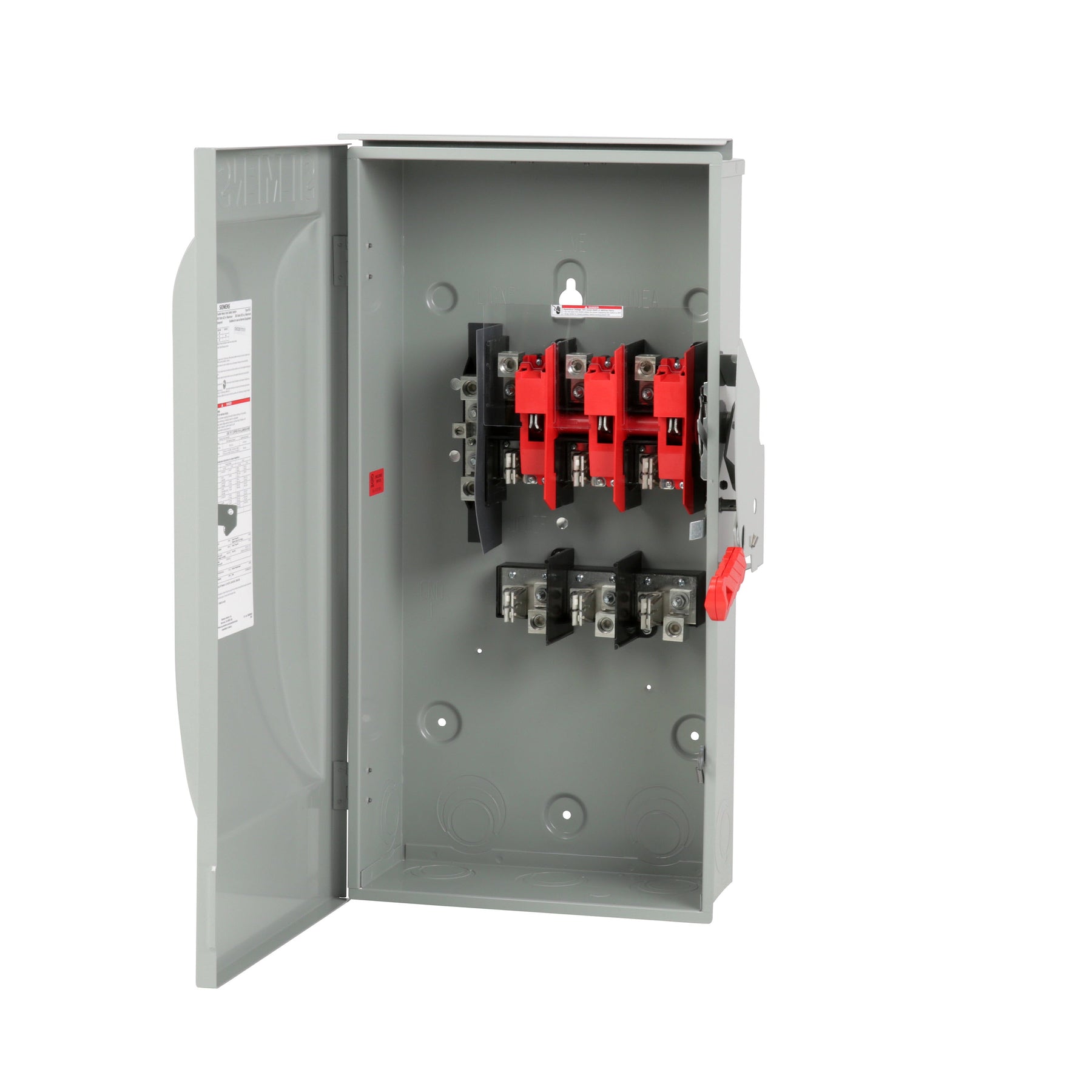

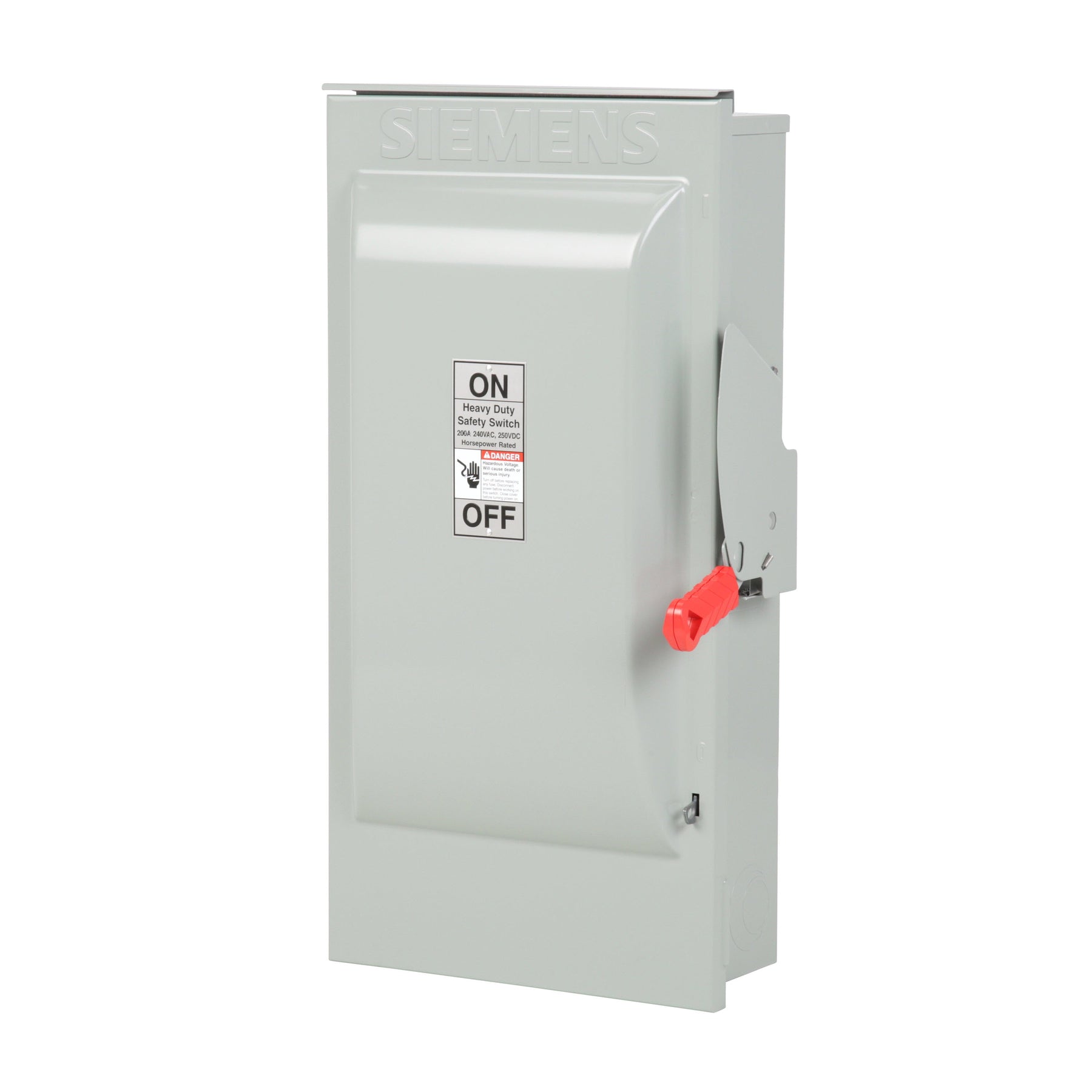

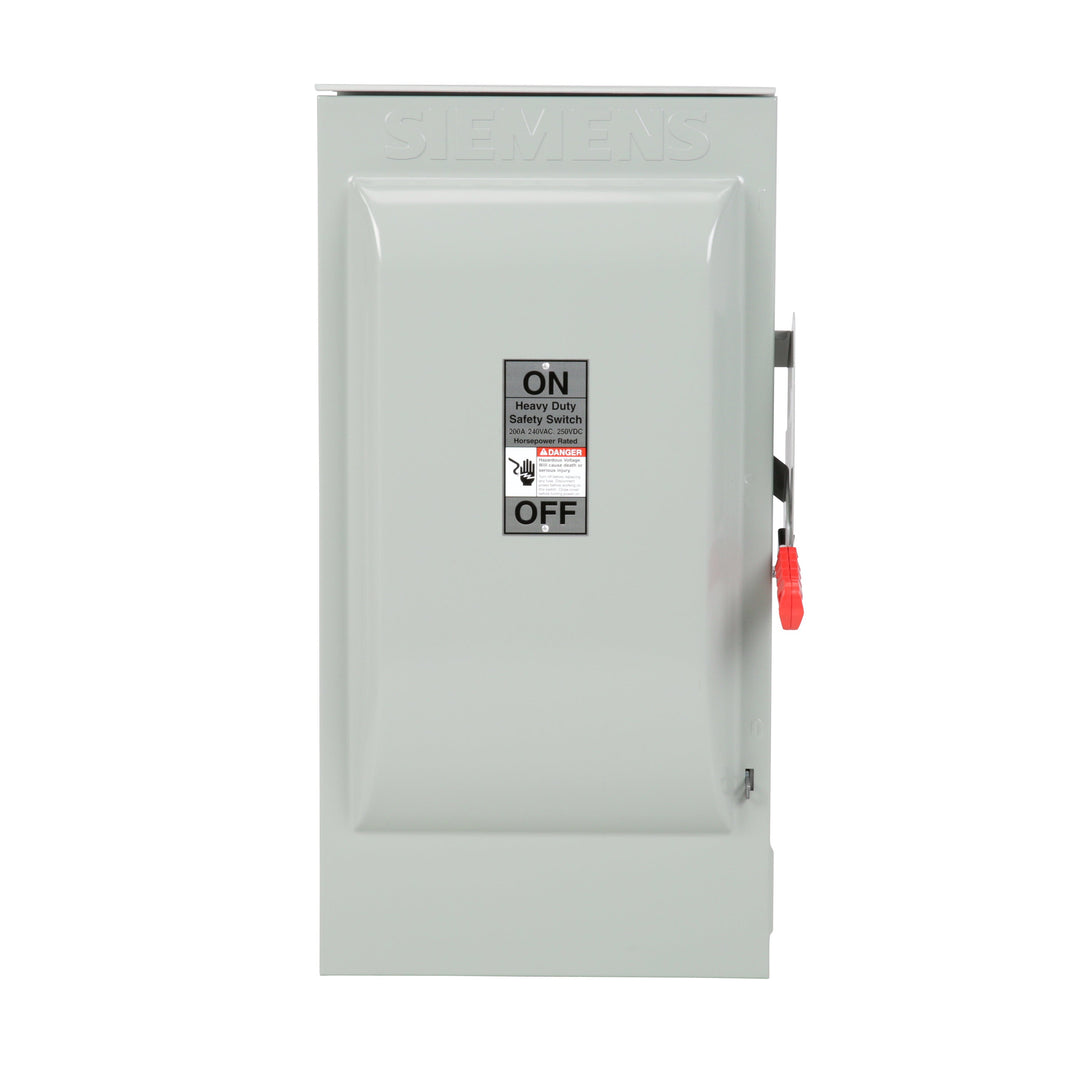

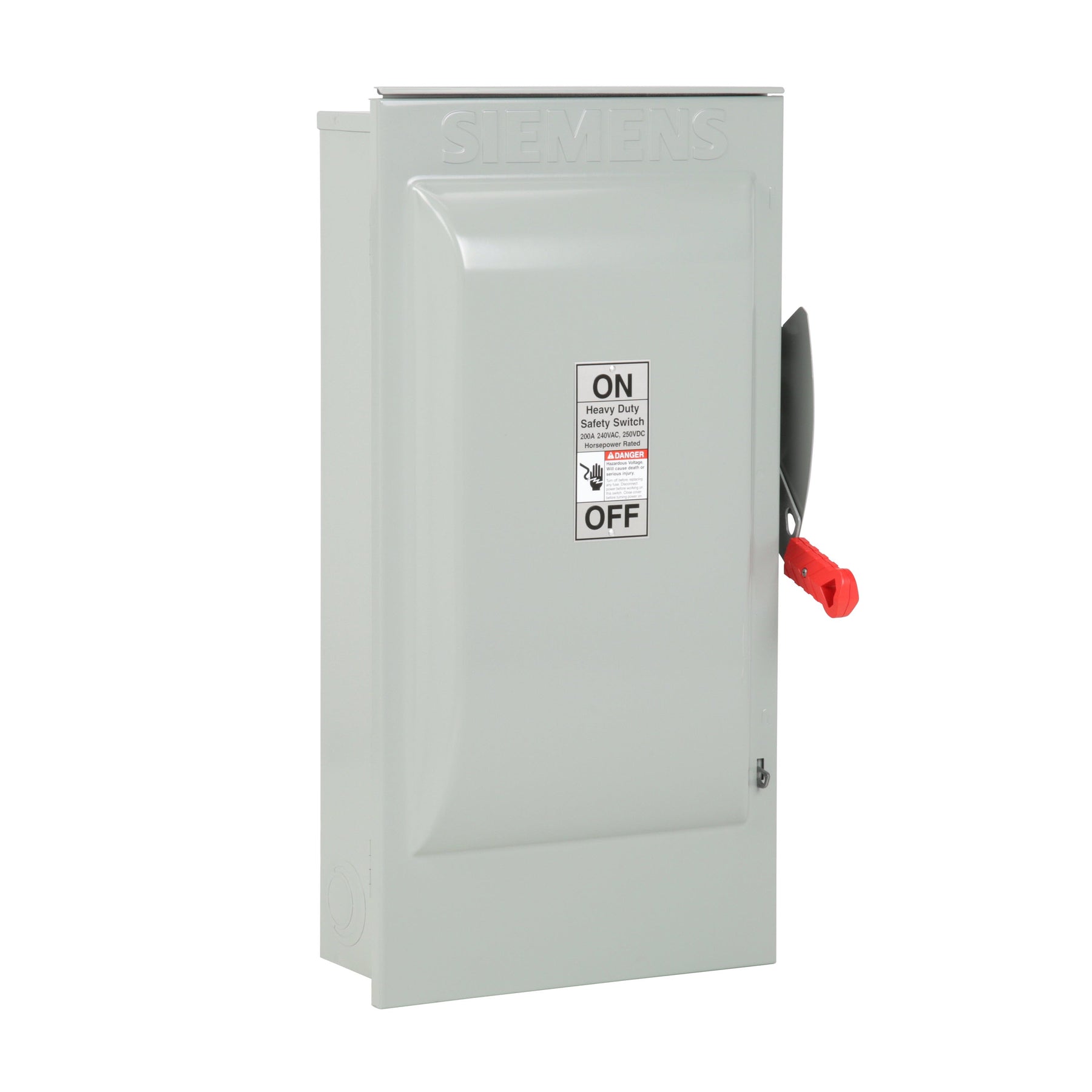

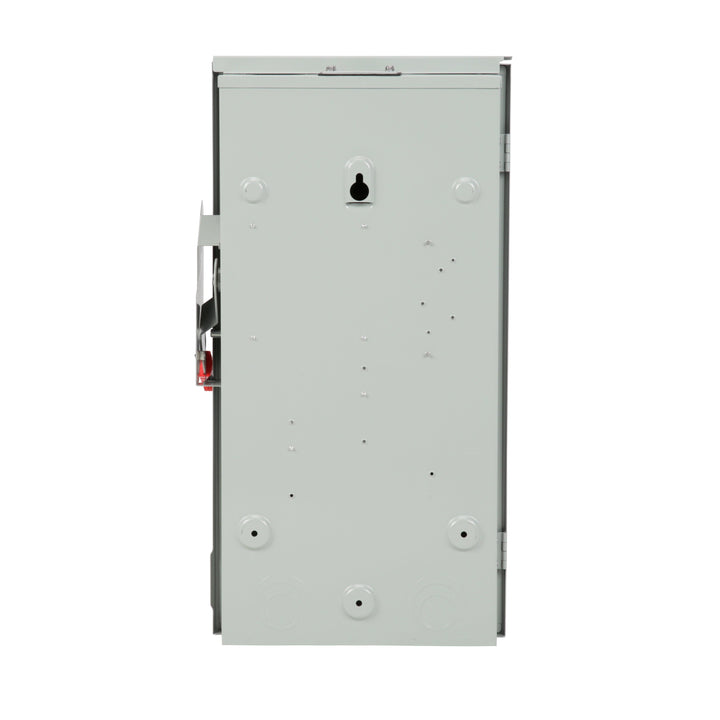

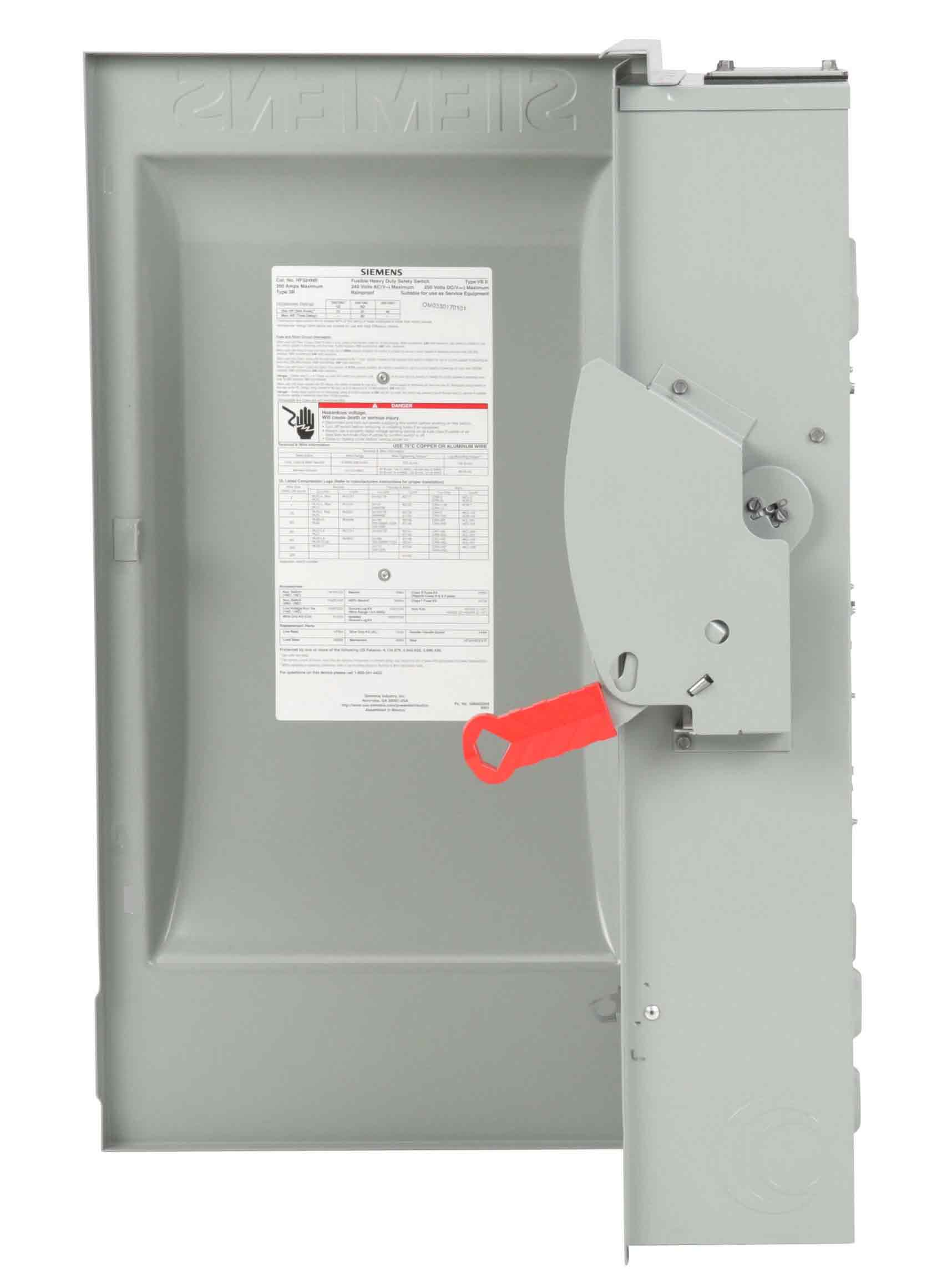

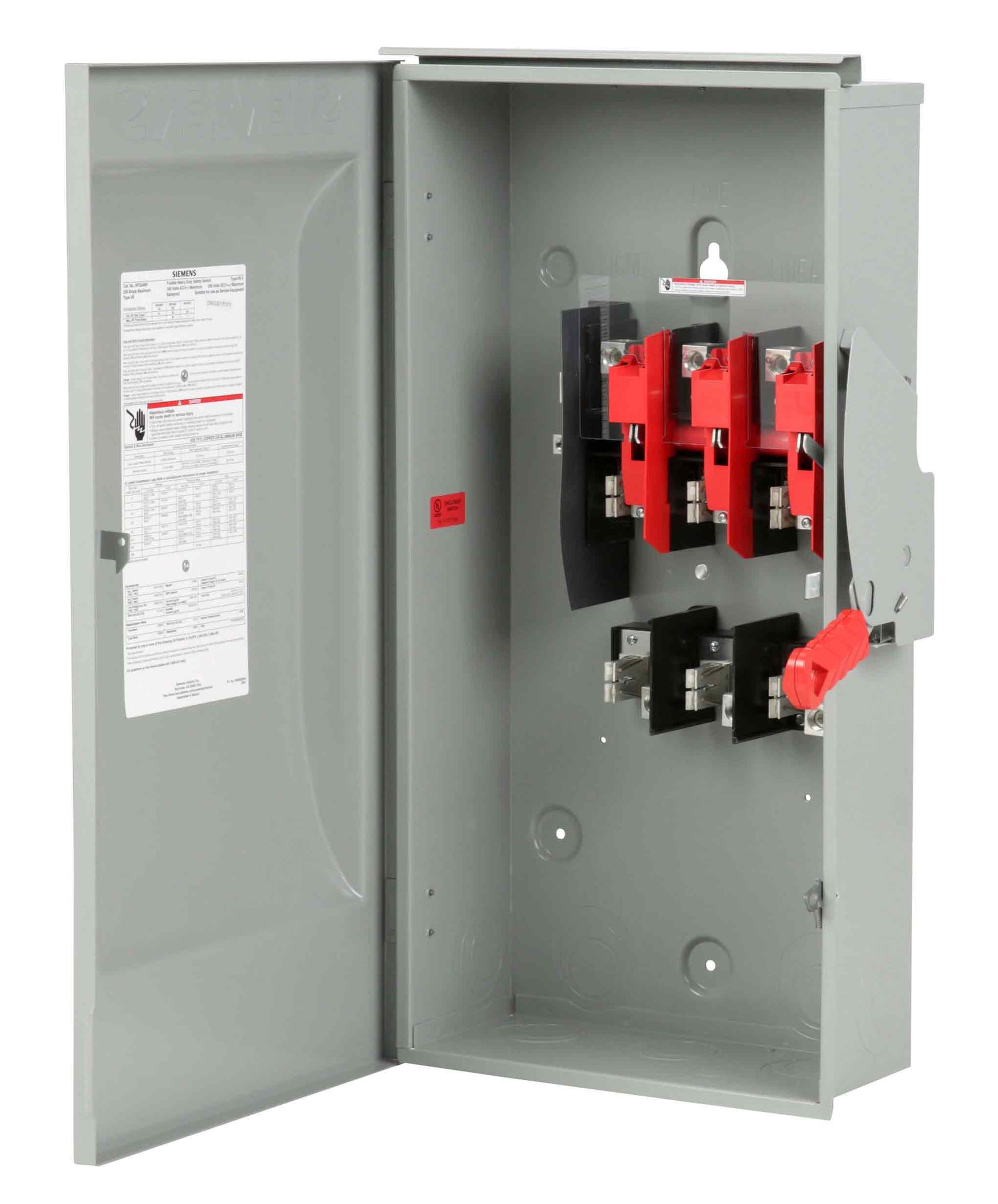

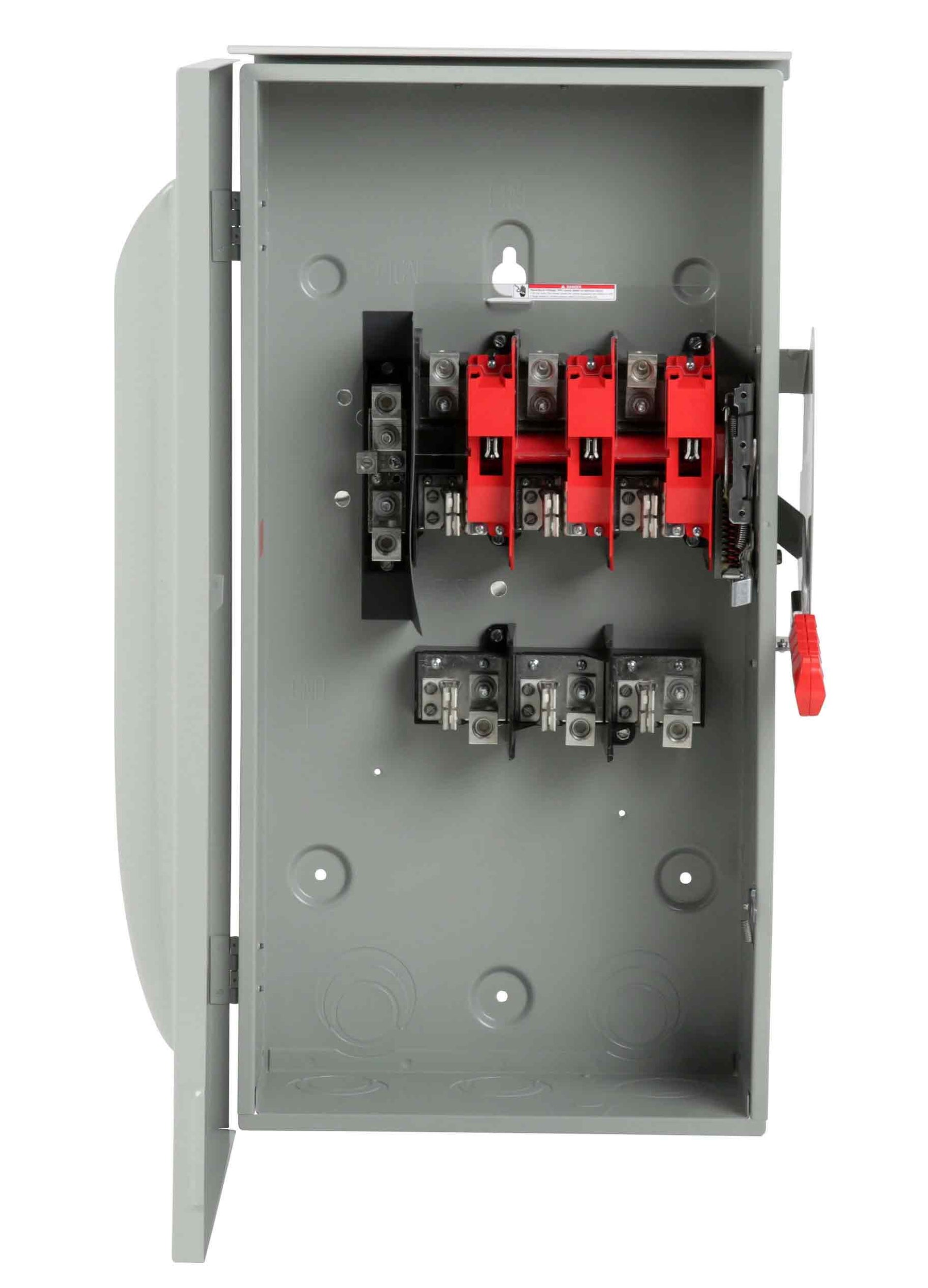

Siemens HF324NR is a fusible disconnect switch designed for providing visible isolation and overcurrent protection in three-phase industrial power distribution systems. It is rated for 240V AC operation with a continuous current capacity of 200A and a high interrupting rating of 200kA at 240V. The switch is constructed within a robust, NEMA 3R-rated enclosure measuring 33.858 x 18.898 x 9.843 inches and weighing 43.1 lb, and it is UL listed for safety compliance. This device is engineered for integration with Siemens NS series panelboards and is typically applied in industrial facilities, manufacturing plants, and commercial buildings for motor control and feeder circuit protection.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, VBII Series, HF type
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Dimensions: 33.858" H x 18.898" W x 9.843" D
  • Weight: 43.1 lb
  • Standards: UL Listed
  • Applications: Industrial power distribution, motor control, feeder protection
  • Switch Style: Fusible
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 240V
  • NEMA Rating: NEMA 3R
  • Fuse Class: R
  • Compatible Frames: NS Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643150713
  • GTIN: 00783643150713
