Siemens HF324N - Fusible Disconnect Switch, 200A 3P (240V AC, 200kA AIC)
Siemens HF324N - Fusible Disconnect Switch, 200A 3P (240V AC, 200kA AIC)
SIemens HF324N Disconnect Switch (Fusible) - Essential Electric Supply
Siemens HF324N - Fusible Disconnect Switch, 200A 3P (240V AC, 200kA AIC)
Siemens HF324N - Fusible Disconnect Switch, 200A 3P (240V AC, 200kA AIC)

Siemens HF324N - Fusible Disconnect Switch, 200A 3P (240V AC, 200kA AIC)

Siemens
Price
Save $3,216
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

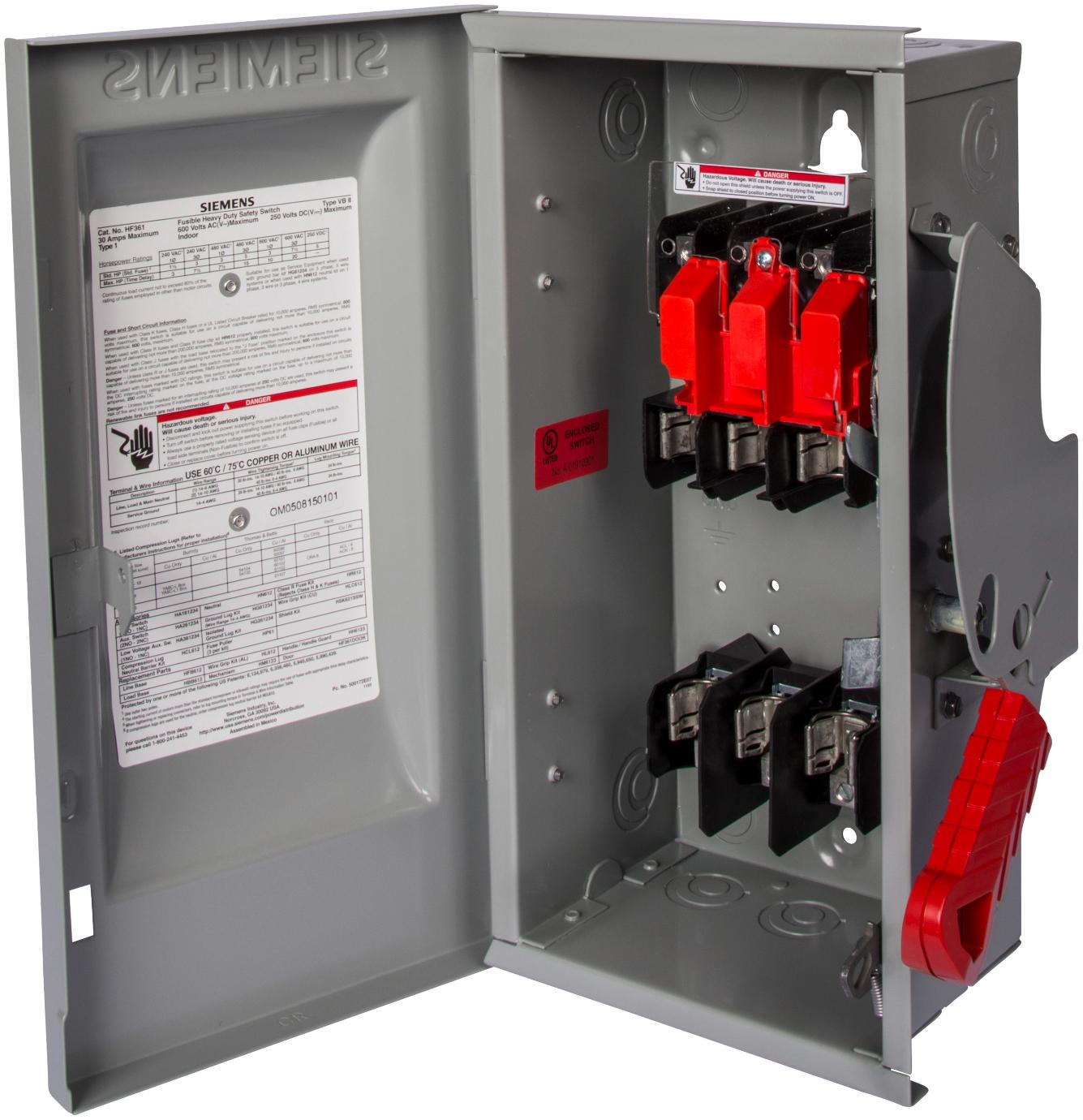

Siemens HF324N is a fusible disconnect switch designed for providing visible isolation and overcurrent protection in three-phase industrial power distribution systems. It is rated for 240V AC operation with a continuous current capacity of 200A and features a high interrupting capacity of 200kA at 240V for enhanced safety. The switch is constructed within a robust NEMA 1 enclosure measuring 33.858 x 18.898 x 9.843 inches and weighing 42.086 lb, and it is UL listed for compliance with industry safety standards. This component is engineered for integration into compatible NS frames and is typically applied in motor control centers, industrial panels, and other installations requiring a reliable means of circuit isolation and protection with Class R fuses.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, HF type, VBII Series
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Dimensions: 33.858" H x 18.898" W x 9.843" D (860 x 480 x 250 mm)
  • Standards: UL Listed
  • Applications: Industrial power distribution, motor control centers, panelboards
  • Switch Type: Fusible Disconnect
  • Configuration: Single
  • Poles: 3
  • AIC Rating: 200kA @ 240V
  • Phase: 3
  • Fuse Class: R
  • NEMA Rating: NEMA 1
  • Compatible Frames: NS
  • Weight: 42.086 lb (19.09 kg)
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643150317
  • GTIN: 00783643150317
