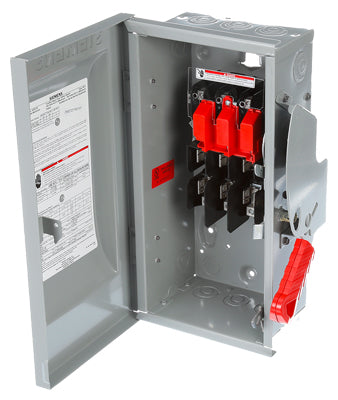

Siemens HF321N - Fusible Disconnect Switch 30A 3P (200kA AIC)

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens HF321N is a fusible disconnect switch designed for providing a visible break and overcurrent protection in three-phase industrial power circuits. It is rated for 240V AC operation with a 30A current rating and features a 200kA interrupting capacity at 240V for robust short-circuit protection. The switch is constructed within a NEMA 1 enclosure measuring 14.6 x 7.75 x 8.89 inches and weighing 13.001 lb, and it is UL listed for safety compliance. This component is engineered for integration with Siemens MXP panelboards and is typically applied in industrial control panels, motor control centers, and machinery where a fused disconnect is required.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, VBII Series, HF type
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Configuration: Single, 3-Pole
  • AIC Rating: 200kA @ 240V
  • Fuse Class: R
  • Dimensions: 14.6 x 7.75 x 8.89 inch
  • Weight: 13.001 lb
  • Nema Rating: NEMA 1
  • Phase: 3
  • Certification: UL listed
  • Compatible Frames: MXP
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643150287
  • GTIN: 00783643150287
