Siemens HF263S - Fusible Disconnect Switch, 100A 600V 2-Pole

Siemens
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

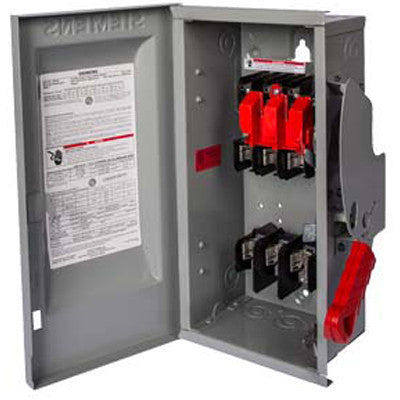

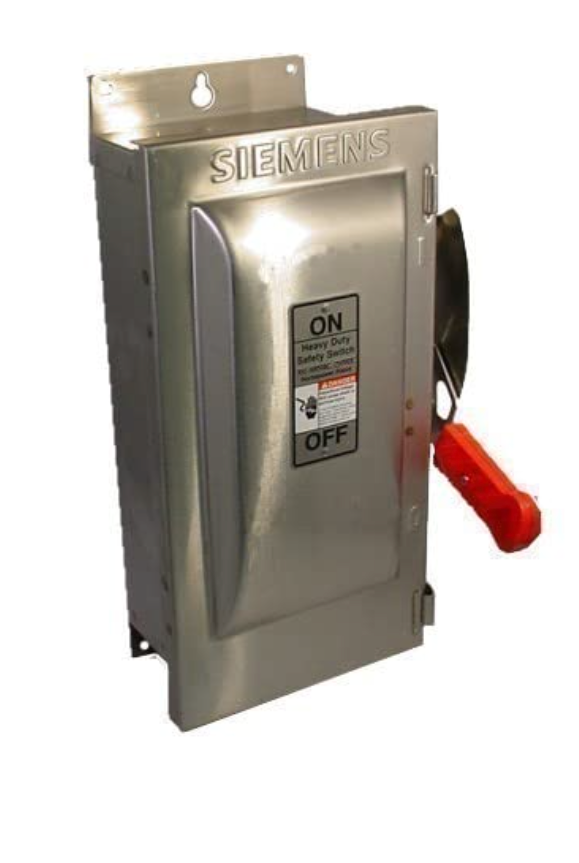

Siemens HF263S is a fusible disconnect switch designed for providing a visible break and overcurrent protection in industrial power distribution circuits. It is rated for 100A at 600V AC in a single-phase, 2-pole configuration and features a robust NEMA 4X enclosure for corrosion and weather resistance. The switch is constructed with a durable metal frame, measures 26.772 x 12.992 x 7.874 inches, and weighs 28.263 lb for stable panel mounting. It complies with UL standards and is engineered for an interrupting capacity of 200kA at 600V when used with Class R fuses. Typical applications include service entrance equipment, motor control centers, and industrial machinery where reliable isolation and fuse protection are required.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, VBII Series, HF Type
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Configuration: Single, 2-Pole
  • Phase: 1
  • AIC Rating: 200kA @ 600V
  • Fuse Class: R
  • NEMA Rating: 4X
  • Dimensions: 26.772 x 12.992 x 7.874 inch
  • Weight: 28.263 lb
  • Certification: UL Listed
  • Compatible Frames: MXP
  • Switch Style: Fusible
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643173996
  • GTIN: 00783643173996
