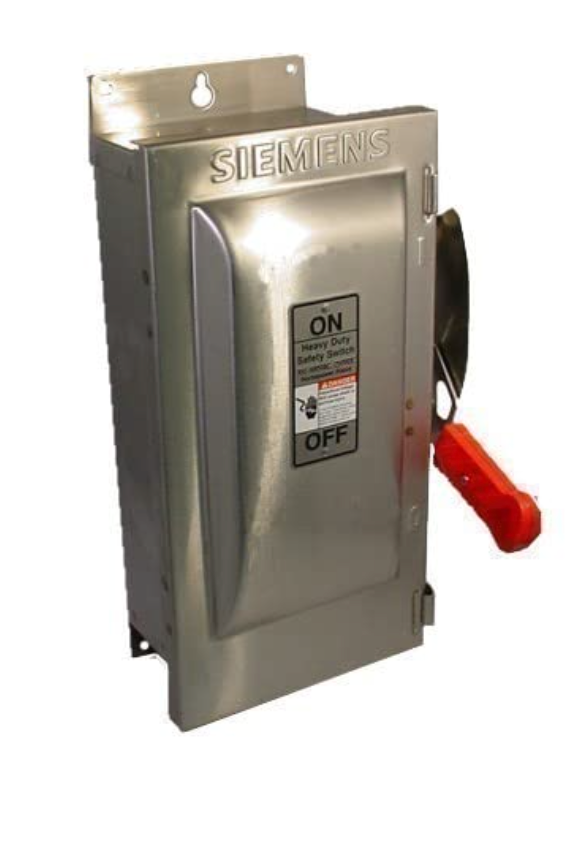

Siemens HF262S - Fusible Disconnect Switch 600V/60A (NEMA 4X, 200kA AIC)

Siemens HF262S is a fusible disconnect switch designed for industrial power distribution systems requiring reliable circuit protection. The unit features a 600V AC voltage rating and 60A current capacity in a compact 7.874" x 13.78" x 21.654" (200mm x 350mm x 550mm) NEMA 4X-rated enclosure weighing 25 lb. Engineered to meet rigorous industrial standards, this single-configuration switch offers 200kA interrupting capacity at 600V and is compatible with MJP frames. Typical applications include motor control centers, panelboards, and heavy equipment requiring Class R fuse protection in harsh environments.

Key Features & Specifications

• Type: Fusible disconnect switch (VBII Series)
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 7.874" x 13.78" x 21.654" (200mm x 350mm x 550mm)
• Standards: NEMA 4X
• Applications: Industrial power distribution, motor control centers
• Switch Type: Fusible
• Configuration: Single
• Poles: 2
• AIC rating: 200kA@600V
• Phase: 1
• Fuse Class: R
• Compatible Frames: MJP
• Weight: 25 lb
• Country of Origin: Mexico

Product Identification

• UPC: 783643173965
• GTIN: 00783643173965
