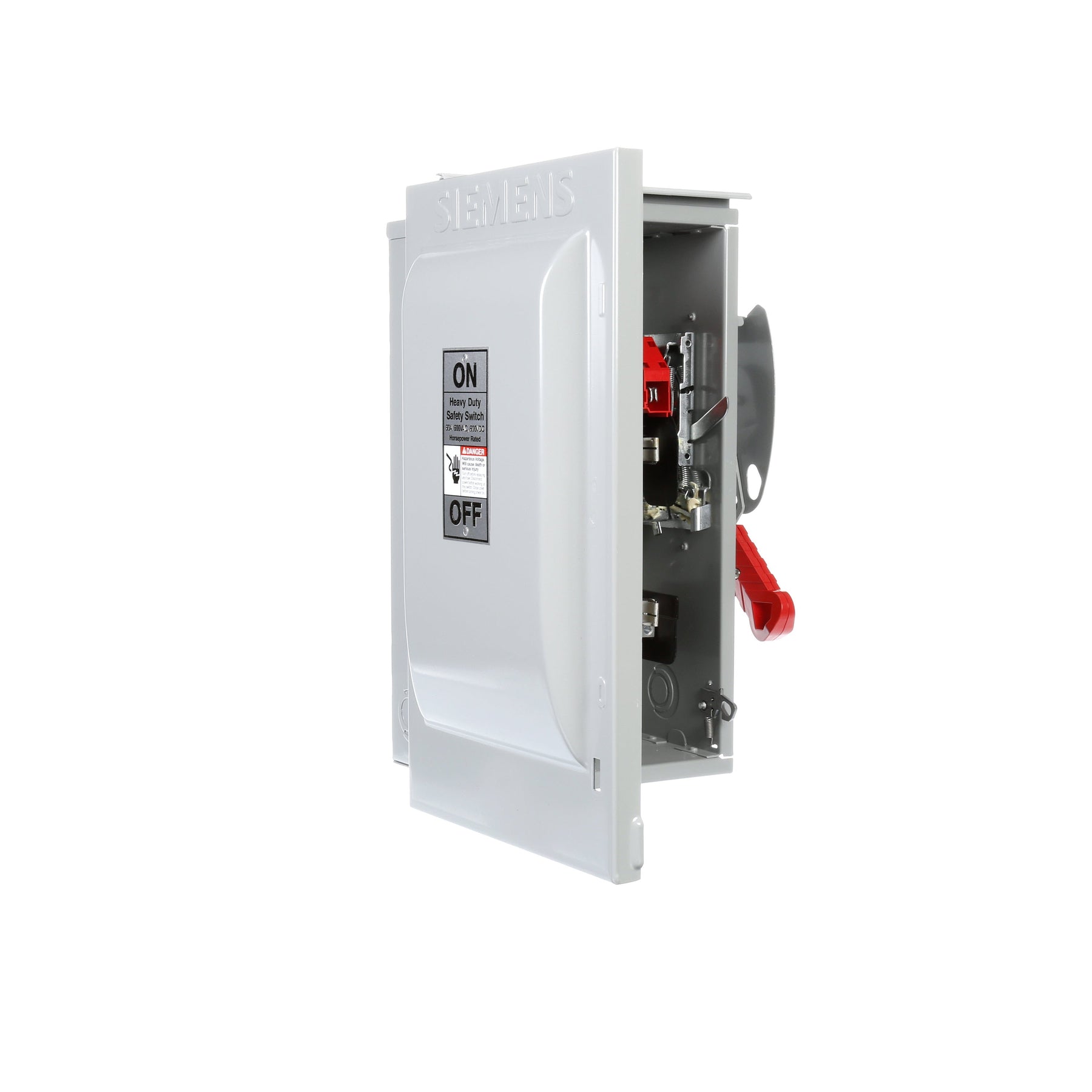

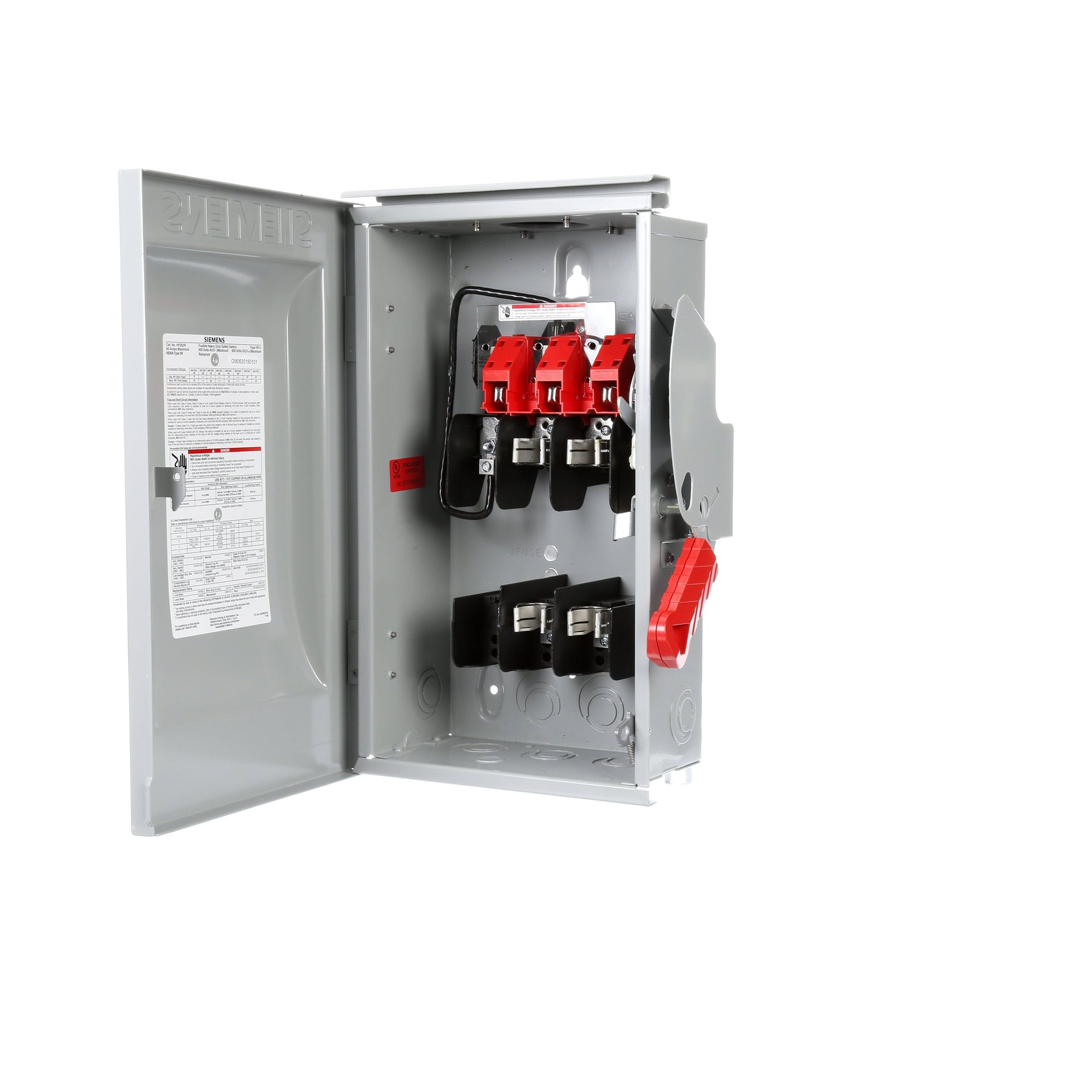

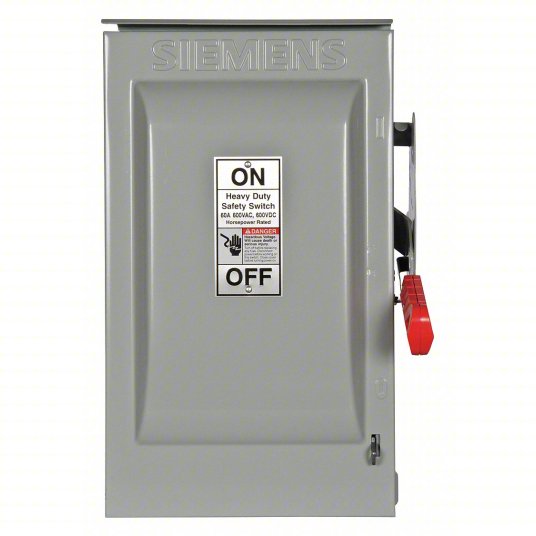

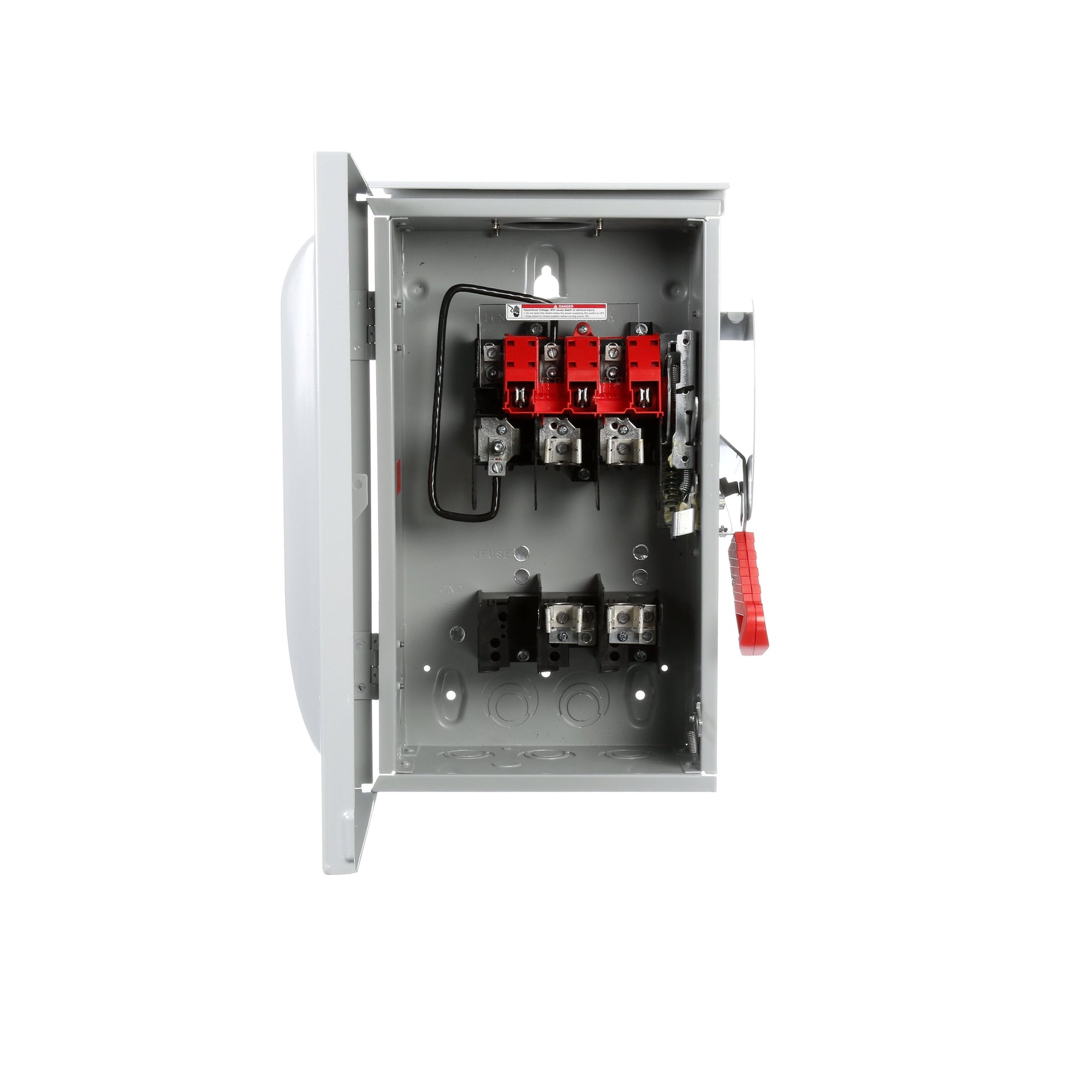

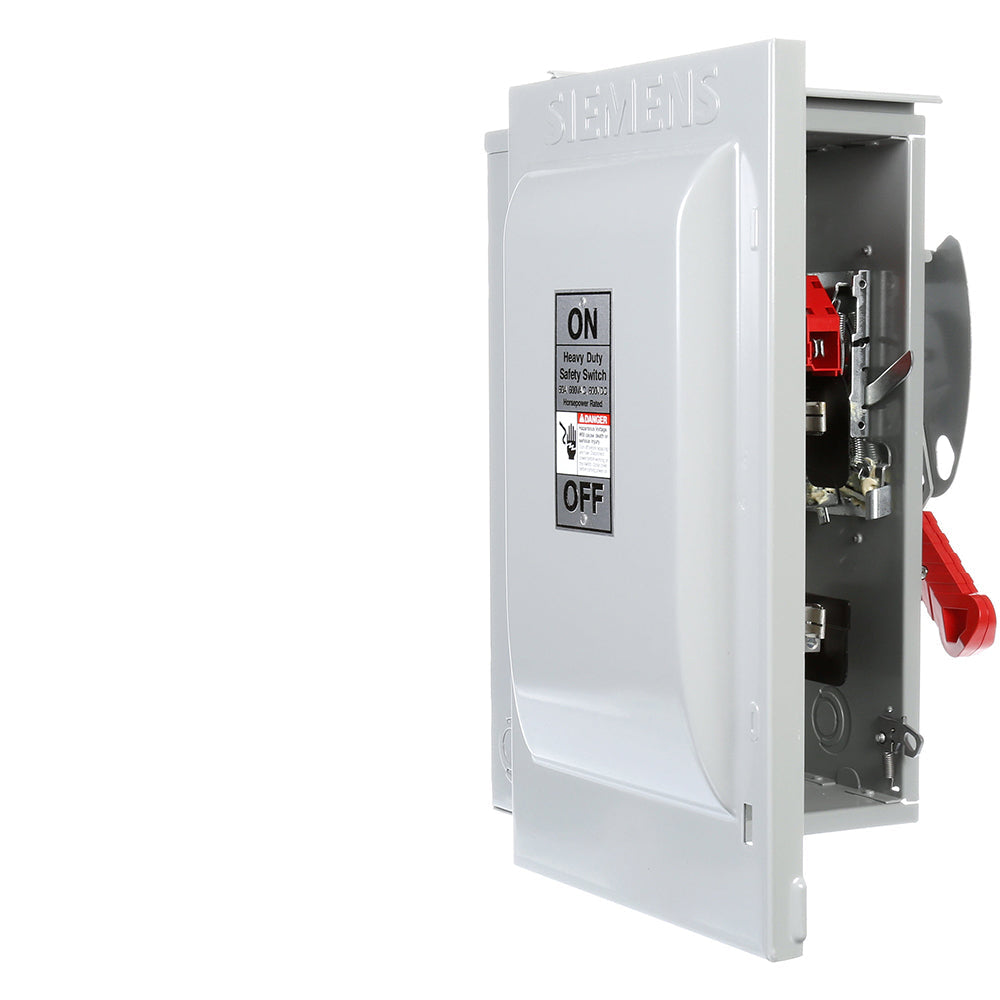

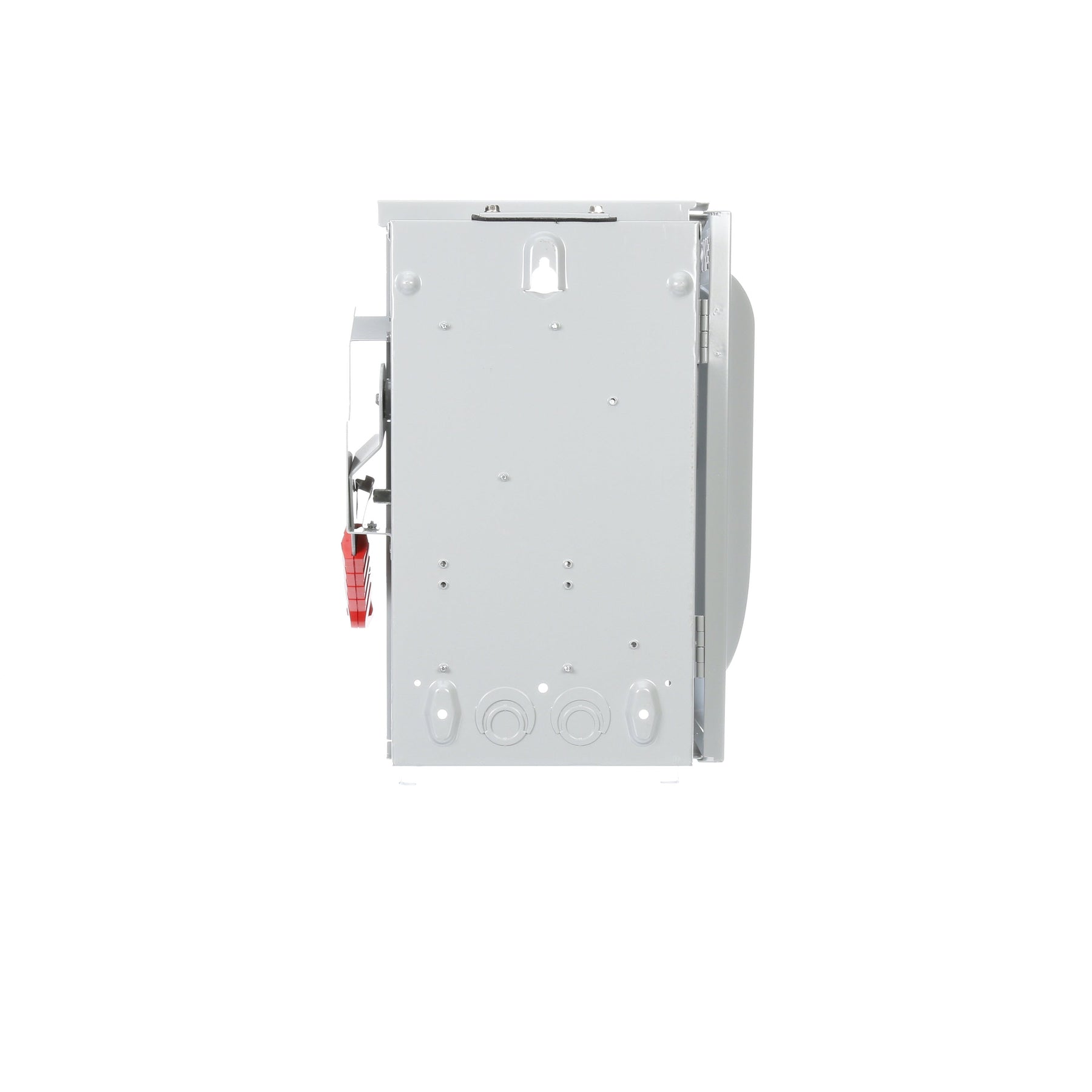

Siemens HF262R - Fusible Disconnect Switch, 60A 600V

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens HF262R is a fusible disconnect switch designed for providing visible isolation and overcurrent protection in industrial power distribution. It is rated for 600V AC systems with a 60A current rating and features a 200kA interrupting capacity at 600V for robust short-circuit protection. The switch is constructed within a NEMA 3R enclosure measuring 16.93 x 10.41 x 9.21 inches and weighing 17.397 lb, and it is UL listed for safety compliance. This single-phase, 2-pole switch is part of the VBII Series and is typically applied in panelboards and industrial control equipment requiring a fusible disconnect solution.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, VBII Series
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Configuration: Single
  • Poles: 2
  • Phase: 1
  • AIC Rating: 200kA @ 600V
  • Fuse Class: R
  • NEMA Rating: NEMA 3R
  • Dimensions: 16.93 x 10.41 x 9.21 inch
  • Weight: 17.397 lb
  • Certification: UL Listed
  • Compatible Frames: MJP
  • Switch Style: Fusible


Product Identification
  • UPC: 783643173927
  • GTIN: 00783643173927
