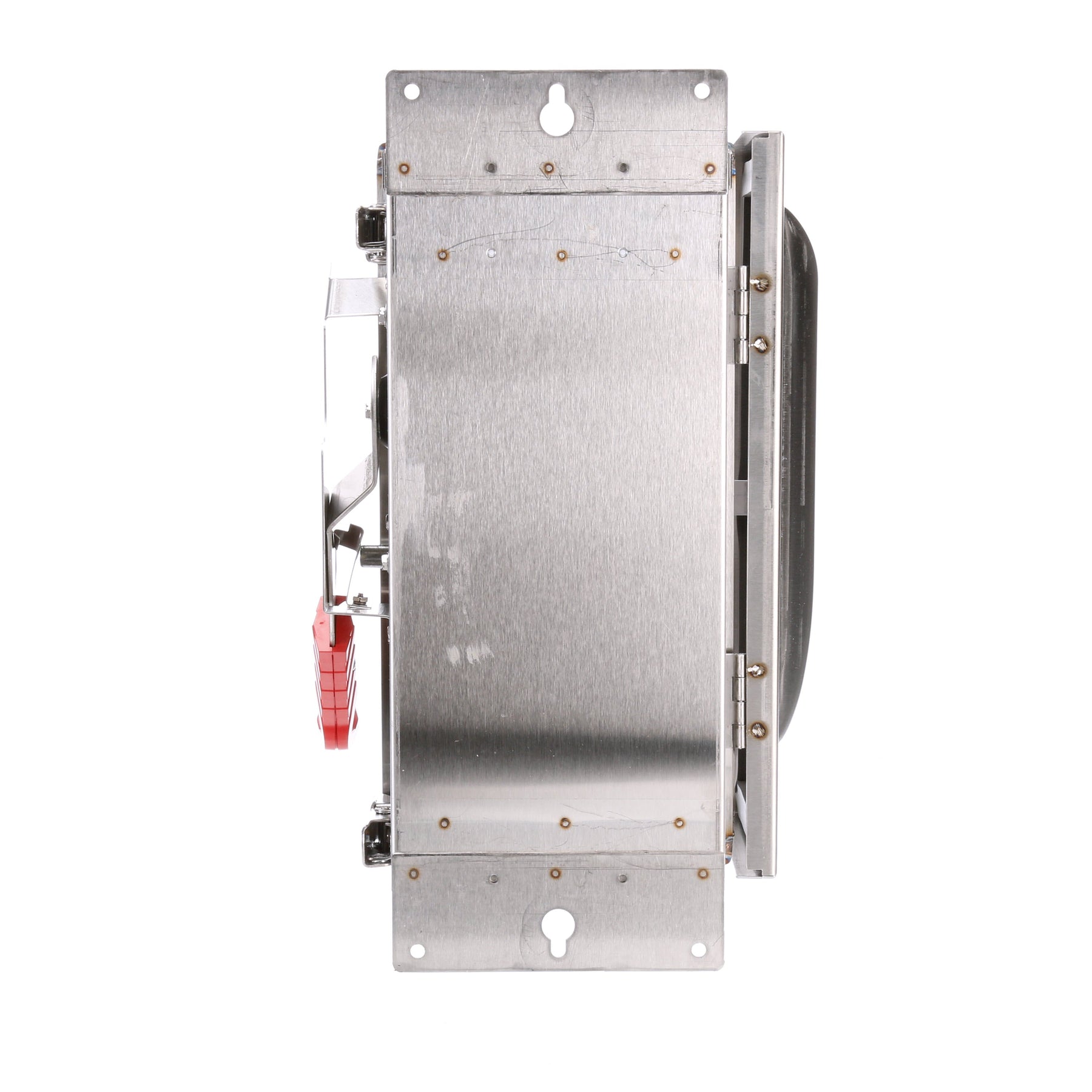

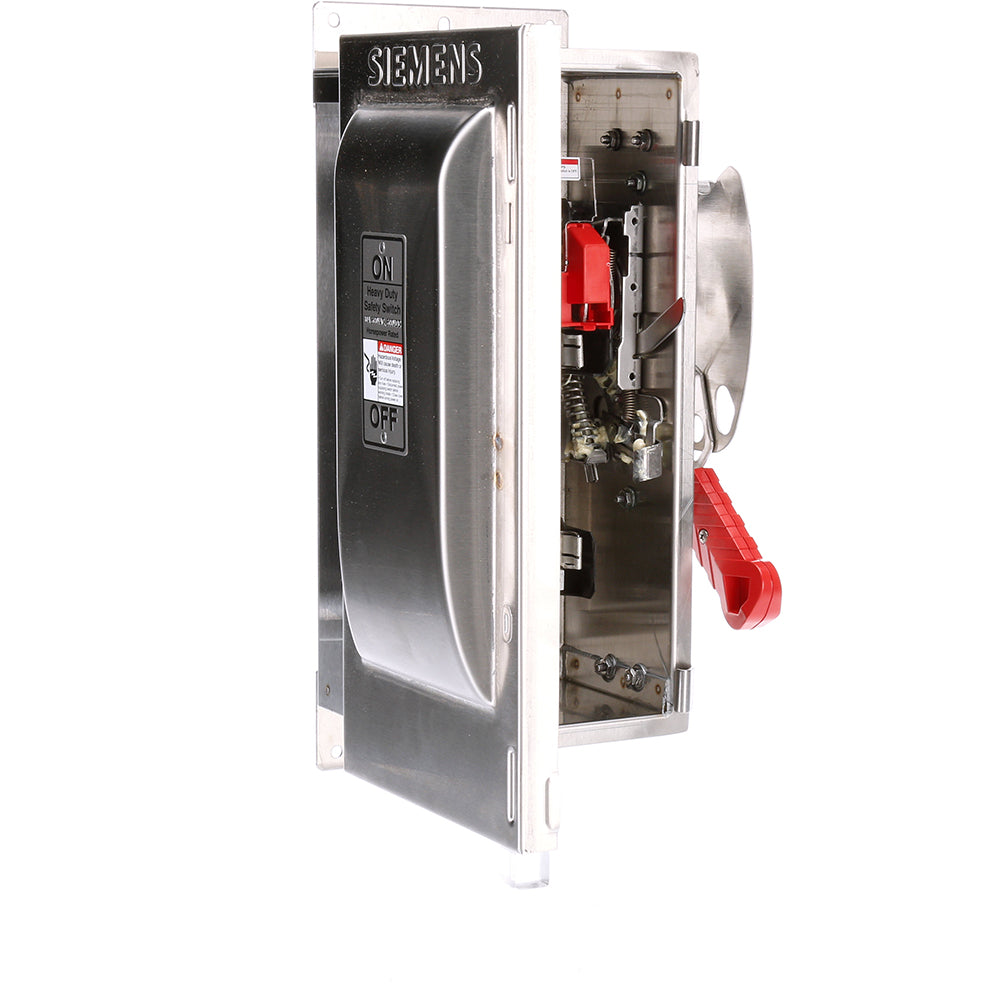

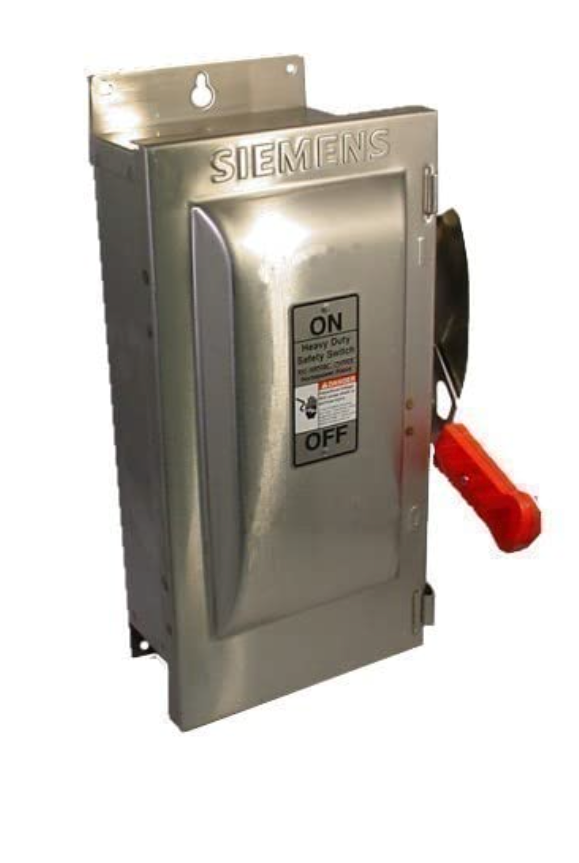

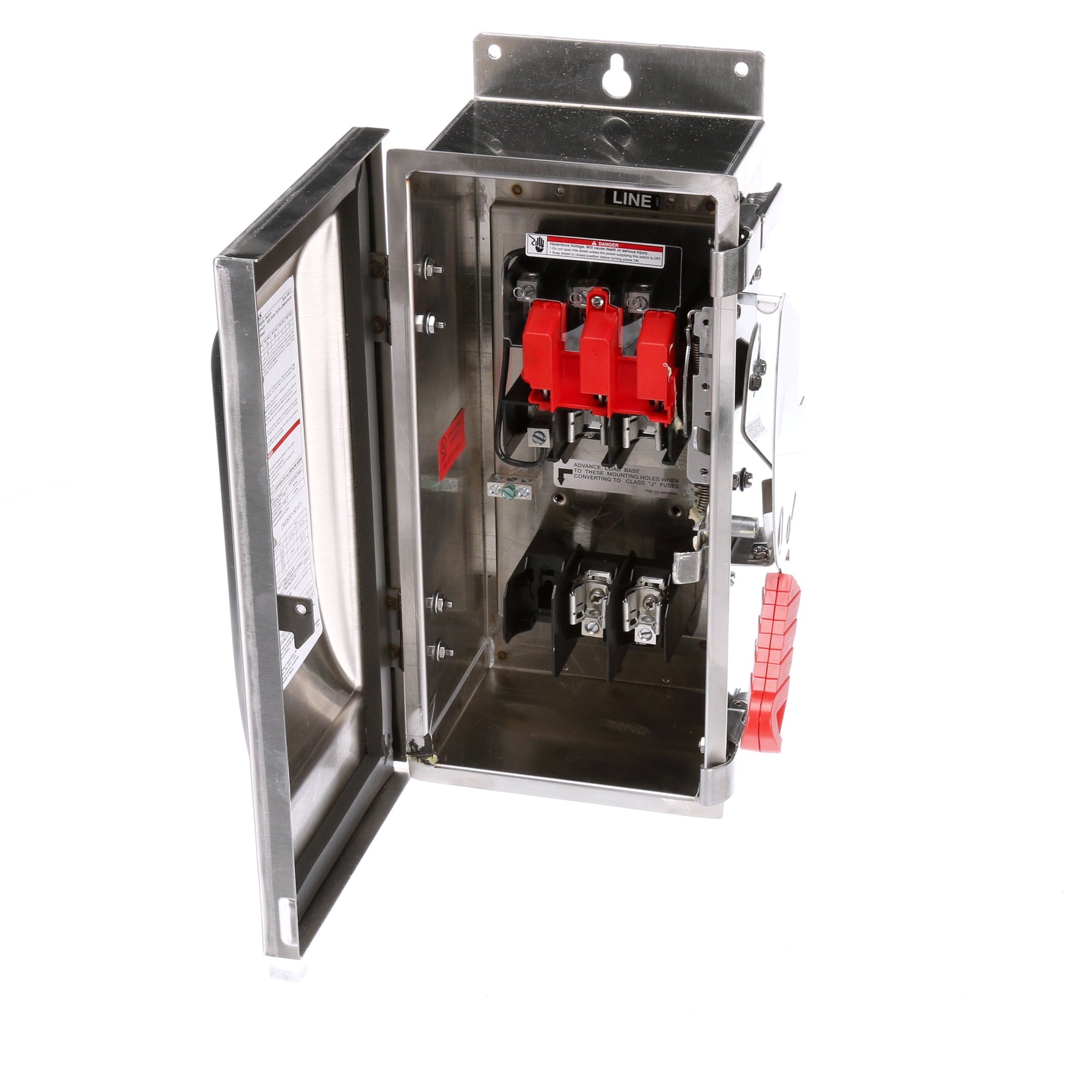

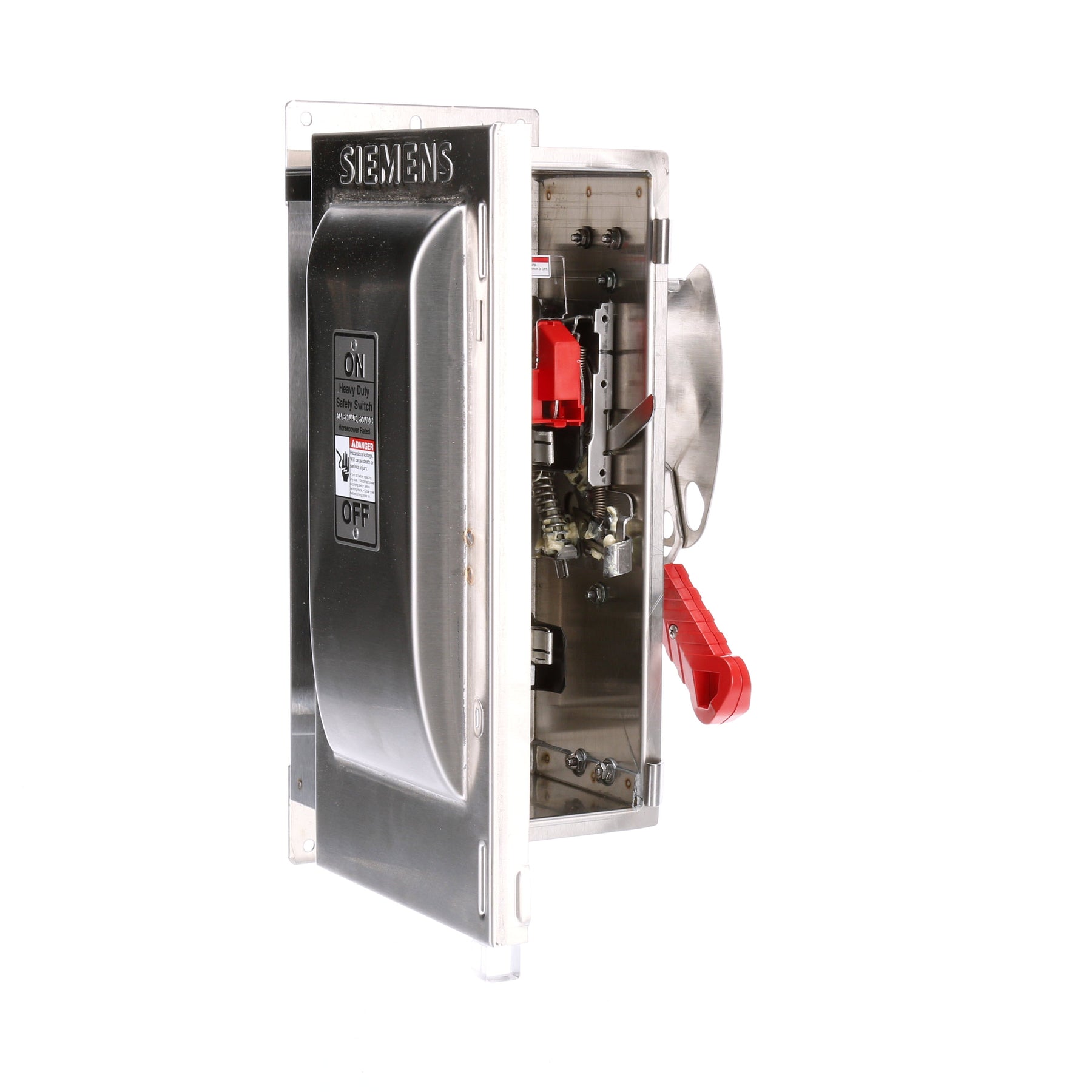

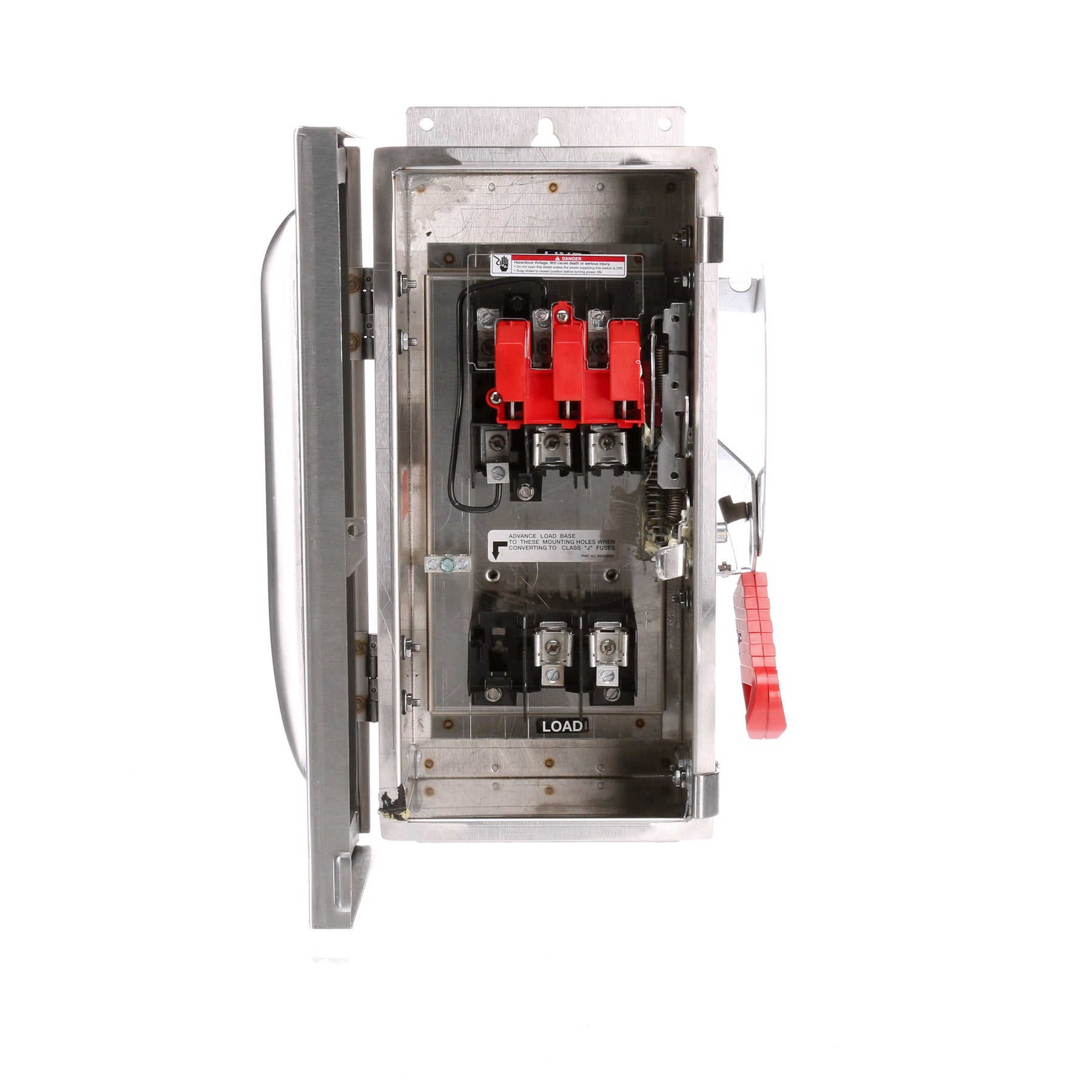

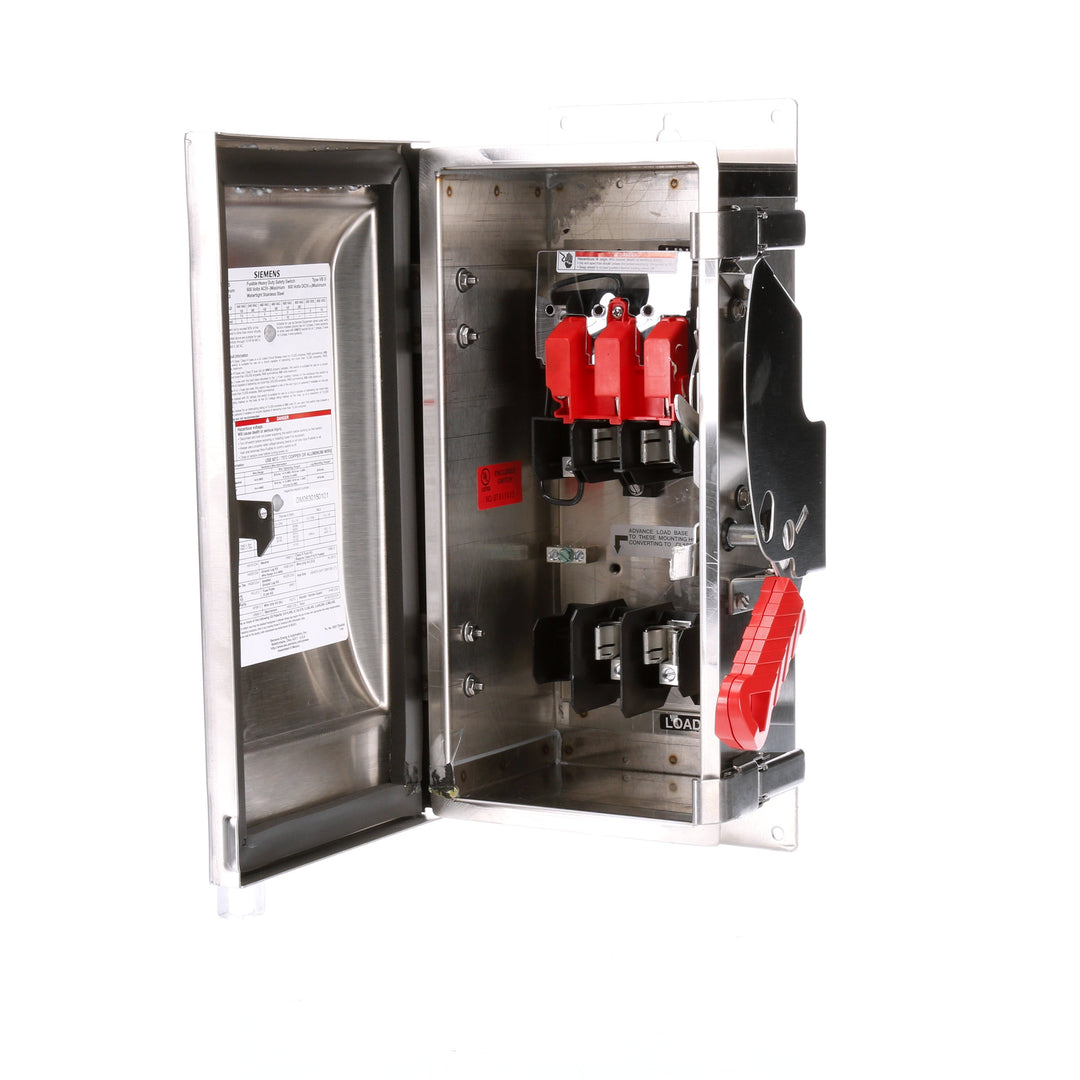

Siemens HF261S - Fusible Disconnect Switch 600V AC/DC 30A (NEMA 4X Enclosure)

Siemens HF261S is a fusible disconnect switch designed for safe electrical isolation in industrial power distribution systems. This UL-listed unit features a 600V AC/DC voltage rating with 30A current capacity and 200kA@600V interrupting rating for robust circuit protection. The NEMA 4X-rated enclosure measures 9.0" x 15.5" with 20 lb weight, constructed for durability in harsh environments. Compliant with industry standards, this single-configuration, 2-pole switch is part of the VBII Series, compatible with MJP frames. Typical applications include motor control centers and power distribution panels requiring R-class fuse protection.

Key Features & Specifications

• Type: Fusible disconnect switch, NEMA 4X enclosure
• Voltage Rating: 600V AC/DC
• Current Rating: 30A
• Dimensions: 9.0 in x 15.5 in (228.6 mm x 393.7 mm)
• Standards: UL listed
• Applications: Industrial power distribution, motor control
• Switch Type: Fusible
• Configuration: Single
• Poles: 2
• AIC rating: 200kA@600V
• Nema Rating: NEMA 4X
• Phase: 1
• Fuse Class: R
• Weight: 20 lb (9.07 kg)
• Compatible Frames: MJP
• Country of Origin: Mexico

Product Identification

• UPC: 783643173958
• GTIN: 00783643173958
