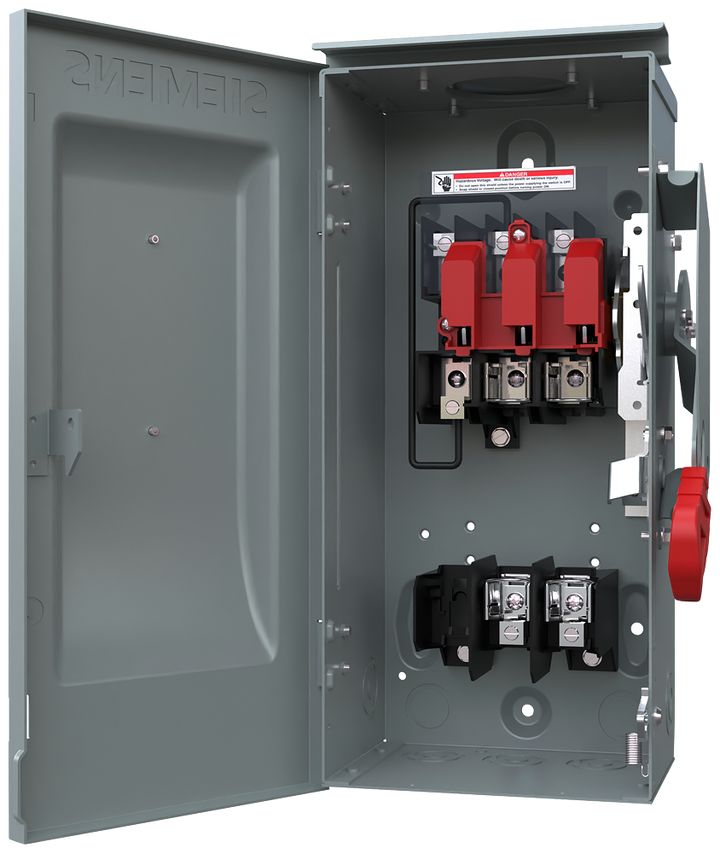

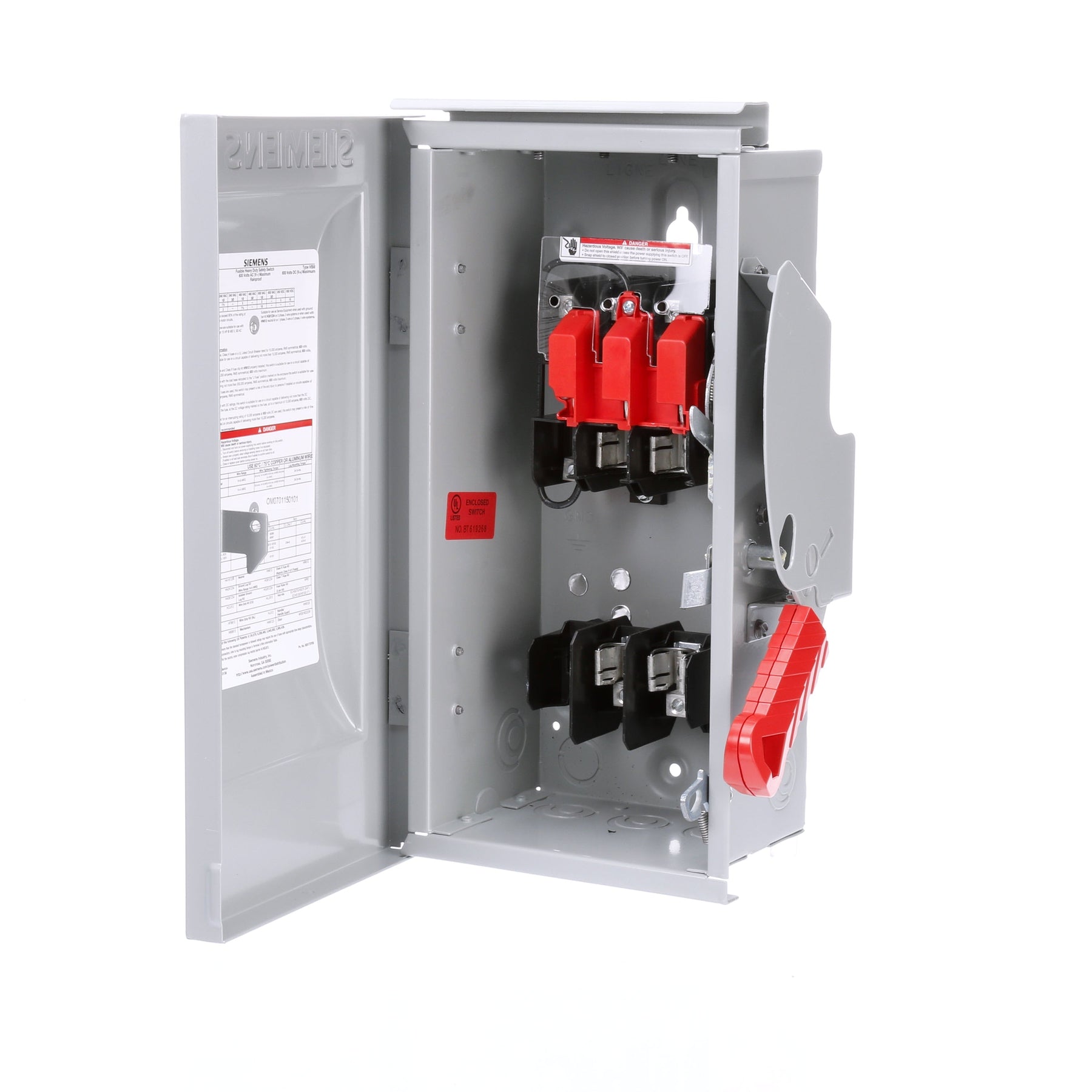

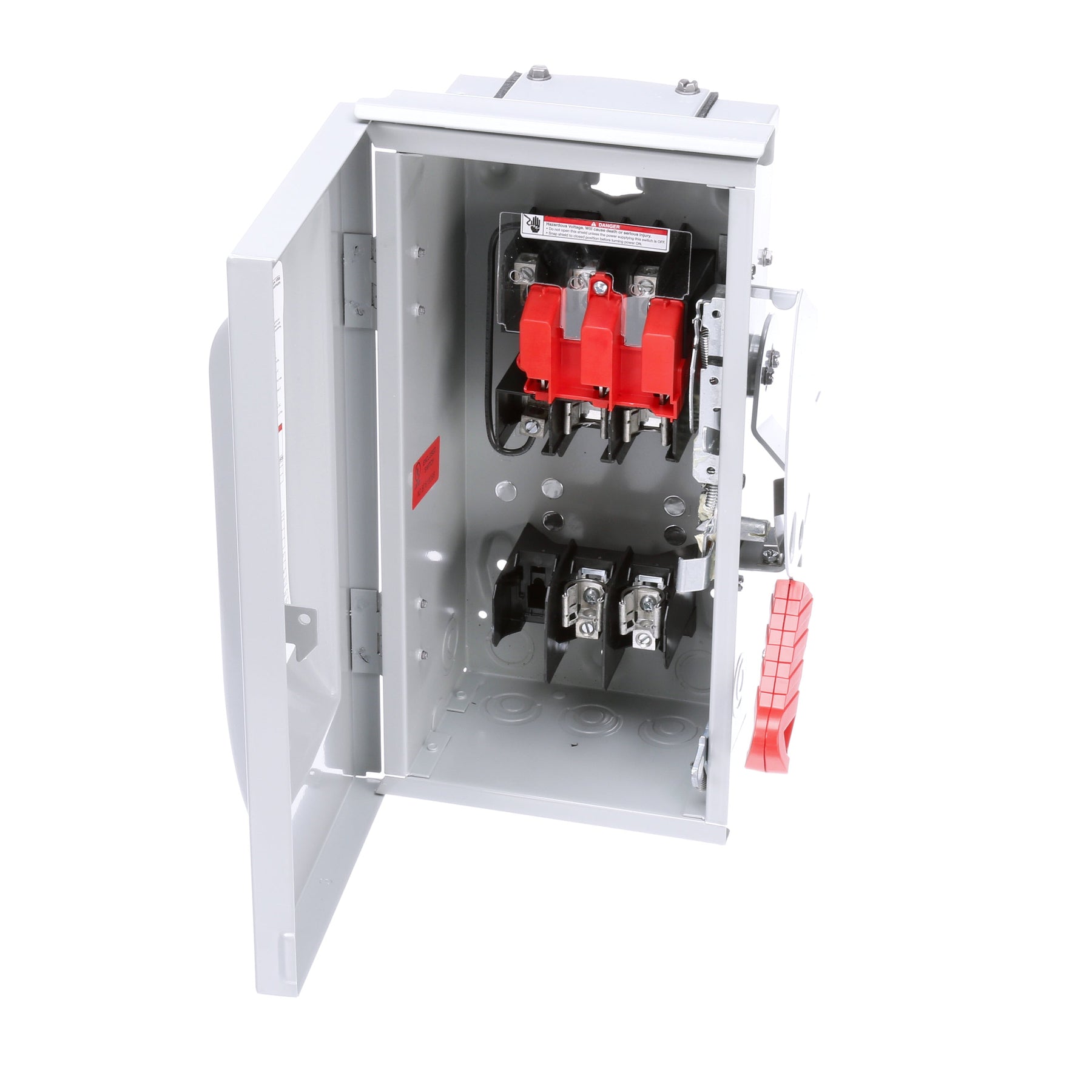

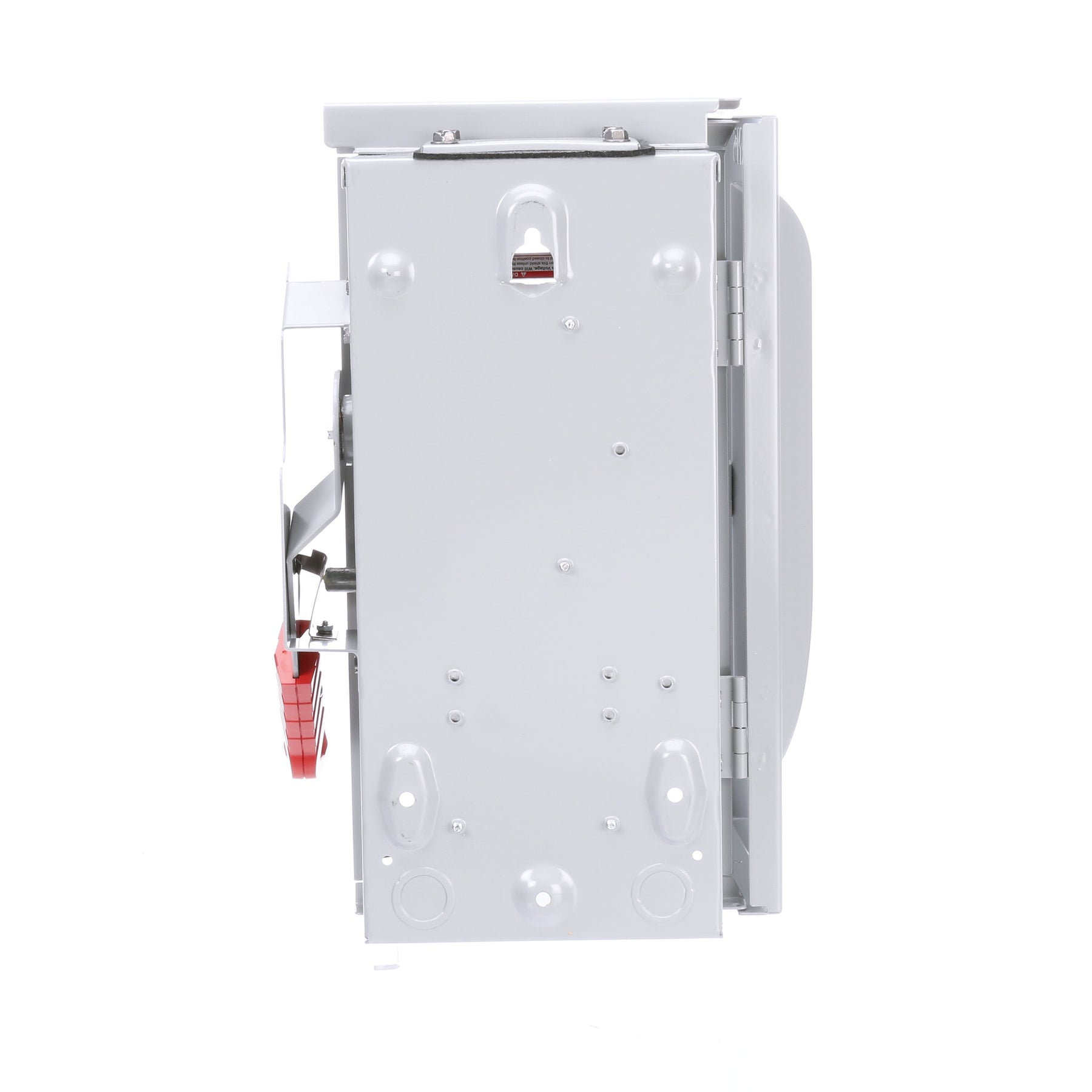

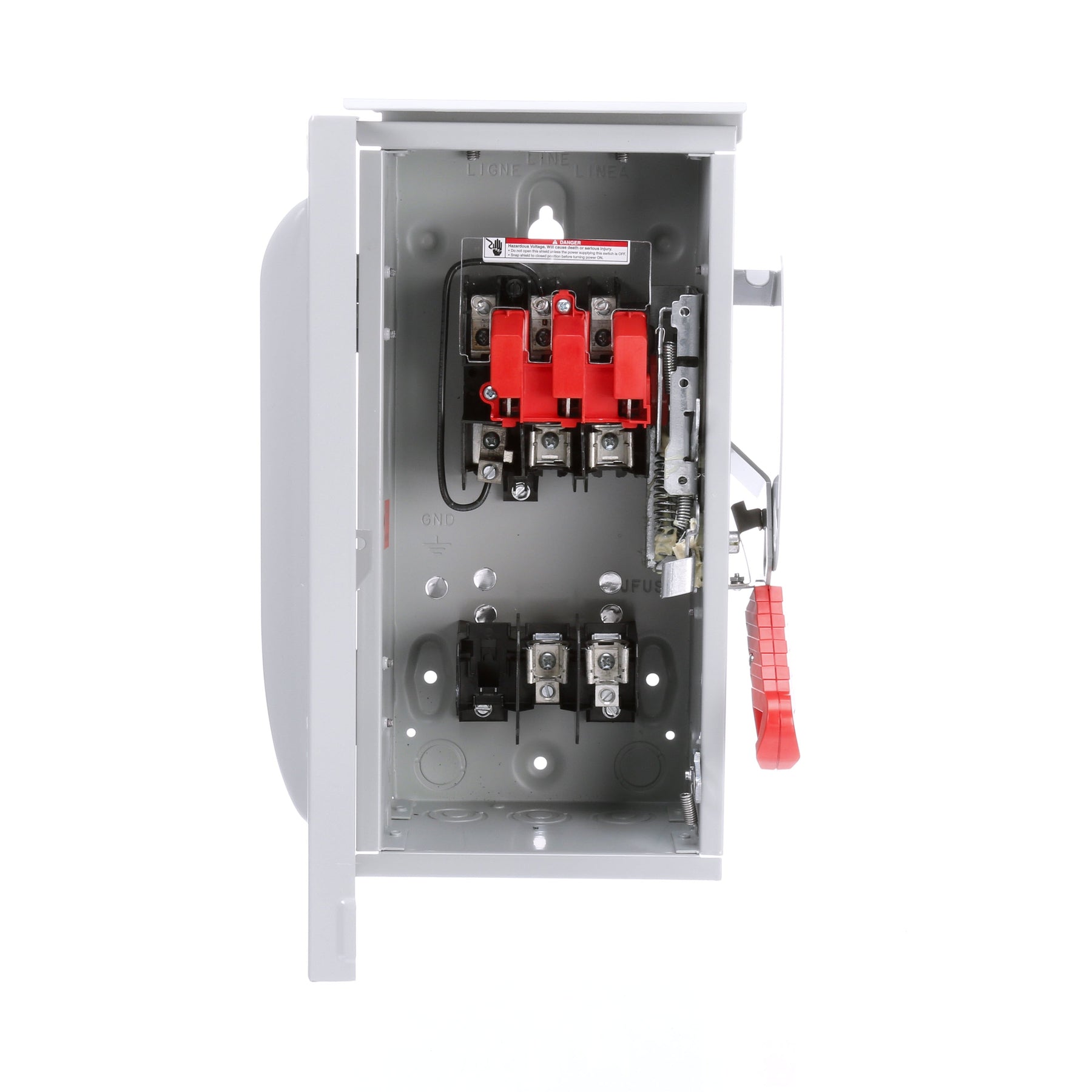

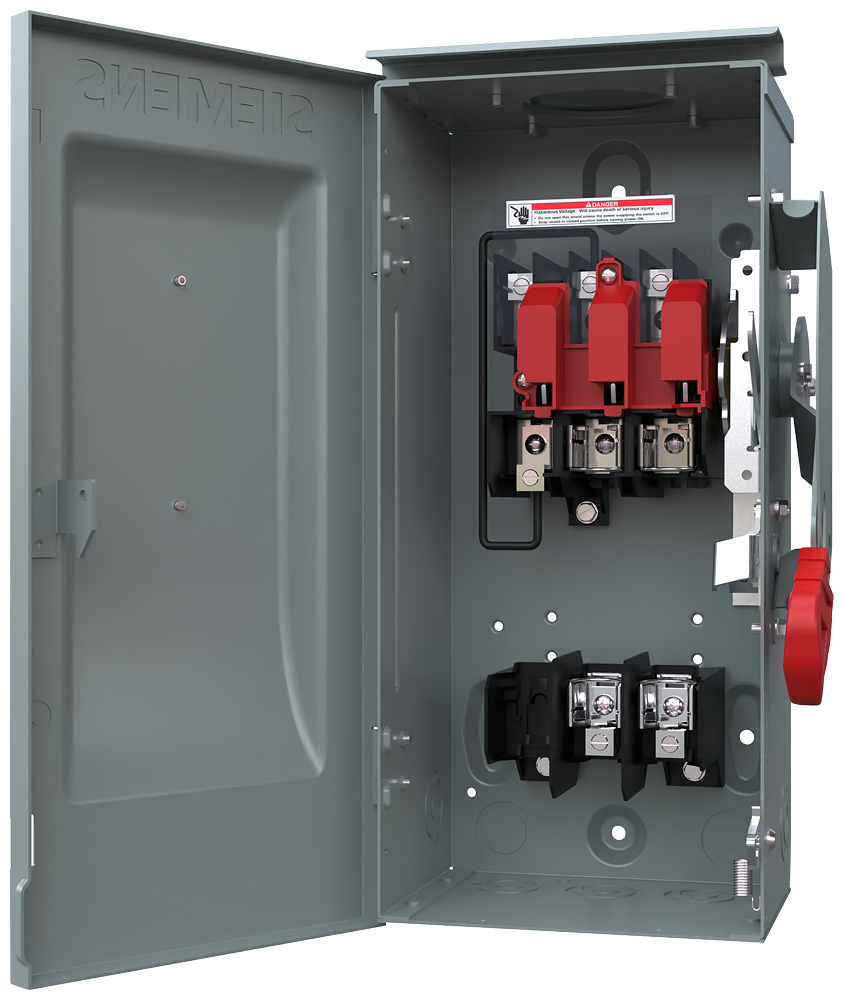

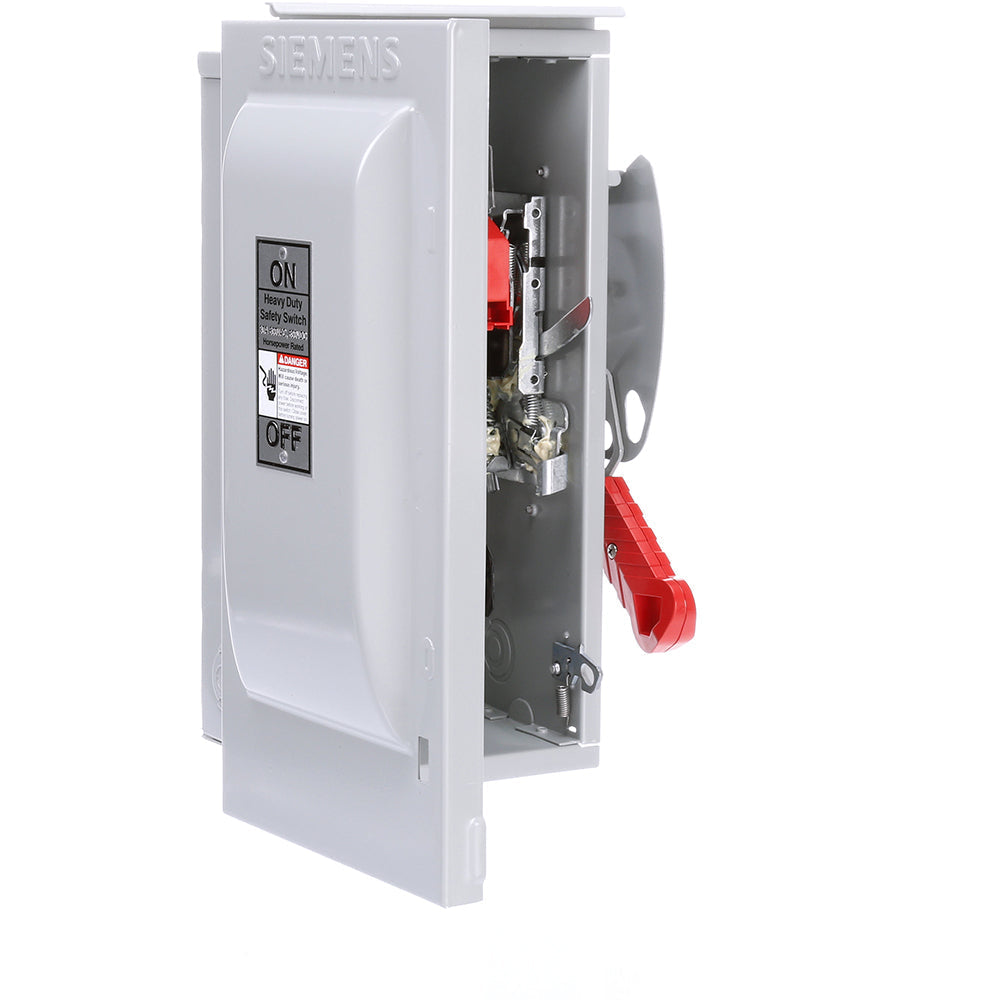

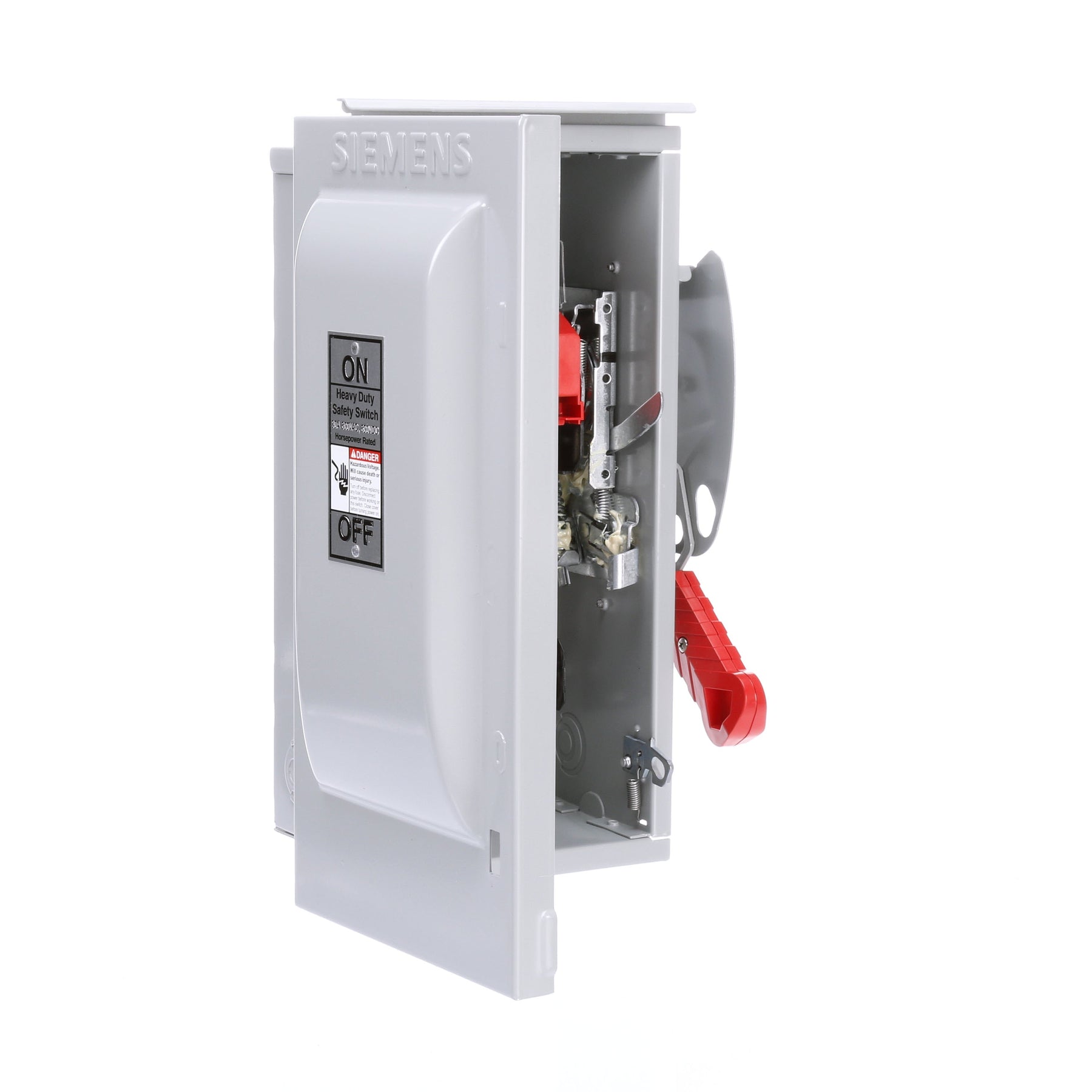

Siemens HF261R is a fusible disconnect switch designed for providing a visible break and overcurrent protection in industrial power distribution circuits. It is rated for 30A at 600V AC in a single-phase, 2-pole configuration and features a robust NEMA 3R enclosure measuring 14.91" x 7.88" x 9.18" (378.7mm x 200.2mm x 233.2mm) with a weight of 14 lb. The switch is UL listed and offers a high interrupting capacity of 200kA at 600V, operating reliably within a temperature range of -25°C to 70°C. It is engineered for integration into compatible MJP frames for applications such as motor control centers and panelboards.
Key Features & Specifications
Type: Fusible Disconnect Switch, VBII Series, HF Type
Voltage Rating: 600V AC
Current Rating: 30A
Configuration: Single Phase, 2-Pole
AIC Rating: 200kA @ 600V
Fuse Class: R
NEMA Rating: 3R
Dimensions: 14.91" x 7.88" x 9.18" (378.7mm x 200.2mm x 233.2mm)
