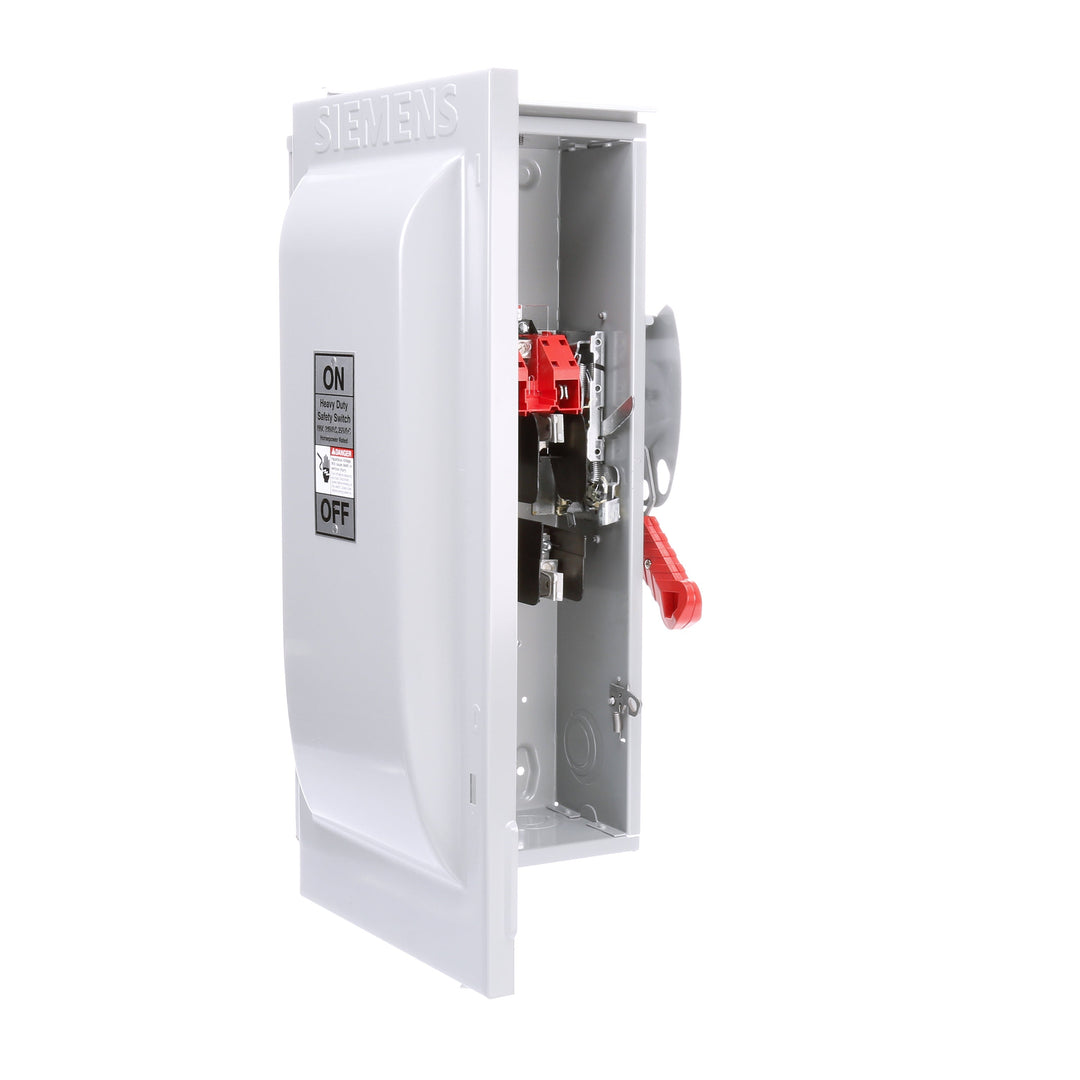

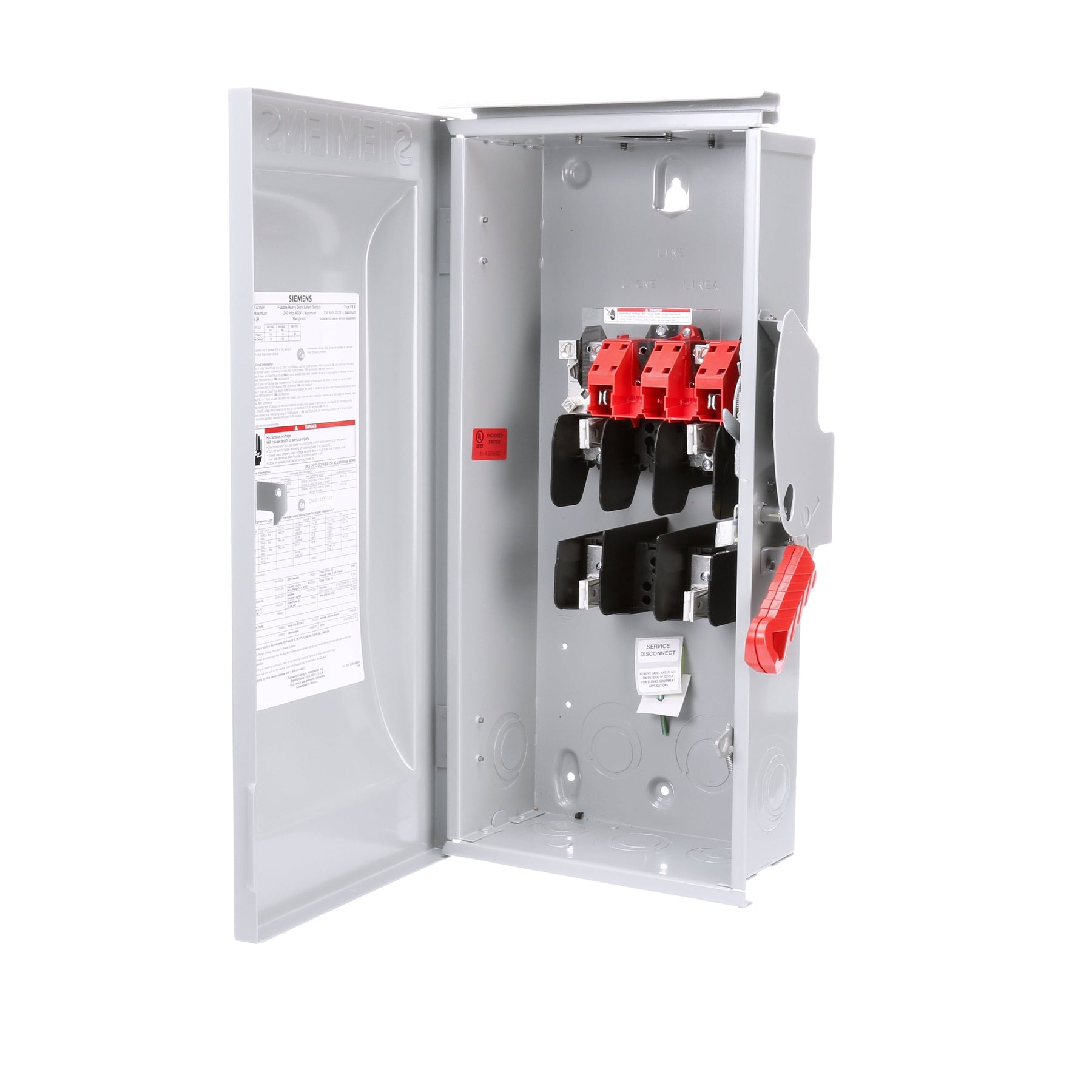

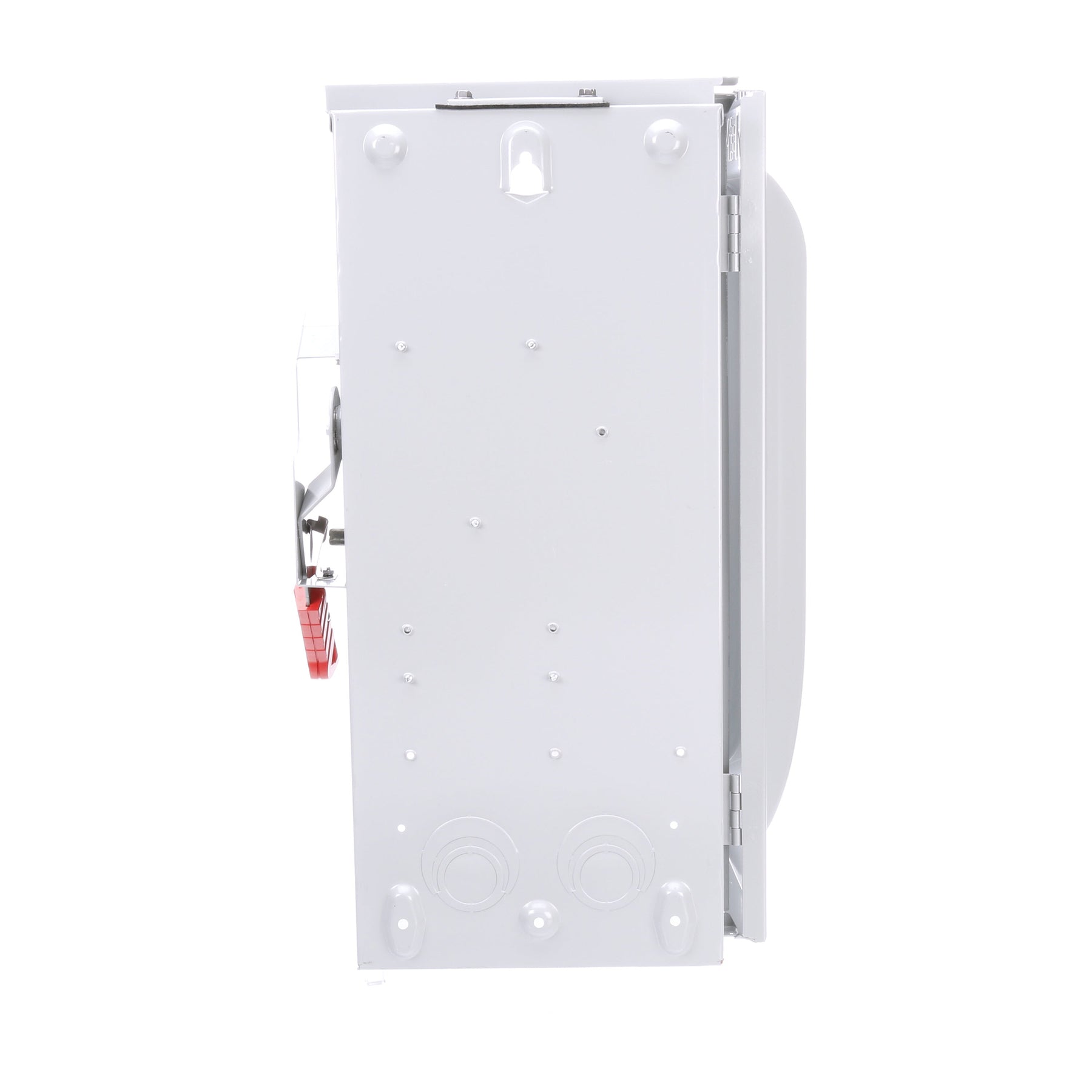

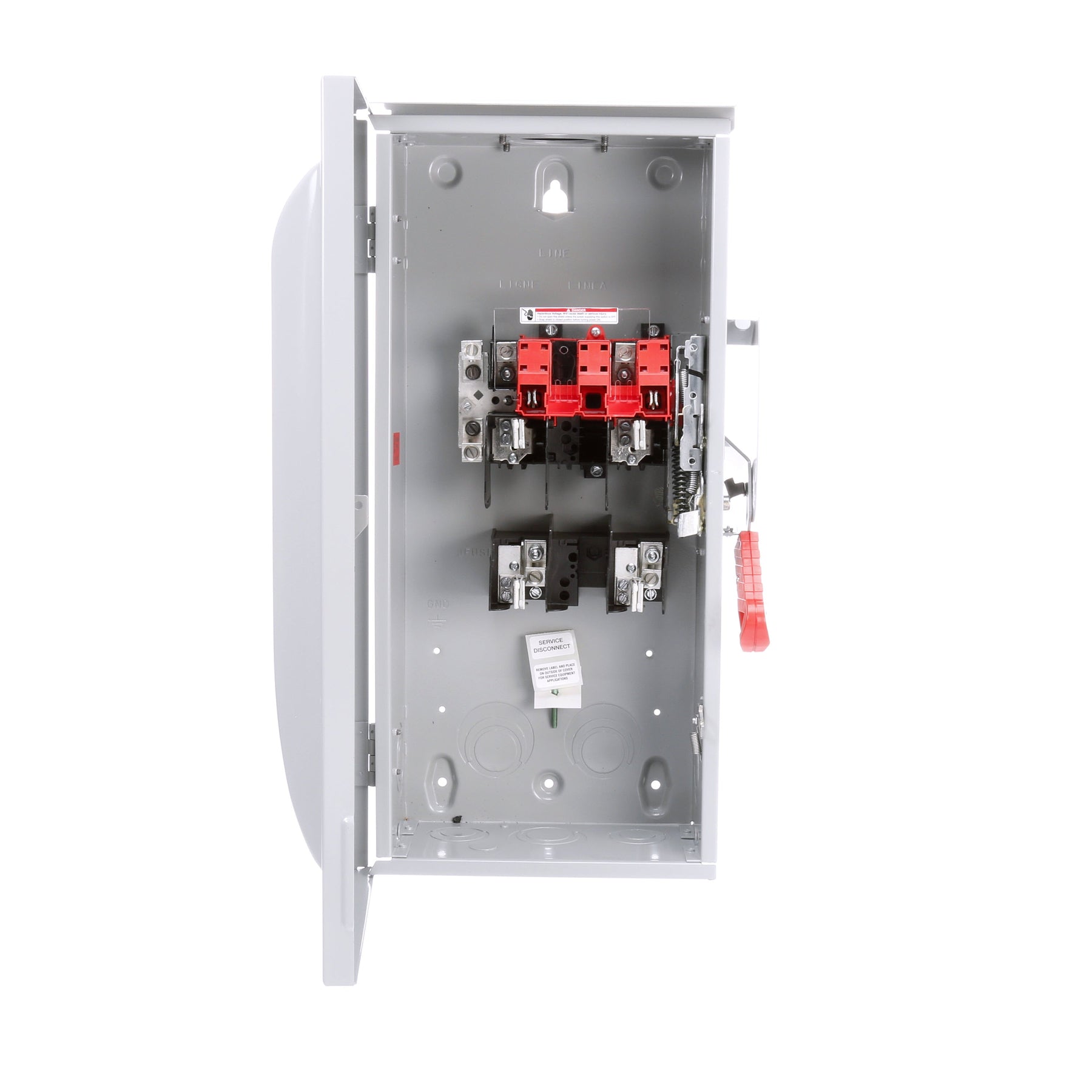

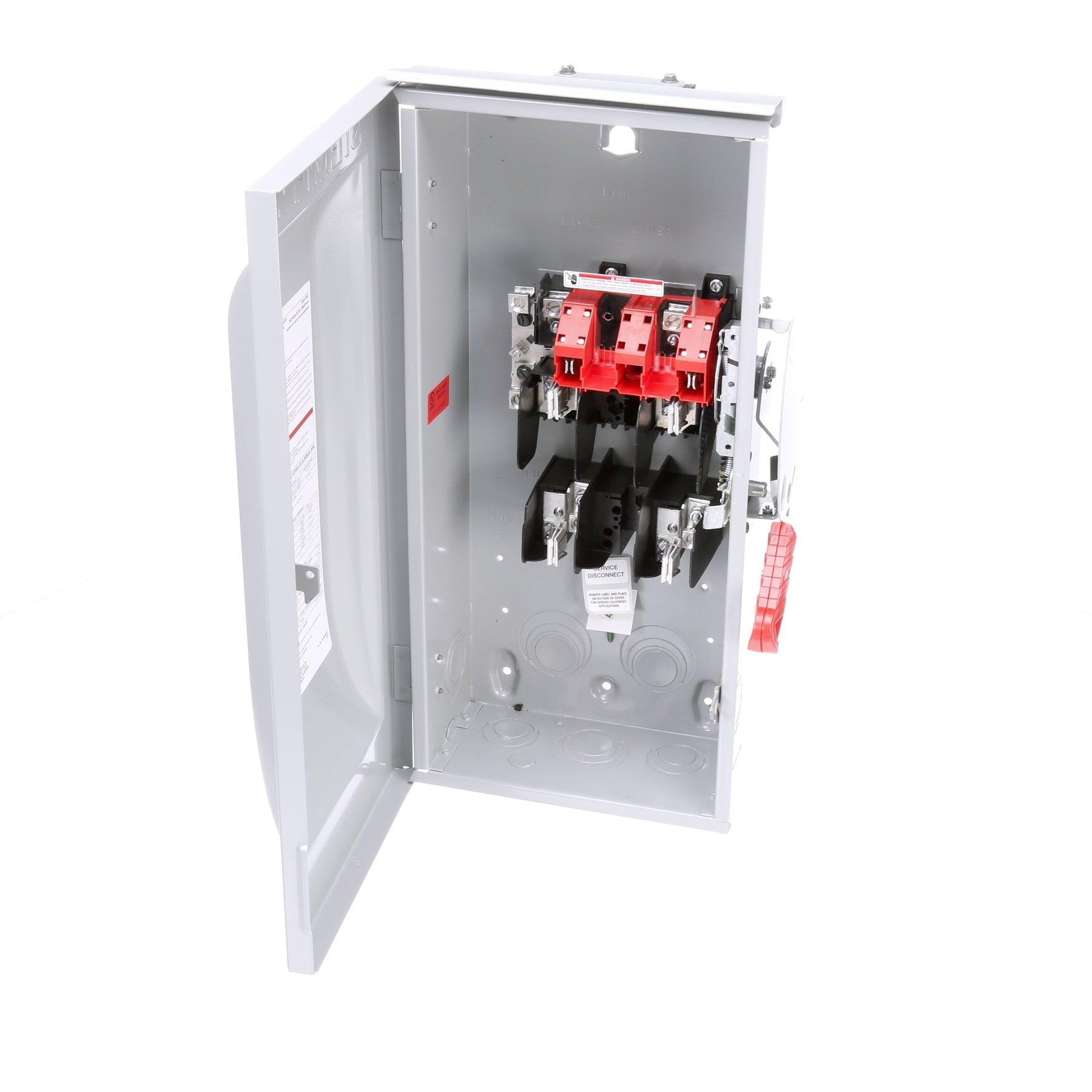

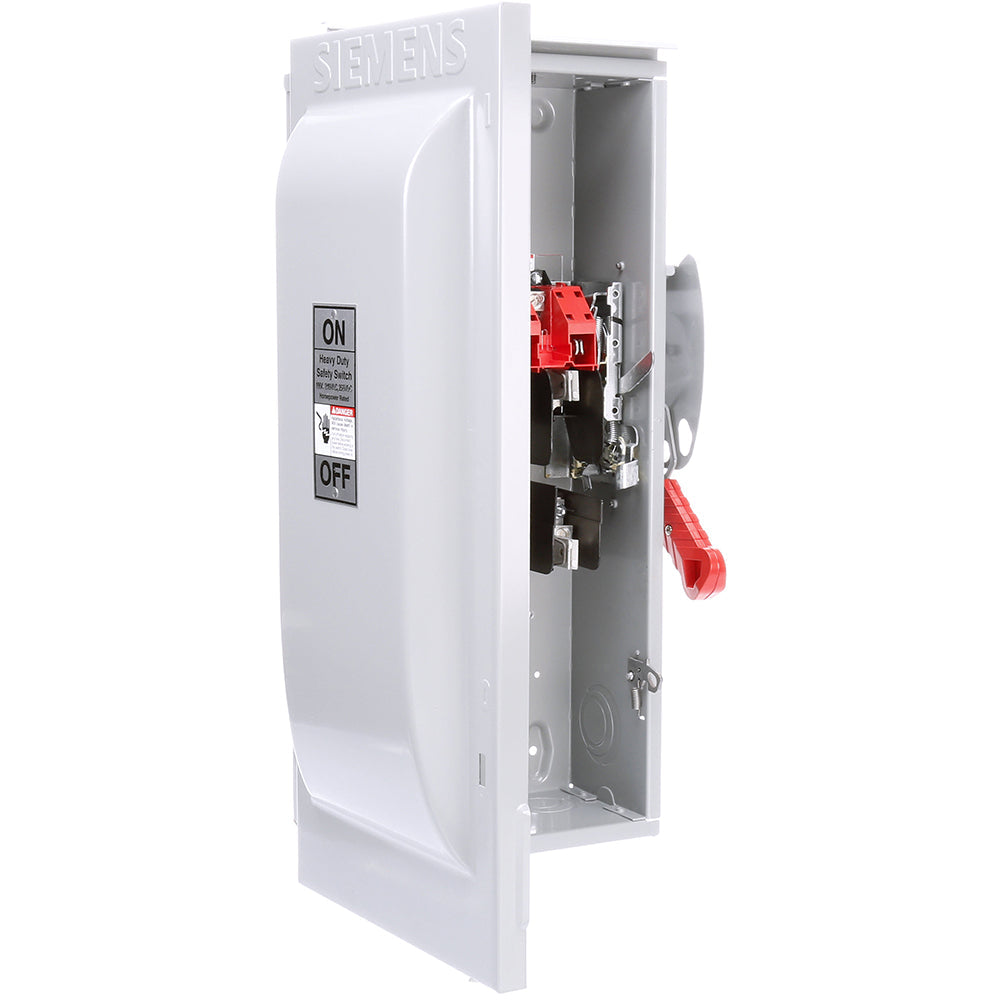

Siemens HF223NR is a fusible disconnect switch designed for providing visible isolation and overcurrent protection in industrial power distribution systems. It is rated for 240V AC single-phase operation with a 100A current rating and a 200kA interrupting capacity at 240V for robust short-circuit protection. The switch features a two-pole, single-configuration design with Class R fuse compatibility, is housed in a NEMA 3R enclosure measuring 25.197 x 13.78 x 7.874 inches, and weighs 21.649 lb for durable outdoor and indoor use. It is UL listed and part of the Siemens VBII Series, designed for compatibility with MHP frames, ensuring reliable performance in motor control centers and panelboards for machinery and HVAC systems.
Key Features & Specifications
Type: Fusible Disconnect Switch, VBII Series, HF type
Voltage Rating: 240V AC
Current Rating: 100A
Configuration: Single
Poles: 2
Phase: 1
AIC Rating: 200kA @ 240V
Fuse Class: R
Wire: 3
NEMA Rating: 3R
Dimensions: 25.197 x 13.78 x 7.874 inch
Weight: 21.649 lb
Certification: UL listed
Compatible Frames: MHP
Switch Style: Fusible
Country of Origin: Mexico
Product Identification
UPC: 783643150621
GTIN: 00783643150621
