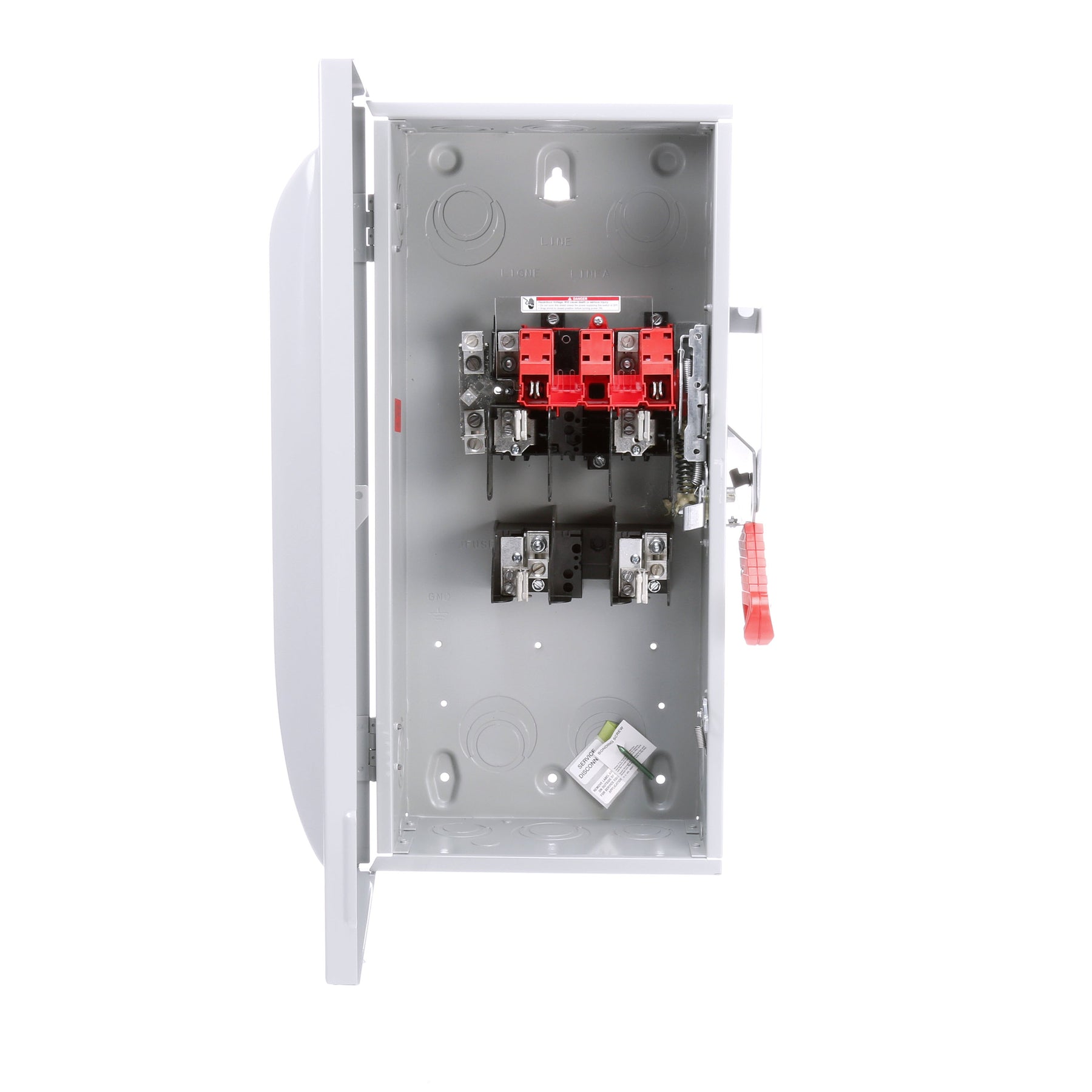

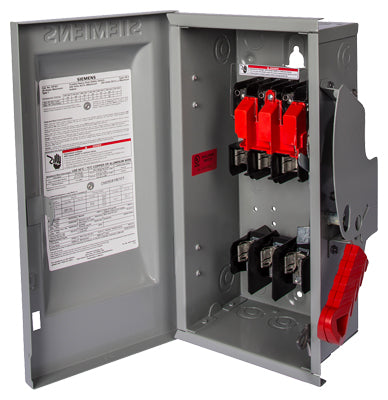

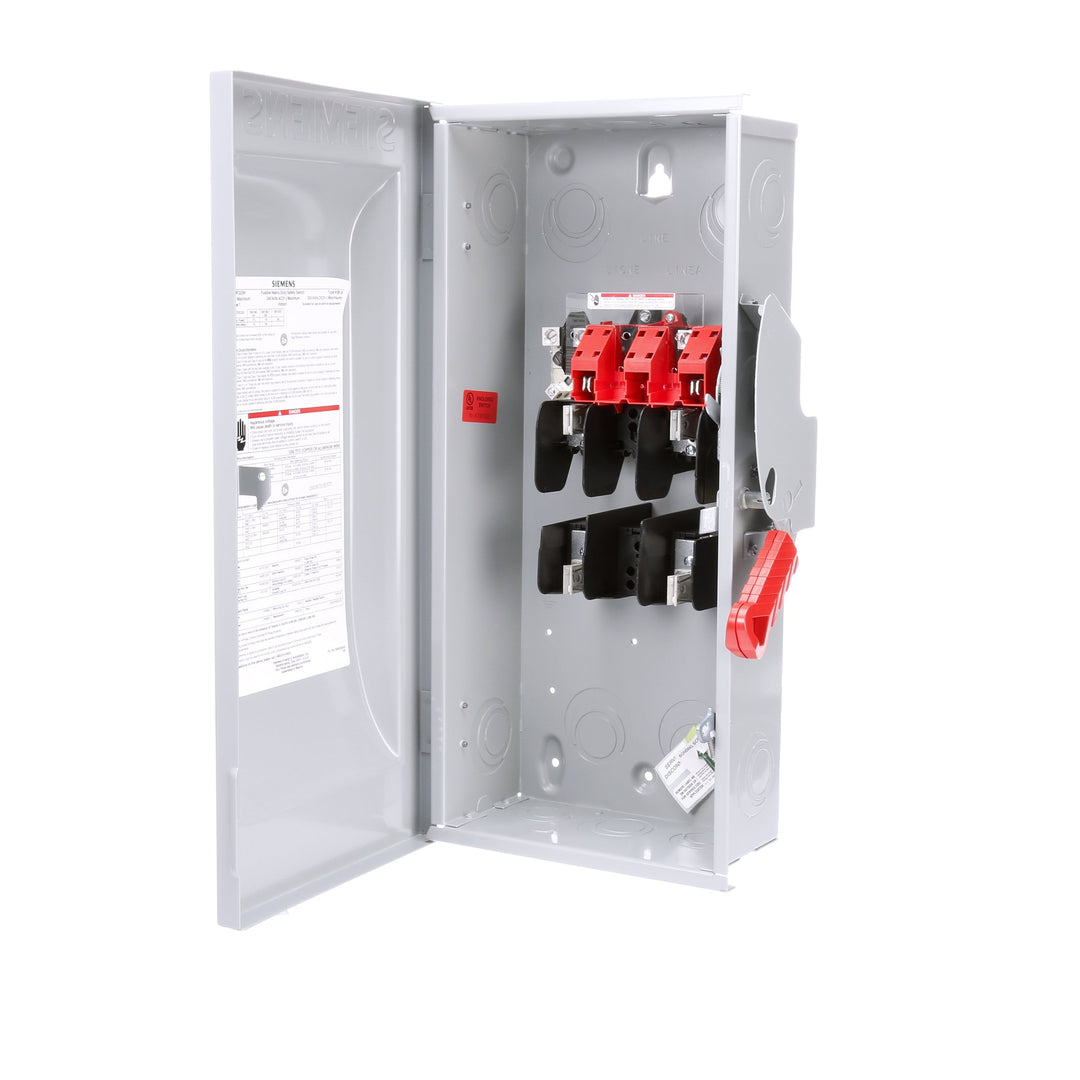

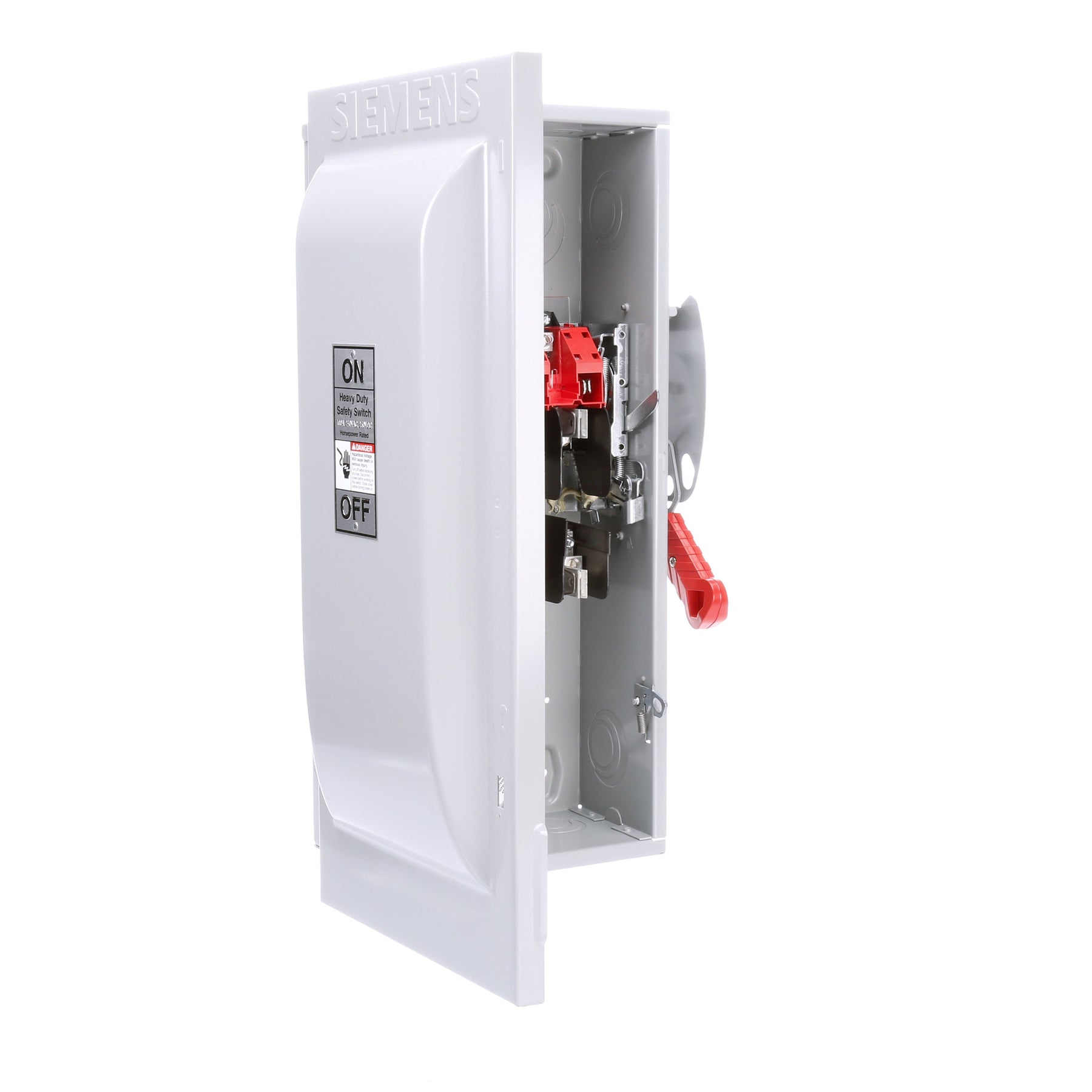

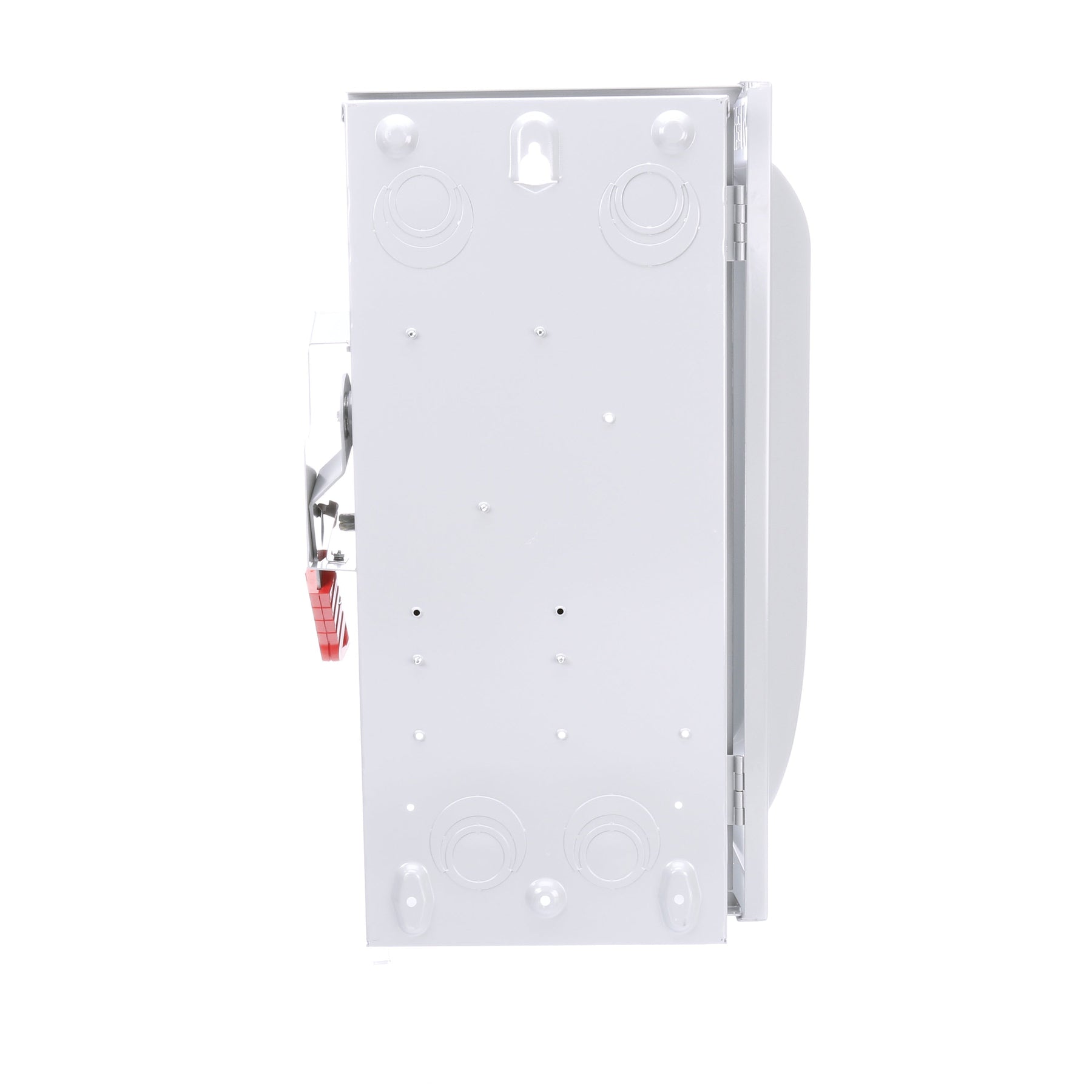

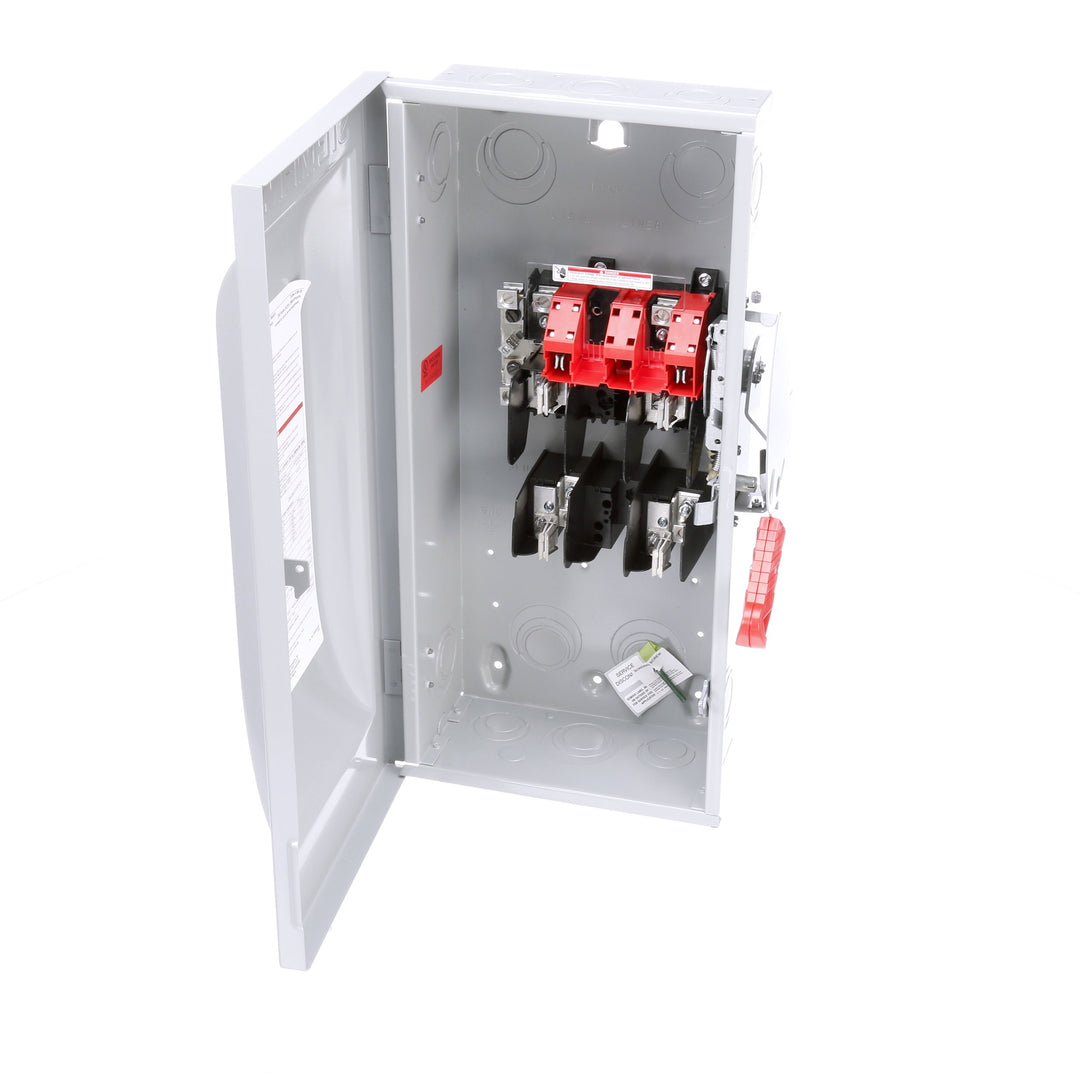

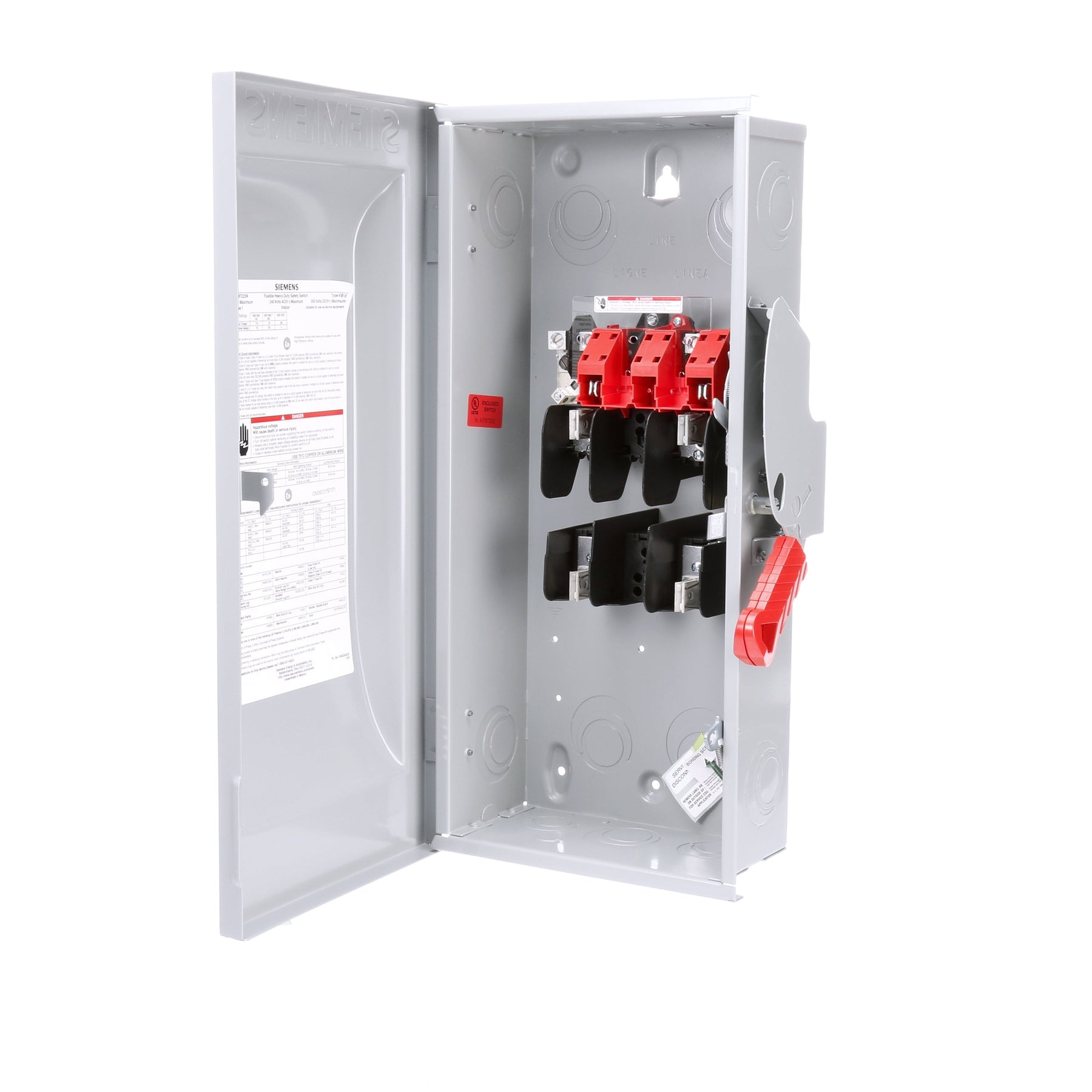

Siemens HF223N is a fusible disconnect switch designed for providing visible isolation and overcurrent protection in industrial power distribution systems. It is rated for 240V AC operation with a 100A current capacity, housed in a robust NEMA 1 enclosure measuring 25.591 x 14.173 x 7.874 inches and weighing 20.834 lb. The switch is UL listed and features a 200kA interrupting rating at 240V, ensuring reliable protection and compliance with industry safety standards for applications such as motor control centers and panelboards.
Key Features & Specifications
Type: Fusible Disconnect Switch, HF Type, VBII Series
Voltage Rating: 240V AC
Current Rating: 100A
Configuration: Single Phase, 2-Pole
AIC Rating: 200kA @ 240V
Fuse Class: R
Enclosure: NEMA 1
Dimensions: 25.591 x 14.173 x 7.874 inch
Weight: 20.834 lb
Standards: UL Listed
Compatible Frames: MHP
Applications: Industrial power distribution, motor control centers, panelboards
