Siemens HF222NR - Fusible Disconnect Switch, 60A 240V 1-Phase

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

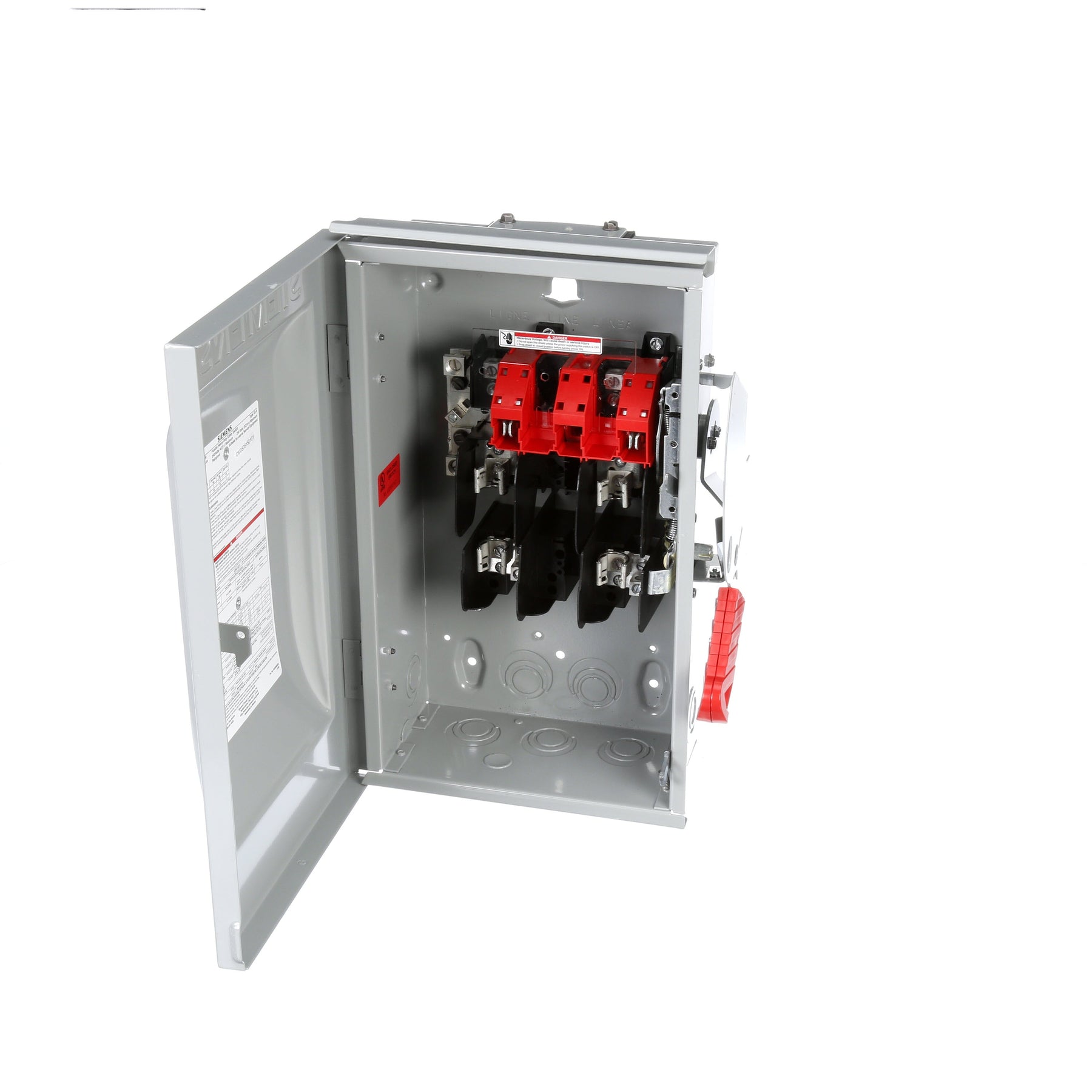

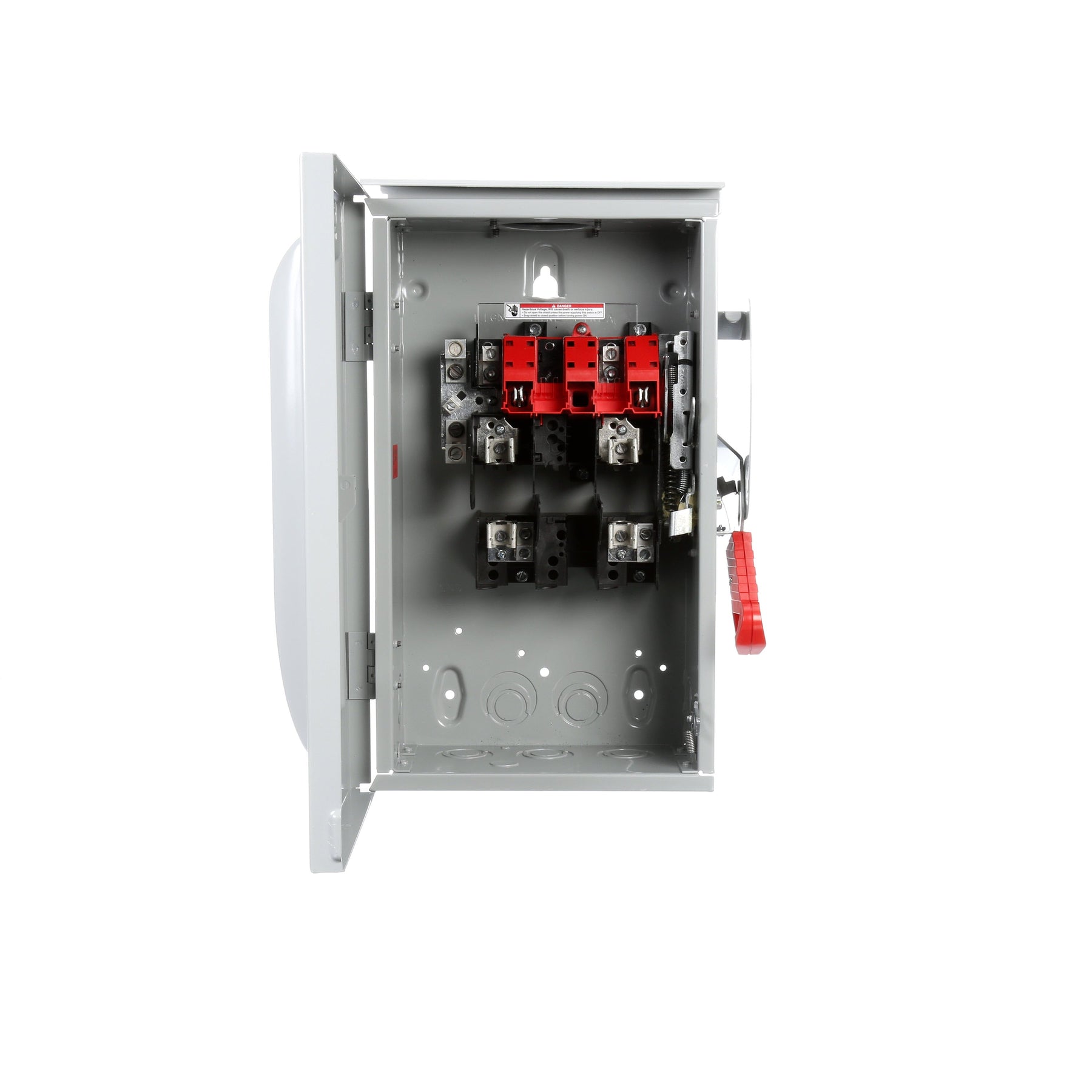

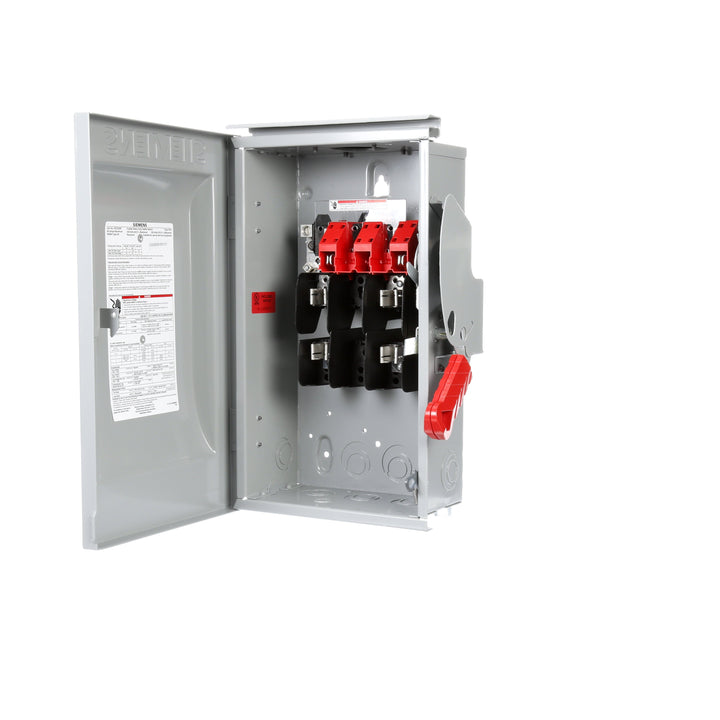

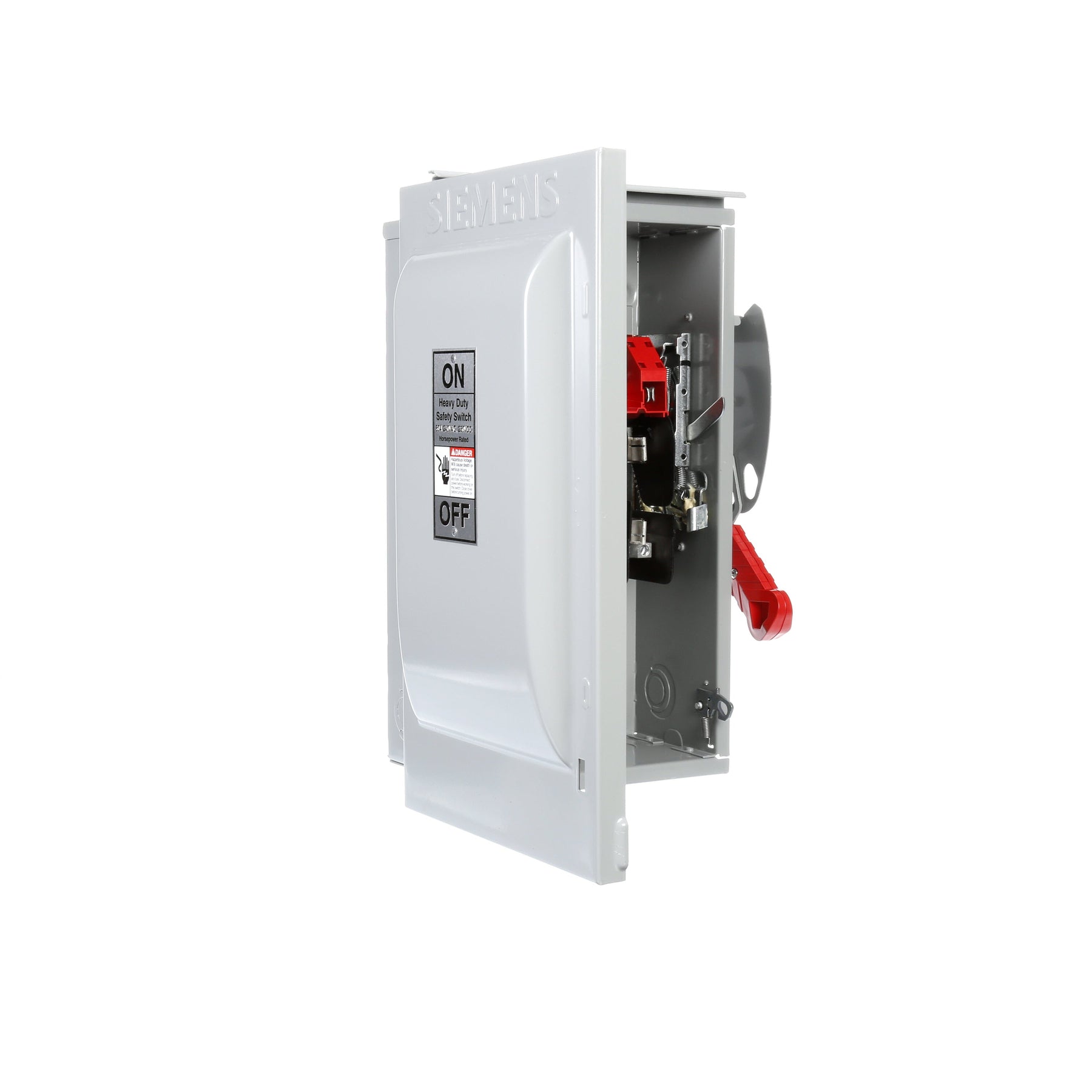

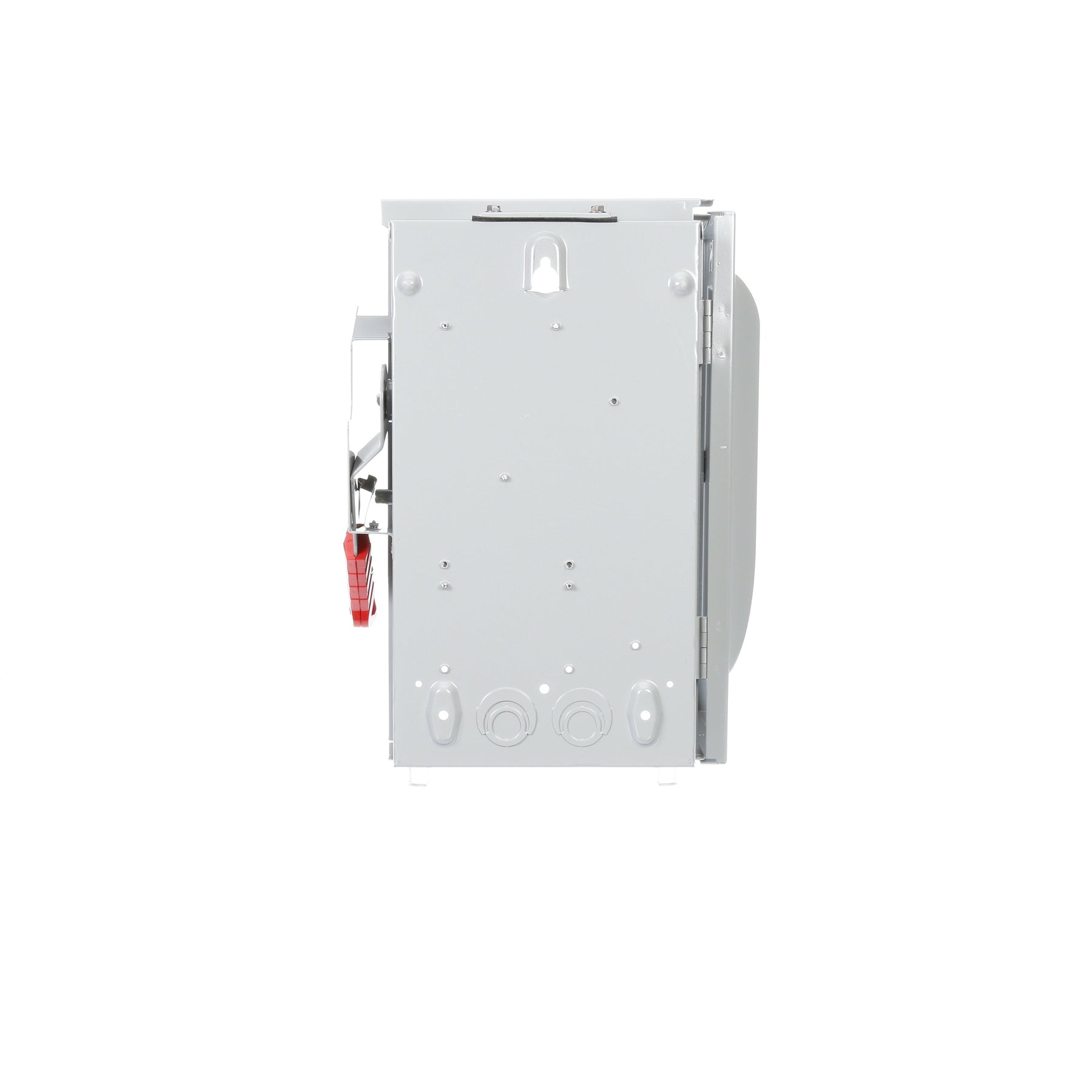

Siemens HF222NR is a fusible disconnect switch designed for providing visible circuit isolation and overcurrent protection in industrial power distribution. It is rated for 240V AC single-phase systems with a 60A current rating and features a 200kA interrupting capacity at 240V for robust short-circuit protection. The switch is constructed within a NEMA 3R-rated enclosure measuring 16.93 x 10.41 x 9.21 inches and weighing 19 lb, and it is UL listed for safety compliance. This component is part of the VBII series and is typically applied in industrial control panels and motor branch circuits where reliable disconnection and Class R fuse protection are required.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, HF Type, Single Configuration
  • Voltage Rating: 240V AC
  • Current Rating: 60A
  • Dimensions: 16.93" x 10.41" x 9.21"
  • Standards: UL Listed, NEMA 3R Enclosure Rating
  • Applications: Industrial power distribution, motor branch circuits, control panels
  • Switch Type: Fusible Disconnect
  • Configuration: Single
  • Poles: 2
  • AIC Rating: 200kA @ 240V
  • Phase: 1
  • Fuse Class: R
  • Compatible Frames: MHP
  • Family: VBII Series
  • Weight: 19 lb


Product Identification
  • UPC: 783643150614
  • GTIN: 00783643150614
