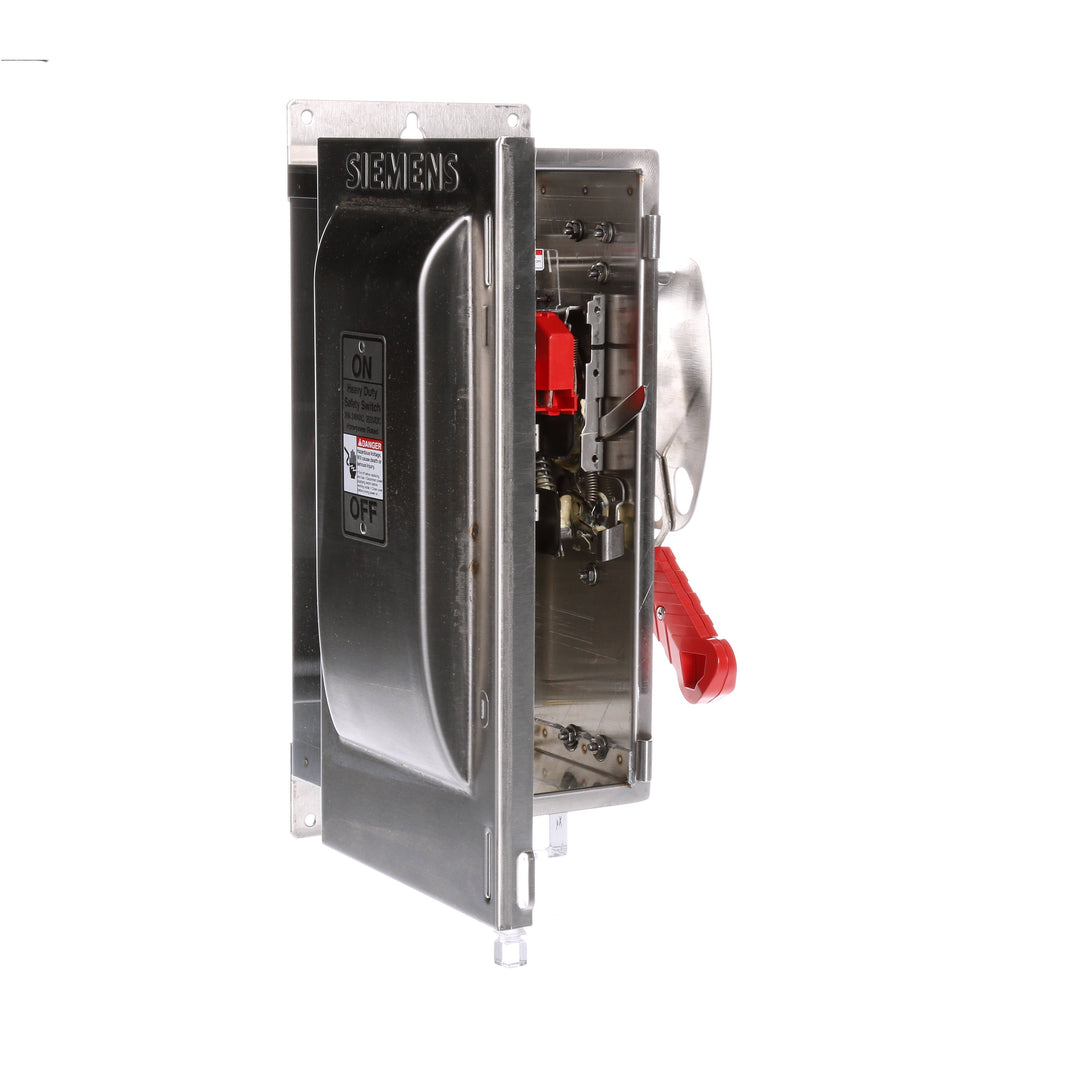

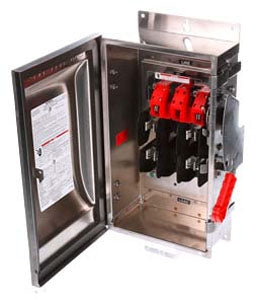

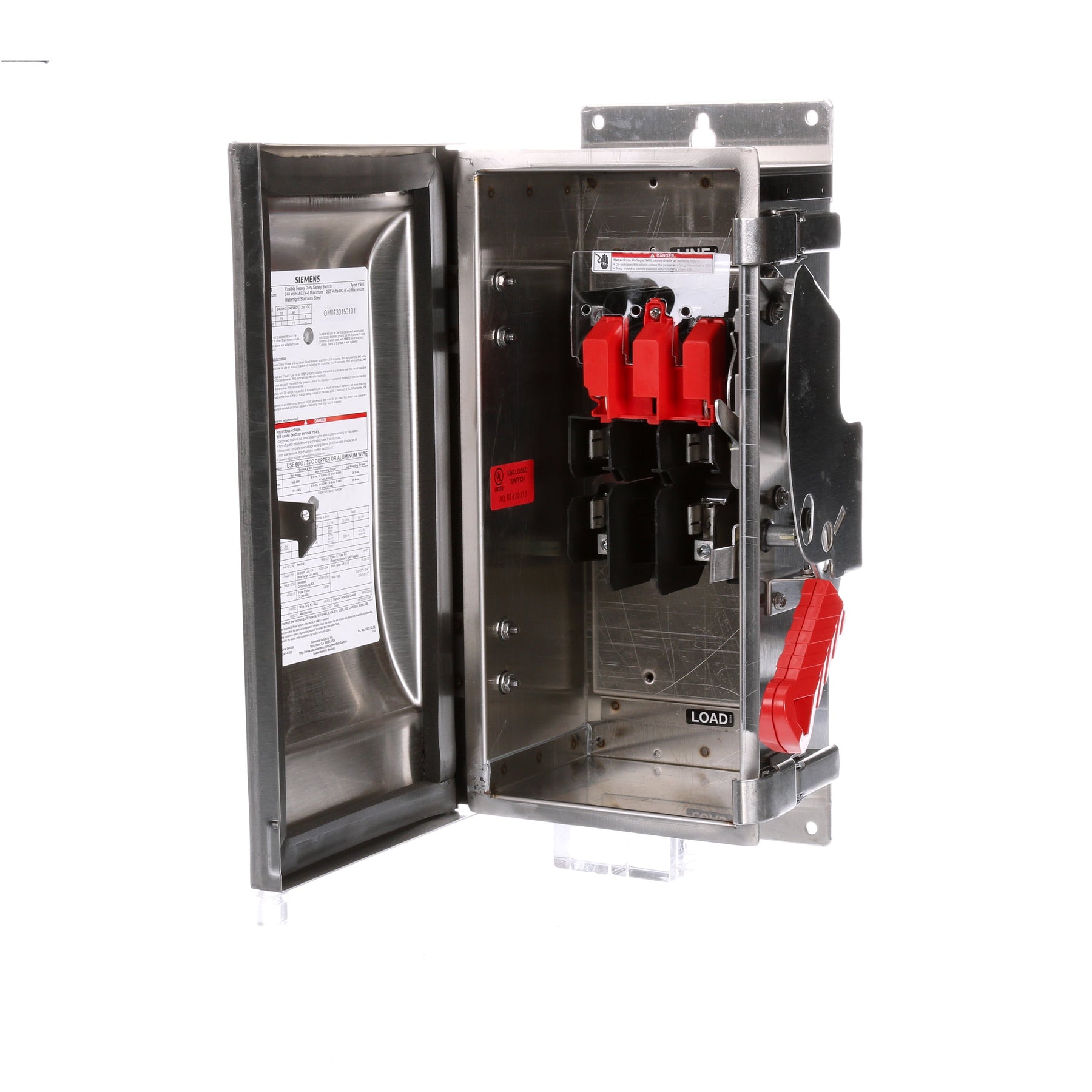

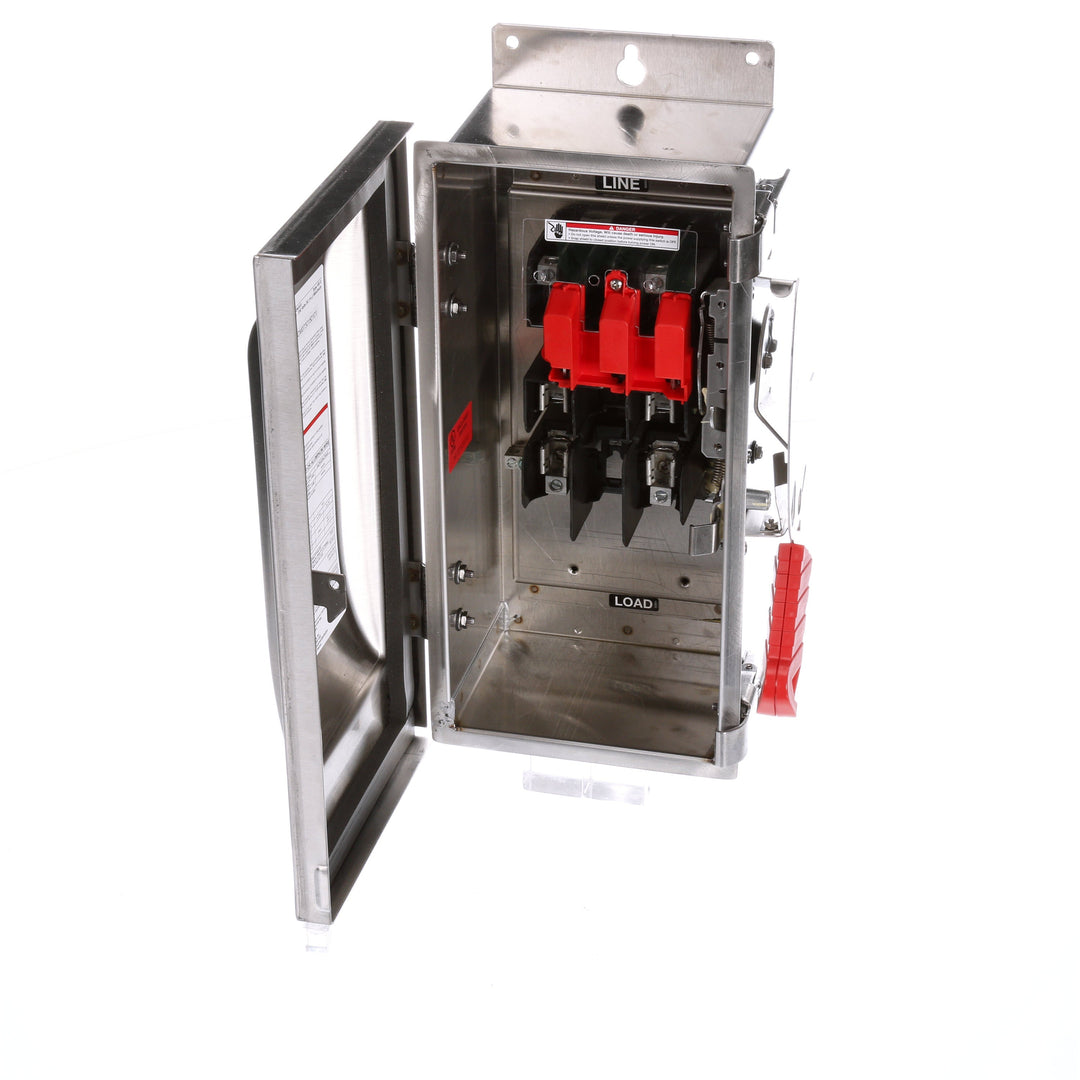

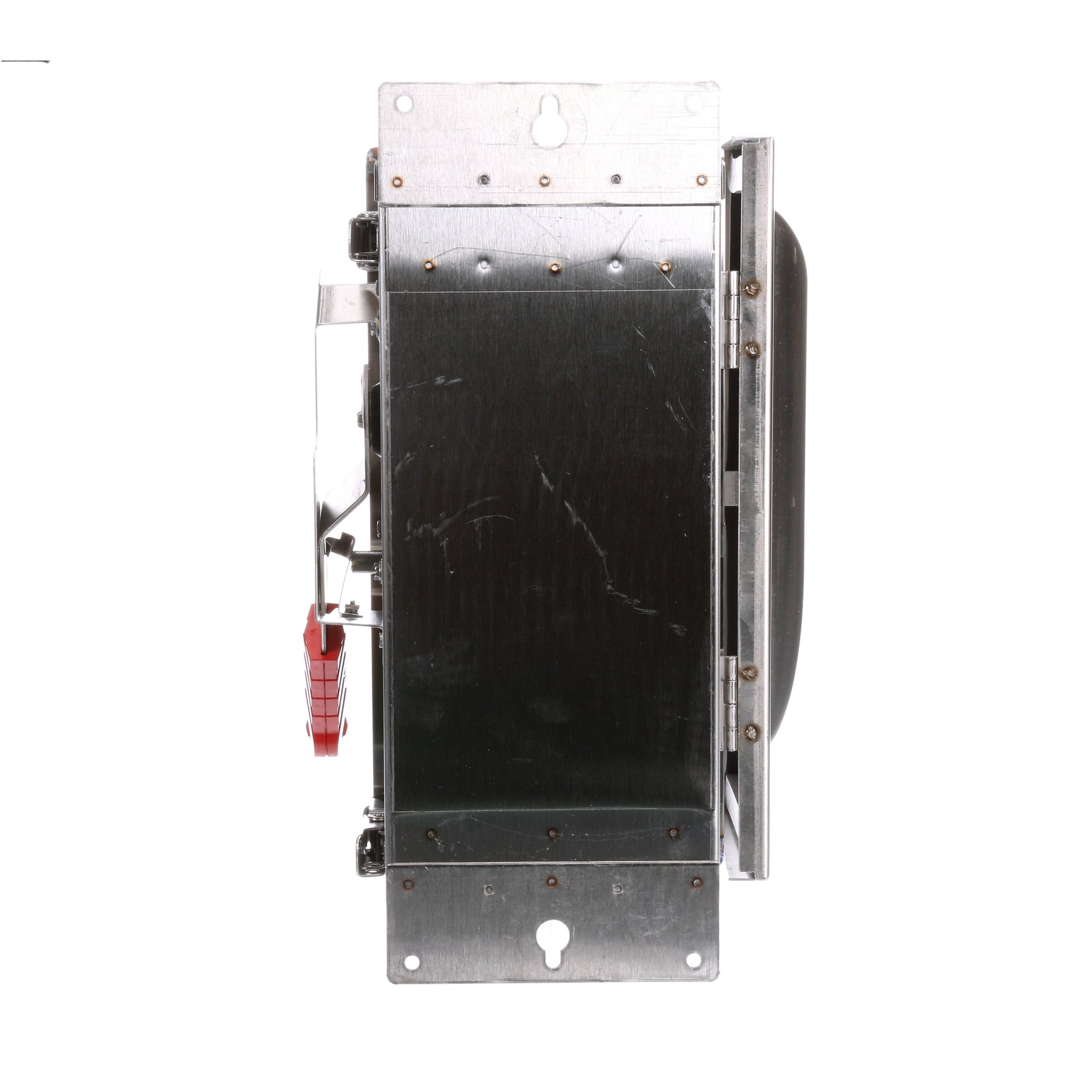

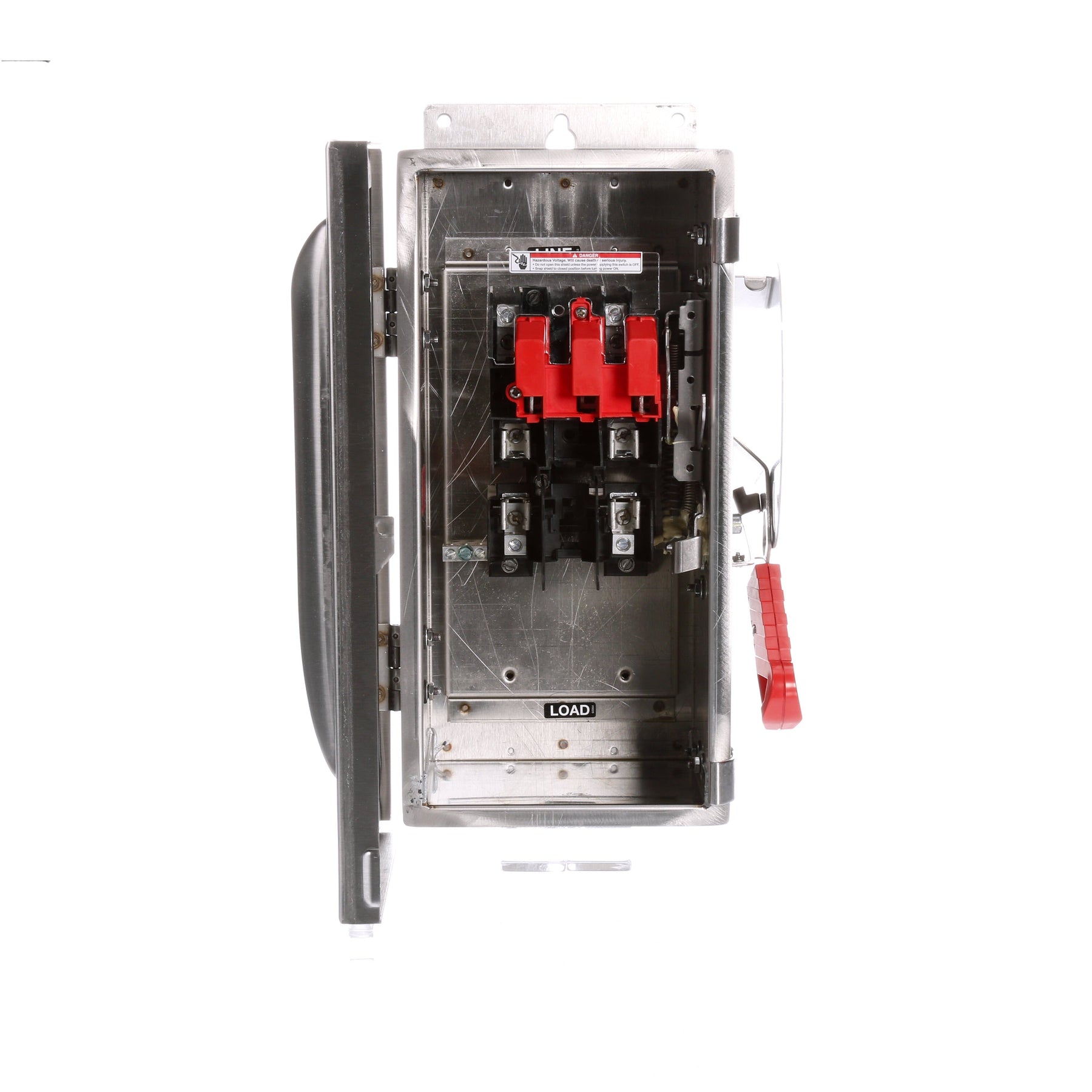

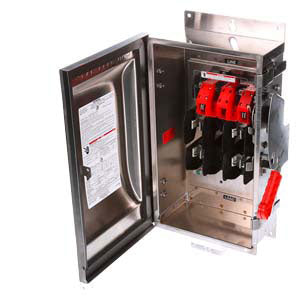

Siemens HF221S - Fusible Disconnect Switch, 30A 240V 2-Pole

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens HF221S is a fusible disconnect switch designed for providing visible isolation and overcurrent protection in industrial power distribution circuits. It is rated for 240V AC single-phase systems with a 30A current rating and features a 2-pole, single-configuration design for circuit interruption. The switch is constructed within a NEMA 4X-rated enclosure measuring 20.079 x 11.417 x 7.874 inches and weighing 17.328 lb, ensuring durability and protection against environmental ingress. It is UL listed and offers a high interrupting capacity of 200kA at 240V, making it compliant with rigorous safety standards for industrial applications. Typical uses include motor control centers and panelboards requiring reliable disconnection and Class R fuse protection.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, VBII Series, HF type
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Dimensions: 20.079" x 11.417" x 7.874" (510mm x 290mm x 200mm)
  • Standards: UL Listed, NEMA 4X Enclosure Rating
  • Applications: Industrial power distribution, motor control centers, panelboards
  • Switch Type: Fusible Disconnect
  • Configuration: Single
  • Phase: 1
  • Poles: 2
  • AIC Rating: 200kA @ 240V
  • Protection: Class R Fuse Compatible
  • Compatible Frames: MHP
  • Weight: 17.328 lb (7.86 kg)
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643150898
  • GTIN: 00783643150898
