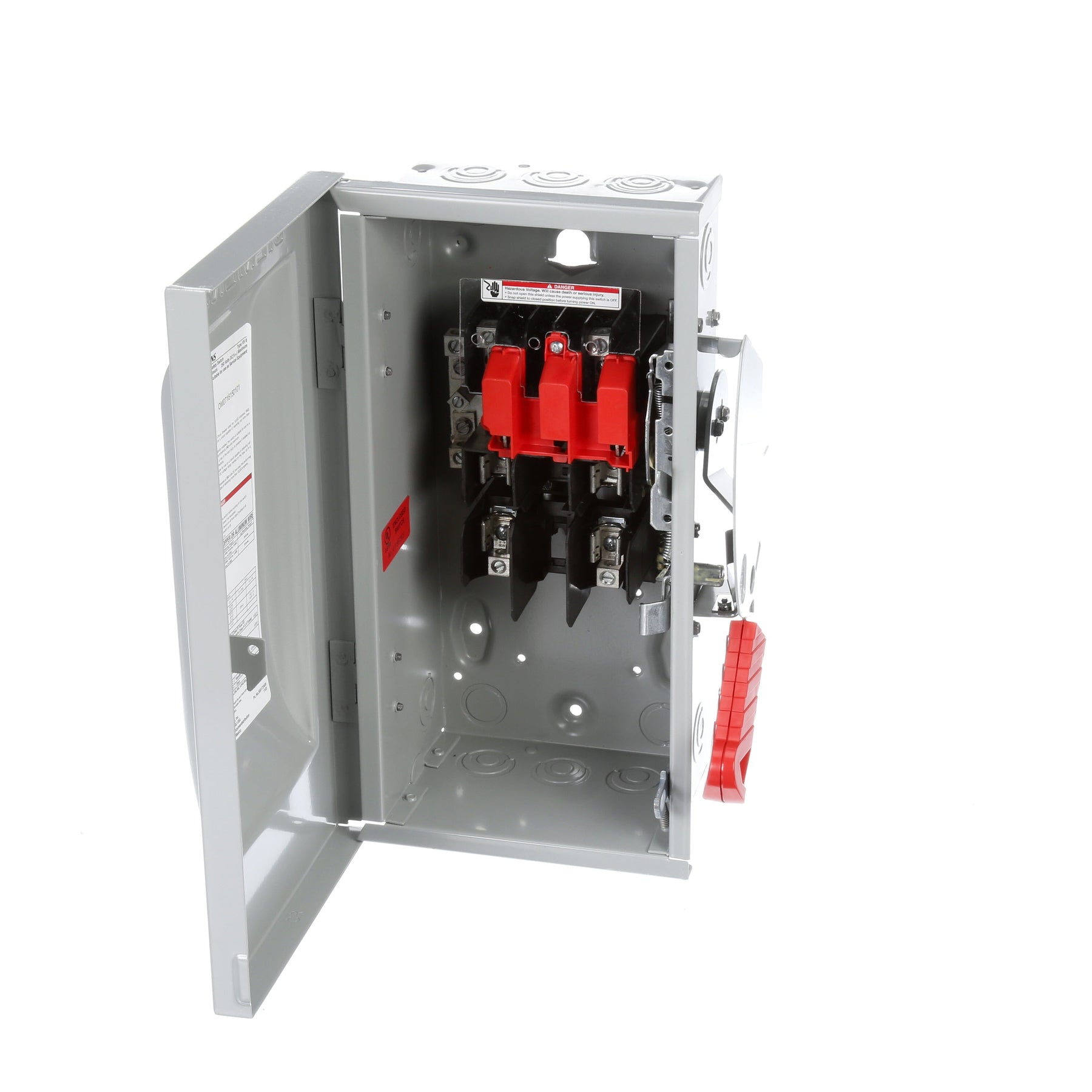

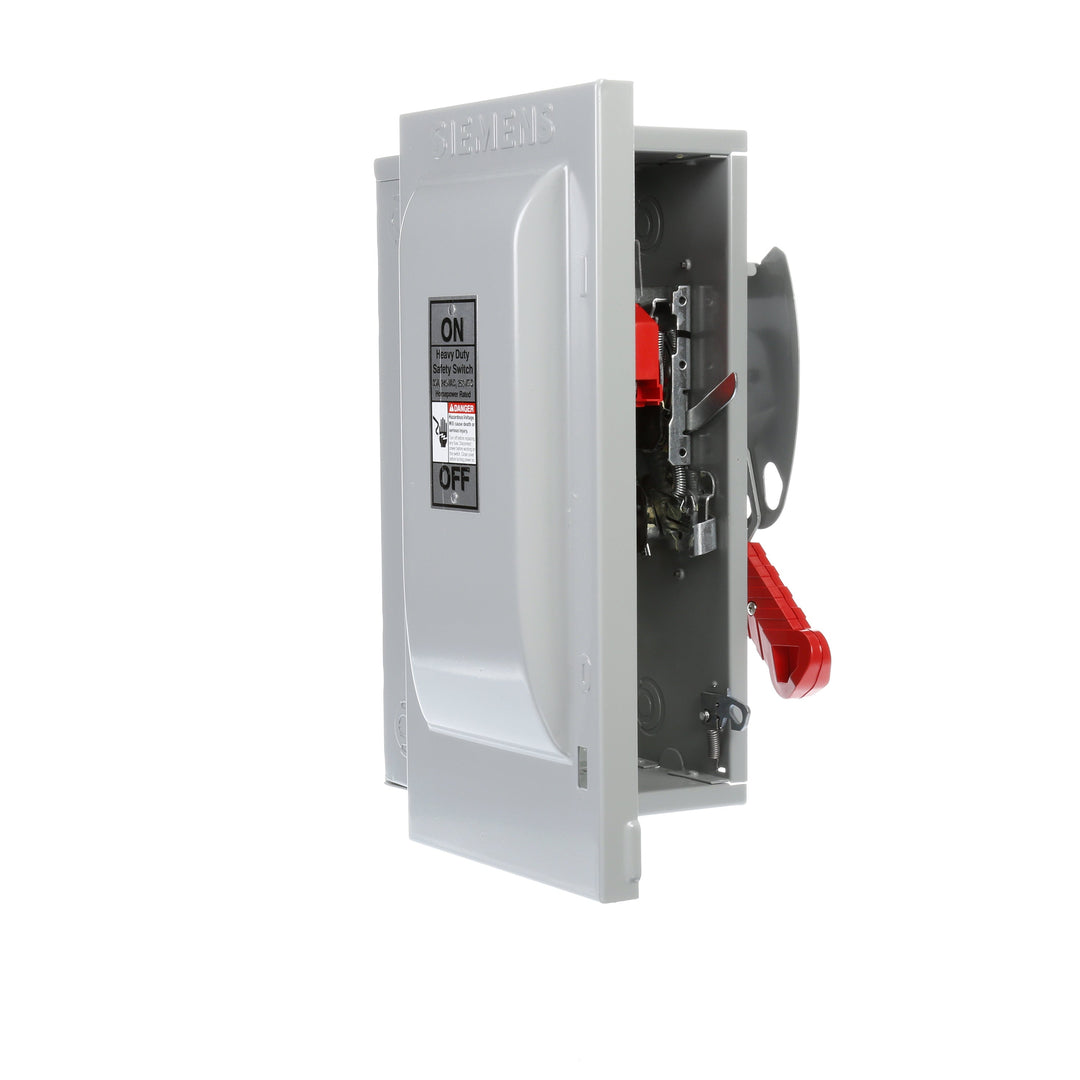

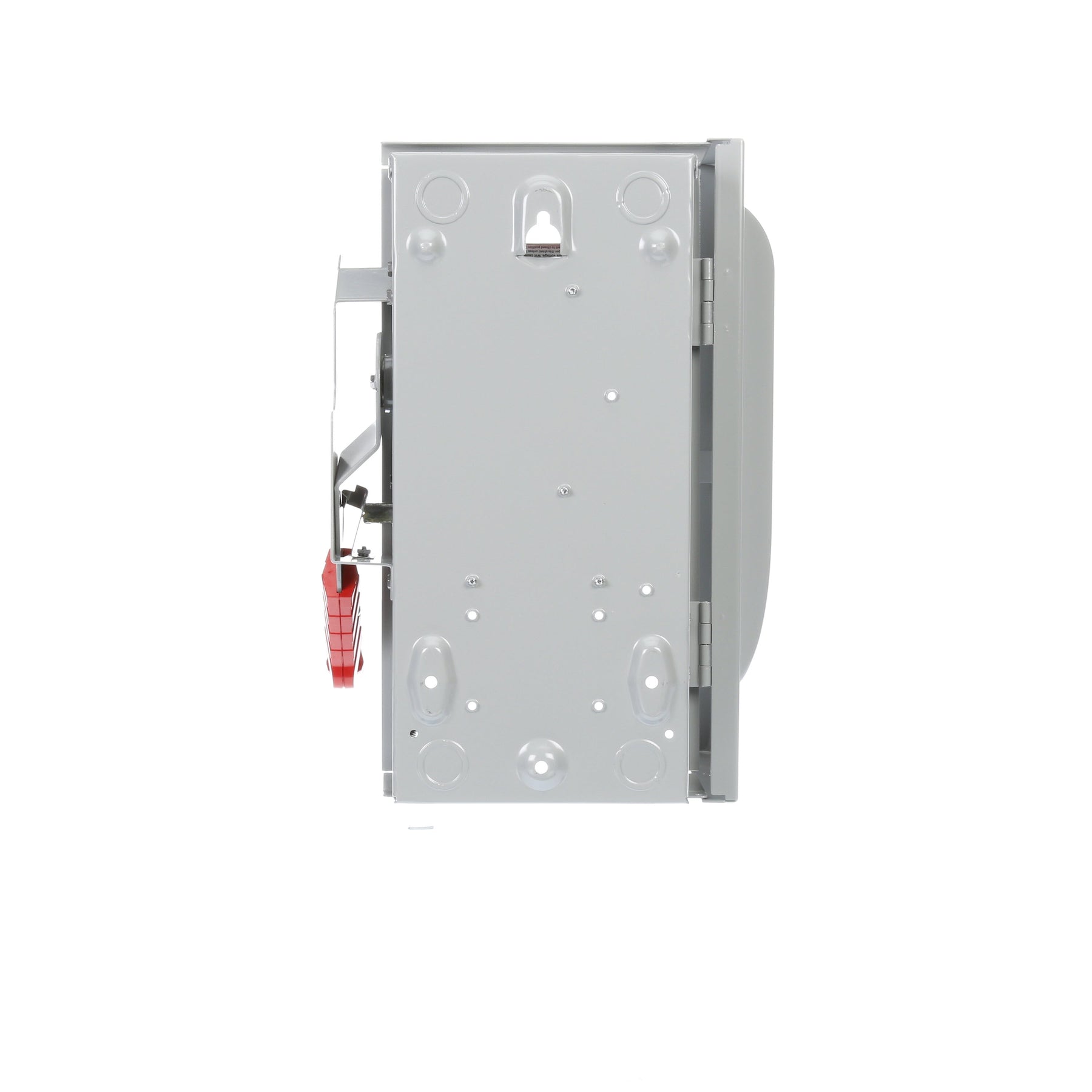

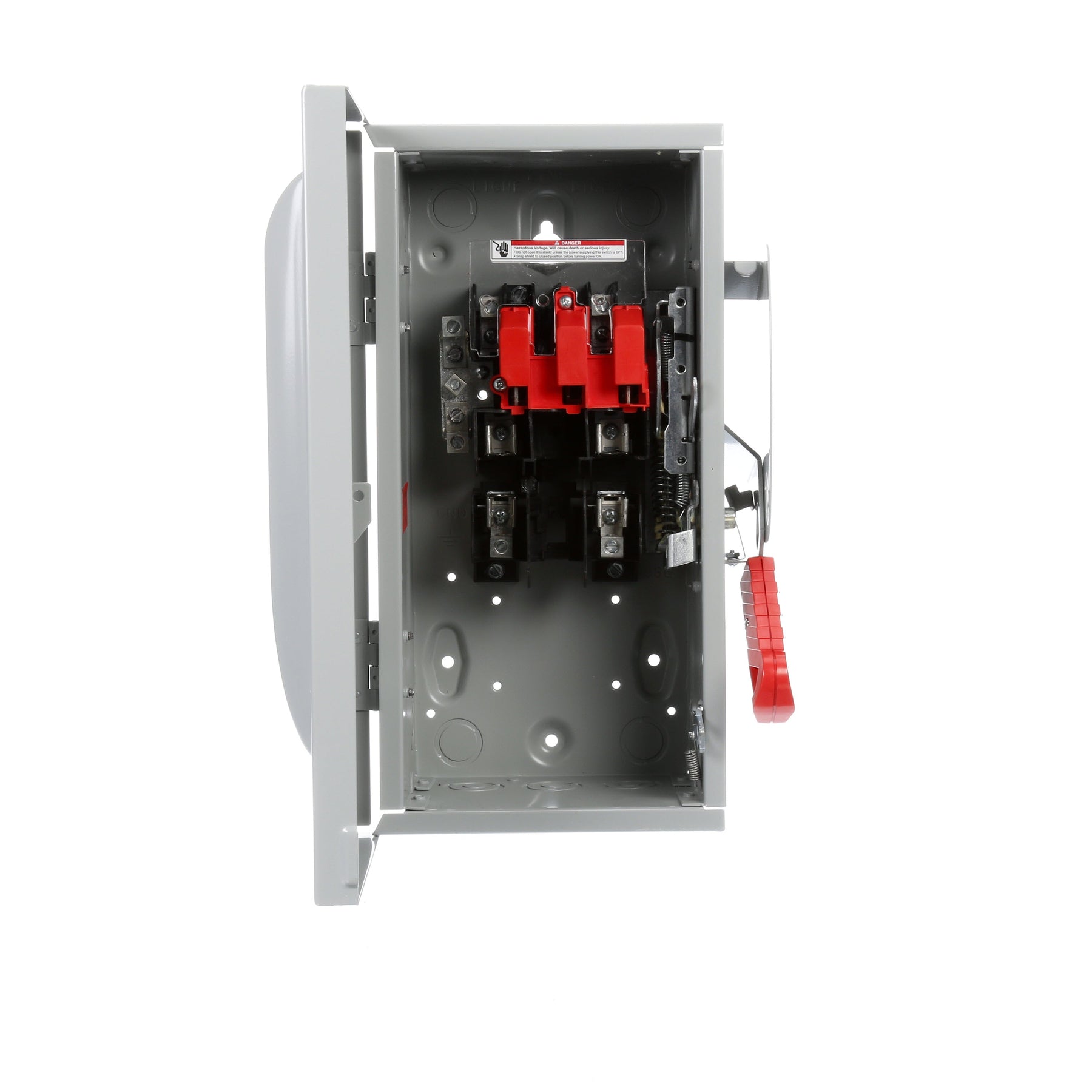

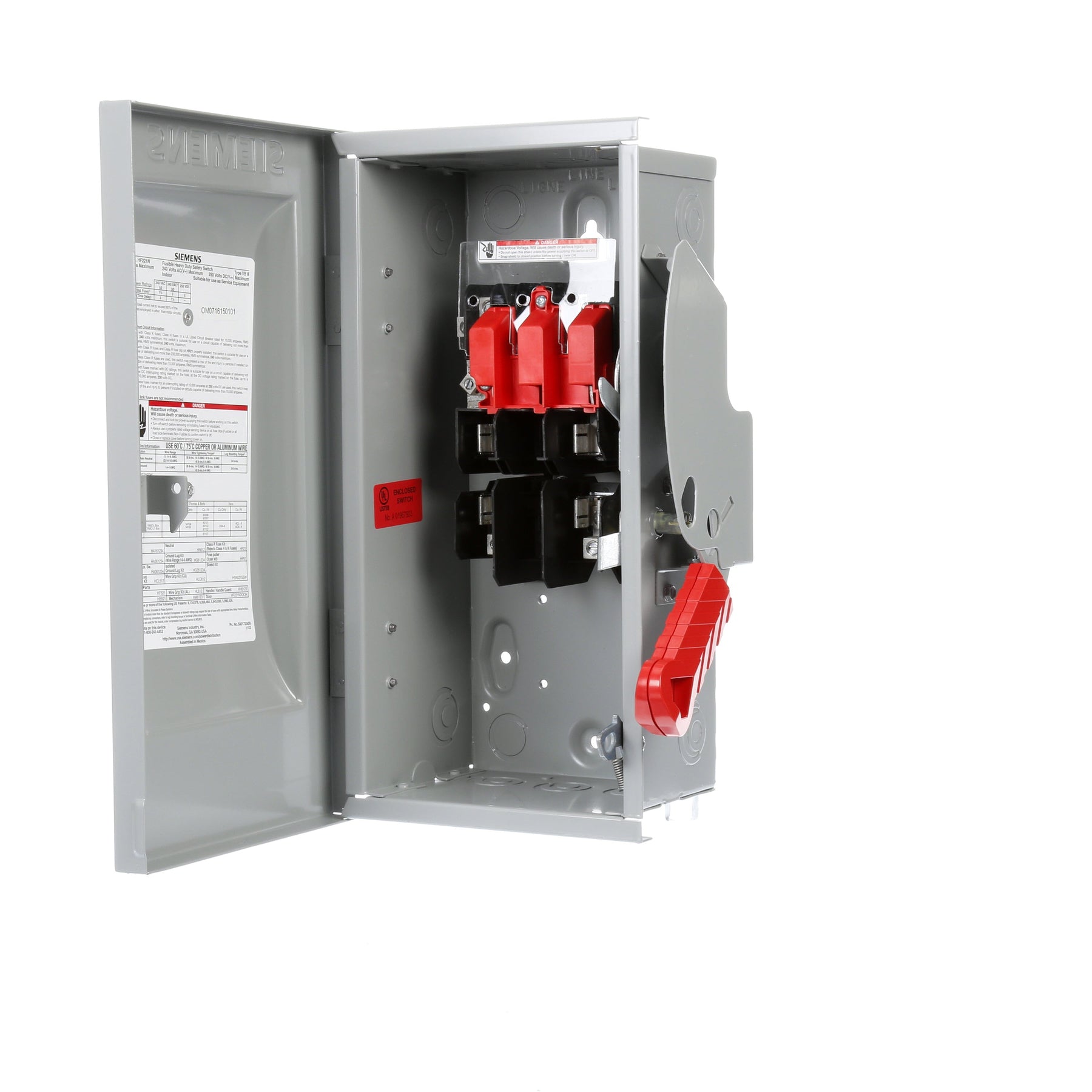

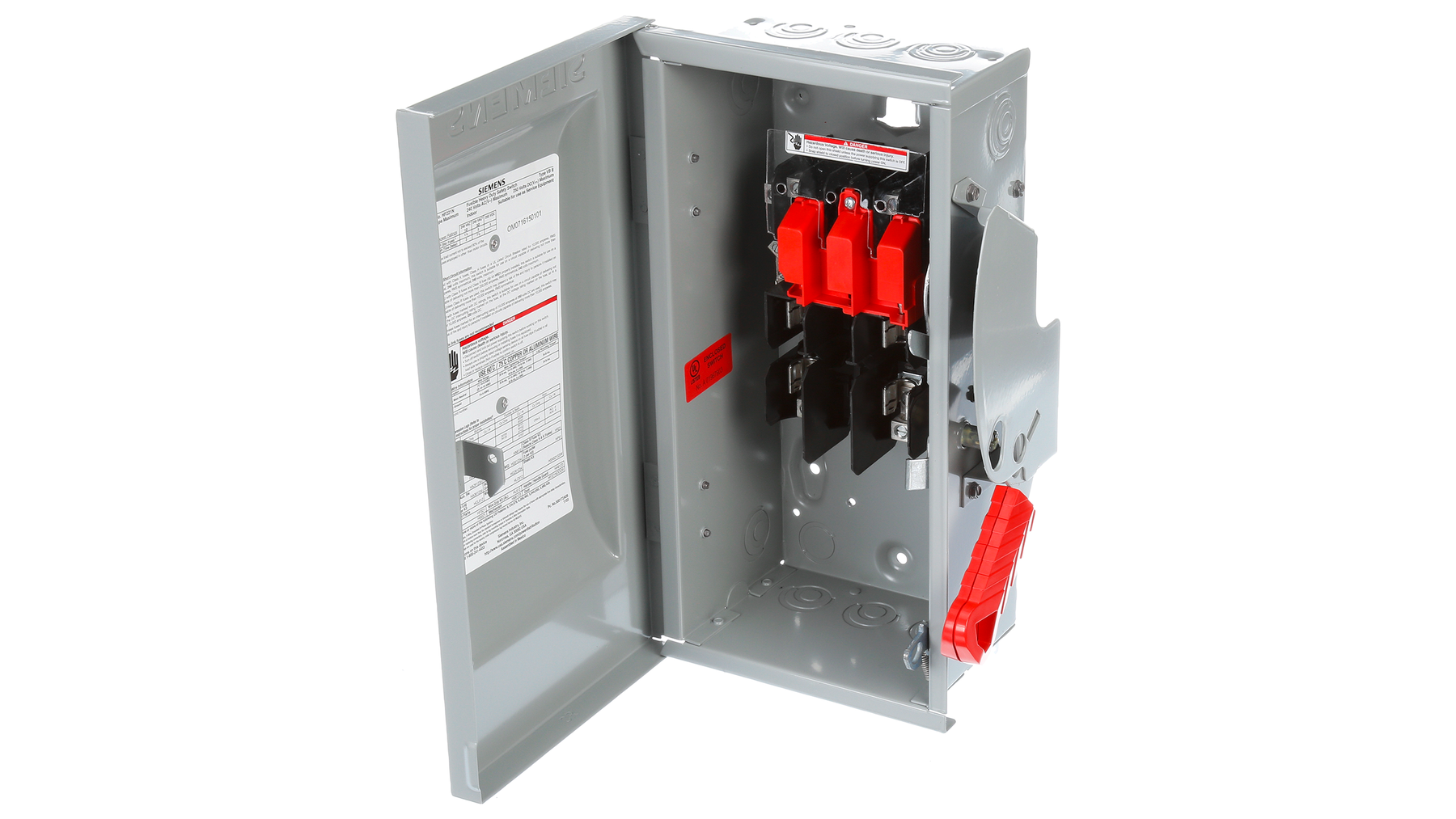

Siemens HF221N - Fusible Disconnect Switch, 30A 240V 2-Pole

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens HF221N is a fusible disconnect switch designed for providing a visible break and overcurrent protection in industrial power circuits. It is rated for 240V AC single-phase systems with a 30A current rating and features a 200kA interrupting capacity at 240V for robust short-circuit protection. The switch is constructed within a NEMA 1 enclosure measuring 14.6 x 7.75 x 8.89 inches and weighing 13.001 lb, and it is UL listed for safety compliance. As part of the VBII Series, it is compatible with MHP frames and utilizes Class R fuses, making it suitable for motor control centers, industrial machinery, and panelboard disconnecting applications.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, HF type, 2-pole, single configuration
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Dimensions: 14.6" x 7.75" x 8.89" (370.8 x 196.9 x 225.8 mm)
  • Standards: UL listed
  • Applications: Motor control centers, industrial machinery, panelboard disconnects
  • Switch Type: Fusible
  • Configuration: Single
  • Poles: 2
  • AIC rating: 200kA @ 240V
  • Nema Rating: NEMA 1
  • Phase: 1
  • Fuse Class: R
  • Compatible Frames: MHP
  • Weight: 13.001 lb (5.9 kg)
  • Family: VBII Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643150201
  • GTIN: 00783643150201
