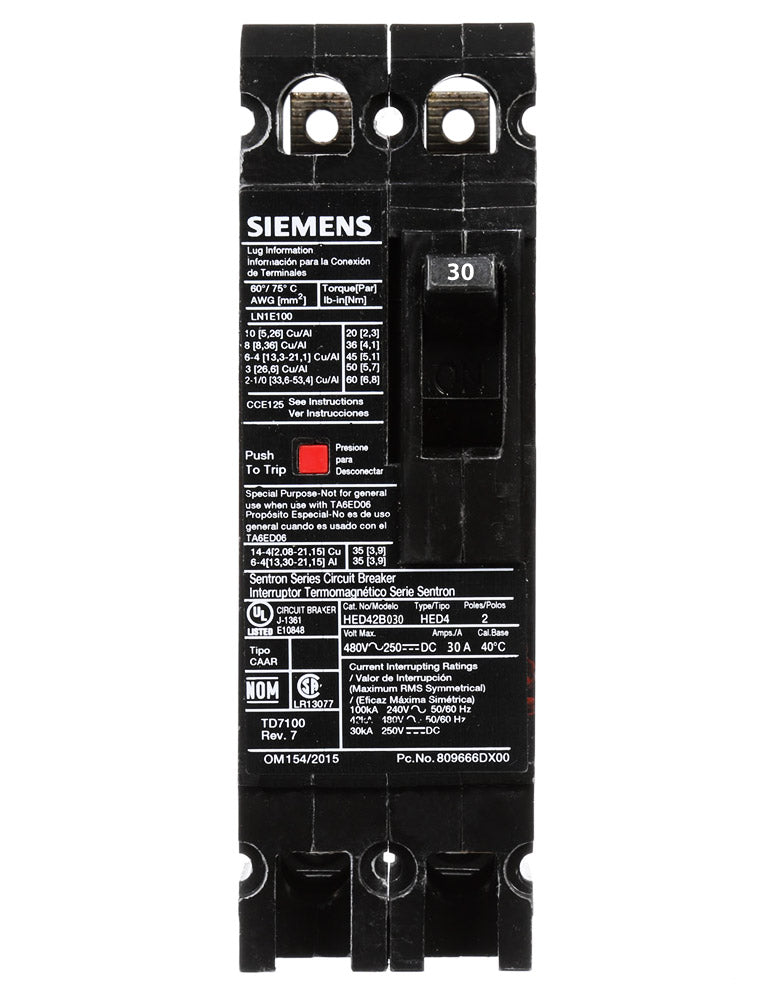

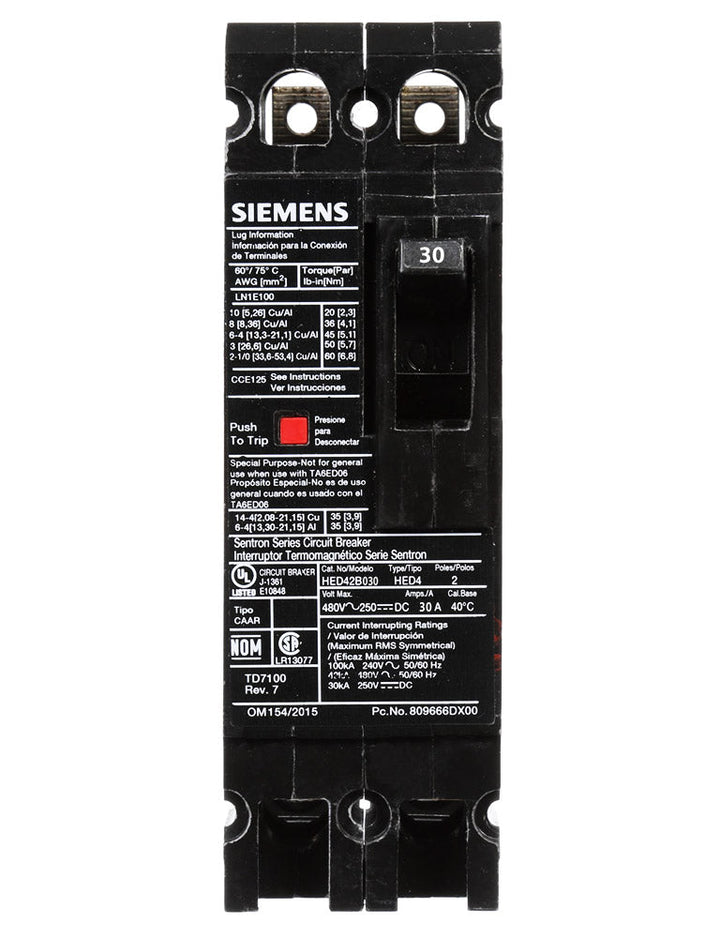

Siemens HED42B030 - Molded Case Breaker 30A 480V 42kA AIC
Siemens HED42B030 - Molded Case Breaker 30A 480V 42kA AIC

Siemens HED42B030 - Molded Case Breaker 30A 480V 42kA AIC

Siemens
Price
Save $1,451
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price
Siemens HED42B030 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 30A current rating and a 480V AC voltage rating, housed within a compact 125A/ED frame with a thermal-magnetic trip unit for long-time and instantaneous (LI) protection functions. The breaker is constructed for durability with load side lug connections, supports a minimum wire size of 12 AWG (Al) or 14 AWG (Cu) and a maximum of 10 AWG, and operates within a temperature range of -25 to 70 °C. It complies with key industry standards including UL 489 and IEC 60947-2, ensuring safety and interoperability. This high-interrupting capacity (42kA at 480V) breaker is typically applied in single-phase systems within SB switchboards and Sentron panelboards for branch circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, High Interrupting Capacity
  • Voltage Rating: 480V AC
  • Current Rating: 30A
  • Frame Size: 125A/ED
  • Poles: 2
  • AIC Rating: 42kA @ 480V
  • Phase: 1
  • Connection: Lug In Panelboard, Load Side Lug
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Standards: UL 489, IEC 60947-2
  • Panel Type: SB Switchboards, Sentron Panelboards
  • Phase Connection: Any
  • Breaker Type: High Interrupting Capacity
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • MCM Size / Wire Range: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 10 AWG
  • Weight: 0.218 lb
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643209978
  • GTIN: 00783643209978
