Siemens HEB2B020B - Molded Case Circuit Breaker 20A 2-Pole
Siemens HEB2B020B - Molded Case Circuit Breaker 20A 2-Pole

Siemens HEB2B020B - Molded Case Circuit Breaker 20A 2-Pole

Siemens
Price
Save $5,820.93
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

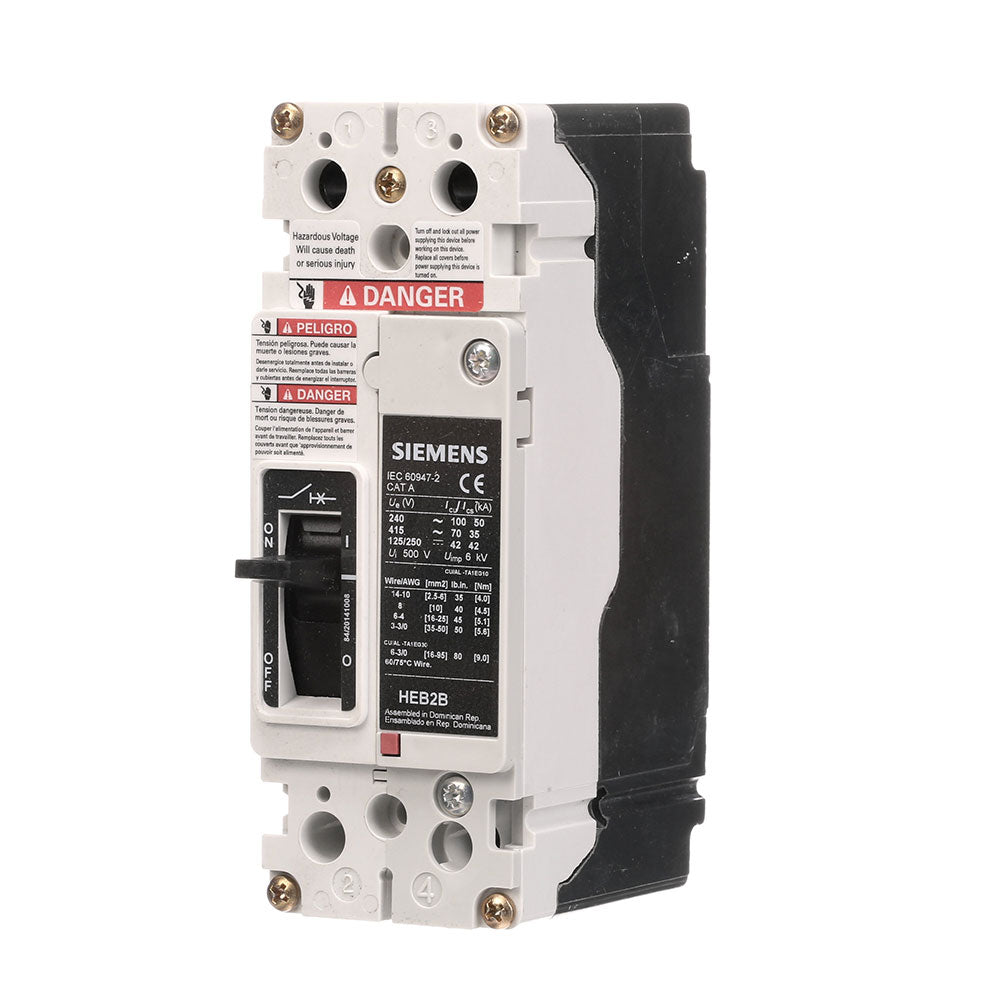

Siemens HEB2B020B is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 20A current rating and a 600V AC voltage rating, housed within a compact, durable enclosure measuring 90 mm x 170 mm x 100 mm (3.543" x 6.693" x 3.937") and weighing 1.962 lb. The breaker is UL Listed and employs a thermal-magnetic trip mechanism with long-time and instantaneous (LI) functions for coordinated protection, operating effectively in temperatures from -25°C to 70°C (-13°F to 158°F). Its 65kA interrupting capacity at 480V AC makes it suitable for safeguarding branch circuits in commercial and industrial panelboards, switchboards, and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 20A
  • Dimensions: 90 mm x 170 mm x 100 mm (3.543" x 6.693" x 3.937")
  • Standards: UL Listed
  • Applications: Industrial Panelboards, Switchboards, Motor Control Centers
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 1
  • AIC rating: 65kA @ 480V AC
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: HEB Series
  • Trip Type: Thermal-Magnetic
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Mounting: Fixed
  • Certification: UL Listed
  • Circuit Breaker Mounting Style: Fixed
  • Terminal Connection: Bolt-On
  • Standards: UL 489
  • Installation Type: Fixed
  • Breaker Frame: HEB


Product Identification
  • UPC: 783643558816
  • GTIN: 00783643558816
