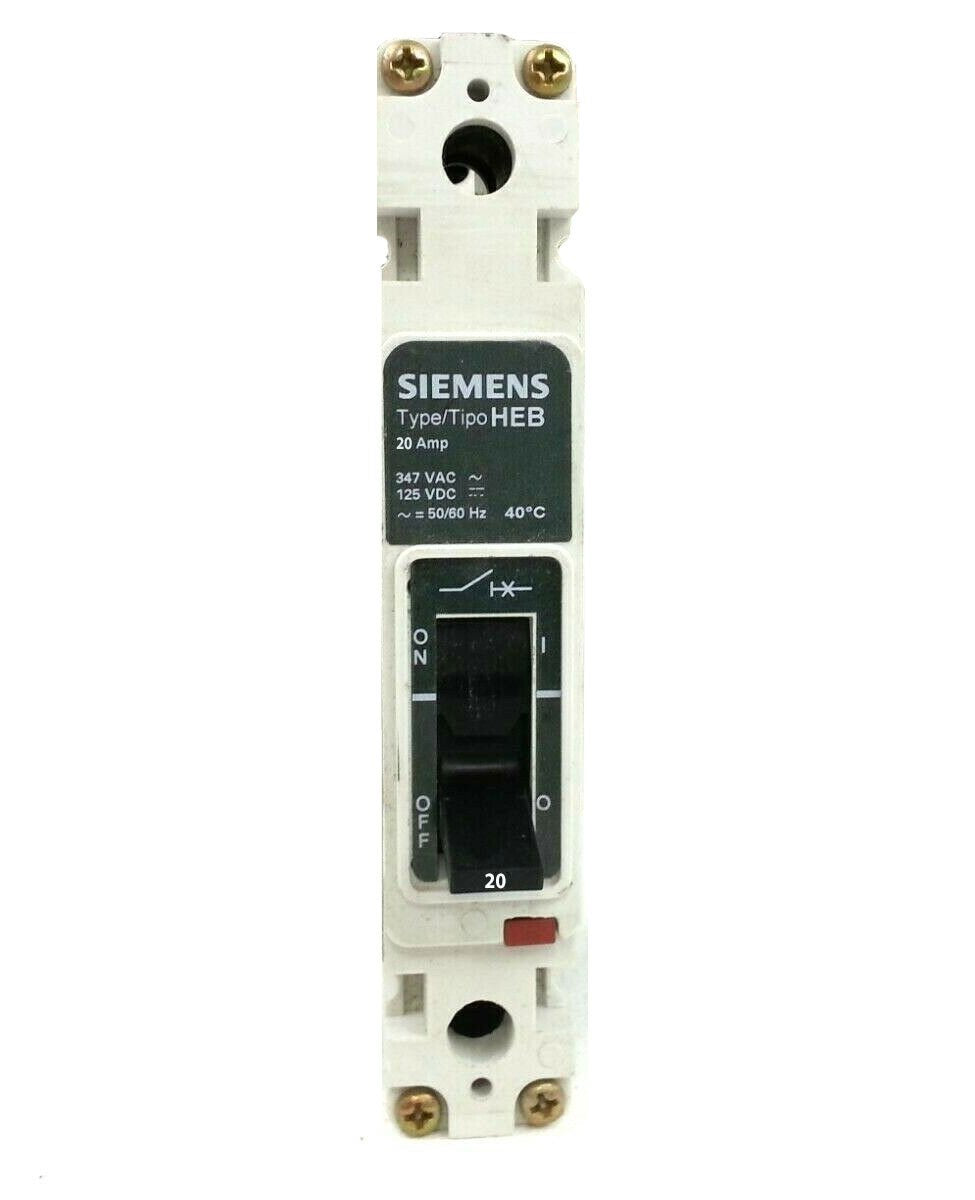

Siemens HEB1B020B - Molded Case Circuit Breaker 20A 1P (65kA AIC)
Siemens HEB1B020B - Molded Case Circuit Breaker 20A 1P (65kA AIC)

Siemens HEB1B020B - Molded Case Circuit Breaker 20A 1P (65kA AIC)

Siemens
Price
Save $2,450.32
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens HEB1B020B is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 20A current rating and a 277V AC voltage rating, suitable for single-phase applications. The compact unit, measuring 200 x 130 x 30 mm (7.874" x 5.118" x 1.181") and weighing 0.661 lb, utilizes a robust thermal-magnetic trip mechanism with long-time and instantaneous (LI) functions for coordinated protection. It complies with industry standards and is engineered for a wide operating temperature range of -25°C to 70°C (-13°F to 158°F). Typical applications include protection for feeders, motors, and branch circuits within panelboards and switchboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 277V AC
  • Current Rating: 20A
  • Dimensions: 200 x 130 x 30 mm (7.874" x 5.118" x 1.181")
  • Standards: Designed to meet applicable industry standards
  • Applications: Industrial and commercial feeder, motor, and branch circuit protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 1
  • AIC Rating: 65kA at 277V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Wire Size: AWS 8 to AWS 1/0, Copper or Aluminum
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Frame Size: HEB Series
  • Trip Type: Thermal-Magnetic
  • Breaker Type: Molded Case
  • Mounting: Panel Mount
  • Hz: 50/60 Hz
  • Certification: Industry Standard Compliance
  • Circuit Breaker Mounting Style: Fixed
  • Terminal Connection: Bolt-On
  • Frequency Rating: 50/60 Hz
  • Phase Connection: Single Phase
  • Standards: Industry Standard
  • Installation Type: Fixed
  • Breaker Frame: HEB
  • Operating Temperature Maximum Celsius: 70°C


Product Identification
  • UPC: 783643558663
  • GTIN: 00783643558663
